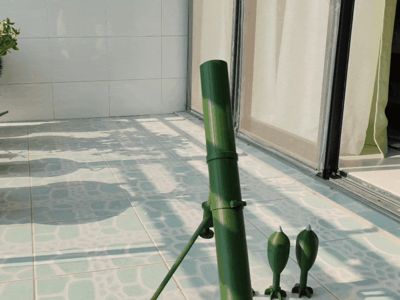

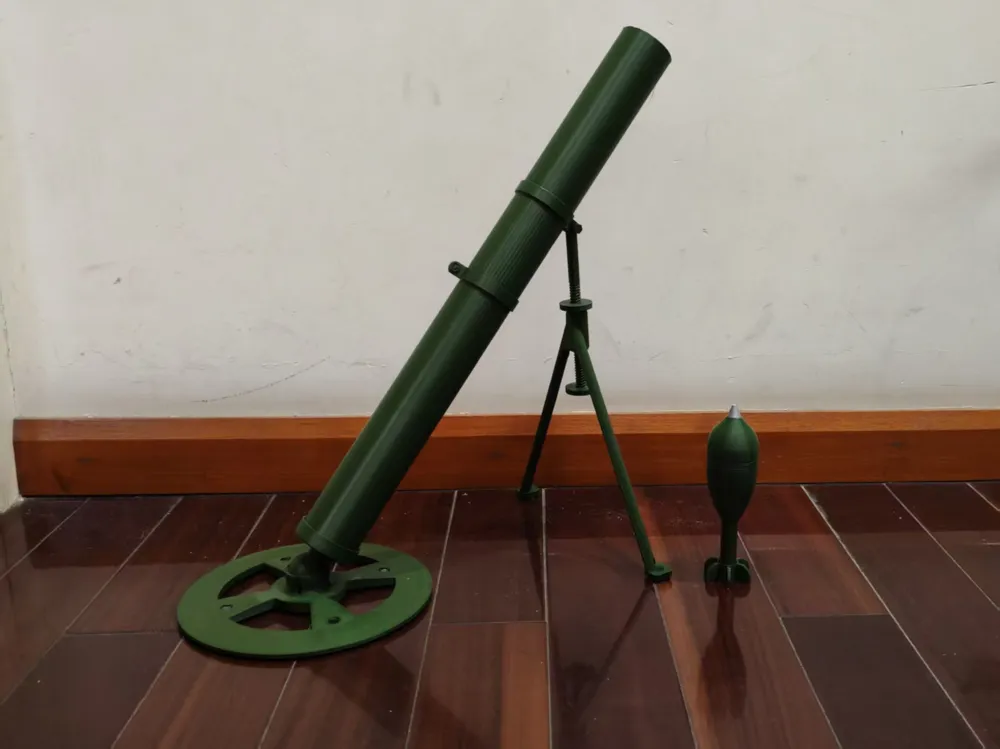

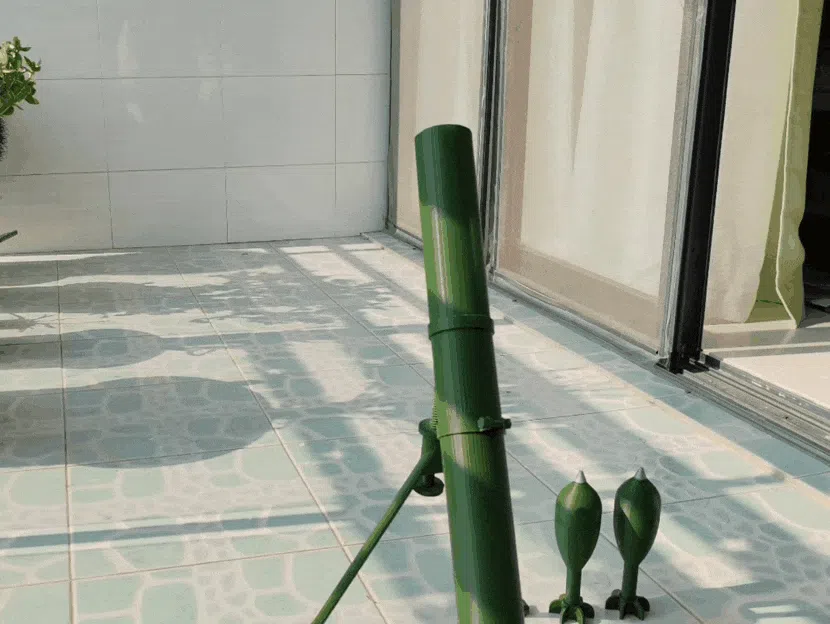

Launchable 44mm Mortar 2.0
Print Profile(2)
Description
Boost Me (for free)
Many children are curious about the military dreaming of becoming soldiers Let 3D printing make their dreams come true
Artillery Parameters
Caliber: 44mm
Total Cannon Weight: 0.376 kg
Maximum Range: 3 meters
Projectile Weight: 0.044 kg

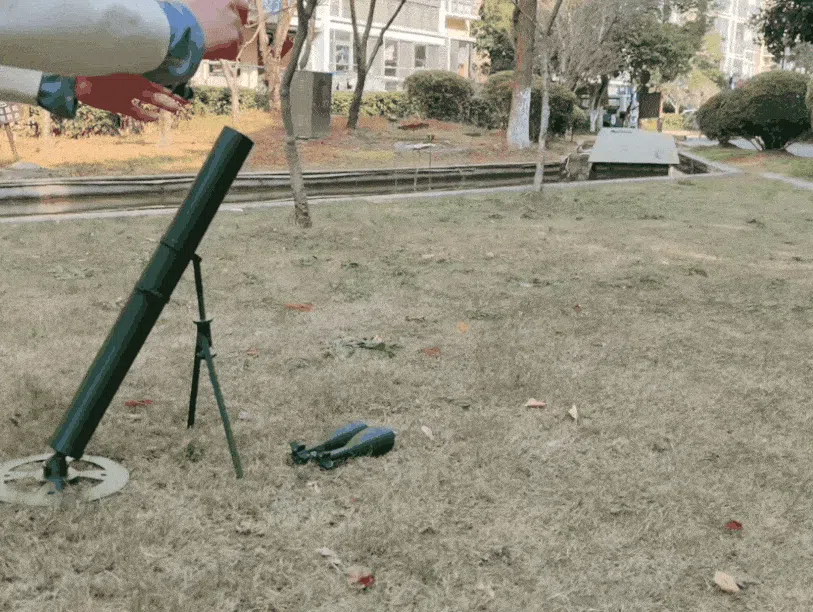

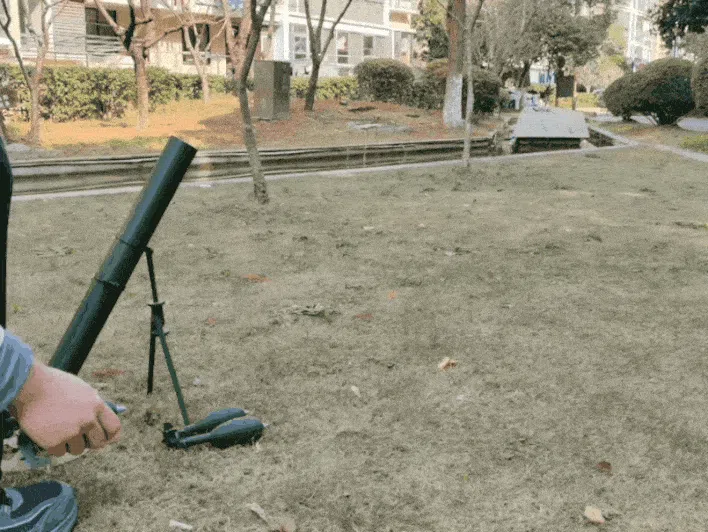

This launchable 44mm mortar highly replicates the operation of a mortar put the projectile into the barrel the projectile falls the primer strikes the firing pin the entire sequence of actions is smooth
Based on the original mortar model I made improvements changing many non-3D printed parts to 3D printable ones and changed the threaded connection for the fins to a direct friction fit (can be reinforced with glue) effectively preventing the projectile from breaking upon impact You only need to prepare a metal spring (wire diameter 0.8mm outer diameter 7mm please cut the length to 100mm) to complete it Assembly video https://b23.tv/50DCymm
Safety Warning Strictly forbidden to fire at people Do not stand in front of the muzzle Do not point the tail of the projectile at people to prevent accidental injury from ejection During transportation the projectile should not be loaded
Disclaimer Any personal injury accidents or property damage caused by improper operation shall not be borne by the author of this model
