VW HVAC Blower Link — Replacement Mechanical Connector (3D-Printable)
This part is a redesigned replacement for the small plastic mechanical link inside the VW HVAC system.
When this piece cracks, the cabin fan / heater may stop working or only blow in certain positions.
This model restores proper movement of the internal flap mechanism and brings back normal airflow.

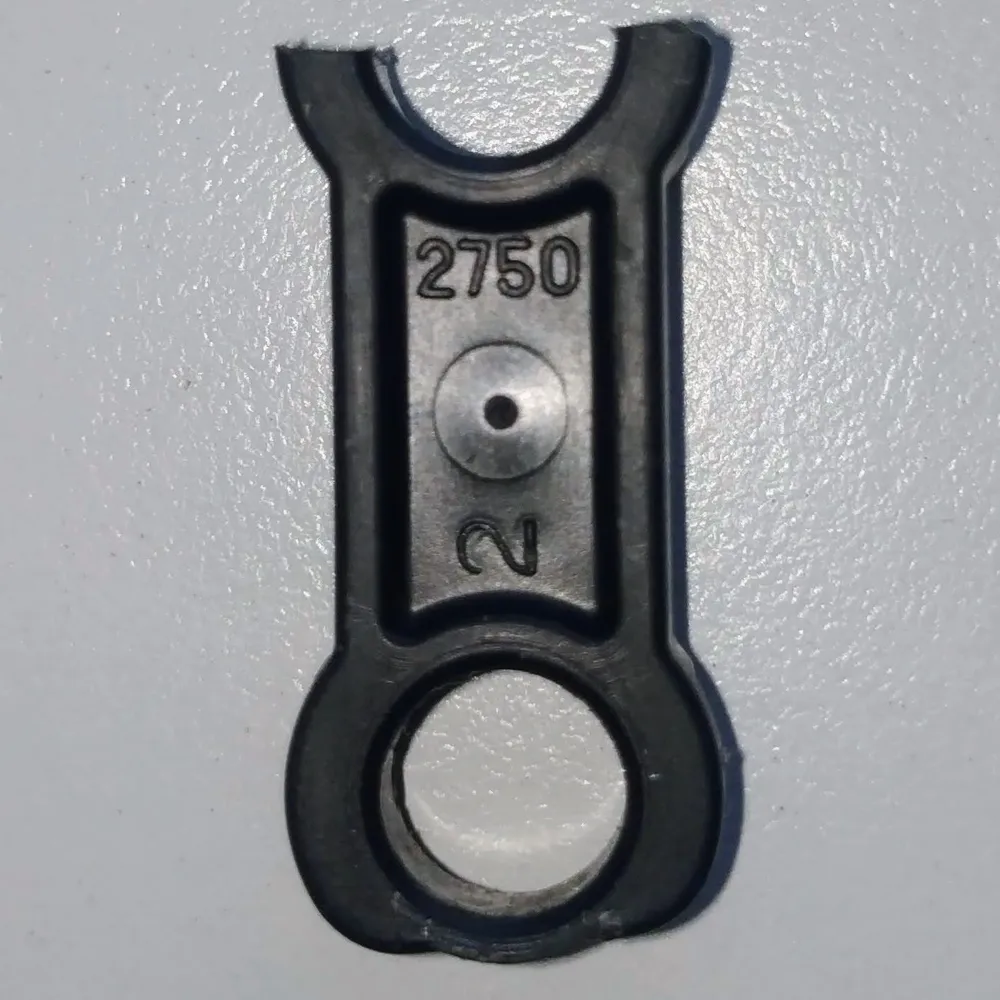

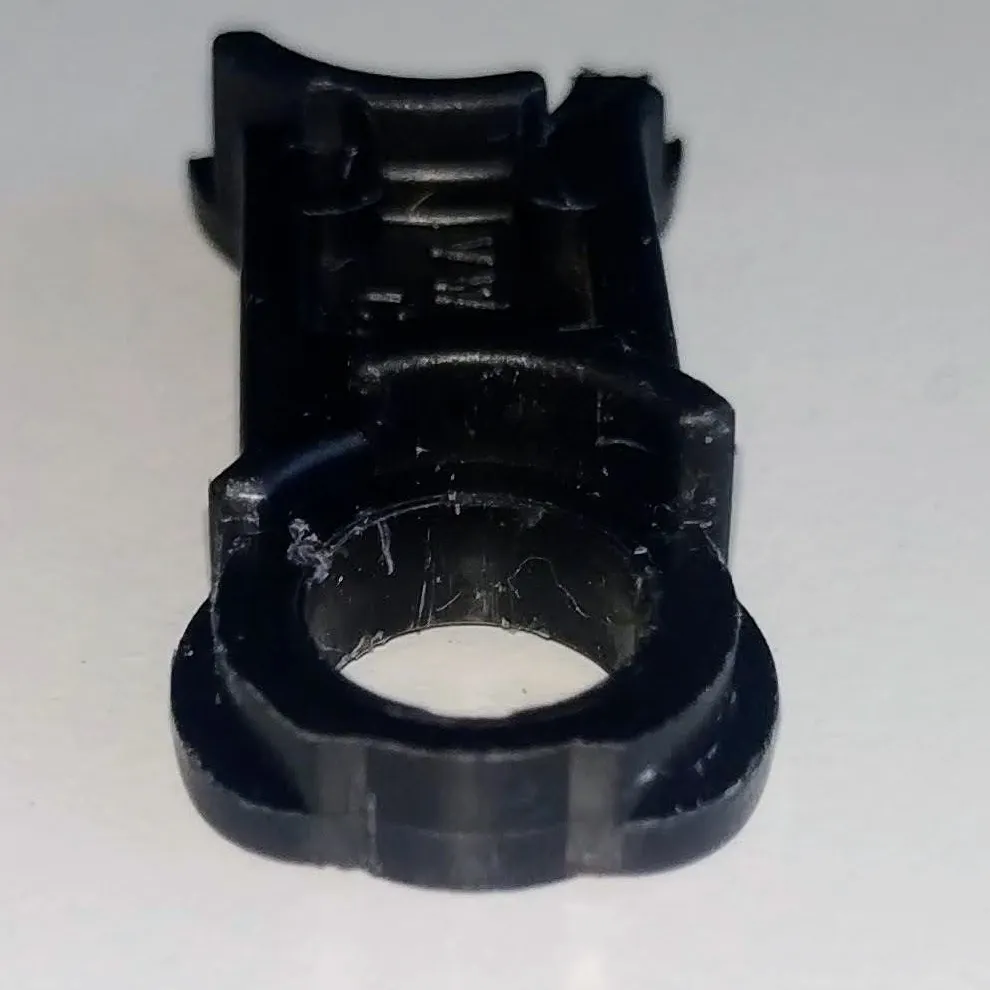

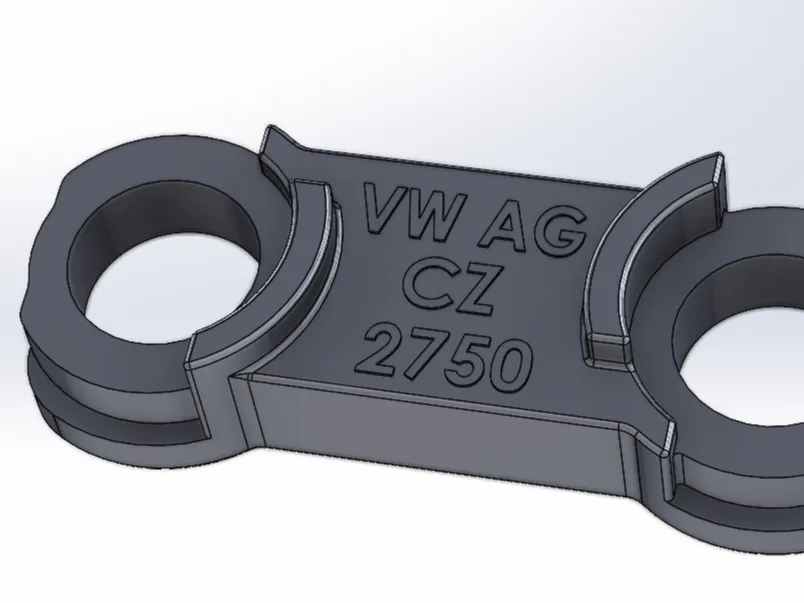

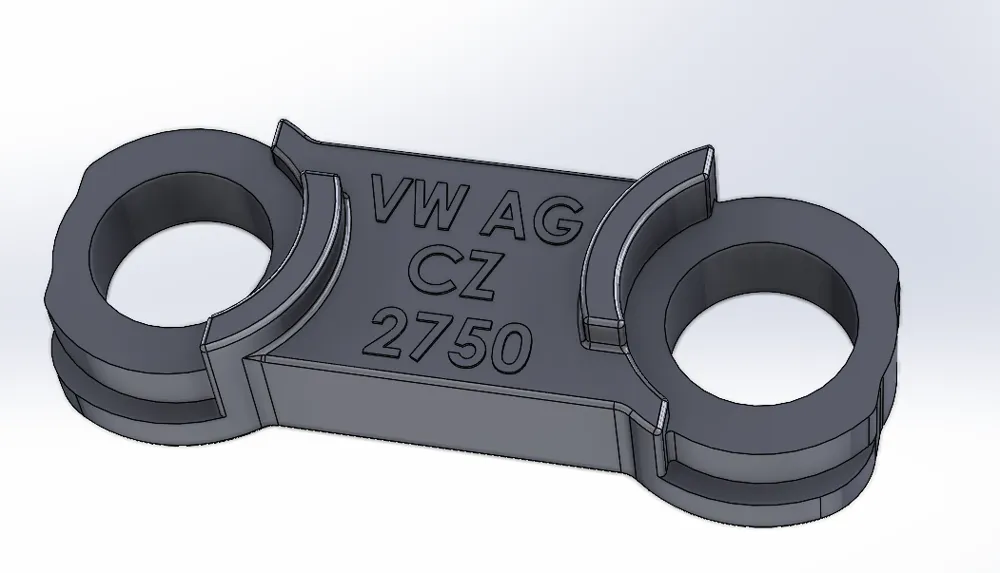

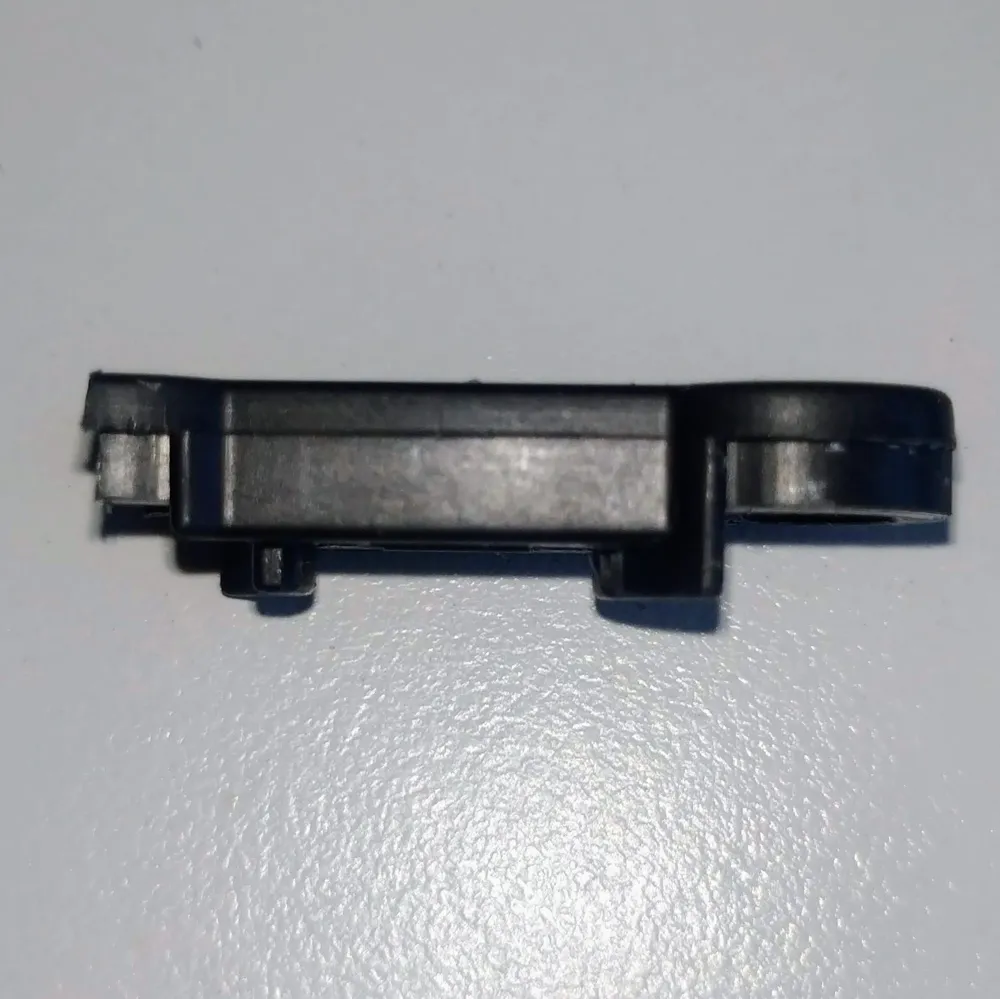

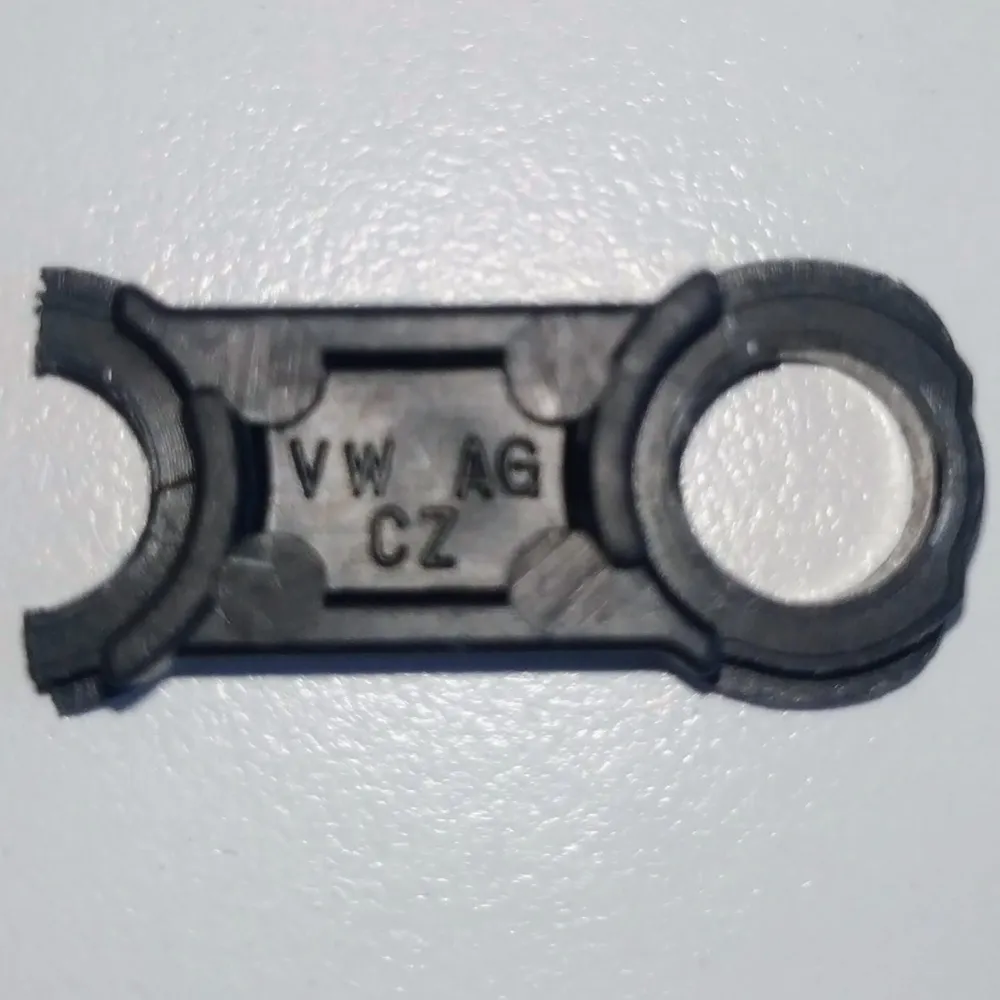

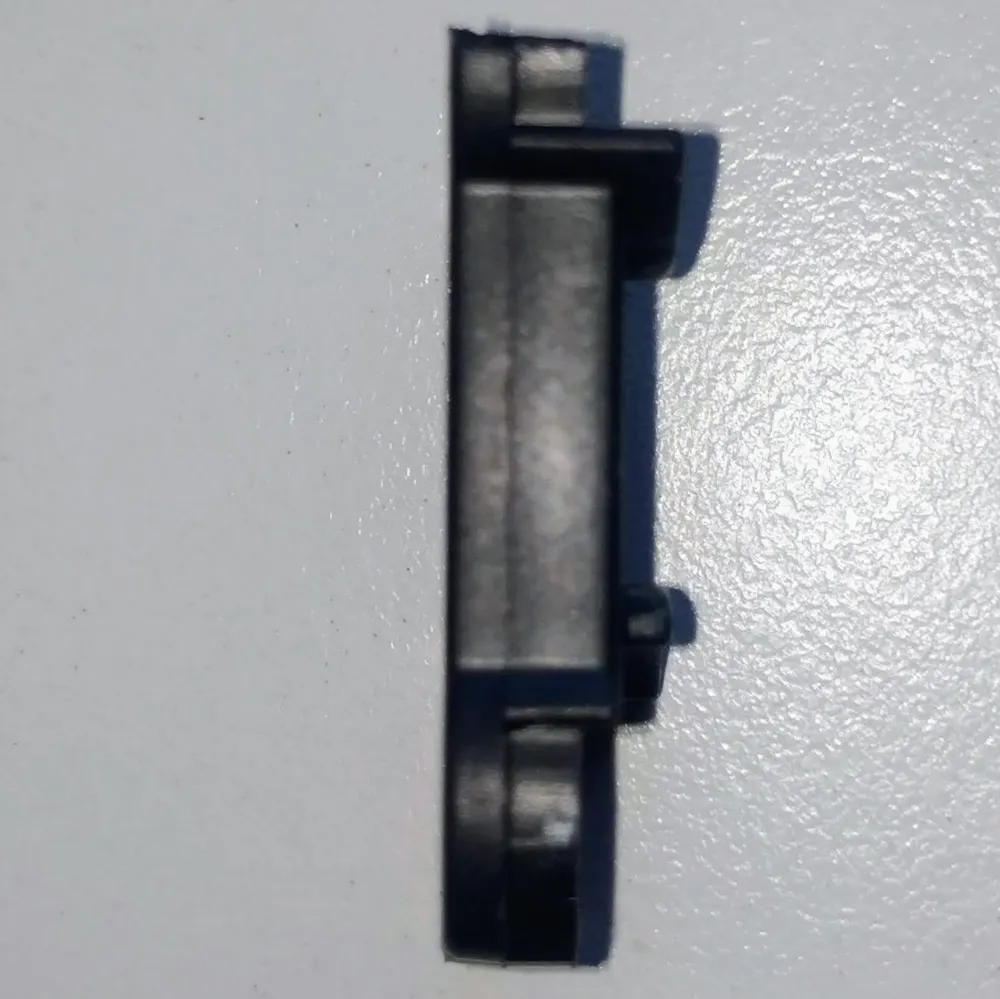

Built from a broken real part and remodeled for better strength.
🔍 Symptoms this part can fix
- No air blowing from vents
- Air only works sometimes / only at certain settings
- Clicking or loose feeling inside HVAC controls
- Flap doesn’t move when adjusting airflow
✔ Compatibility
Designed for VW Group vehicles that use this style HVAC link
(VW / Škoda / SEAT variants may also fit).
👉 Always compare shape & dimensions with your original part before printing.
If needed, I can tweak dimensions.

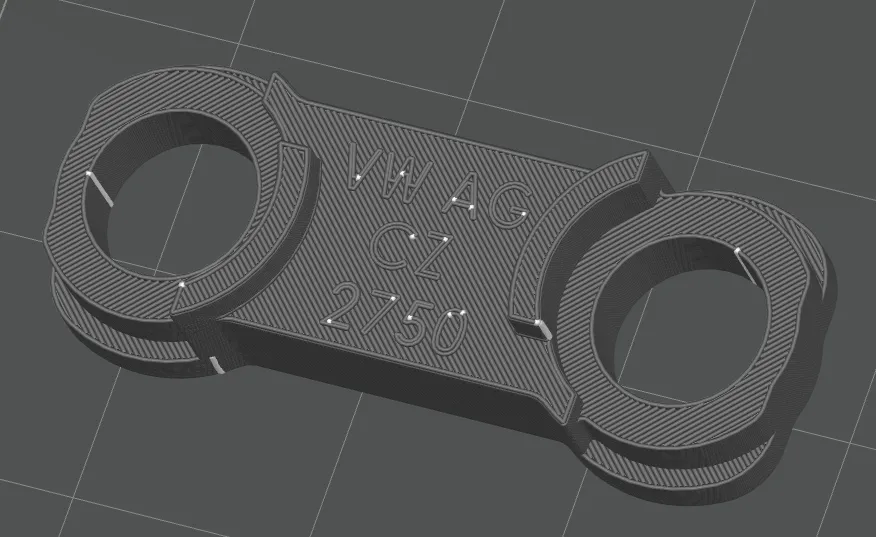

🖨 Recommended printing
Material
- ASA / ABS — best choice (heat + cabin temperature resistant)
- PLA / PETG not recommended (may deform over time)
Settings
- Nozzle 0.2mm
- Layer height: 0.1 mm
- Walls: 8
- Infill: 100%
- Supports: not required
Test fit gently first. Slight sanding may help if tight.
🔧 Installation
Remove the broken link and snap this replacement into the mechanism.
No glue required if tolerances are correct.
Takes only a few minutes once the HVAC unit is open.
💡 Note
This is a repair part — not an OEM component.
Use at your own risk. Heat, tolerances and wear may vary between vehicles.
