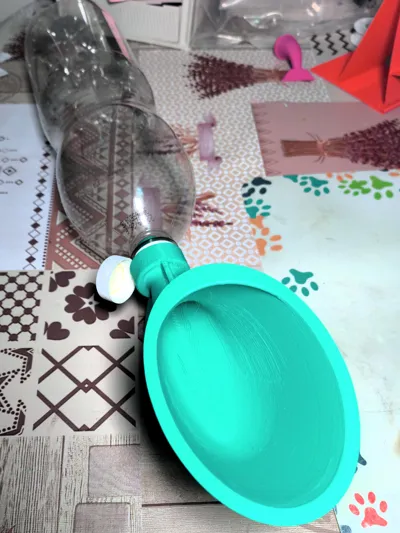

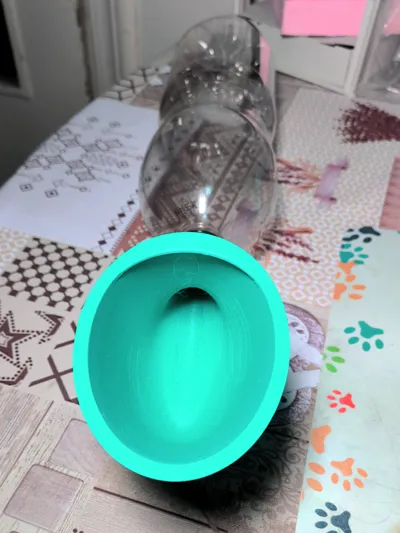

Emergency Urinal Funnel for PET Bottles

Emergency Urinal Funnel for PET Bottles

A model designed for the most necessary and emergent moments of our lives when our dignity is compromised, it can save us from uncomfortable and vulnerable situations where accessing a bathroom is impossible

Features:

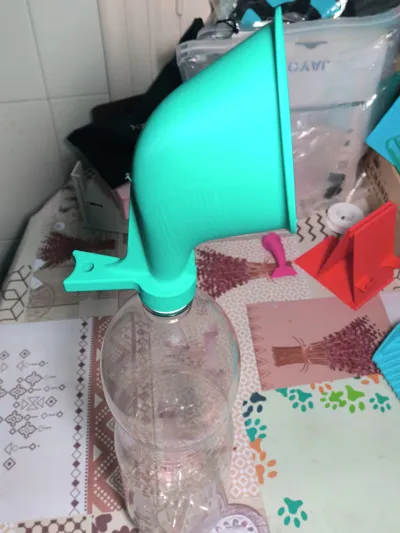

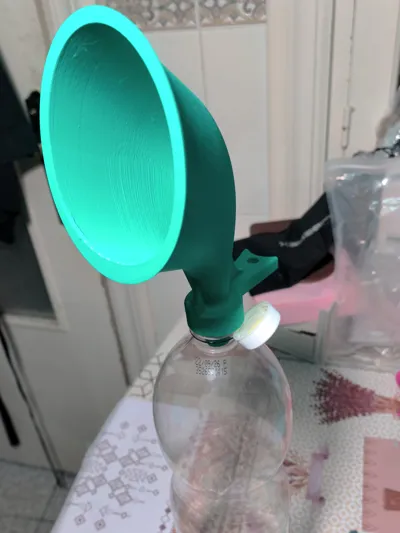

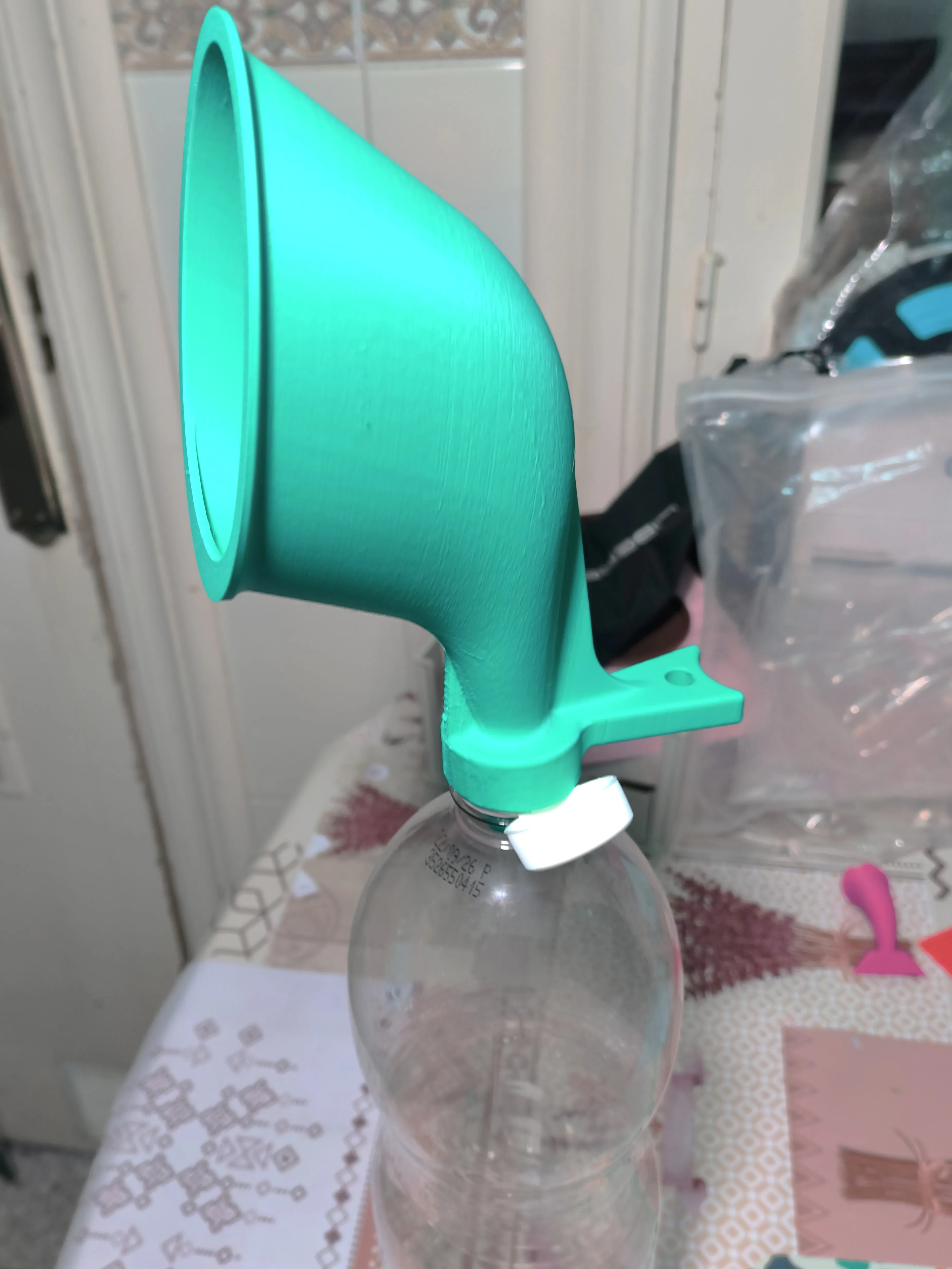

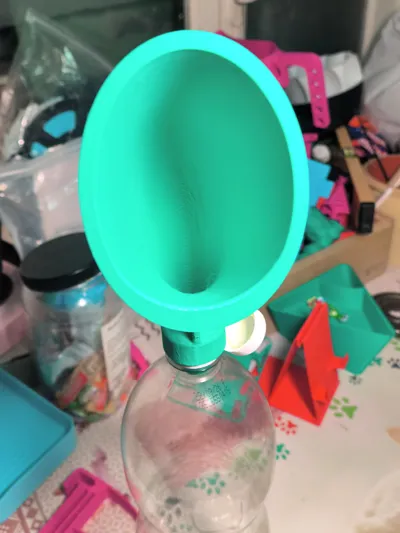

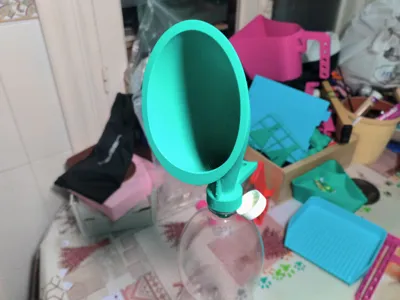

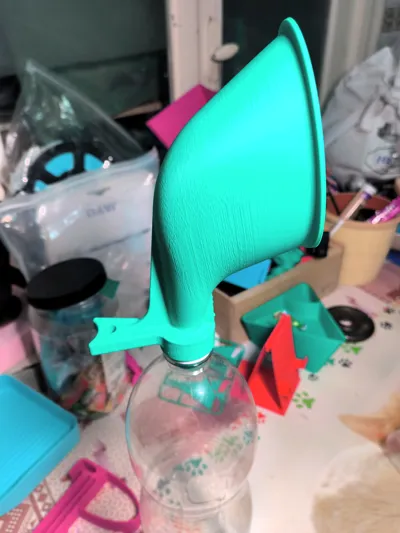

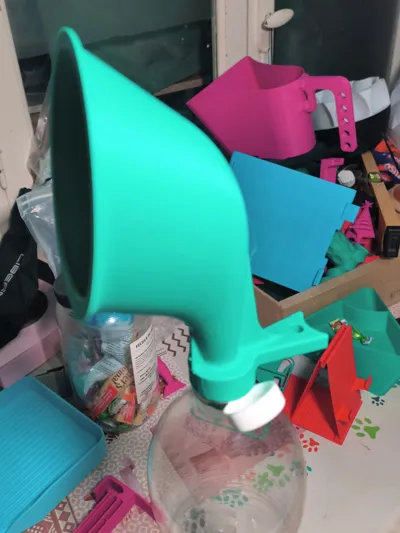

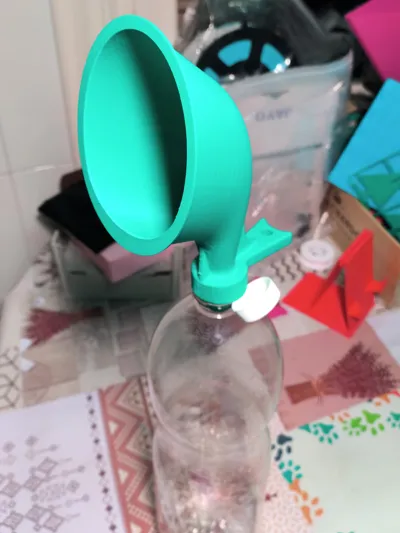

• PET Bottle Compatibility.- It is designed to be compatible with the standard thread of all commercial PET bottles
• Unisex.- The model is designed for use by both men and women
• Design and Shape.- Its adapted shape allows it to conform to male and female genitals, preventing spills or staining outside of it
• Places of use.- In traffic jams, camping, music festivals, motorcycle trips, caravans, motorhomes, etc
• Durability.- The model is designed to be resistant to falls, temperature, and liquids, although it is important to remember that it is a printed model
• Outer Funnel.- Its side funnel design allows for comfortable and efficient channeling of all liquid entered, preventing splashes outwards
• Inner Funnel.- Below the thread, a small cone extends, acting as a drip edge to prevent splashing and soiling the PET bottle's thread
• Watertightness.- The entire model is designed as a single body to prevent possible leaks from falls, but this does not mean it is completely watertight Therefore, it is recommended to wash the urinal funnel and remove it from the bottle once used
• Hygiene.- The model is designed for temporary or emergency situations and not for daily use as it is well known that bacteria can proliferate between layer unions It is advisable to use a lacquer or epoxy resin to paint and seal the pores and joints of the model
• Waste Disposal.- The bottle itself and its internal contents are considered biological waste, so they must be disposed of in appropriate places and not in common trash containers It is recommended to pour the liquid into a toilet and wash the bottle before discarding it

Print Features:

• Recommended Filament: PLA or PETG
• Bed adhesion: No
• 3 walls, 15% infill
• Supports: Yes (Tree, Snug)
• Model size 180mmx170mmx50mm

CLEANING AND HYGIENE

For cleaning after use, clean water should be used and poured through the same areas where it was used. Once this is done, the funnel can be unscrewed and the PET bottle can be capped with its original lid
