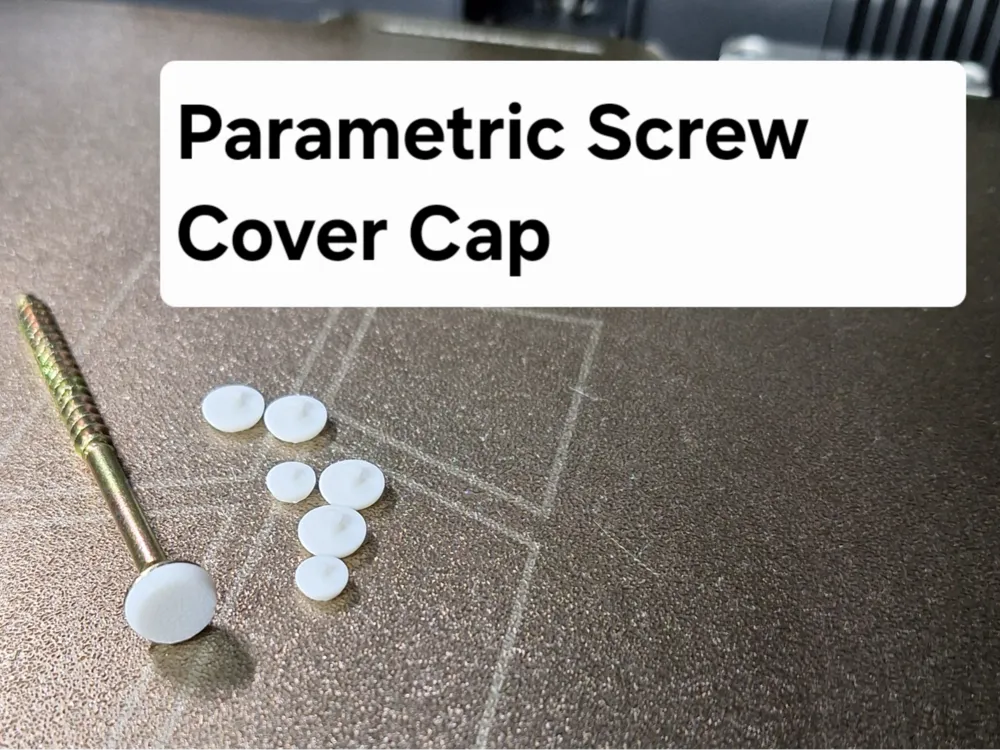

Parametric Screw Cover Cap
Print Profile(1)
Description
-----AD-----
Are you also huge fans of the Gridfinity system, but struggle to create the perfect layout for your drawers, boxes, or storage spaces?
That is exactly the problem GRUND.DEV (aka Makerworld: Xc1Camtain) and I wanted to solve… and we developed (drumroll please 🥁🥁🥁)
A FREE WEB APP that plans your Gridfinity layout for ANY drawer size — with simple mouse clicks and a live 3D preview: Gridfinity Studio (https://gridfinity.ftdesign.at/)
Boost Me (for free)
If you'd like to see more high-quality models and practical ideas, every Like, Follow, Download, Print, and Boost helps us continue creating and improving our projects. They're completely free for you and make a big difference to us. Thank you for your support! 🚀
-----Model description-----

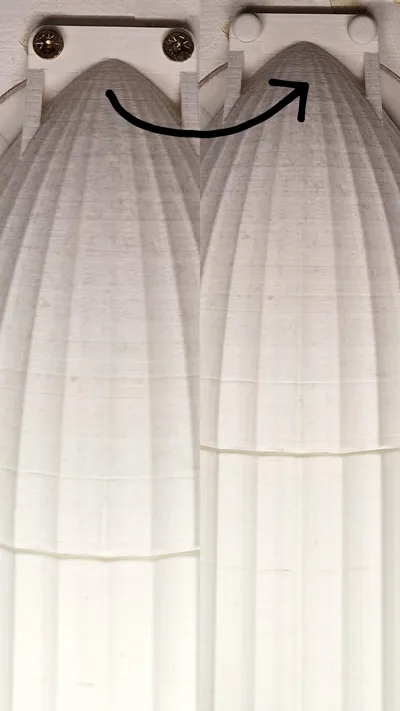

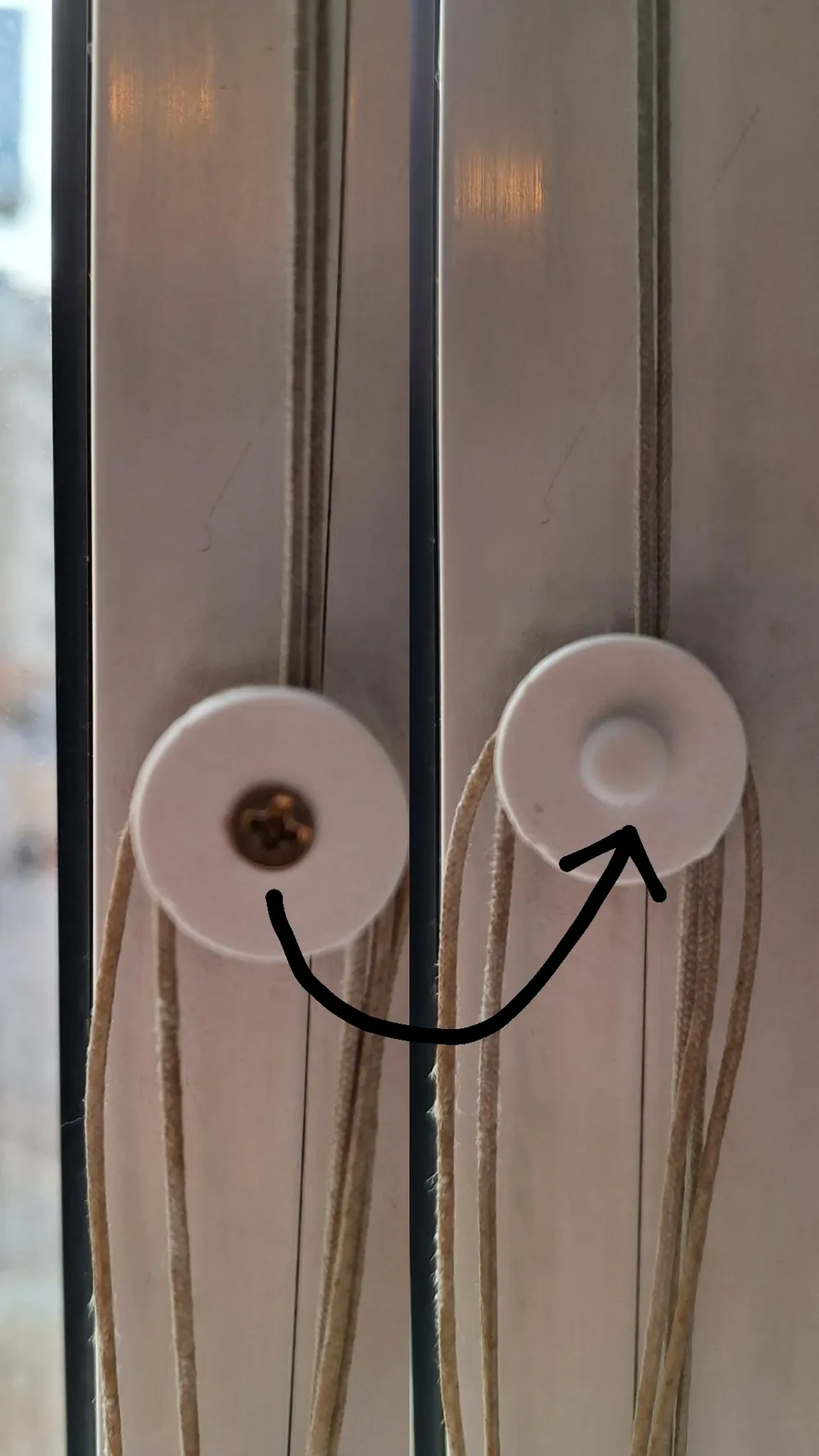

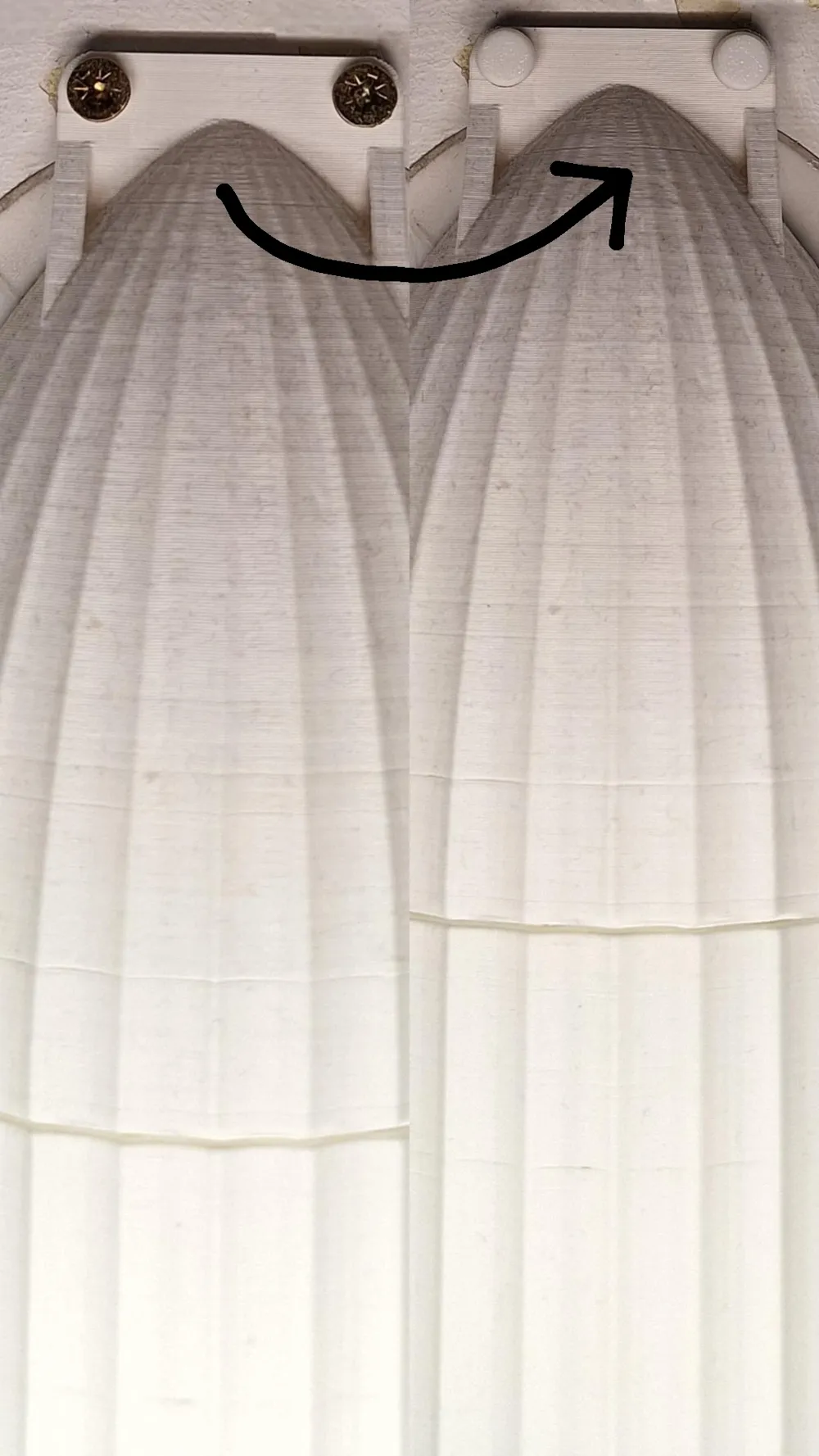

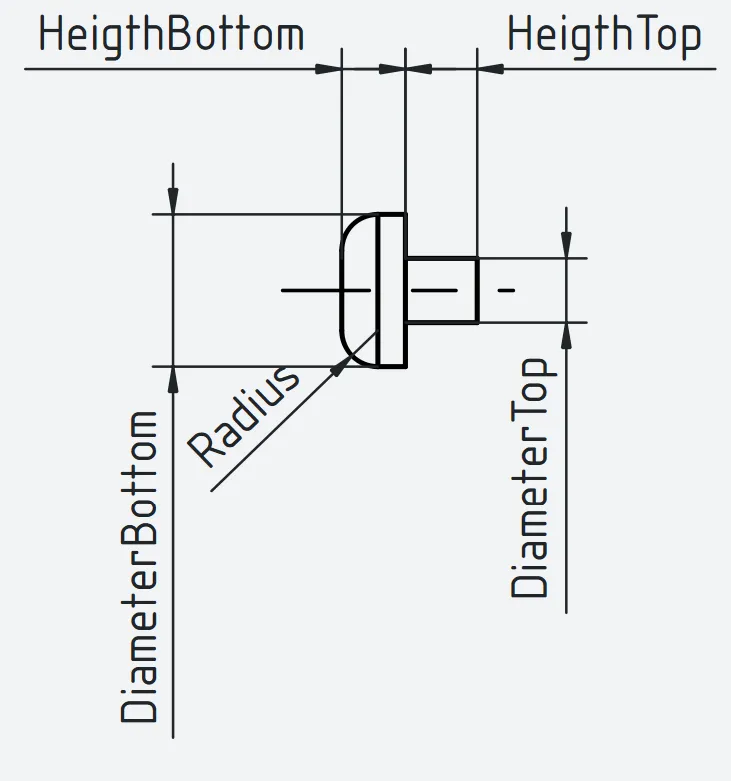

This model is a parametric screw cover designed to hide visible screw heads and improve the overall appearance of your project. All key dimensions can be adjusted using parameters, making it easy to fit different screw head diameters and heights. Each parameter directly matches the dimensions shown in the reference illustration, so you can clearly see which value controls which measurement and adjust the model in a reliable way.

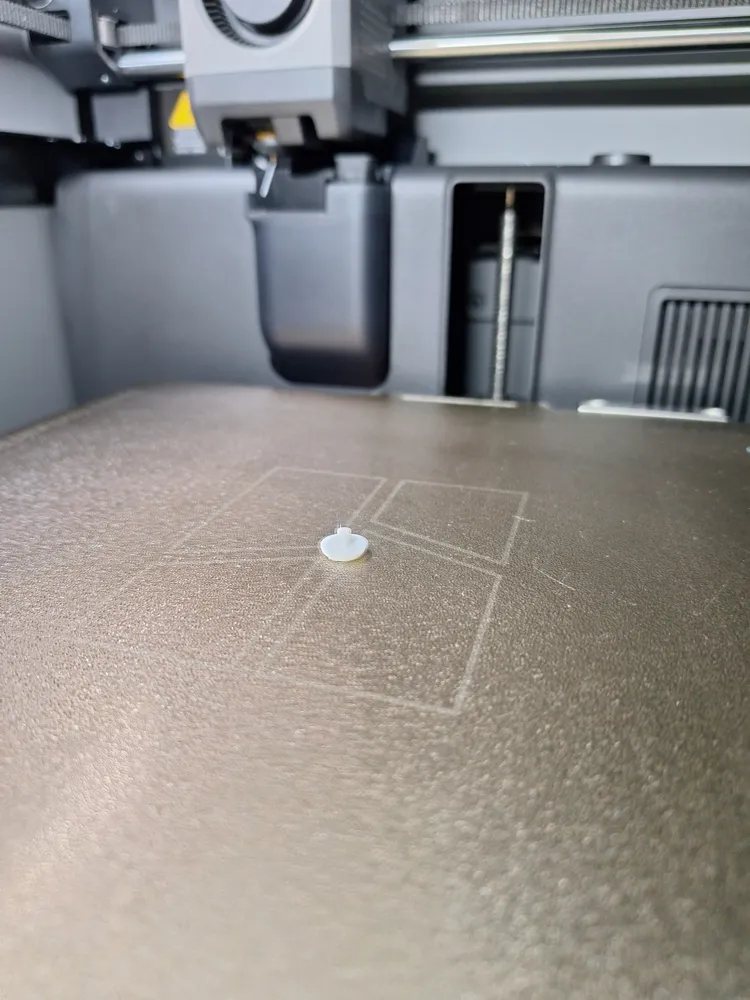

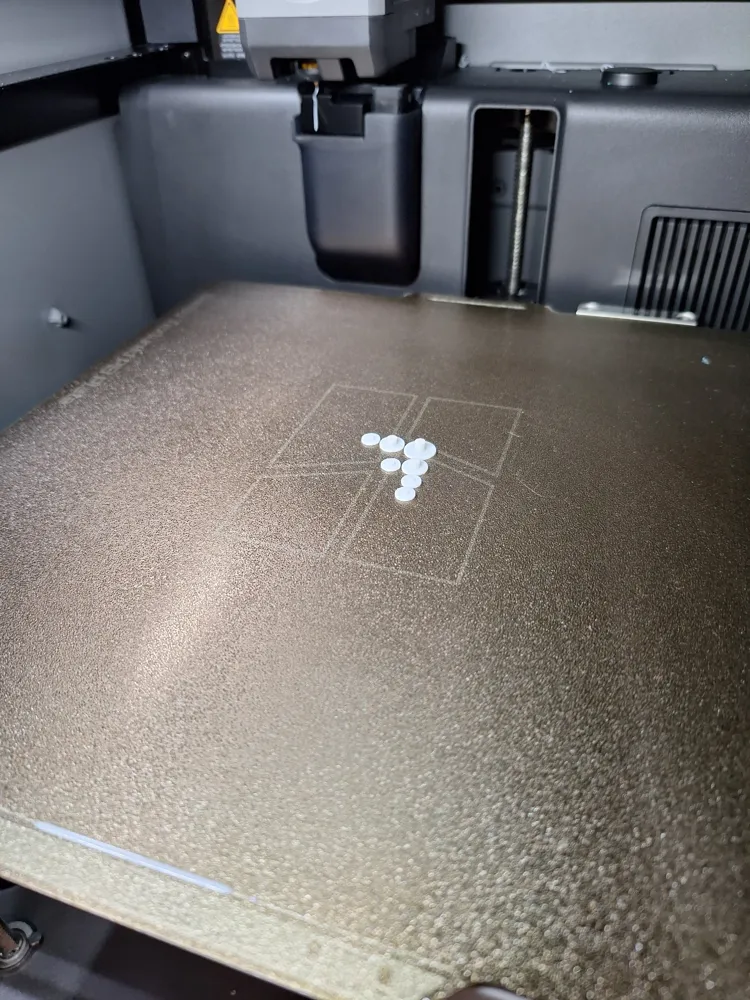

The screw cover is designed as a single part and can be 3D printed without supports. A ready-to-use print profile is included as a template. Simply remove the existing covers in the profile and replace them with your own customized versions. The model does not assume any specific screw type or standard, giving you full control over all relevant dimensions.
Update 09.06.2026:
I've optimized the parameter file — check it out!
If you like my model or print profile, I appreciate every comment. Your feedback helps me continuously improve my designs and print profiles to provide the best possible results for the community. Thank you for your feedback. :)
