Description

Boost Me (for free)

If you love this chassis please consider leaving me a boost!

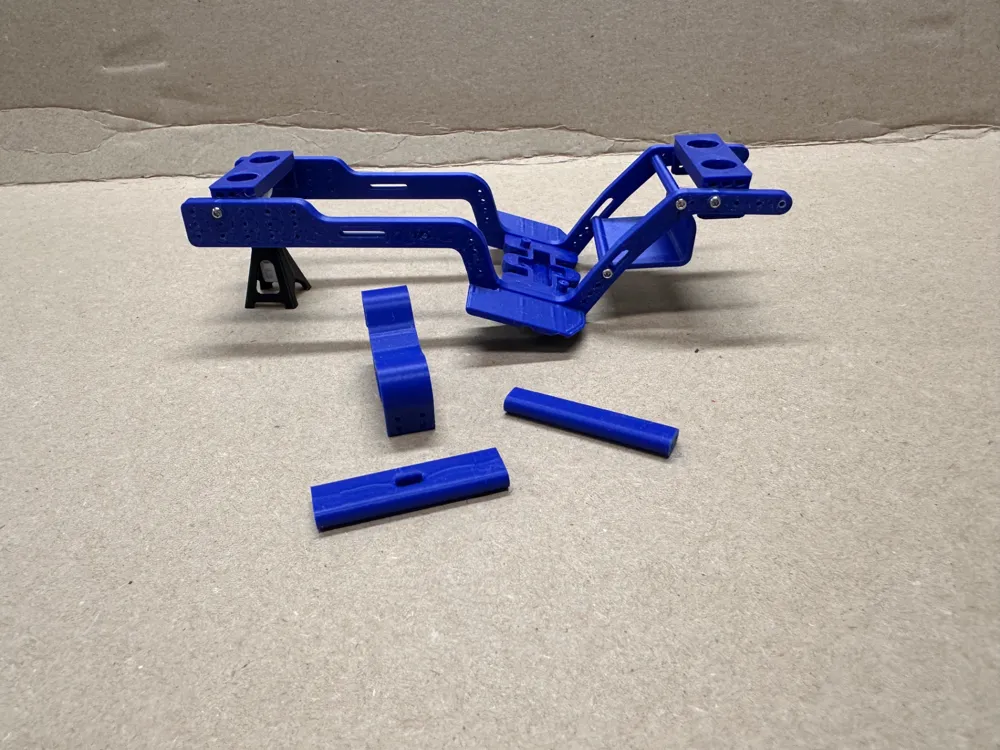

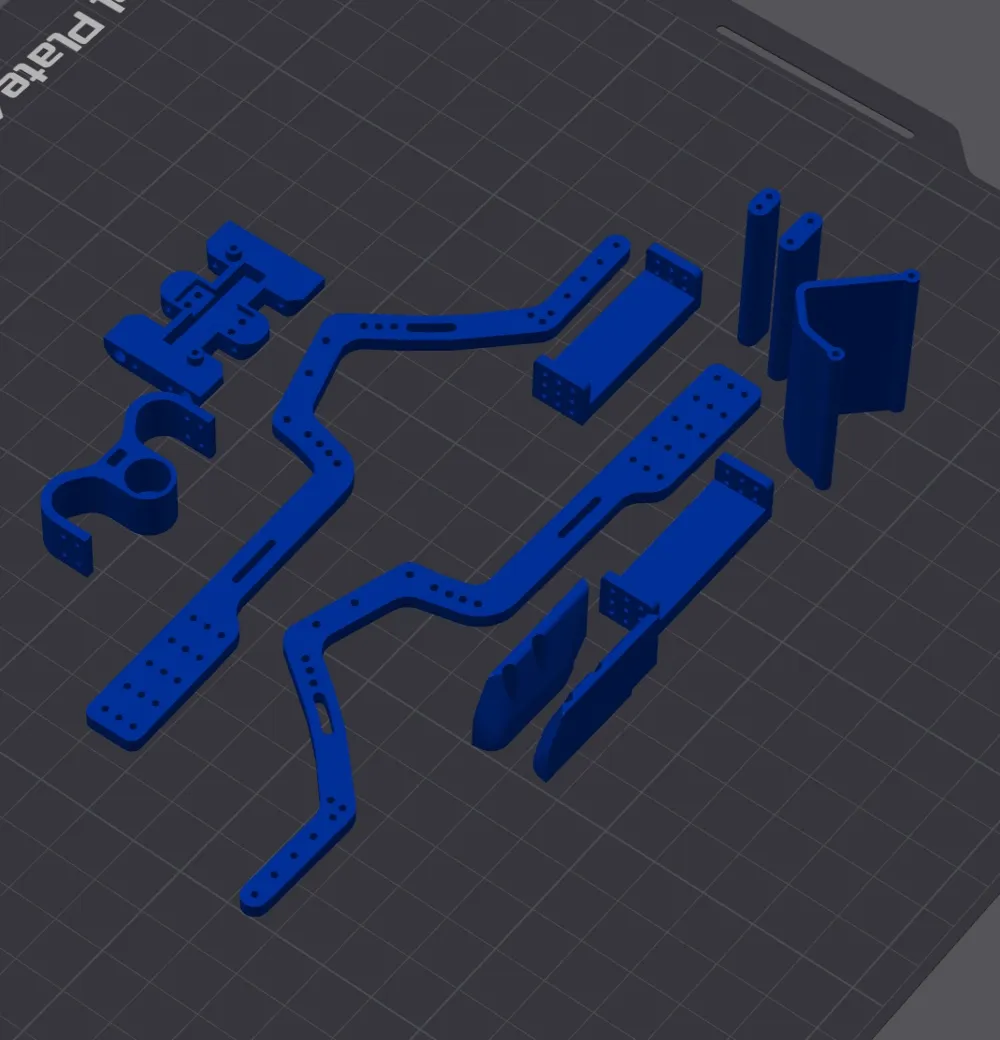

This chassis has a 15 degree skid angle, flat skid (from my other make) and includes a few different braces and esc/batt/whatever trays that hopefully work for you. I prefer housing most things on the sliders. Included are two different length sliders as well. mag mounts use 8x3 magnets. Chassis is capable of any wheel base configuration and the skid is reversible. PLA or PETG should work, .2 nozzle is ideal for the rails but enabling small hole with a .4 helps too.

Enjoy and post your makes! Would love to see some pics

scx24

lcg chassis

axial scx24

Comment & Rating (60)

@user_2827107689

works very well won’t have to purchase anymore expensive chassis👌🏼

The designer has replied

@JKPerformance

Awesome! Does the front tray work well for you?

@user_2827107689

Replying to @JKPerformance :

definetly it worked glad I could print this chassis on my a1 mini

@user_2417690381

hi what links did you use please

@RedBeardPrints

ive used this chassis on 2 builds now. both turned out great. the jeep i did is an absolute unit and wicked fun

The designer has replied

@JKPerformance

Glad you’re loving it!

@user_1136093315

awesome

@user_501223275

Chassis is great

@user_116331883

Am I doing something wrong, when I installed my motor with the stock extended rear drive shaft it still won’t reach the axle. Is there a way to get it to work without buying a new drive shaft?

The designer has replied

@JKPerformance

it would depend on link lengths, what link lengths are you using? are you using stock links and stock shaft?

@user_116331883

I am using the injora 78mm links and I am running the stock drive shaft but it is the longer one that is included with the car.

@JKPerformance

Replying to @user_116331883 :

the gladiator length driveshaft should fit, though the stock plastic ones are short compared to aftermarket like Meus or Injora. What motor setup are you using? if it’s forward facing than that’s the short side of the trans shaft too.

@ZS3DThingz

Boosted

Print Profile

0.2mm layer, 20 walls, 25% infill

Came out Fantastic! great print.

The profile uploader has replied

@JKPerformance

post up a pic or two when you’ve got it all built!

(Edited)

@ZS3DThingz

Boosted

Replying to @JKPerformance :

Here you go Sir! Thank you for the files.

(Edited)

@JKPerformance

Replying to @ZS3DThingz :

that’s awesome looking!

@Kslade

Boosted

Can we get magnet mounts for 10x5x2 rectangular magnets? That's all I got on hand😩 much appreciated

The designer has replied

@JKPerformance

I can do that for you. Give me a bit

@JKPerformance

Done!

@Kslade

Boosted

Replying to @JKPerformance :

Thanks! Much appreciated

@cr80rippppa

do I have permission to sell?

The designer has replied

@JKPerformance

No. Please read the guidelines.

@cr80rippppa

bruh

@Hunter3d

Replying to @cr80rippppa :

why is that a bruh? if you want to sell a chassis design your own!

@gibit513

is it possible that you can flatten the magnet part out so I can use Velcro? if not that’s totally fine

The designer has replied

@JKPerformance

I have a flat mount I can add in a little bit

@JKPerformance

Should be up now

@gibit513

Replying to @JKPerformance :

thanks!

@ZS3DThingz

Boosted

More than worthy of a Boost! So far so good on the build.

The designer has replied

@JKPerformance

Thank you so much! Glad you're loving it!
