Cabinet locking bar guide with stay
Print Profile(1)
Description

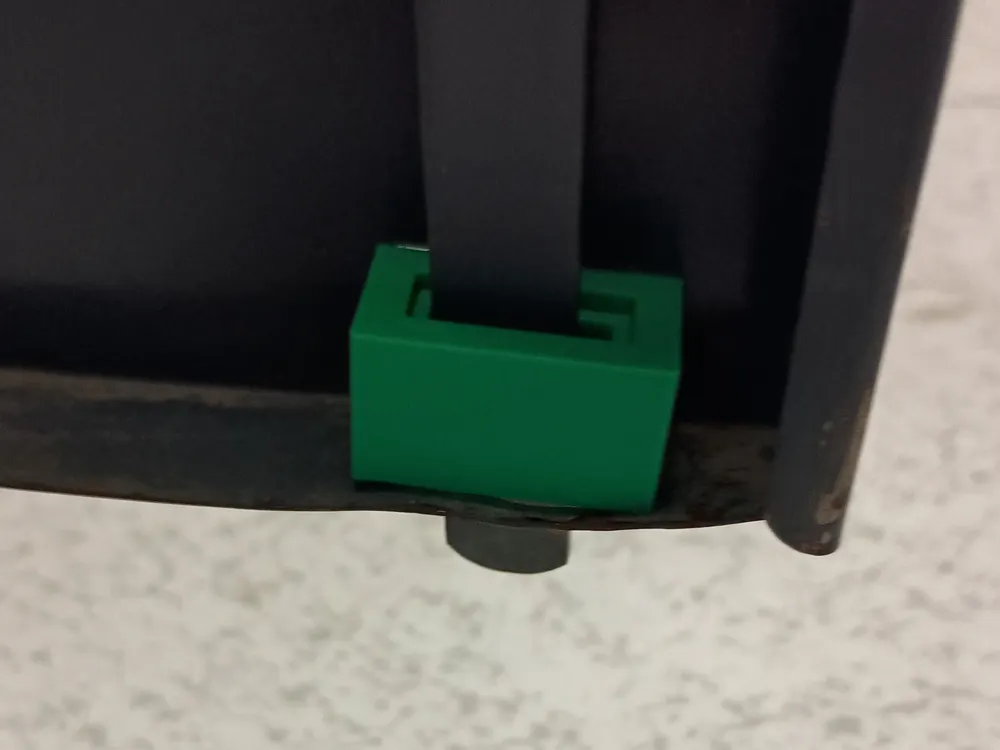

I used it for my locking metal cabinet doors that had broken guides. It is used to bring the locking bar back to functioning easily. Can be used on top and bottom of the door.

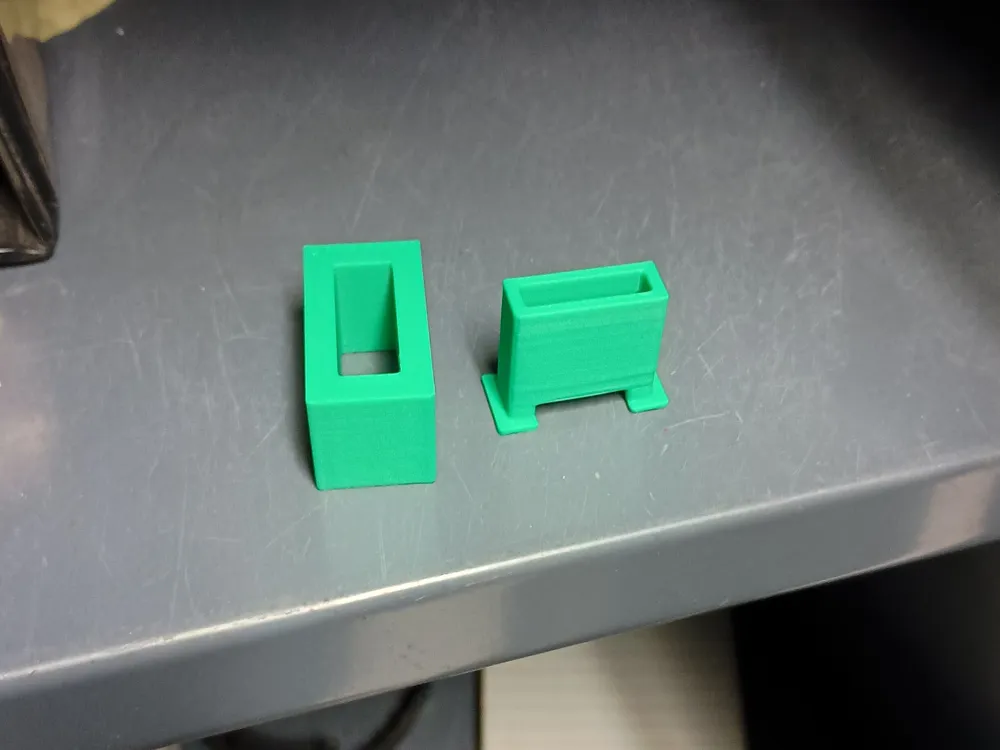

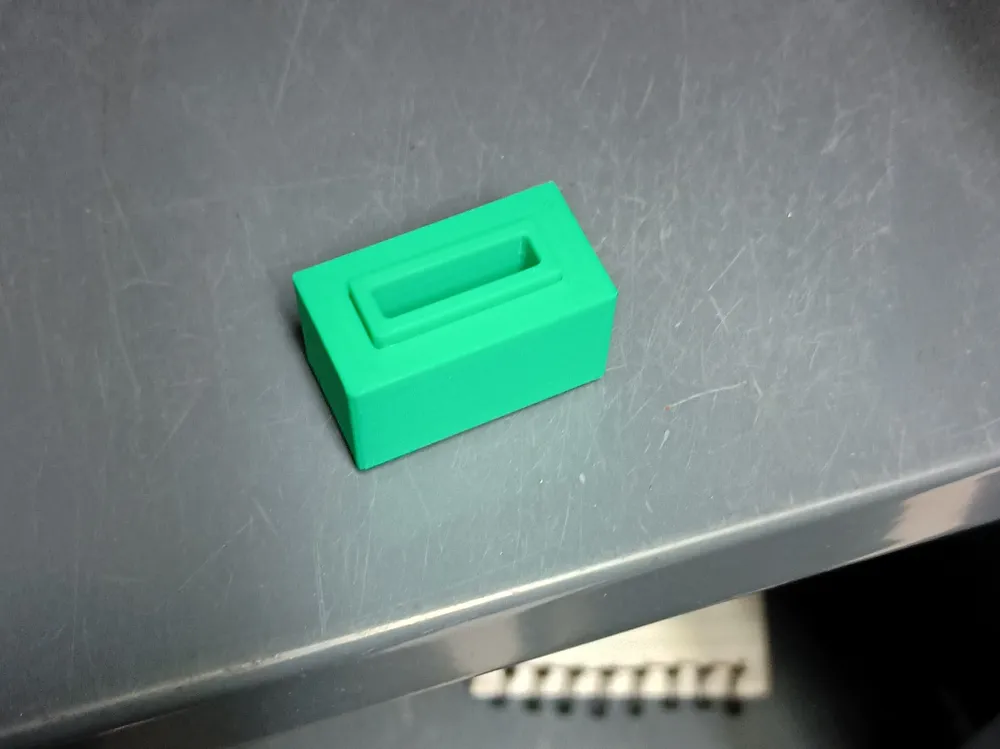

I included a stay to help hold the guide in place for cabinet doors that might be in less than perfect condition or otherwise might have slightly different size of the locking bar hole. I included 2 versions of these stays. One is a “glue together” model, the other is has tighter tolerance and should just press together (be careful).

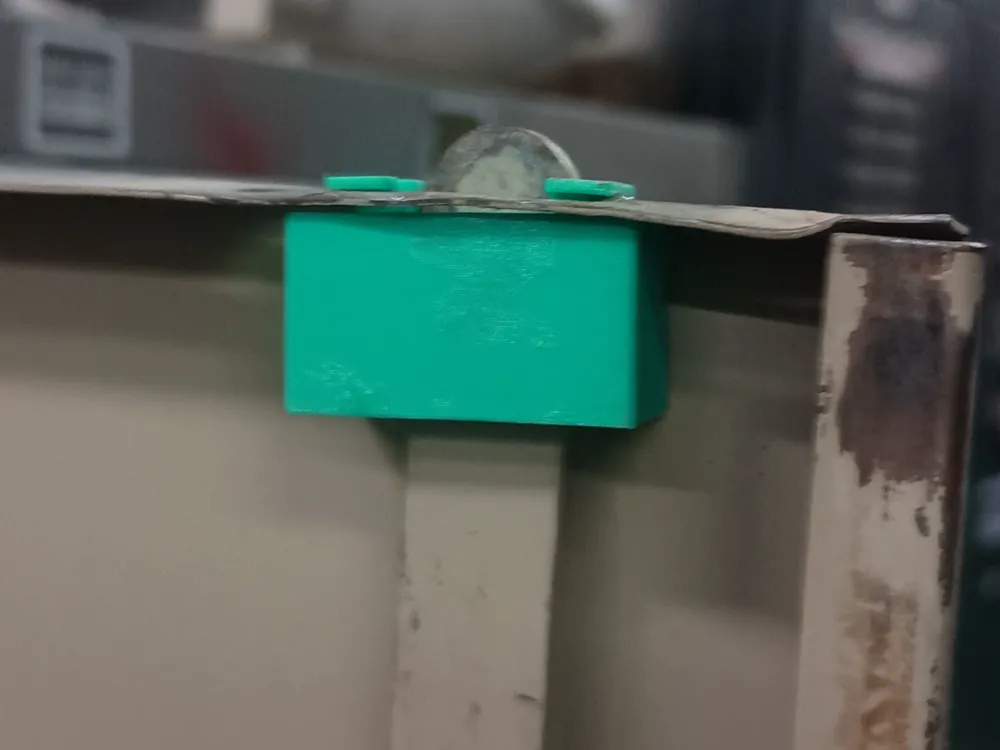

Slide the stay onto the locking bar, apply super glue to the outside of the guide, put it into the locking bar hole from the "outside" of the door making sure the locking bar goes inside, and slide the stay down over the guide. The other version is a little bit of a tighter fit and can be carefully pressed together without the use of glue.
This is based on the Uline Locking Bar guide for storage cabinet doors. Part # H-1105-15
Enjoy.
