Outer 13 (12.7) flat plate topspin
Print Profile(2)
Description
Description
To avoid risks, the demonstration video has been removed. For other users' test videos, please check the pinned link in the comment section

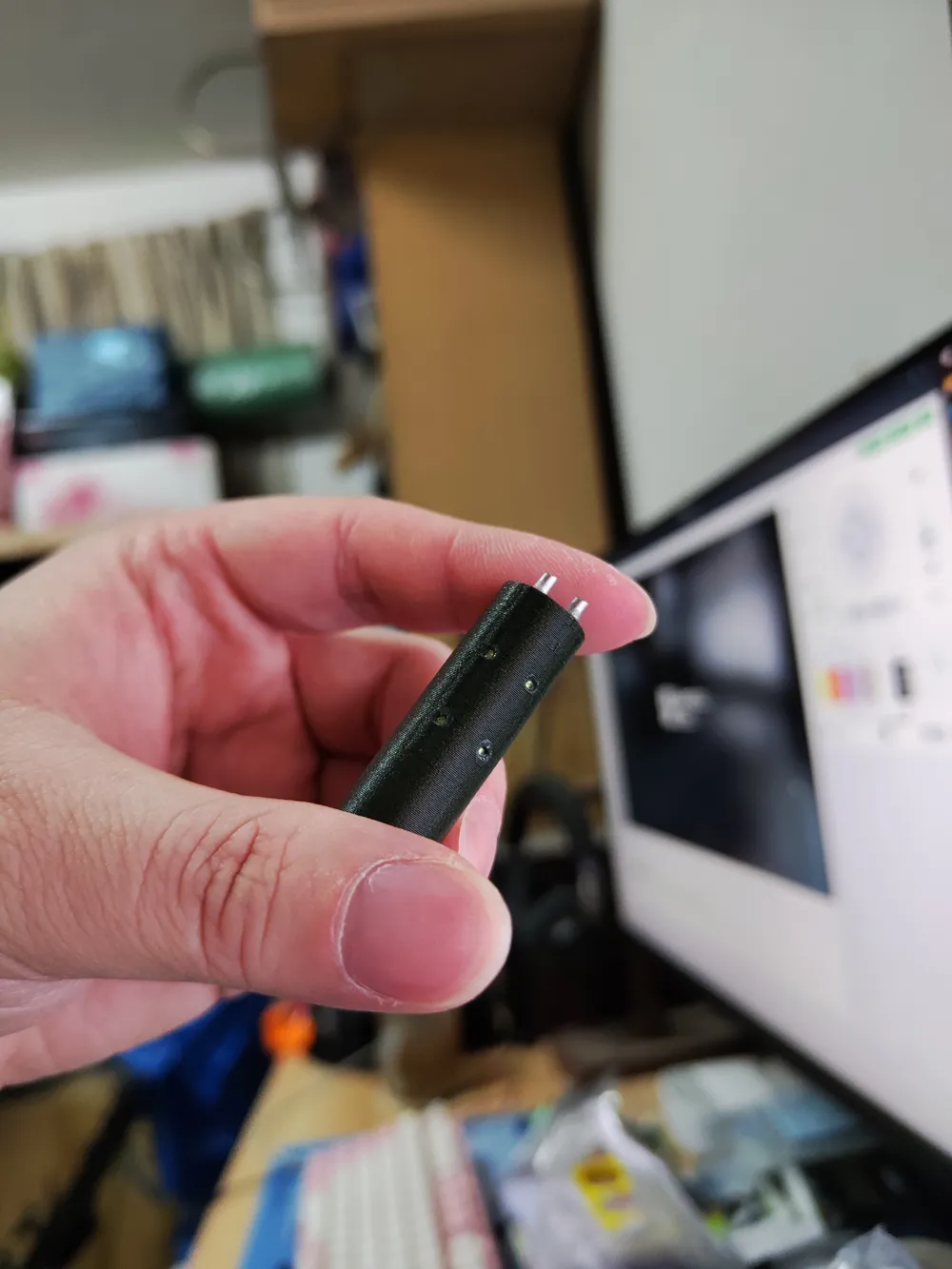

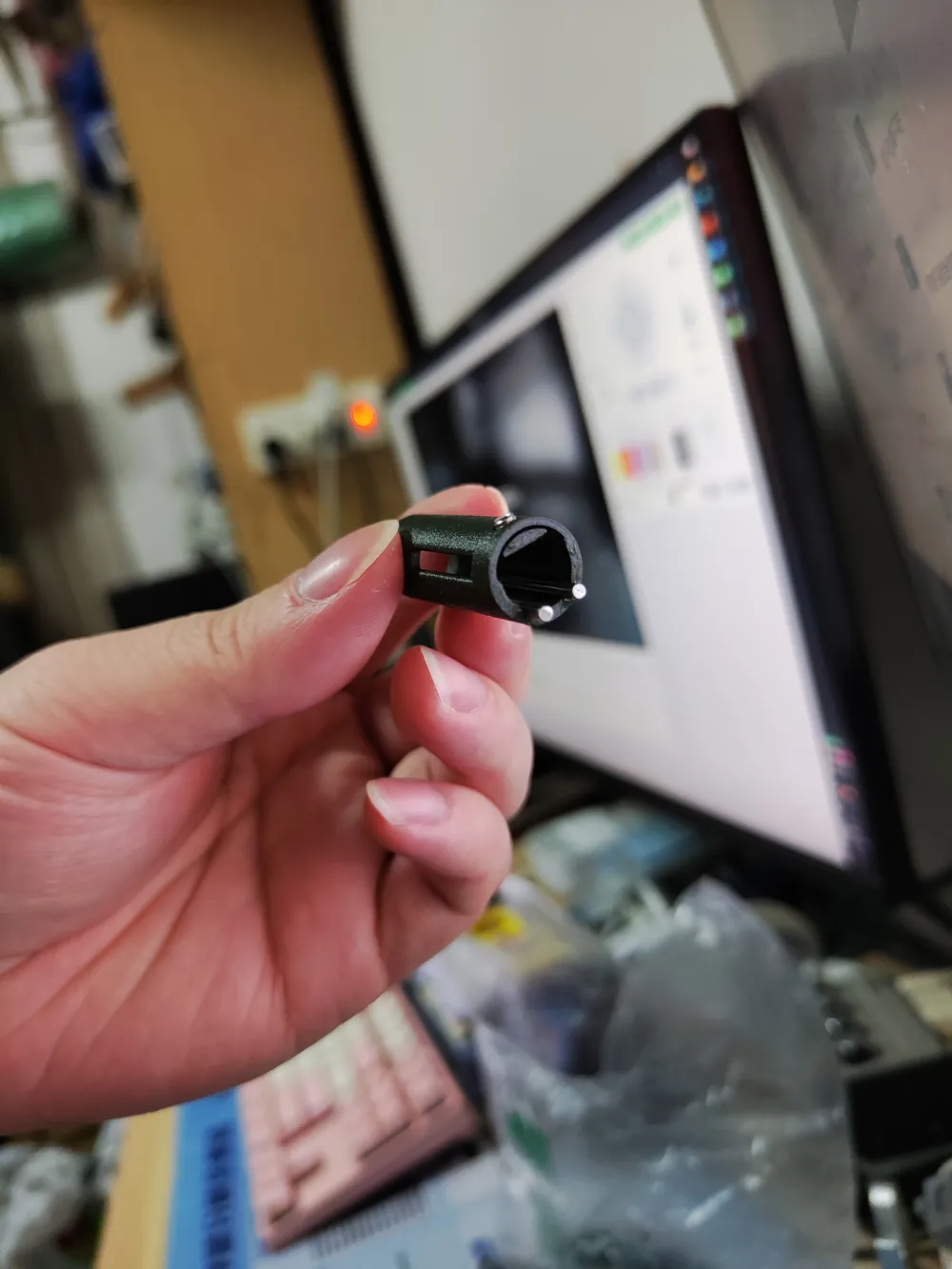

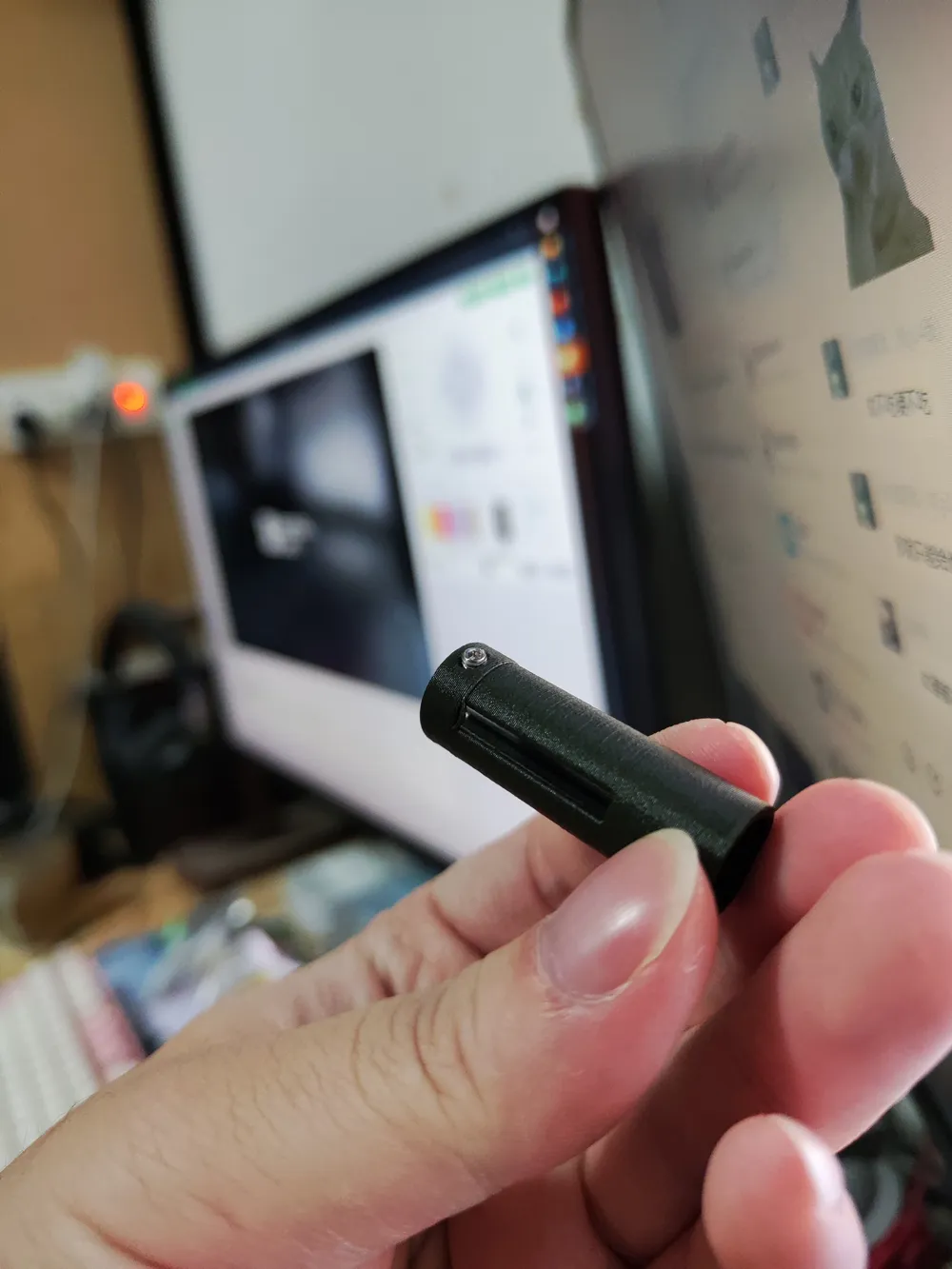

Frustrated that an external 14mm hop-up couldn't be directly installed after attaching a 14mm counter-clockwise threaded flash hider, and seeing that the external 13mm open-source hop-up lacked a flat structure. So, I learned from Fenghai's excellent article and designed an adjustable integrated hop-up without steel reinforcement
Instructions
By default, there is no scaling up. Please adjust based on filament sinkage rate and test for the optimal XY scaling size yourself

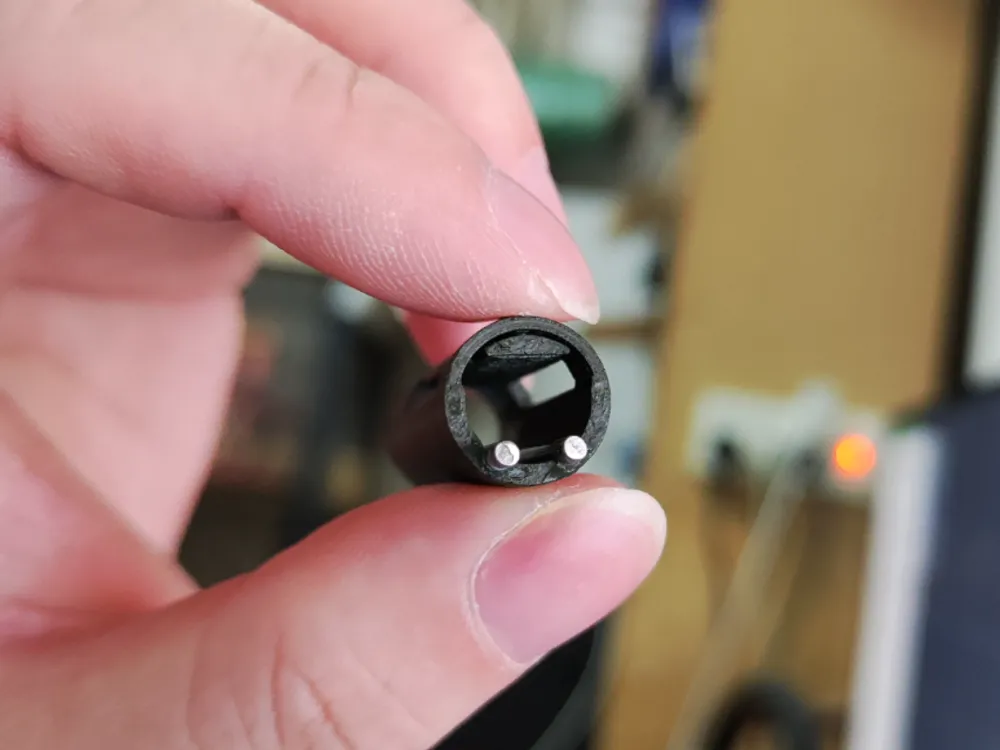

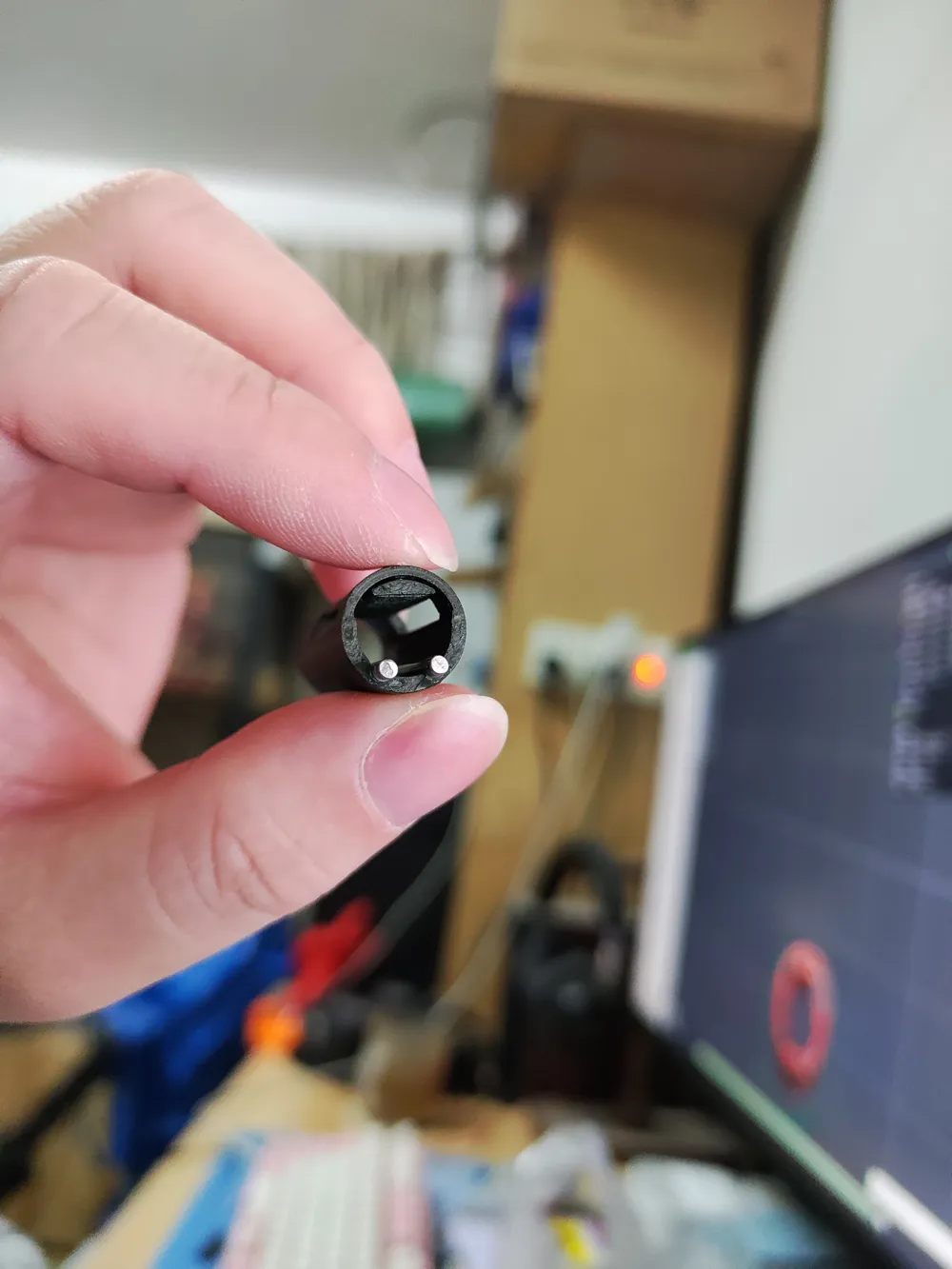

plate 2 has an auxiliary rail installation jig. First, insert the jig, then insert the rail and apply glue. After the glue cures, push the jig all the way from the front to extrude it from the rear of the suspension
BOM
m2*28 locating pin304 stainless steel cylindrical dowel pin positioning pin solid pin fixed pin M2 M2.5 M3 M4 M5 M6 M8 M10 - tmall.com Tmall
m3*2 flat-end grub screwFlat end set screw 304/201 stainless steel screw inner hexagon headless grub screw set screw stop screw M M3 M4 M5 M6 M8 - tmall.com Tmall
Quick-drying glue 5800
Updates
20260107, updated Z seam position to reduce the impact on the rail
20260222, updated shaft-free version
