Bed (or couch/table) riser sleeves
Print Profile(2)
Description
What it is

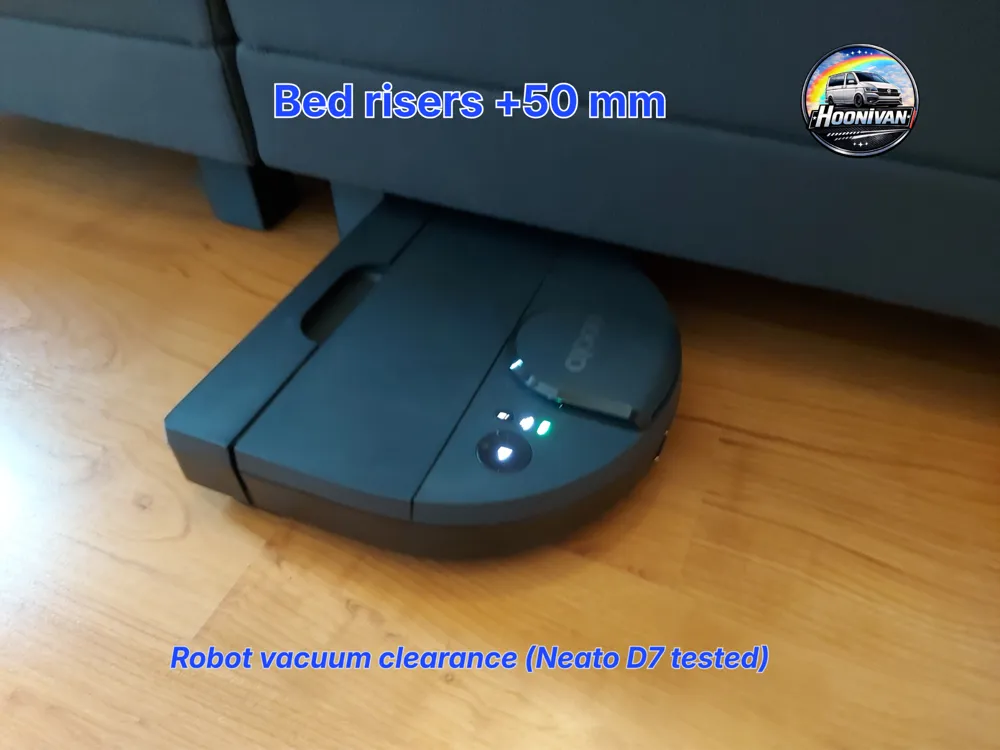

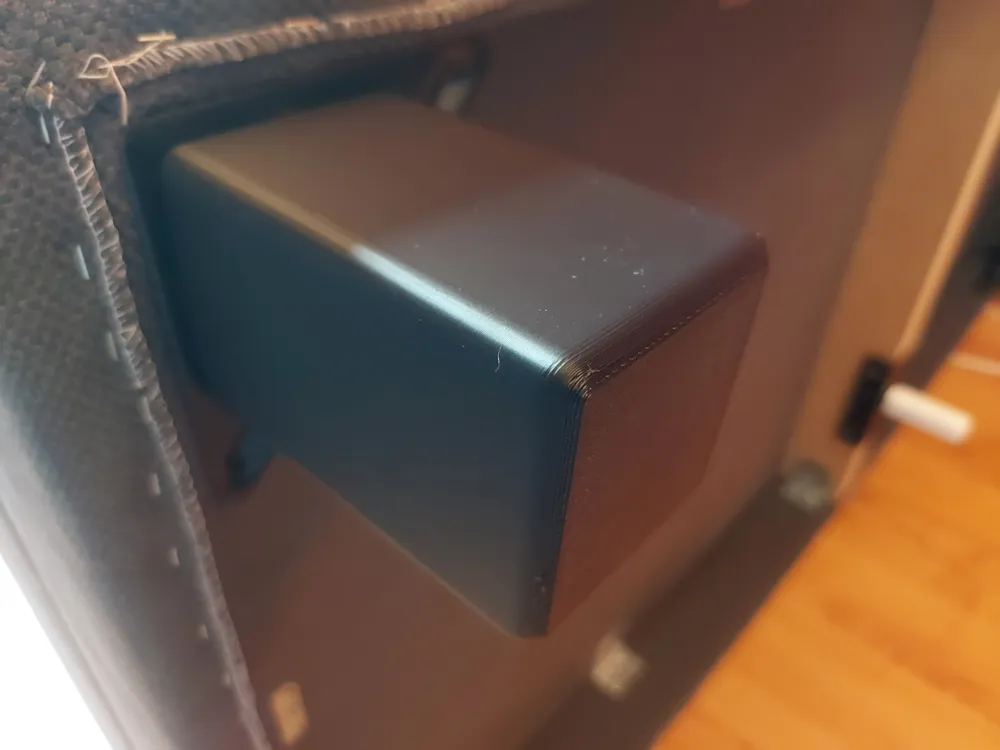

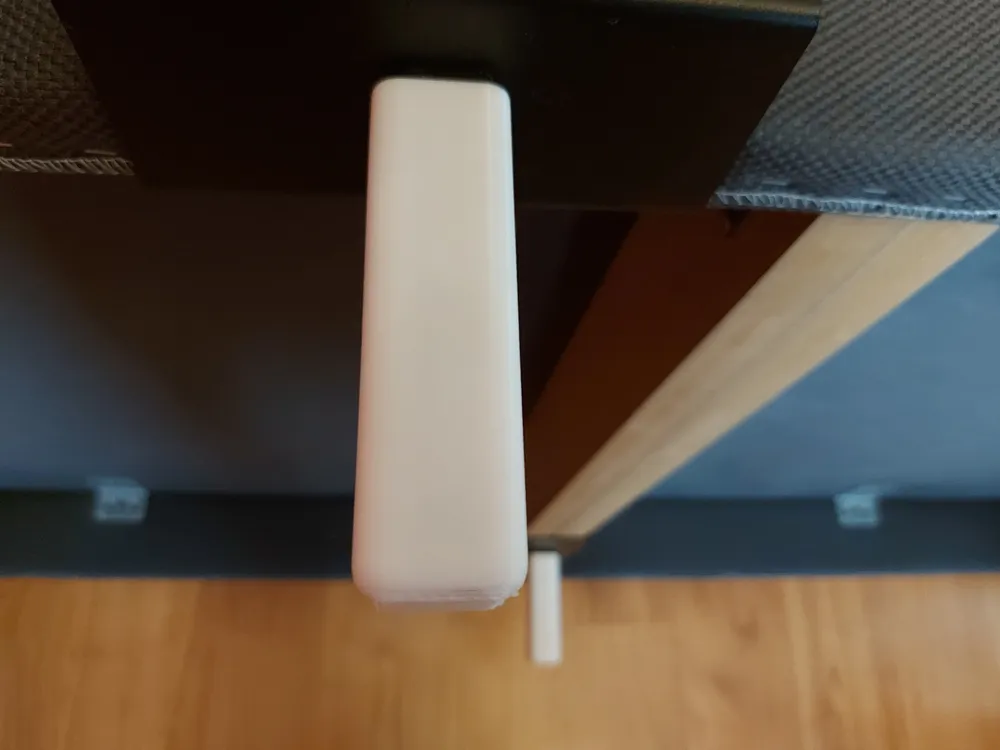

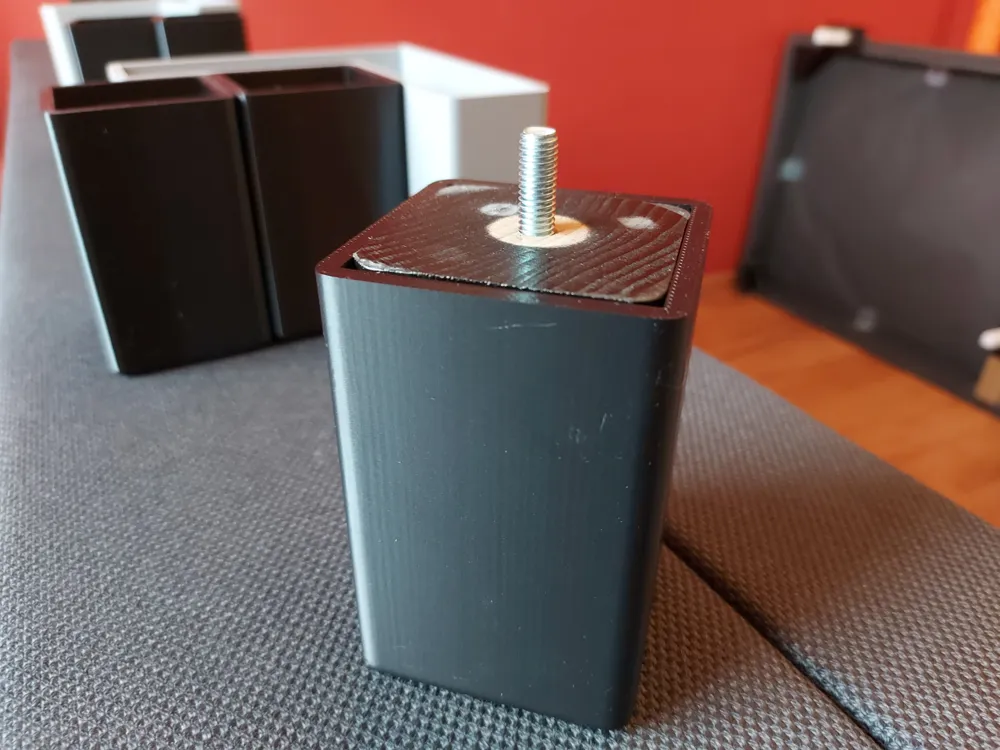

Riser sleeves that slide over your existing boxspring bed legs (or couch/table) to add exactly +50 mm clearance, so a robot vacuum can clean underneath (tested with Neato D7). Friction fit—no screws, no glue, fully reversible.

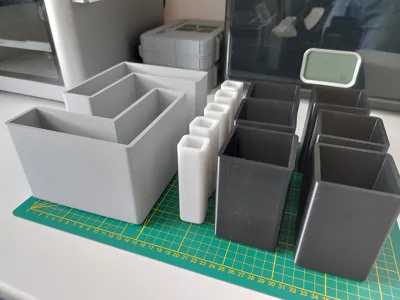

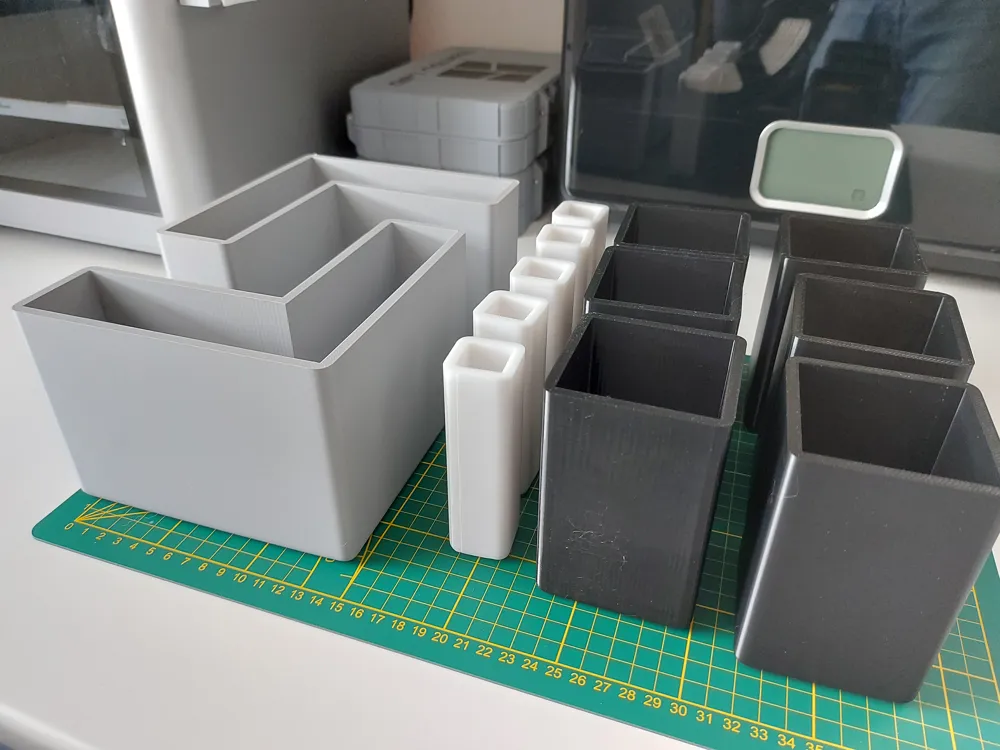

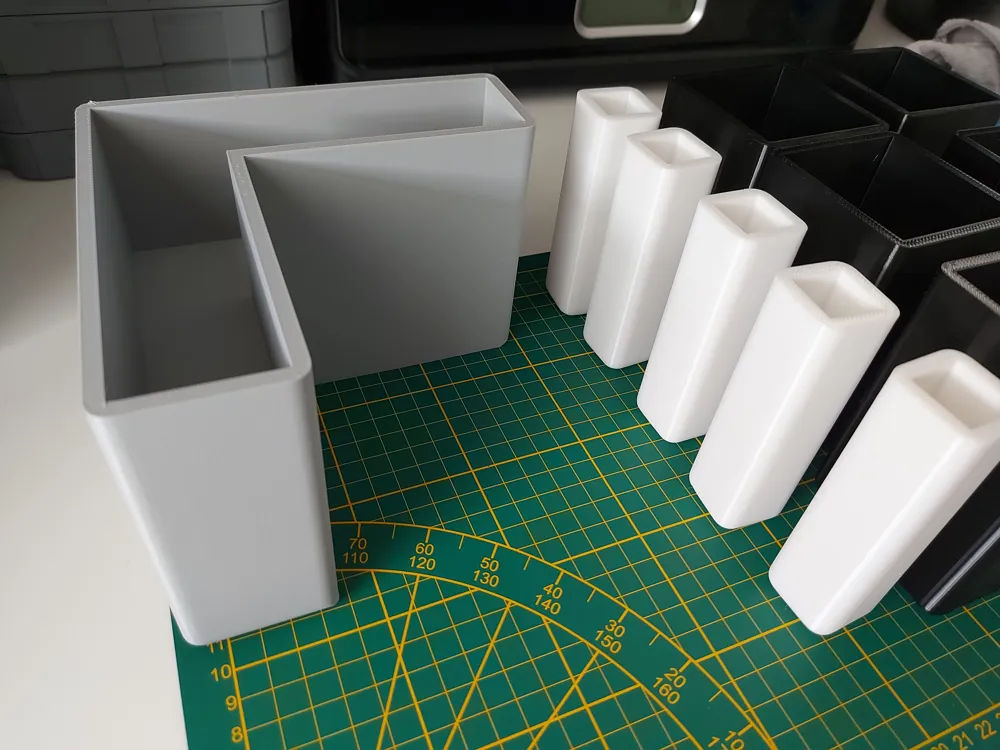

Inner dimensions (mm):
- Small (square): 20.2 × 20.2 × 55
- Medium (square): 60.2 × 60.2 × 60

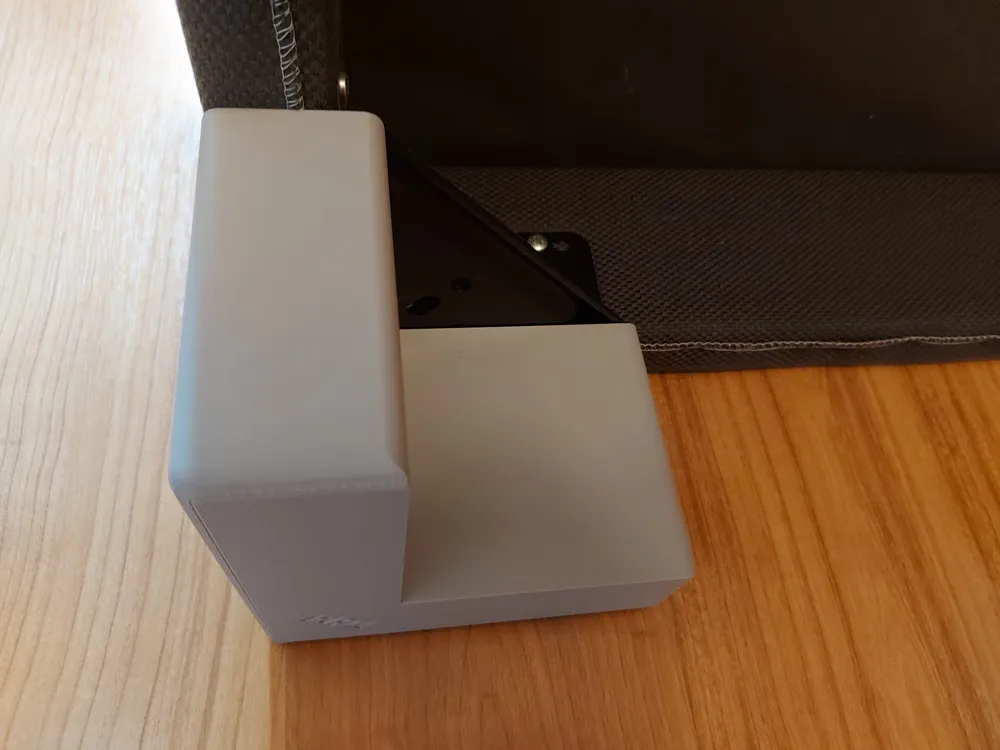

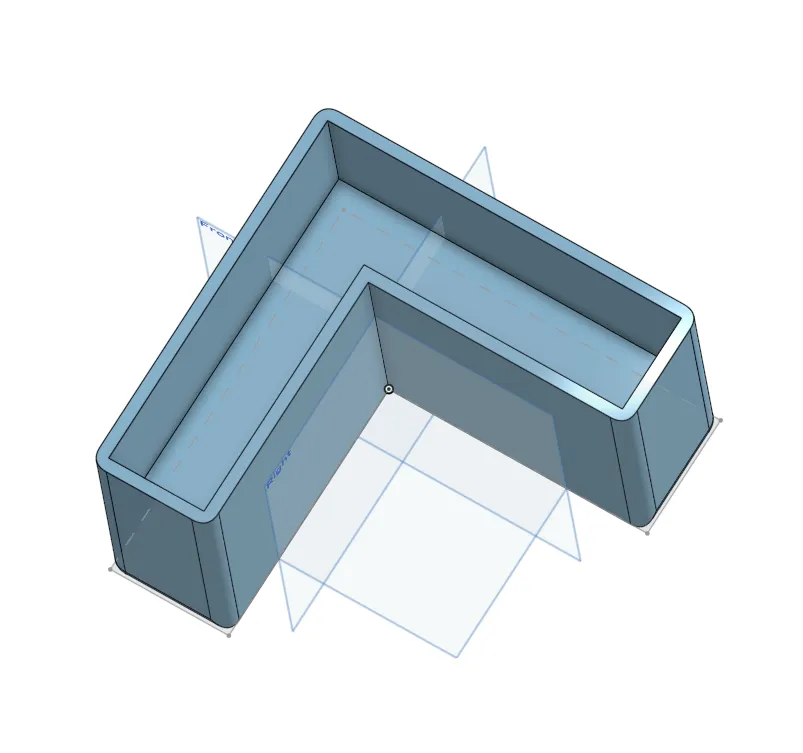

- Large (L-shaped): 149.2 × 149.2 × 60

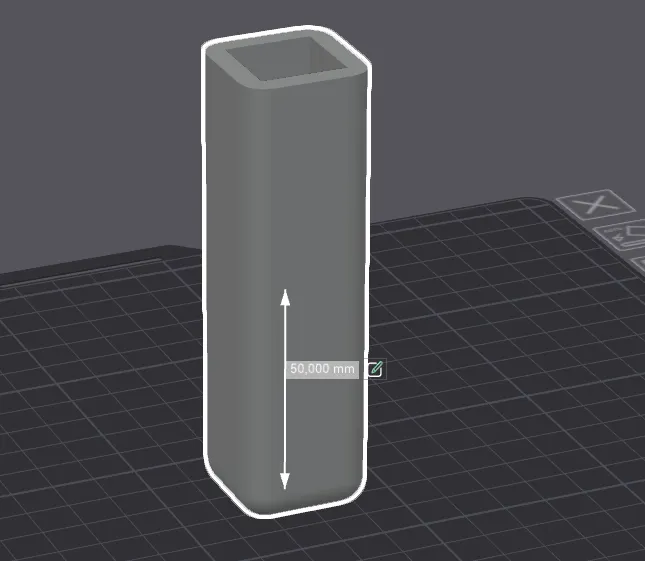

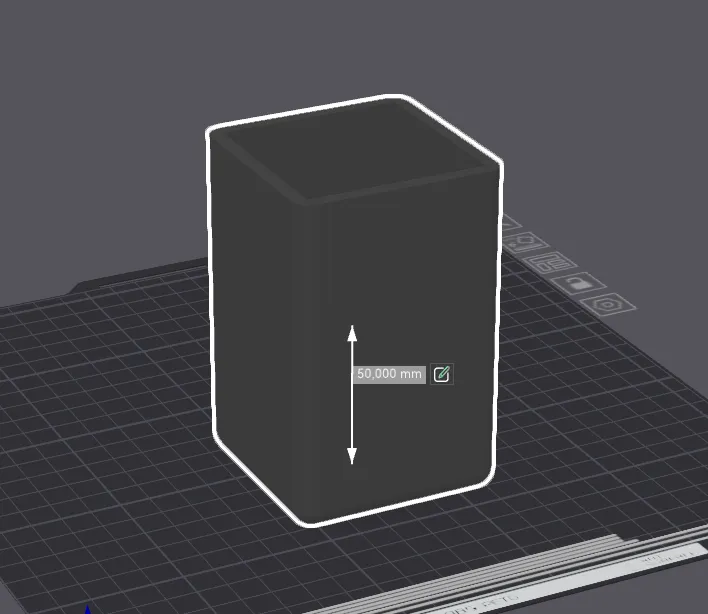

Scaling: easy in X/Y/Z. If you want to keep exactly 50 mm, do not scale Z. Large includes a fit test insert (~32 g).

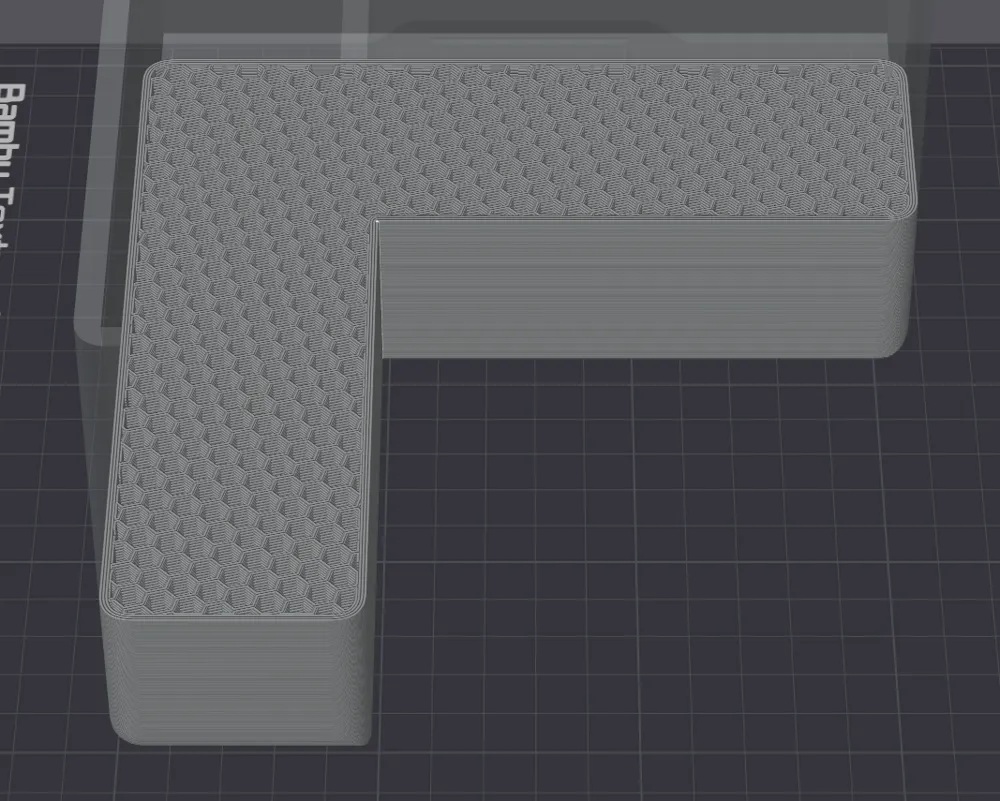

Verified print (6 months use): Bambu PETG-HF, 0.6 nozzle, 0.24 mm, 3 walls, 4 top, 3 bottom, 20% honeycomb, normal speed.
Also included: PETG 0.4 nozzle / 0.20 mm profile.
Notes / safety:
Designed for compressive loads. Ensure your bed remains stable, test gradually, and consider adding felt/rubber pads if you want extra floor protection or grip. My bed has 13 legs, but this varies—print risers for every leg to keep the load evenly distributed!
If this helped you, please rate the model and follow my profile. ✅
Any questions? Please comment below, I’m happy to help!
