IMPORTANT:

DO NOT use PLA to print this because it is a brittle material that will easily break. Use PETG or TPU instead.
For LEFT HAND, mirror just the GRIP piece.
This is for the Oculus Quest 2 or Quest 3 controllers. If you are looking for the Quest 1 version, see here.

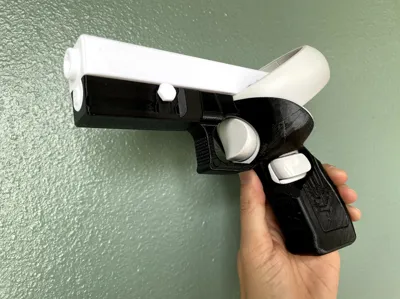

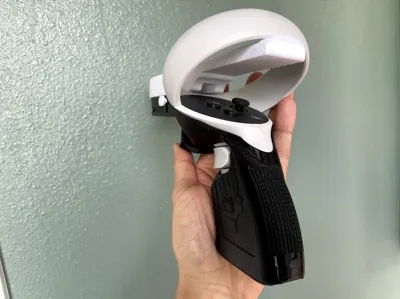

Introducing the "Chewey_GLK-17"!

After seeing a couple of pistol grips on the market compatible with the Oculus Quest 2 touch controllers, I want a set for myself to use with Pistol Whip and other shooter VR games on my Quest 2. However, I didn't want to pay $70-90 for a set for both hand controllers, so I decided to just make my own kit.

This is based on the Glock 17 1:1 scaled model by a user name archie73 on thingiverse.
I also used the 3D scanned model of the Oculus Quest 2 touch controller by a user name stevesch on thingiverse. Specifically, the "quest2-touch-R-50k.STL"

The final product may not look as cool as the other designs. But I put a lot of focus on comfort, so I play tested with it a lot and have removed all the jarring uncomfortable bits for a comfortable extended VR session.

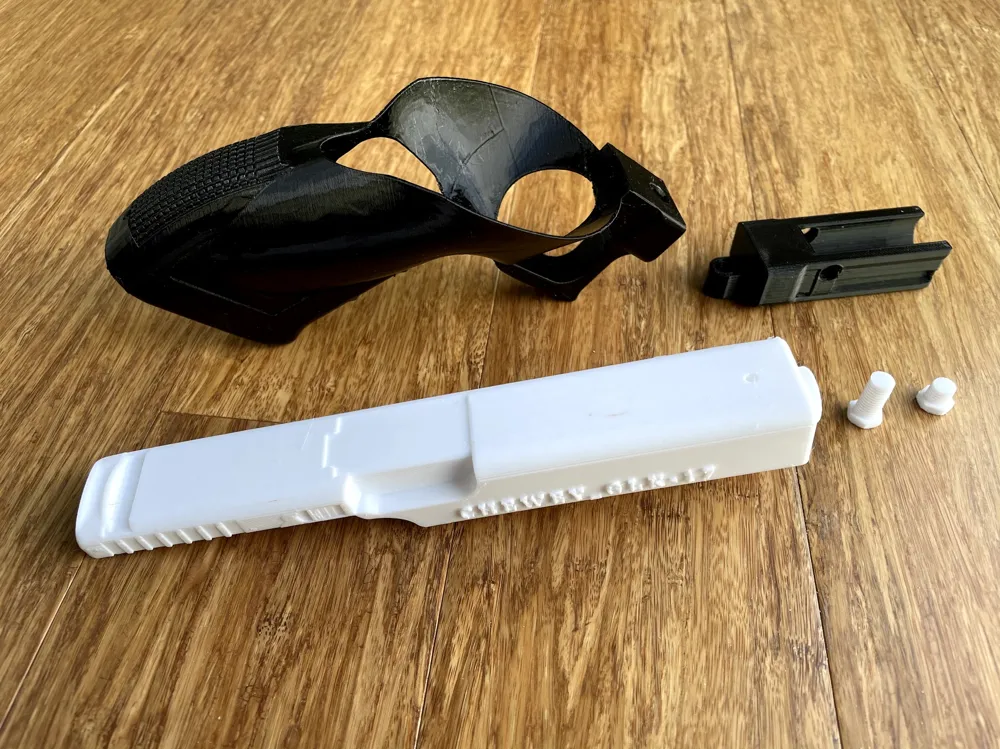

Each hand controller needs:

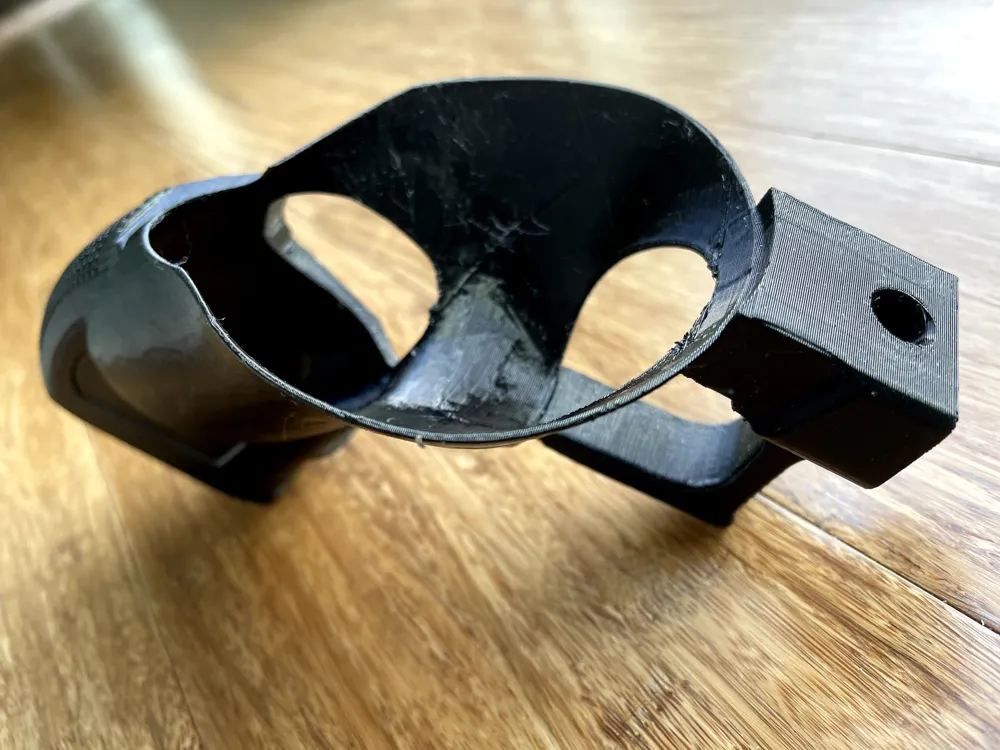

1x Grip

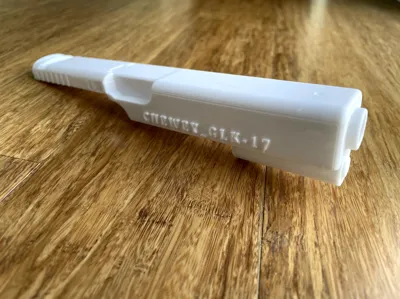

1x Slide

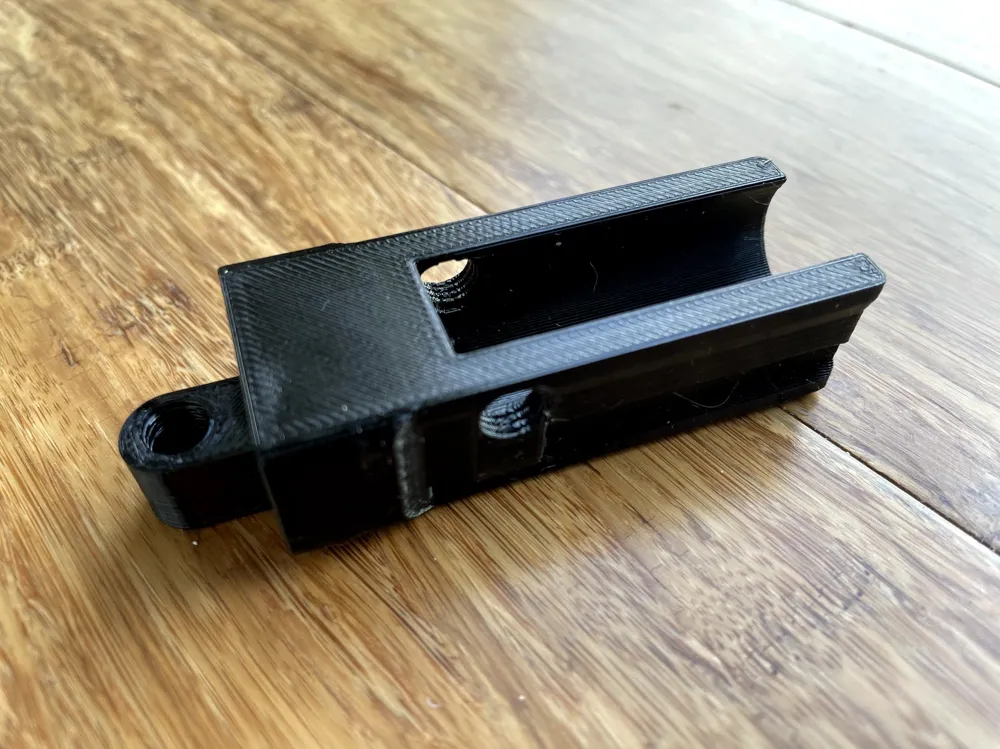

1x Front lower
2x Screws

Assembly notes:

One screw is used to join the Grip with the Front lower. These were separated for ease of printing.
One screw is used on the side to secure the Slide in place in case it slips off while mid VR session.

NOTE: The grip STL is for the RIGHT hand. Simply mirror it to print for the LEFT hand.

Derivatives and remixes are under Attribution-NonCommercial-ShareAlike, but please also include its original name "Chewey_GLK-17" somewhere on the final design. Please do not monetize on this model. Thanks!

Print instructions

Layer height: 0.2
Infill: 15%
Support: see "Suggested_print_orientation_Chewey_GLK-17_set.3mf"

Refer to "Suggested_print_orientation_Chewey_GLK-17_set.3mf" for print orientation and paint on support using PrusaSlicer.

The grip and front lower should be the same color.
