SHELFMODE: The Physical Game Launcher for PC
Print Profile(3)
Bill of Materials
- ACR122U NFC Reader/Writer x 1:
Description

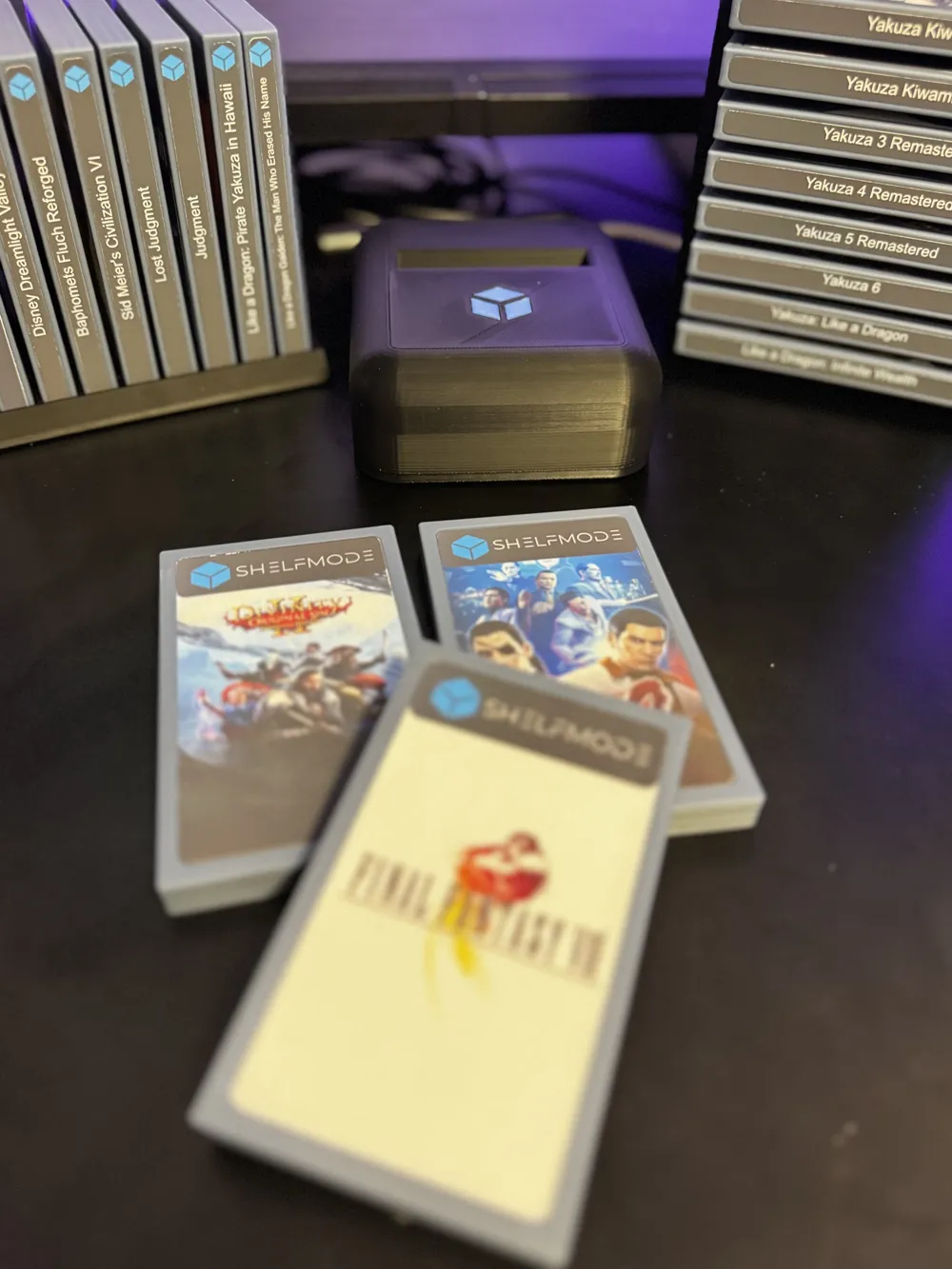

Transform your PC setup into a physical gaming console!

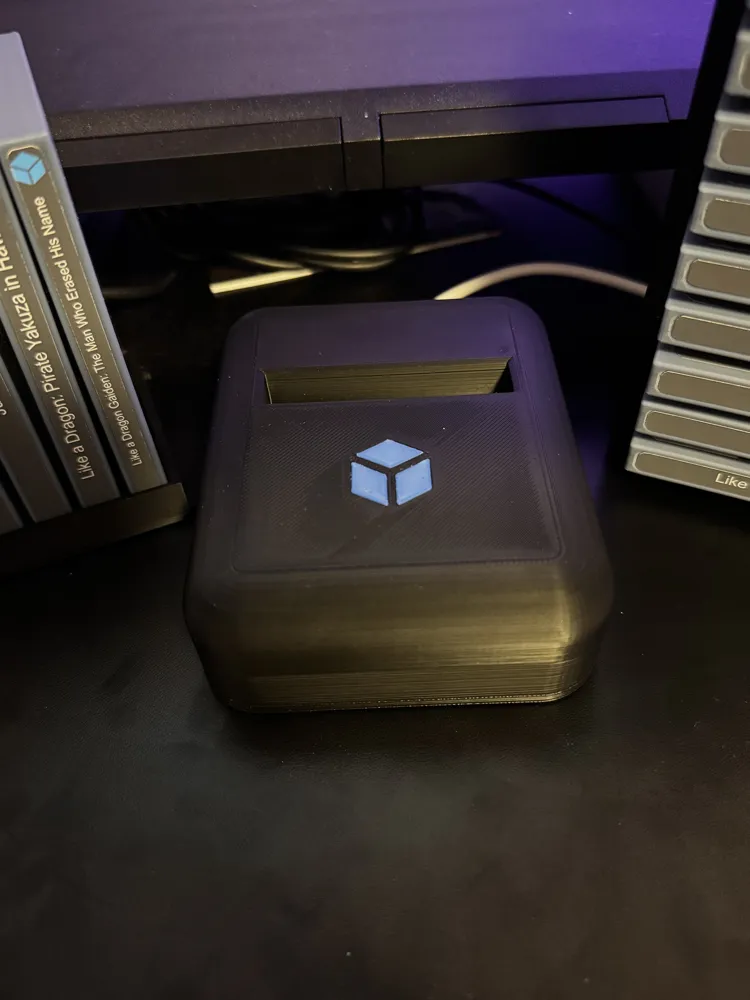

This dock is a custom-fit premium housing for the popular ACR122U NFC Reader. It upgrades the functional "office look" of the reader into a stylish gaming accessory that fits perfectly on any desk.
The design consists of two parts (top cover and base) that are securely screwed together. Best of all: You do not need to open or modify the reader itself.
Link to the whole SHELFMODE Collection
Highlights
- Two-Part Design: Includes the main top cover with the integrated SHELFMODE logo and a precise base plate.
- Plug & Play: Simply drop the ACR122U in as a whole – no "case swapping" or voiding your warranty.
- Solid Construction: The screwed assembly adds weight and stability to your desk.

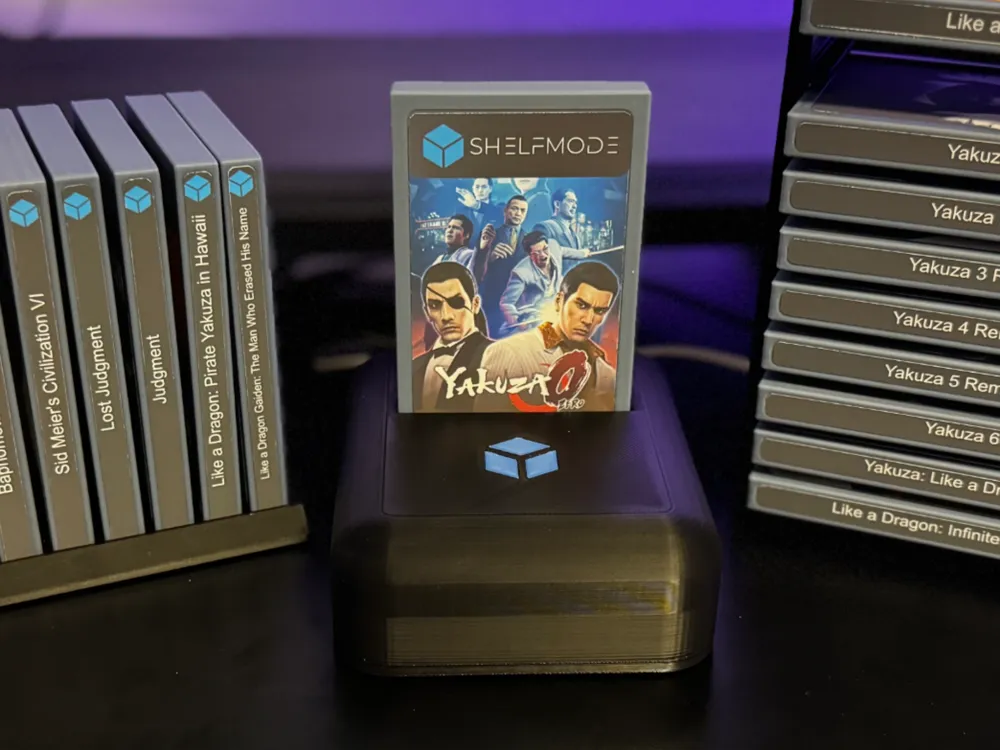

- Software Tip: Perfectly designed for use with Zaparoo to launch Steam games, apps, or macros via NFC cartridges.
Three Design Variants Included
Choose the version that best fits your printer setup:
- Modular Version: Features a separate logo inlay. Perfect for printing the logo in a different color without an AMS. Simply snap/glue it in.
- AMS Version: Optimized for multi-material printing (e.g., Bambu Lab AMS). The logo is integrated for a seamless, flush finish.
- Plain Version: A clean, minimalist design without any branding for a sleek, stealth look.
Required Hardware
- NFC Reader: ACR122U NFC Reader/Writer.
- Screws: 4x M3x10 fine-thread screws.
- Note: The screws are driven directly into the plastic. No heat-stake inserts are required.
Recommended Print Settings
Optimized for a clean surface finish and high structural integrity:
- Infill: 15% (Pattern: Crosshatch).
- Supports: Normal.
- Threshold Angle: 20°.
- Support Base Pattern Spacing: 5mm.
- Brim: No (Not required with good bed adhesion).
- Multi-Color: The logo in the lid is a separate object, making it easy to color-pick in your slicer (e.g., Bambu Studio / AMS).
Assembly
- Place the ACR122U reader into the top cover.
- Position the base plate on top.
- Secure the base to the cover using the 4x M3x10 screws (tighten by hand).
- Connect the USB cable and enjoy your physical game library!
Boost Me (for free)
Enjoying SHELFMODE? 🚀
If this dock improves your gaming setup, I’d appreciate a Boost and a photo of your make! Seeing your collections is the best reward.

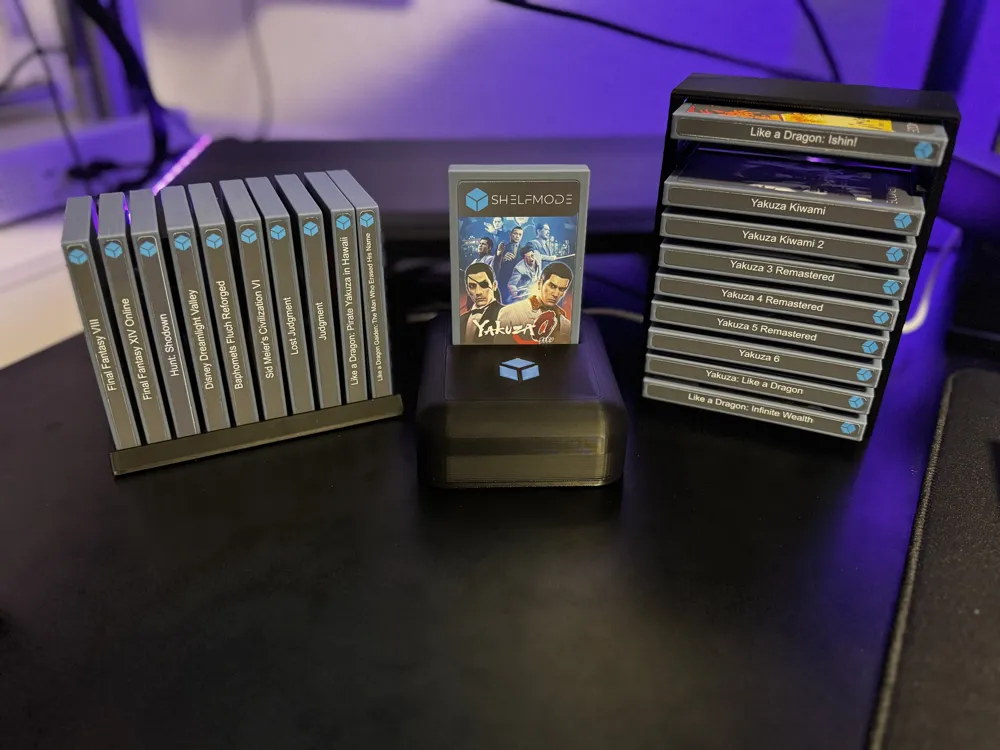

Complete your SHELFMODE System: Check out my profile for the matching SHELFMODE Cartridges and Racks to finally bring your digital library back to your shelves!
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
