Modular Corner Wall Shelf with Hidden Mount

I couldn’t find a 3D printable corner shelf that could be properly fixed to the wall, so I decided to design a complete modular wall-mounted system, made to be printed, mounted, and actually used, not just displayed.

This project includes:

• a hidden wall mounting bracket 🔩
• a drilling template (JIG) included in the files 📐
• modular interlocking shelves
• optional safety locking pins

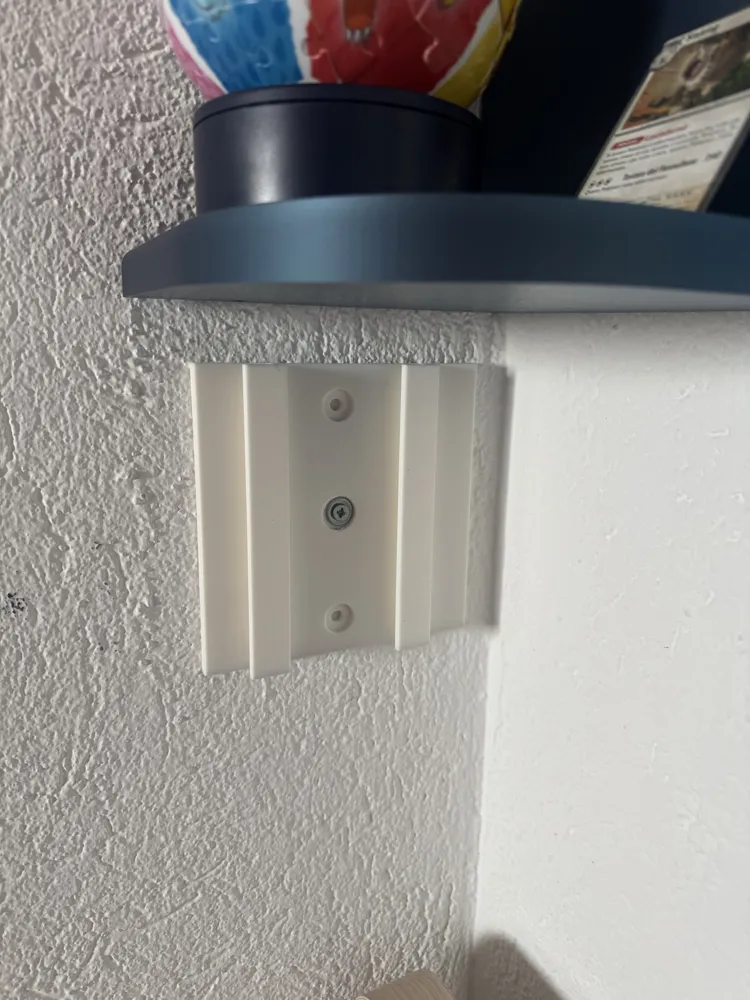

🔧 Hidden Wall Mounting System

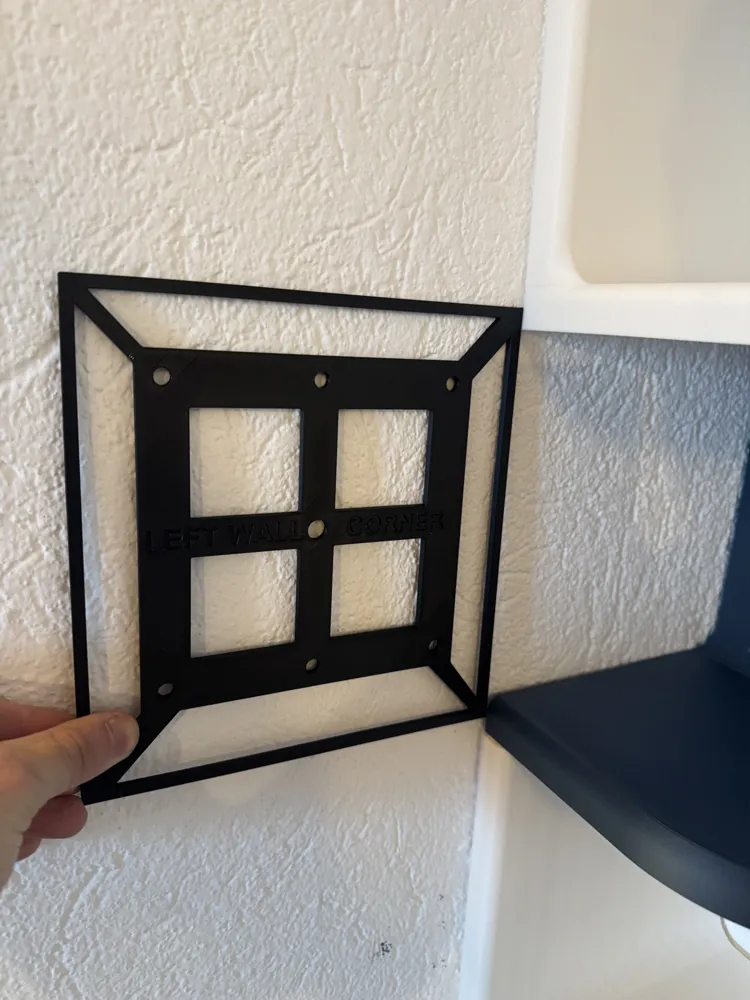

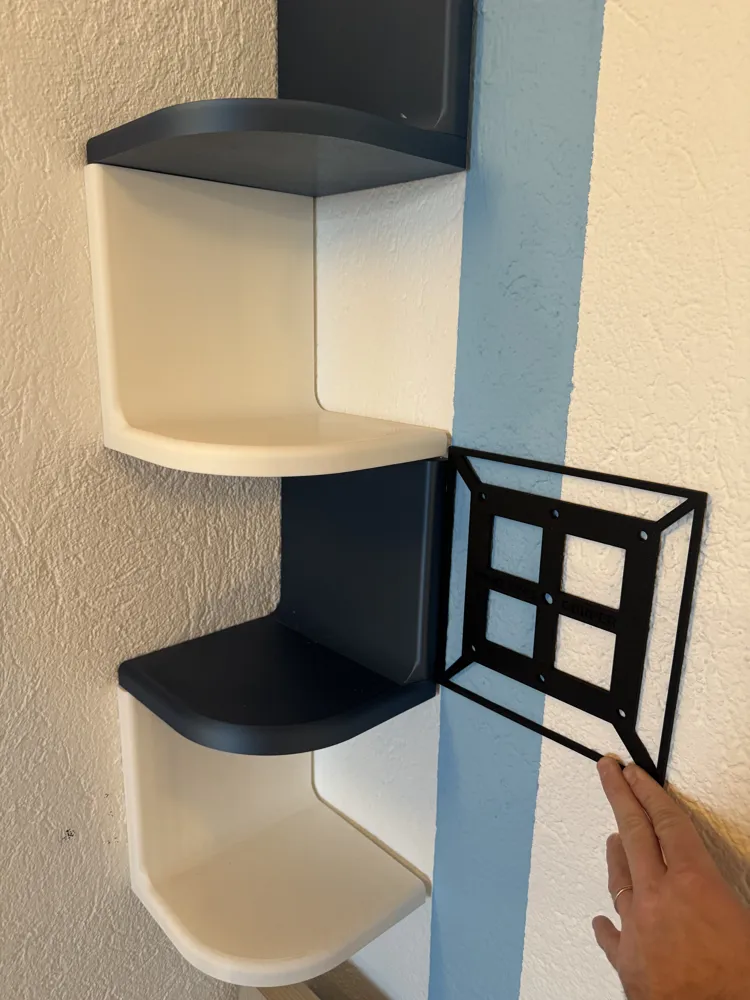

The wall bracket is installed using the provided drilling template, ensuring precise and error-free installation.

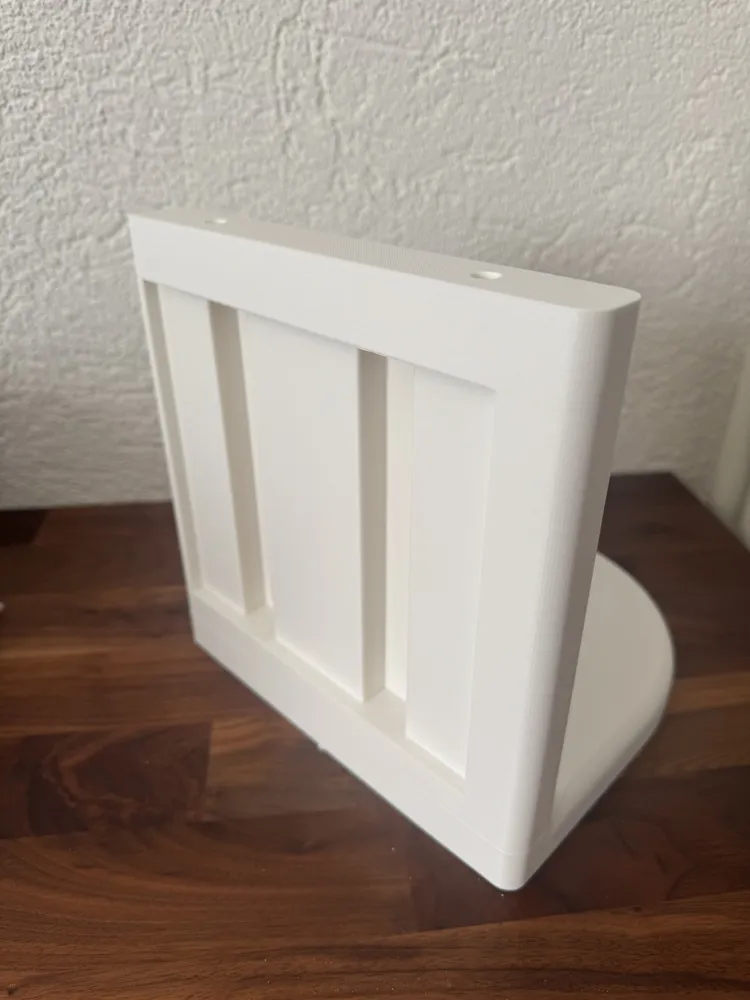

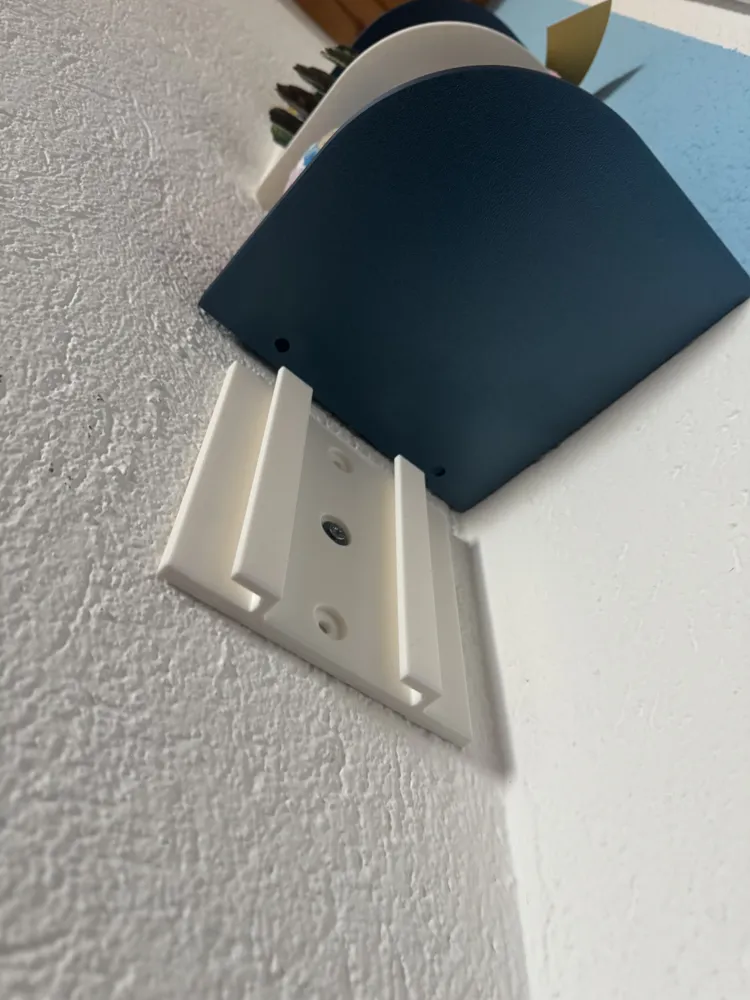

Once mounted, the shelves slide perfectly onto the bracket, leaving the mounting system completely hidden ✨

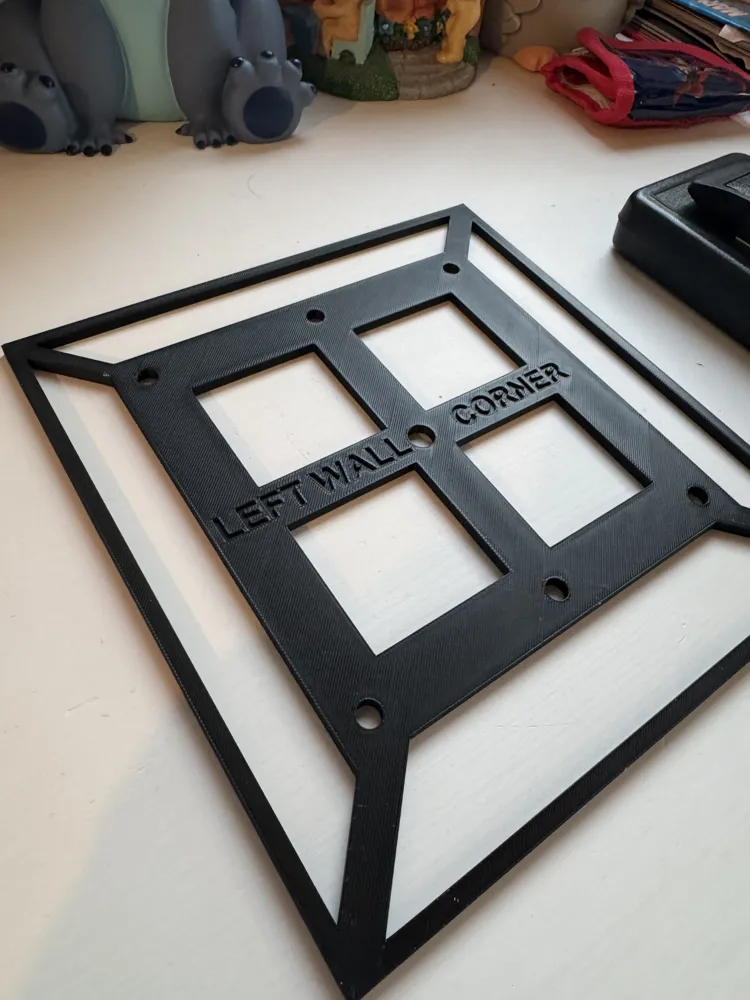

The drilling template is directional and works in two orientations:

• LEFT → for shelves mounted on the left side of the corner (when facing the corner)

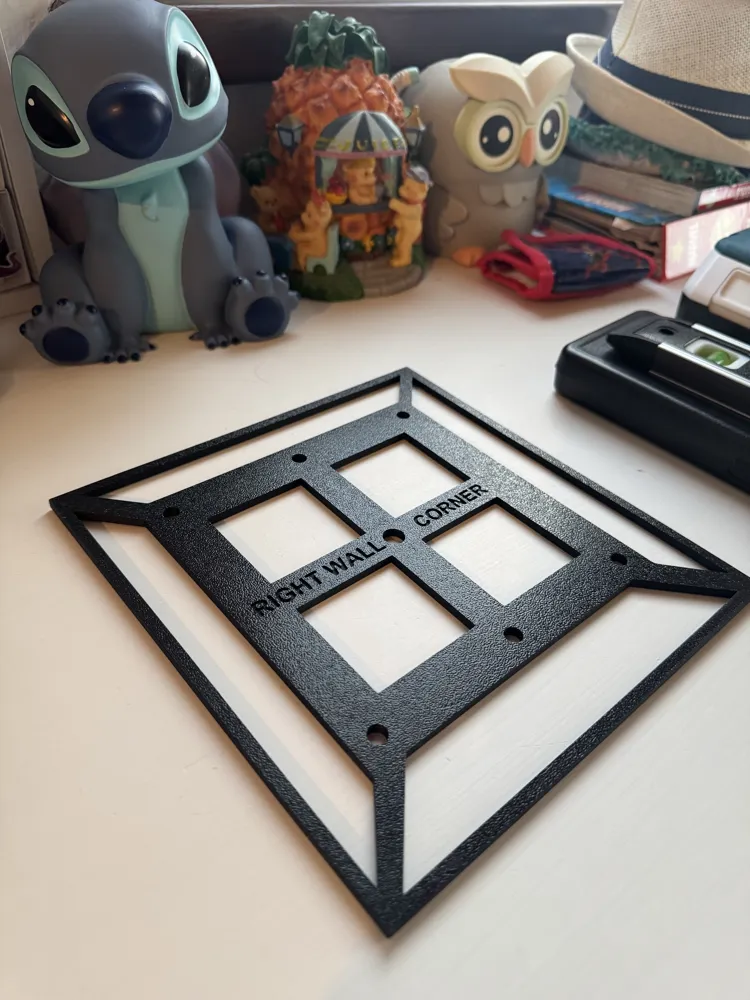

• RIGHT → for shelves mounted on the right side of the corner

Using the correct orientation avoids confusion during drilling, which is the most critical step of the installation ⚠️

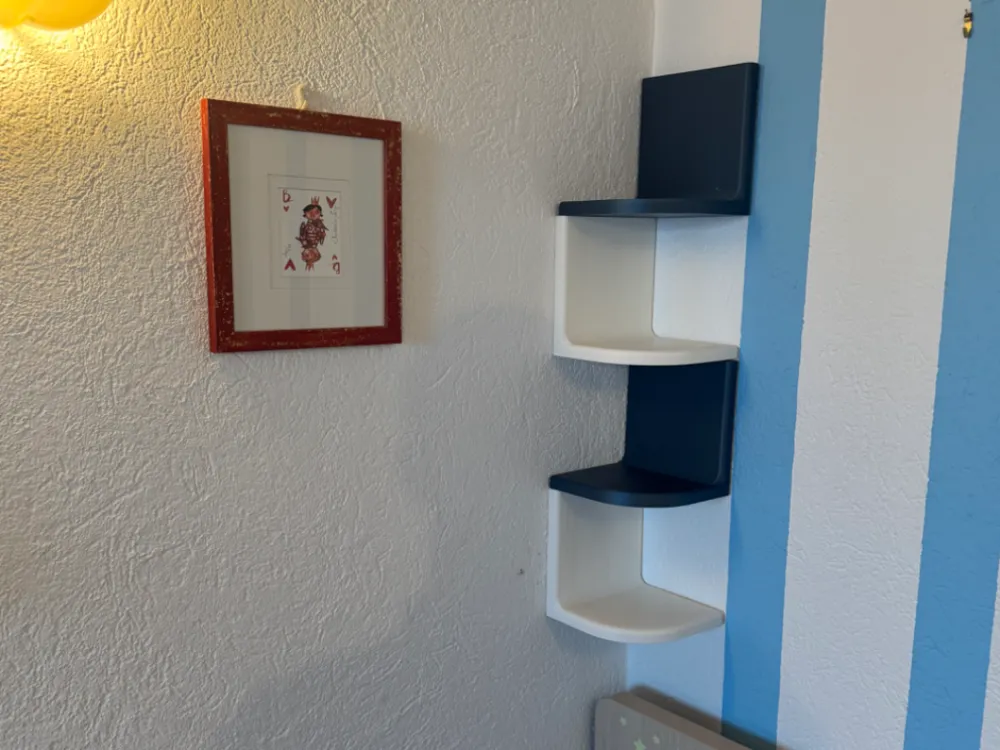

🧩 Fully Modular Design

The system is fully modular:

• install a single shelf
• or build a vertical stack of multiple shelves
• mix left and right versions depending on your corner layout

This makes the design flexible and suitable for many different spaces 🏠

⚖️ Load Capacity (Real Testing)

The shelves were tested printed in PLA, using the provided print settings.

• 2 kg were tested on the weakest shelf, which is the lowest one, working fully in cantilever

• Upper shelves can support higher loads, because:



  • they partially rest on the shelf below
  • the load is distributed between the wall bracket and the lower interlocking shelf



As a result, the system becomes progressively stronger from bottom to top 💪

🔒 Optional Locking Pins

Optional locking pins are included to prevent accidental removal of the shelves.

The pins are not mandatory: in my real installation I don’t use them, as the tolerances are designed to create a very tight and secure fit on their own.

Pins may still be useful in high-traffic areas or for additional safety 👶

❤️ Personal Note

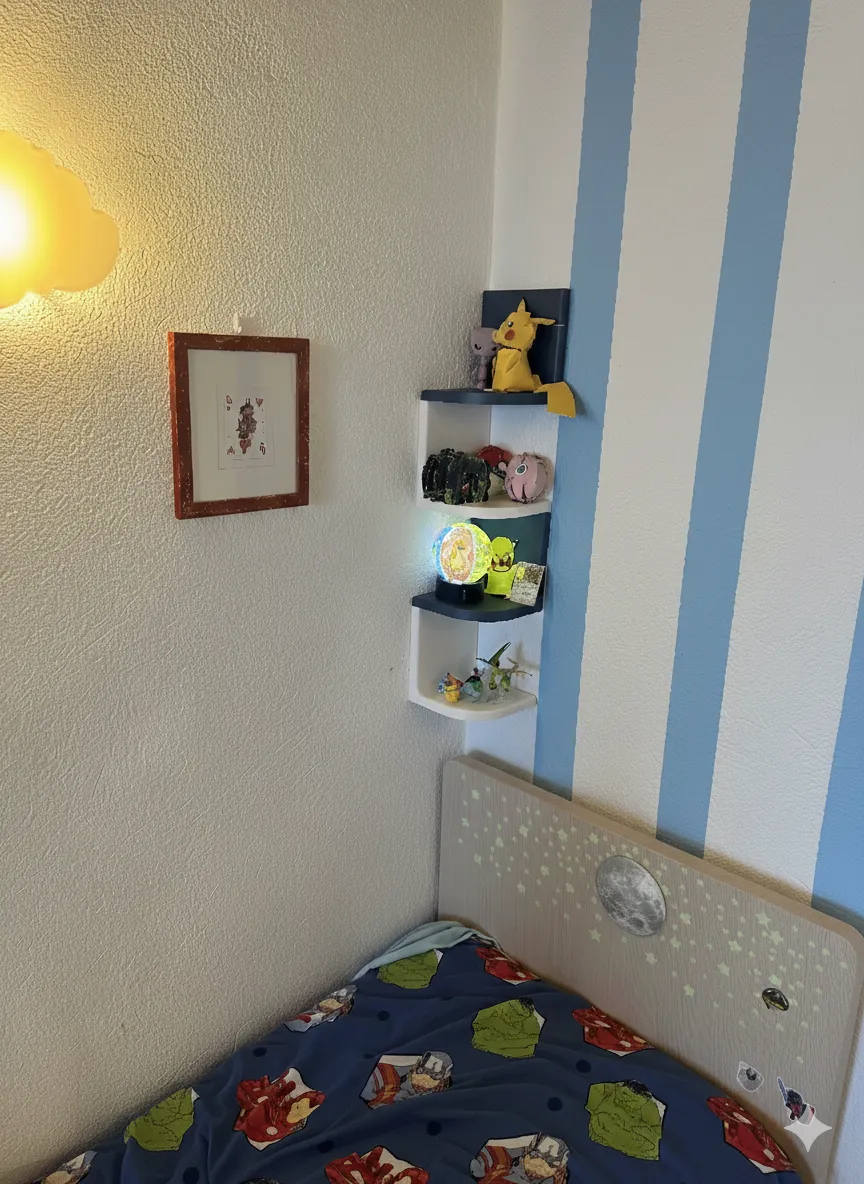

This shelf is installed in a kids room and my son absolutely loves it — he uses it every day for toys and small objects 🧸

This project was designed for real-life use, with strength, safety, and practicality in mind.

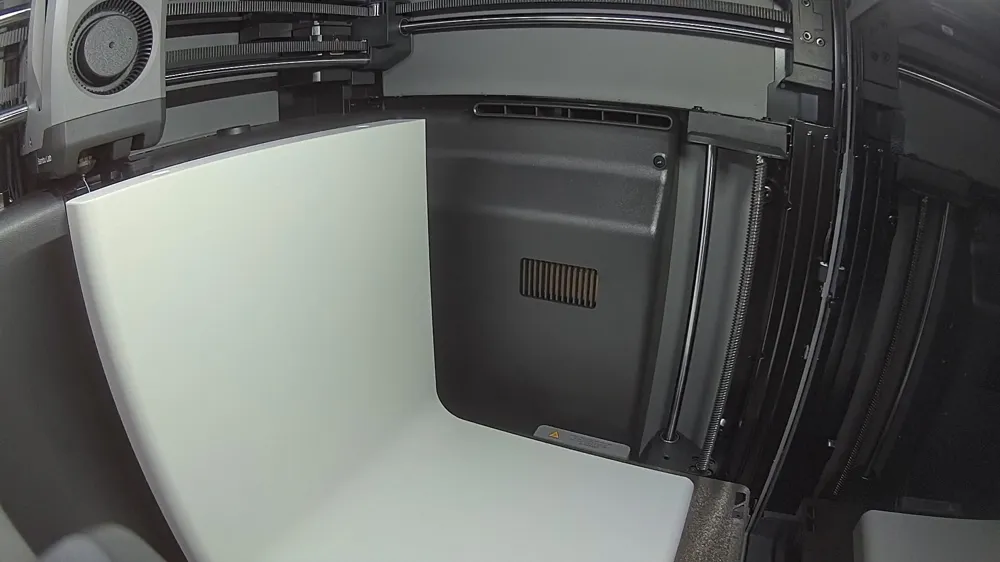

🖨️ Printing Notes

• Recommended materials: PLA / PETG
• No brim required for shelves
• Supports only where specified in the included Bambu Studio (.3mf) file
• All print settings are optimized for one-click printing

⭐ ⭐ ⭐ ⭐

Designed for real life.

Tested at home.

Approved by my kid. 👌

This is my very first project published on MakerWorld, so any feedback, suggestions, or improvements are more than welcome!
