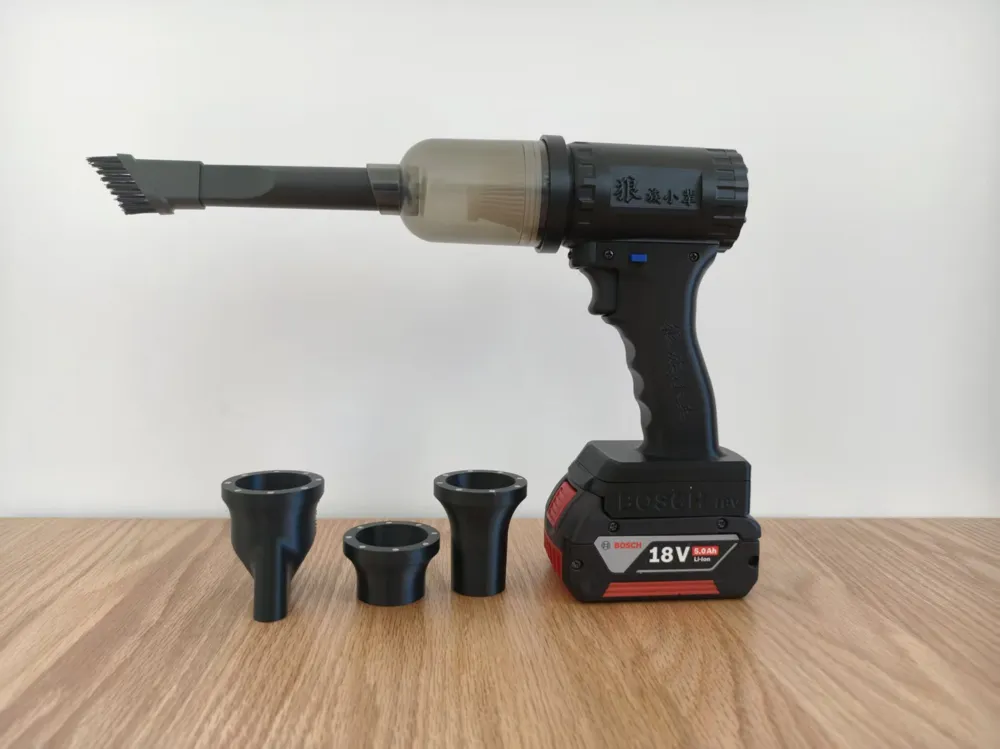

Bosch 18V powerful blower
Print Profile(2)
Description

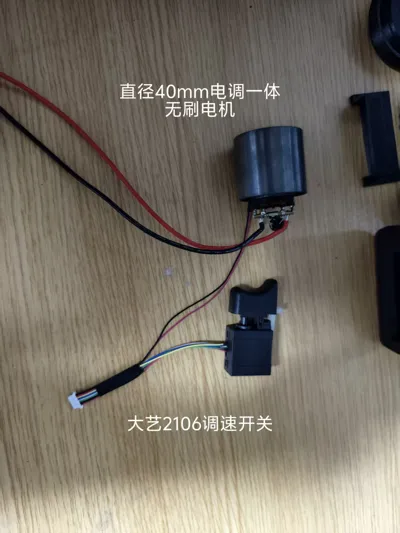

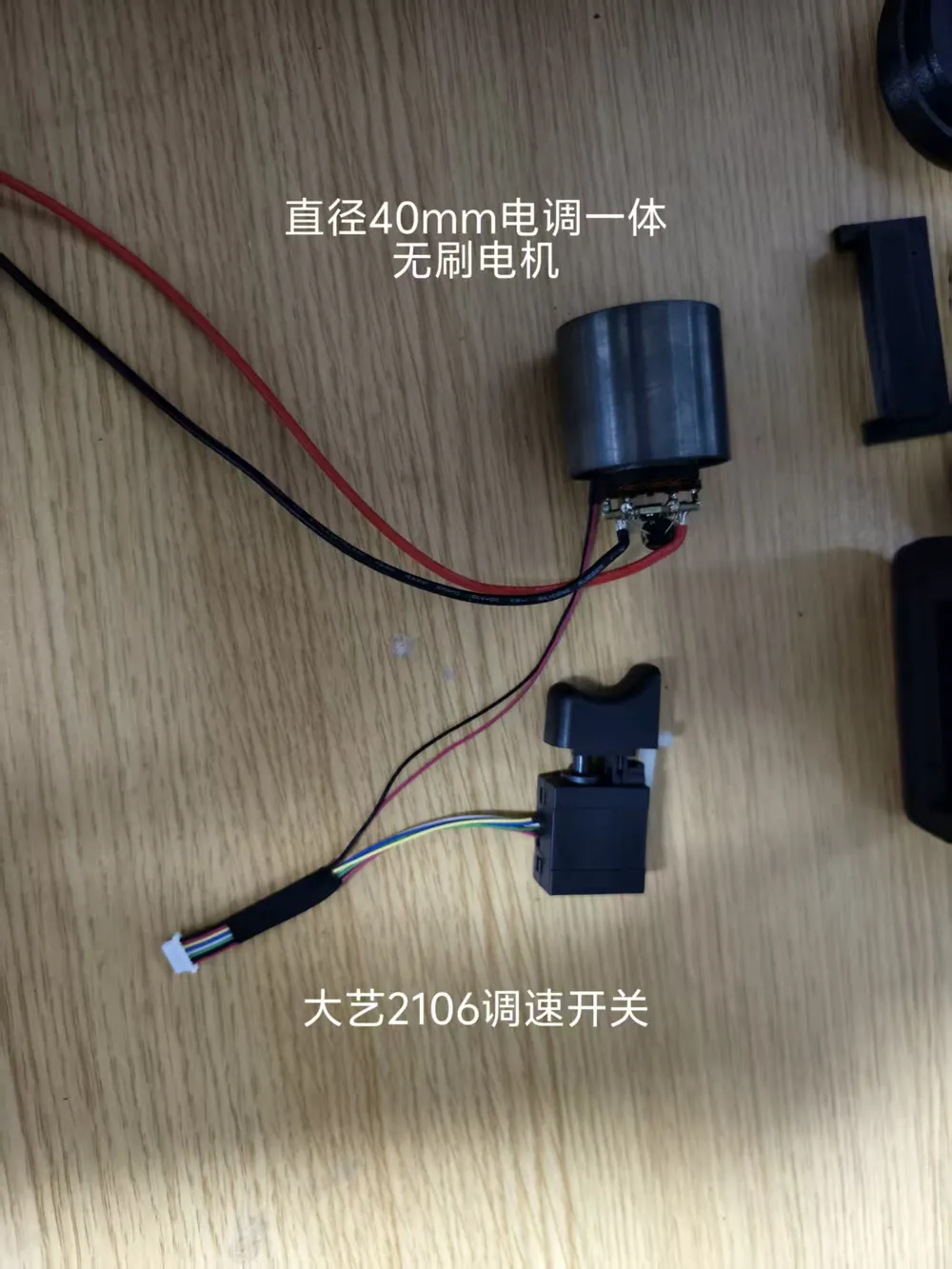

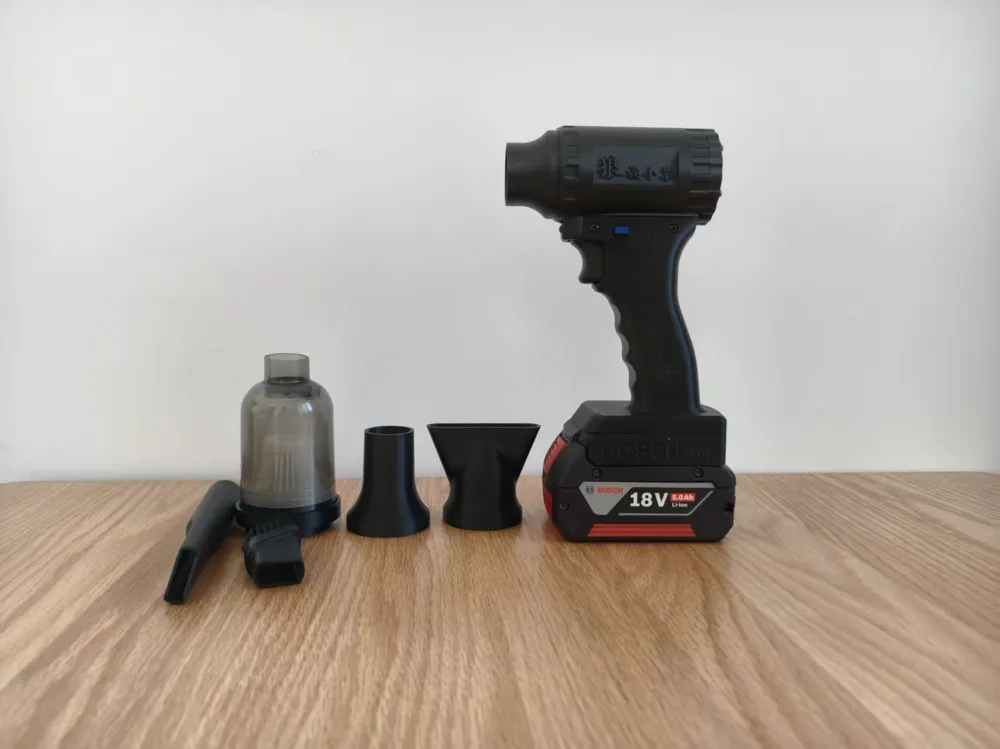

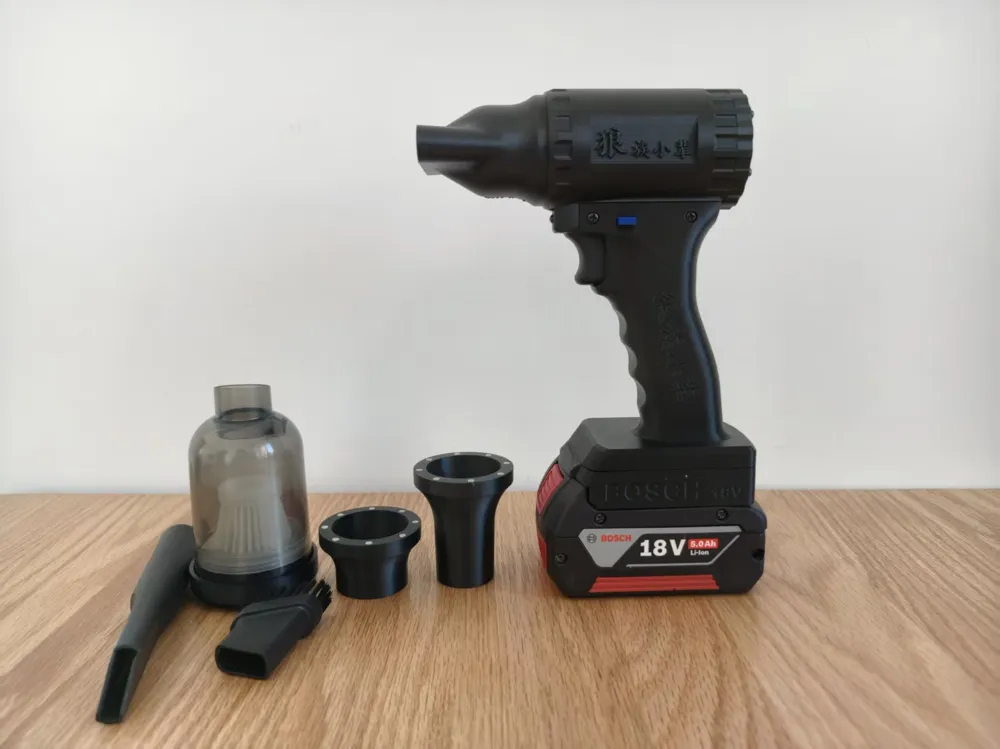

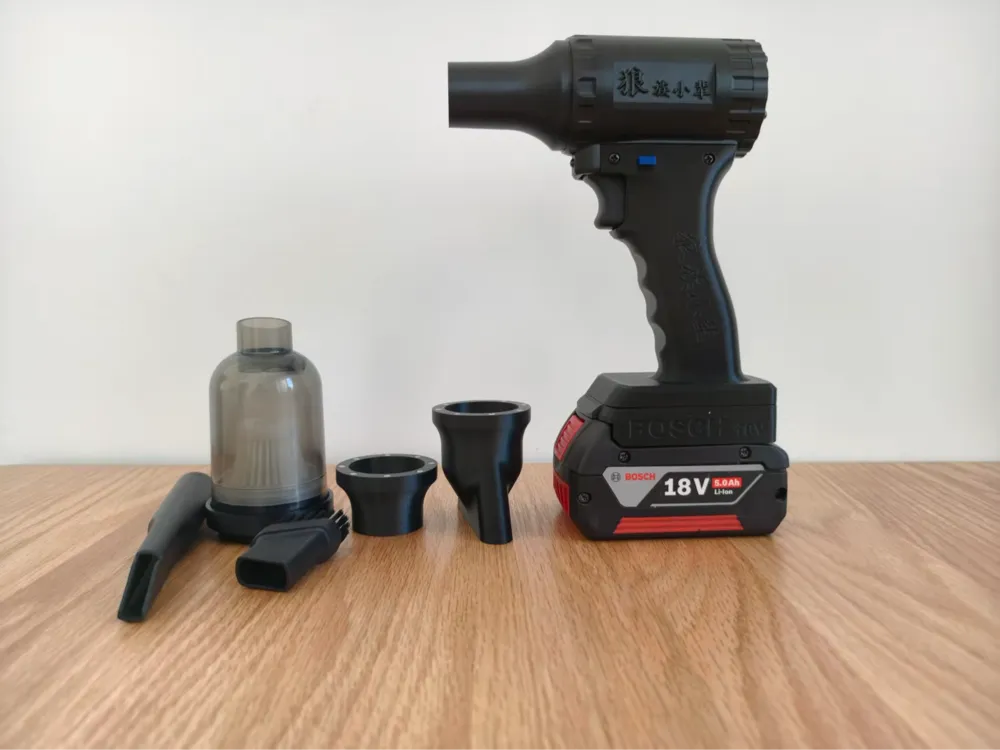

A powerful fan for Bosch 18v batteries. The motor uses a 40mm diameter powerful fan, and the switch is equipped with a Dayi 2106 speed control switch.
Parts List
1、Motor and switch link: https://mobile.yangkeduo.com/goods.html?ps=QRO4vXqxGm

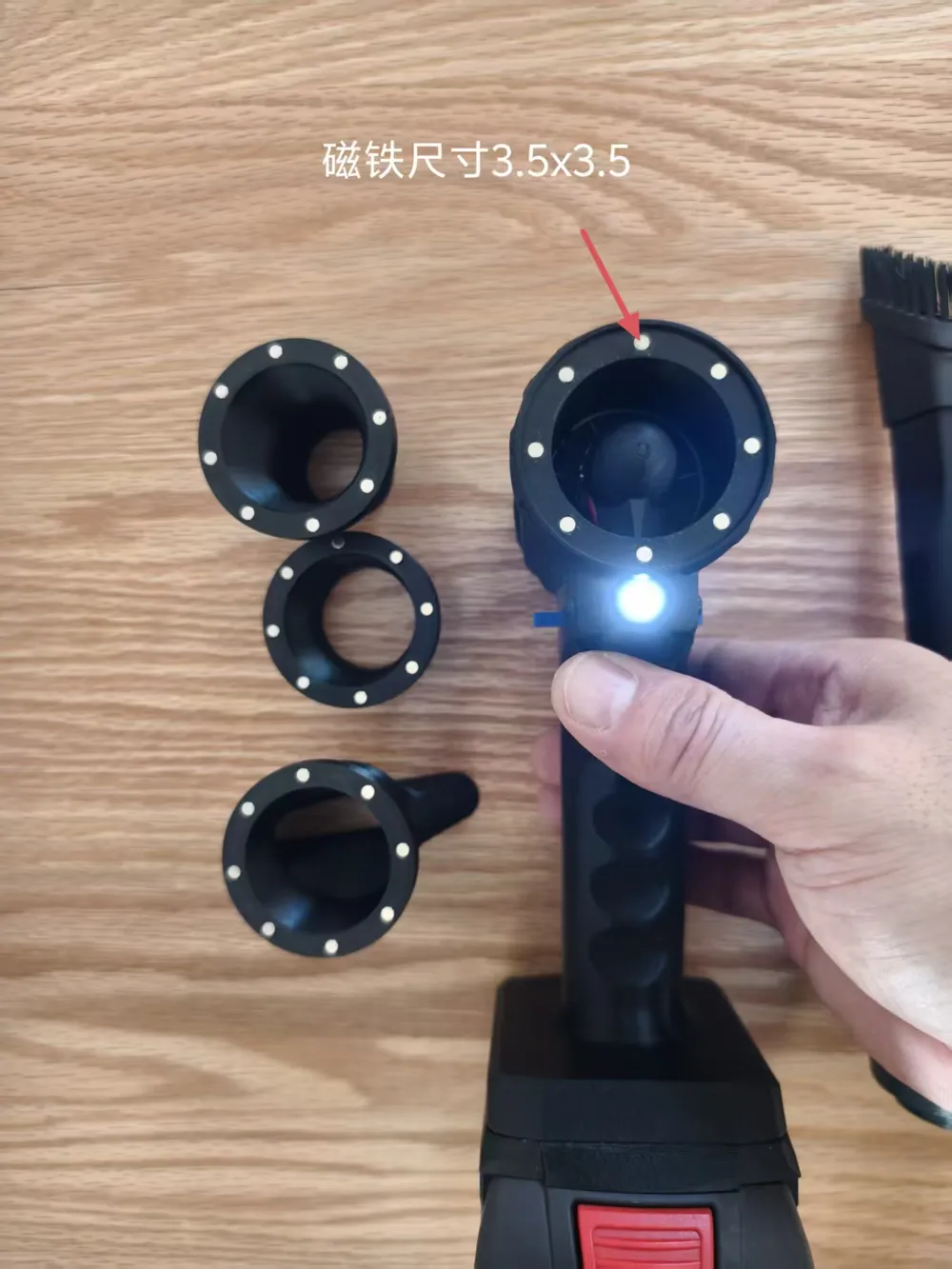

2、32 magnets 3.5x3.5 size: https://e.tb.cn/h.7iMRl4Bvt9iZ16g?tk=9WIZUYG8NsM CZ356

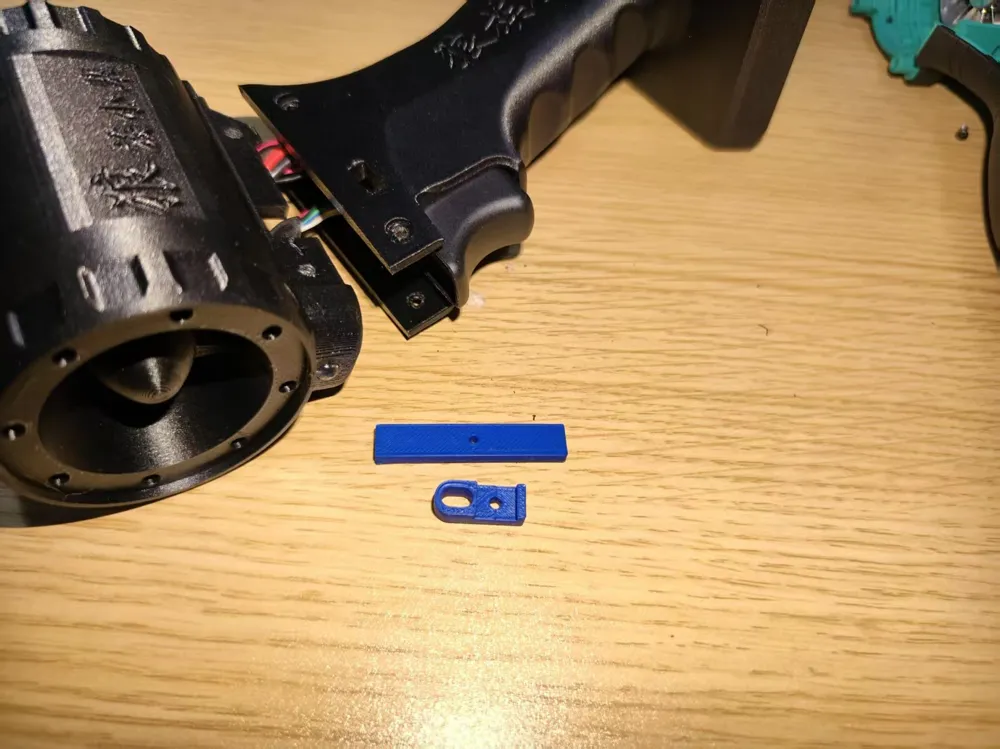

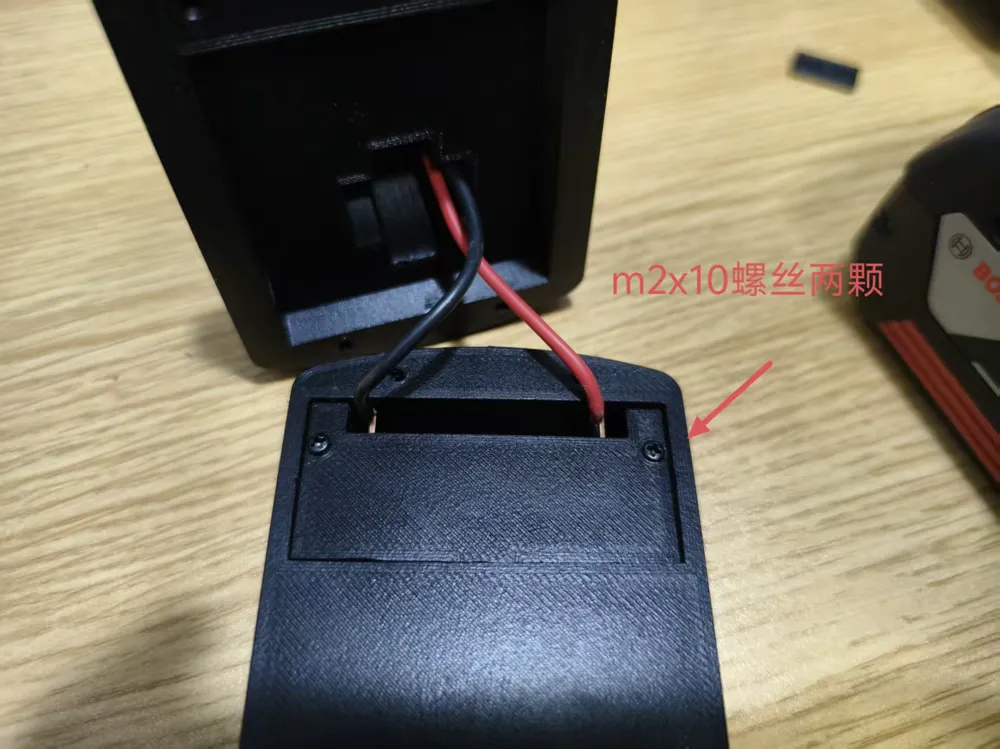

3、4 M3x10 screws (for connecting the battery holder to the handle); 4 M3x8 screws (for connecting the handle to the main body); 8 M2x10 screws (for securing the battery terminals and air inlet); 1 M2x5 screw (for securing the blue commutator flap).
4、2 thin copper sheets 1mm thick 10mm wide 20mm long: https://e.tb.cn/h.7idX4wuZuplAXiA?tk=A6s8UYGxMMo CZ007
5、Vacuum cleaner dust collection cup kit: https://e.tb.cn/h.7iivX1HkQ65n8sq?tk=qAooU1bNUbM CZ225
6、Both print profiles need to be downloaded, one plate is for the fan handle and battery socket, and the other plate is for the nozzle accessories, as one plate could not be opened, they were split into two plates.

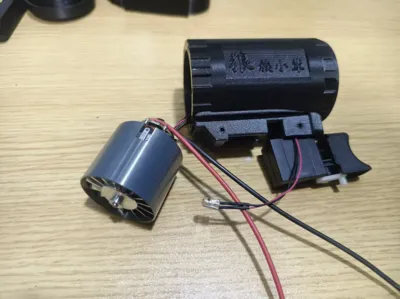

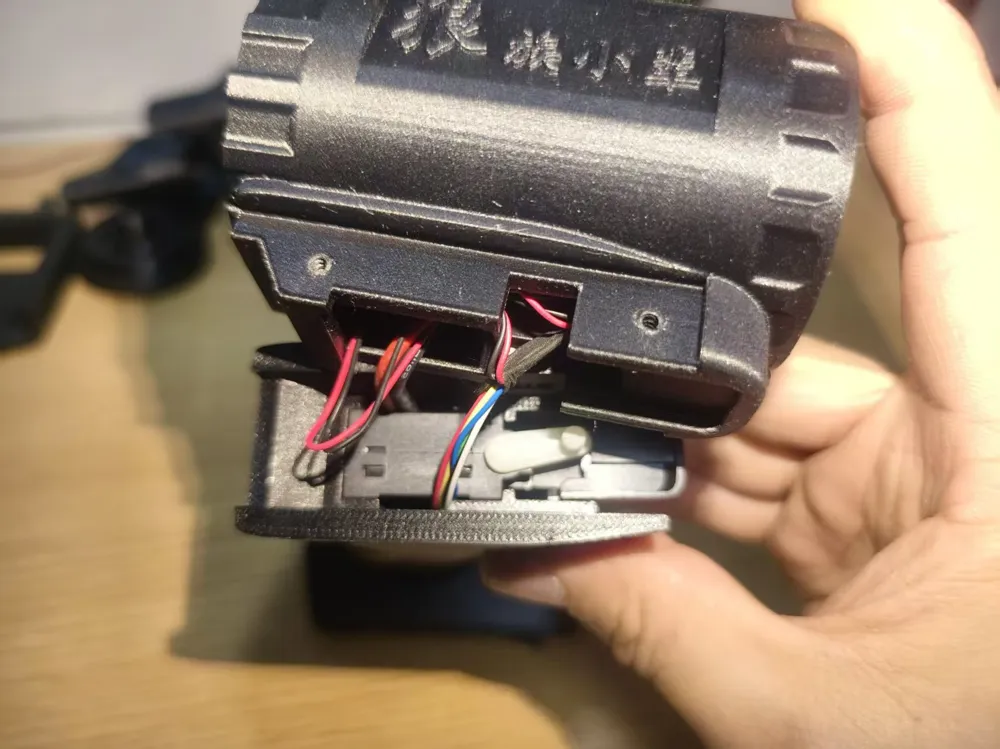

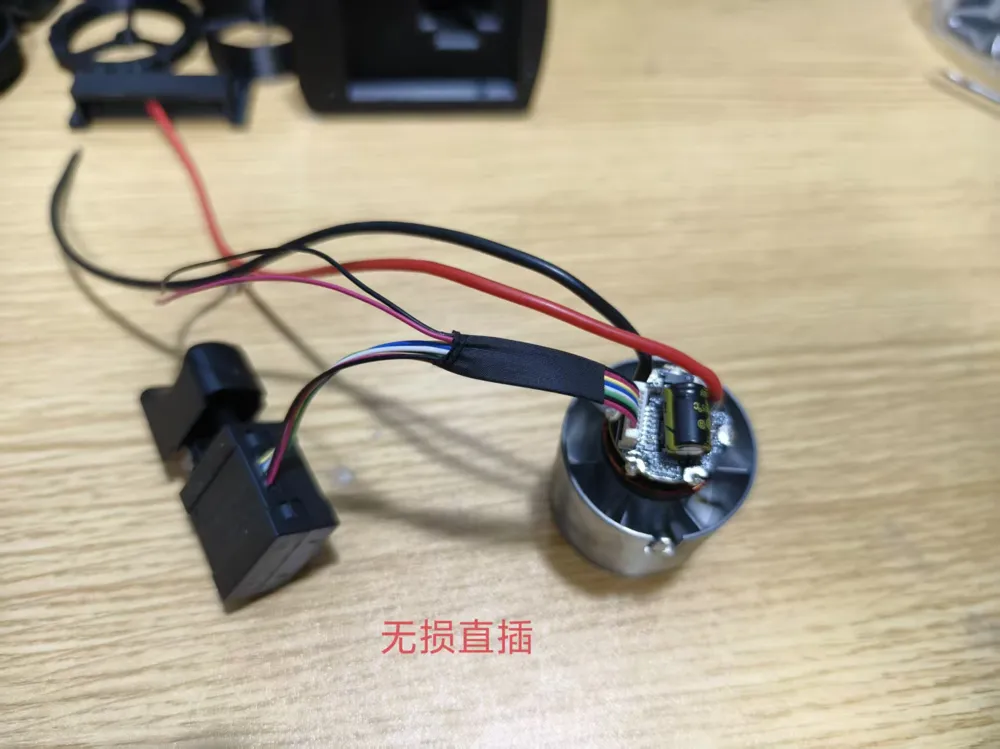

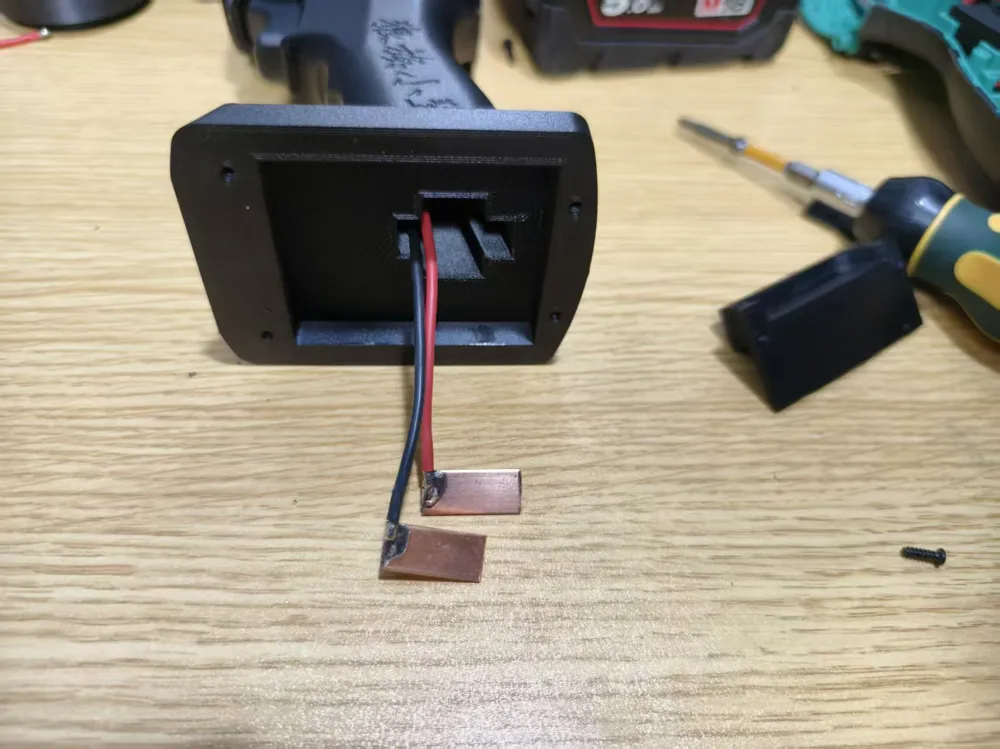

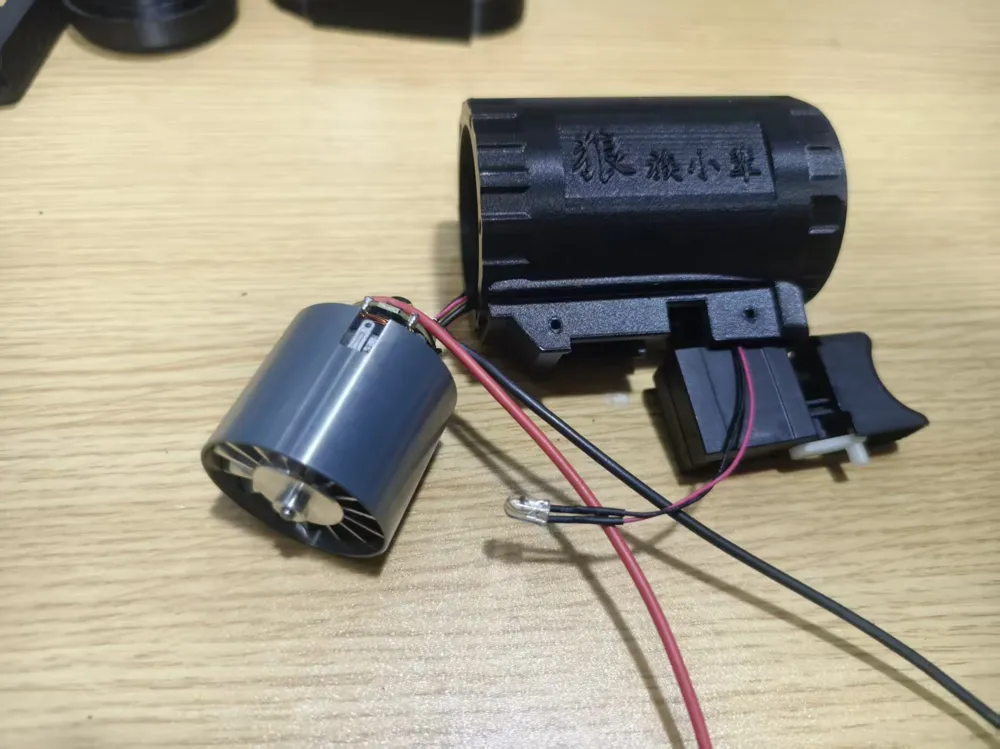

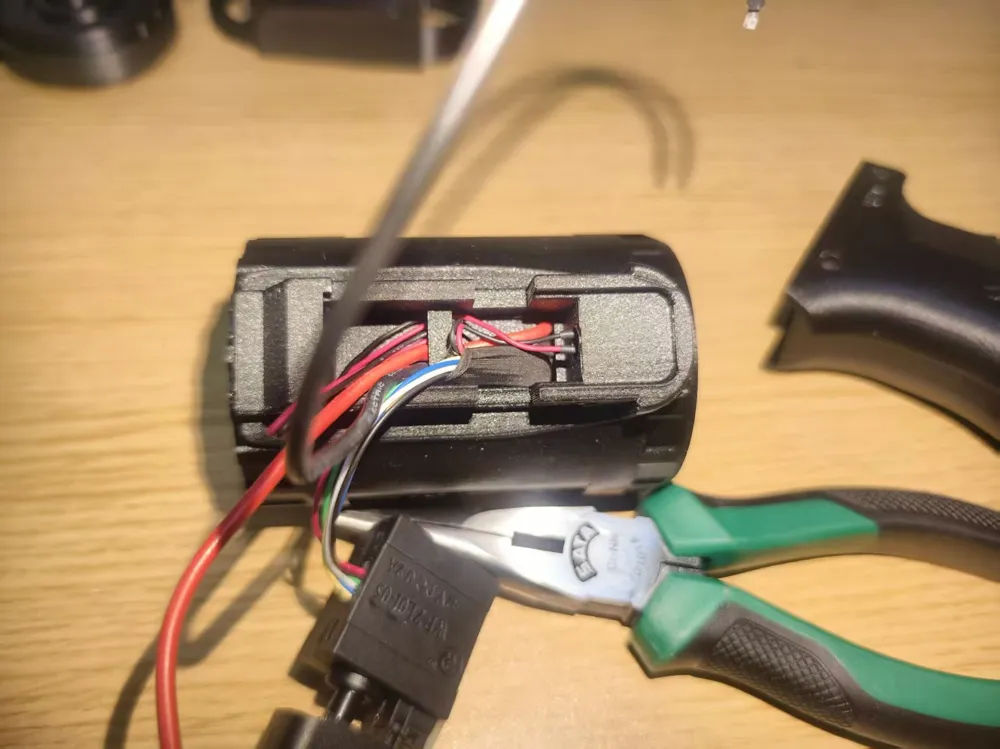

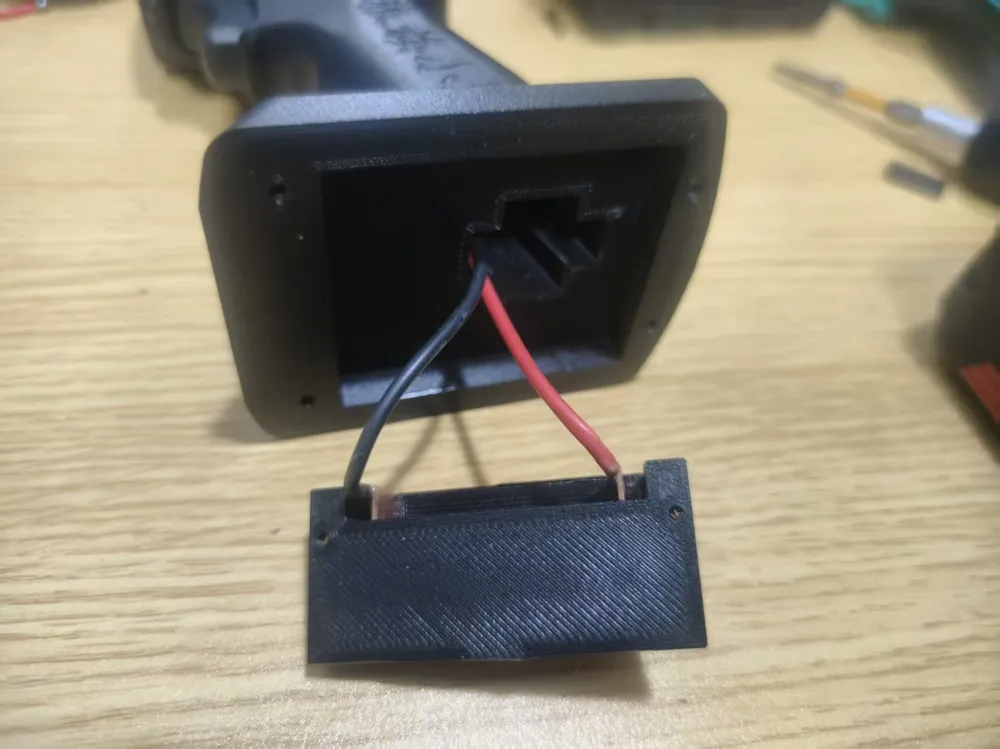

Easy assembly: Just assemble according to the pictures, connect the motor and speed control switch, solder the positive and negative copper sheets with a soldering iron, and the assembly is complete.
