Description

Boost Me (for free)

If you like this project, please consider leaving a like , boost , or make – it really helps and motivates me to create more high-quality designs!

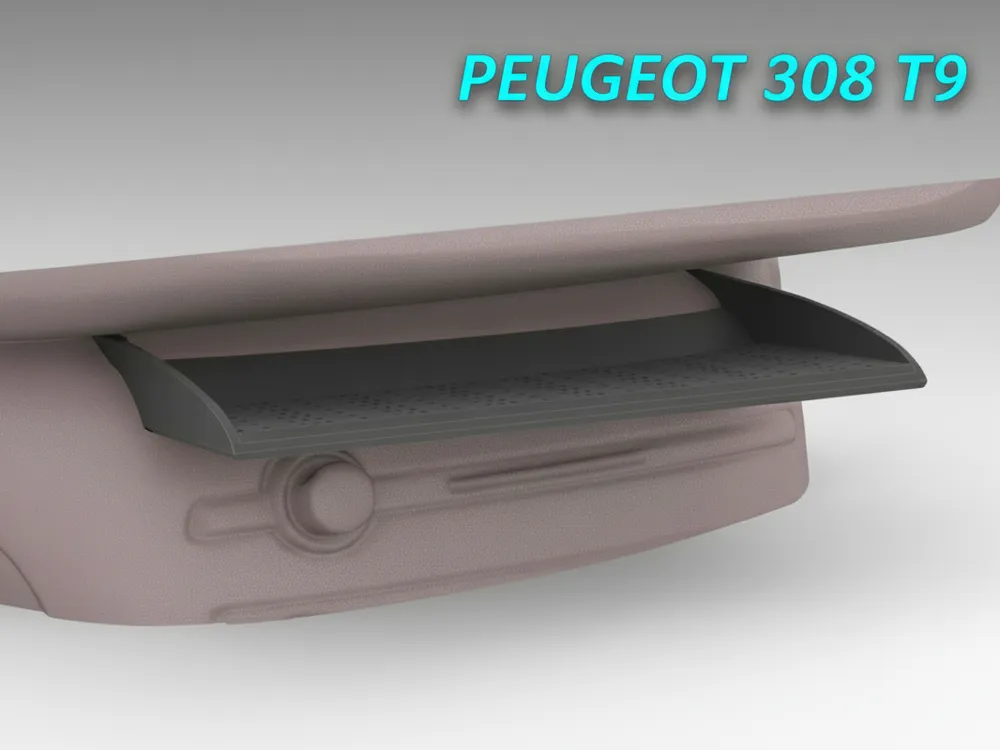

This dashboard shelf was designed specifically for the Peugeot 308 T9 using a real 3D scan of the dashboard, ensuring an excellent fit and OEM-like integration. The shelf mounts without drilling or screws – it is press-fit between the dashboard plastics, making installation quick, reversible, and completely non-invasive. Once installed, it is rock-solid, does not wobble side to side, and stays firmly in place even during dynamic driving! :)

Key Features

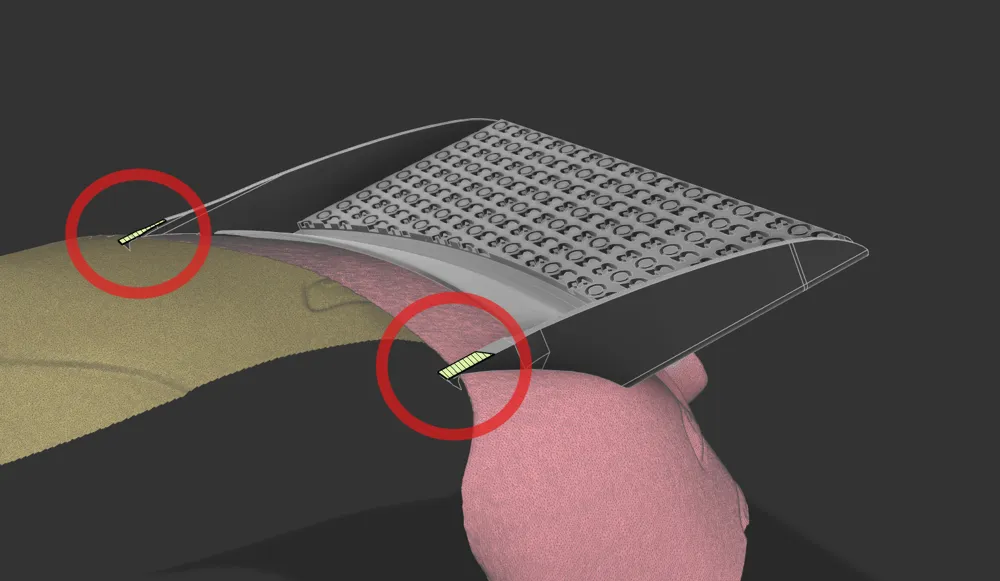

Designed from an actual 3D scan of the Peugeot 308 T9 dashboard

No drilling, no screws, no glue – fully press-fit installation

Very stable construction – no rattling or lateral movement

Slightly angled surface to prevent items from sliding or falling while driving

Perfect dashboard integration – looks like a factory accessory

TPU Anti-Slip Mats Included

To further improve usability, the project includes two versions of TPU anti-slip mats. Prevent phones, keys, sunglasses, or other items from moving. V1 is the version with a small "308" logo on the entire surface of the mat, V2 is a classic pattern.

Printing Recommendations

Shelf material: PETG or ASA (recommended for automotive temperatures). Print with supports. A1 mini is not compatible due to table size.

TPU mats: TPU (flexible filament)

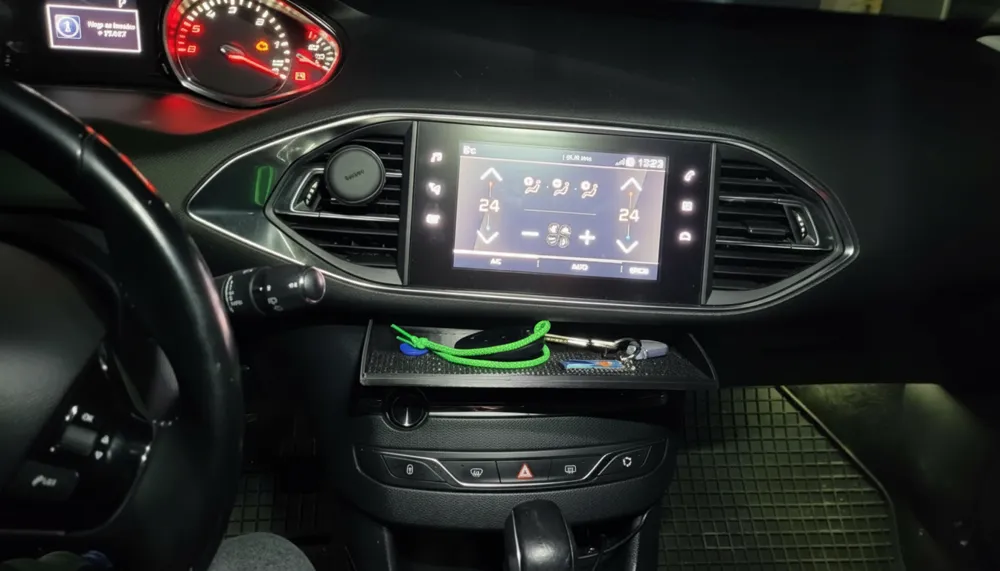

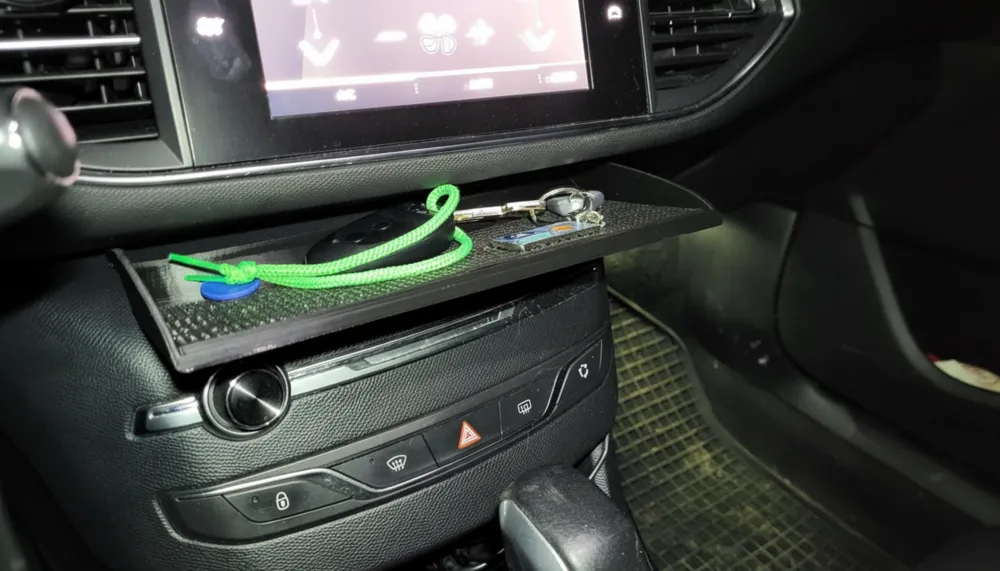

The shelf has been tested in real-world use, including braking, cornering, and everyday driving. Items stay in place, and the shelf remains stable and secure.

Comment & Rating (11)

@Crannikz

Hey still waiting for some nice PETG-CF for a decent look but already wanted to thank you. I love our 308 but I just need some more space for the phone, keys or whatever. Specially when having a cup on board which takes the precious space in the middle. Hope it fits my 2019 308 but I'm pretty sure the middle console is the same between "before facelift" and "after facelift" version.

The designer has replied

@Crannikz

And how did you scan it? I use industrial scanners (Faro) for buildings and never tried anything for private use yet. But I like the way you designed this and your other model, based on the 3d scan.

@Melon_

Replying to @Crannikz :

I think indoor scanners work differently. I used the Creality Ferret Pro, which can scan objects up to 2 meters.

@HitchenFamily

is this the left hand drive or right hand drive version?

The designer has replied

@Melon_

left hand drive. if you need for the right side, flipping it with mirror should work

@HitchenFamily

Replying to @Melon_ :

thanks, I figured it was the lhd but always worth confirming before starting a print, I'll mirror it on the software. thank again

@user_3799160525

hello I really like your idea it looks great I have a 308 and I would have liked to print it for myself but unfortunately with a P1S I can't print it disappointed too bad

The designer has replied

Show original

@Melon_

Oh, I don't know how there's no P1S option. Just select the download STL option and open it in Bambu Studio.

@user_3799160525

Replying to @Melon_ :

good evening thank you for your answer I'll try tomorrow I'll keep you updated thank you very much

Show original

@Stefan3D

Can't wait to try next days. Thanks for this project, it really helps for put more stuff there.
