LK Fuga Plate for Danfoss Icon2 Thermostat
Print Profile(1)
Description

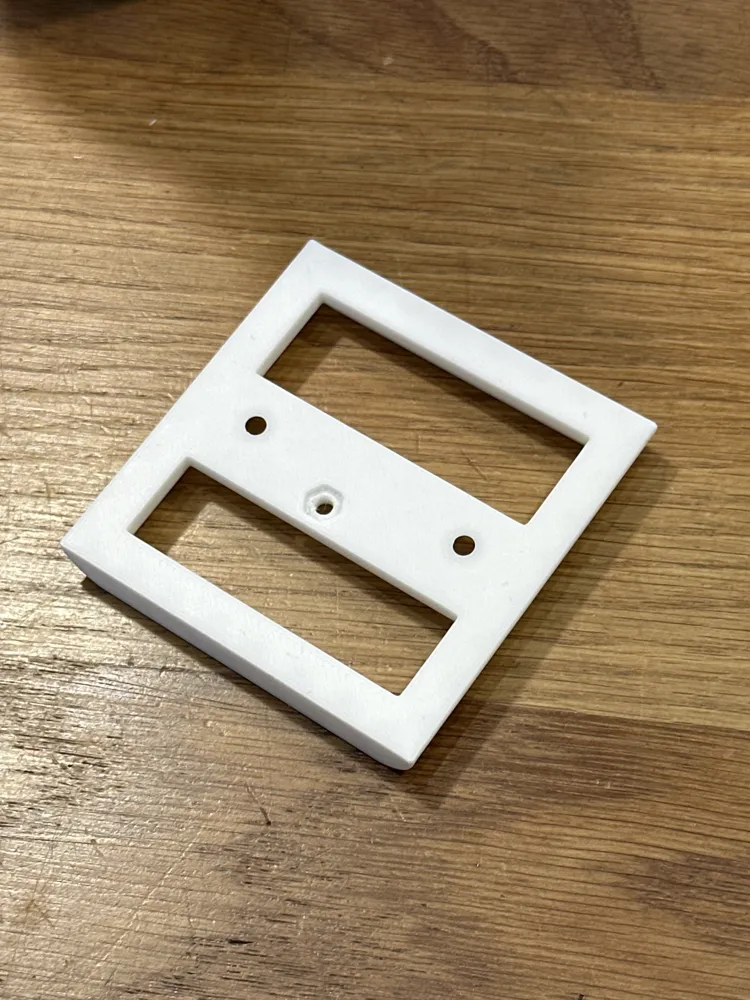

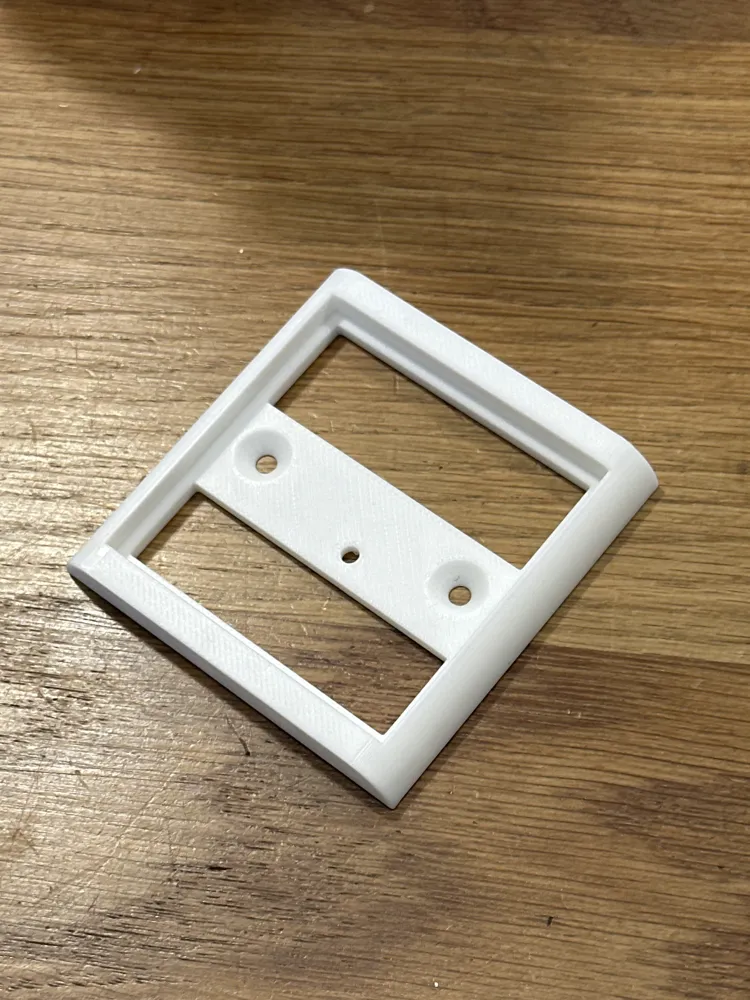

LK Fuga Mounting Plate for Danfoss Icon2 Thermostat
This adapter plate allows you to mount a Danfoss Icon2 wireless room thermostat on an existing LK Fuga wall box (forfradåse), perfectly covering the hole left behind when replacing an old wired thermostat.
Features:
- Clean conversion from wired to wireless thermostats
- Covers unsightly wall holes and old mounting points

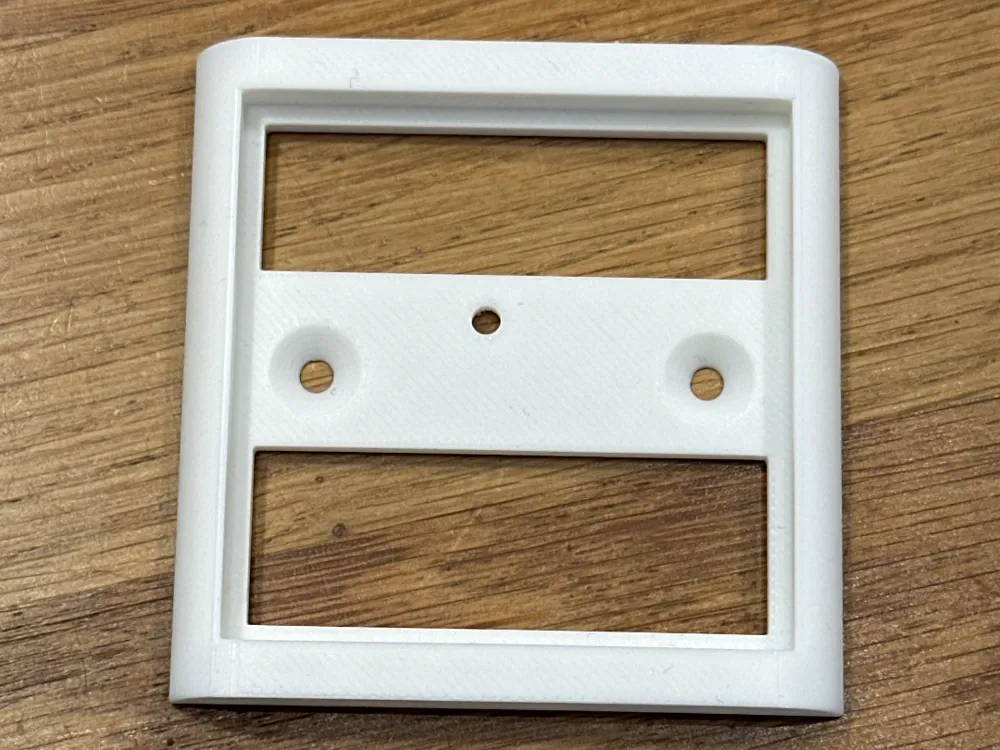

- Two screw holes for secure mounting directly into the LK forfradåse
- Integrated mount point for the Danfoss Icon2 magnetic holder
- Simple installation with standard hardware
What You Need:
- M3 screw (10mm or longer) and bolt for mounting the thermostat magnet
Installation:

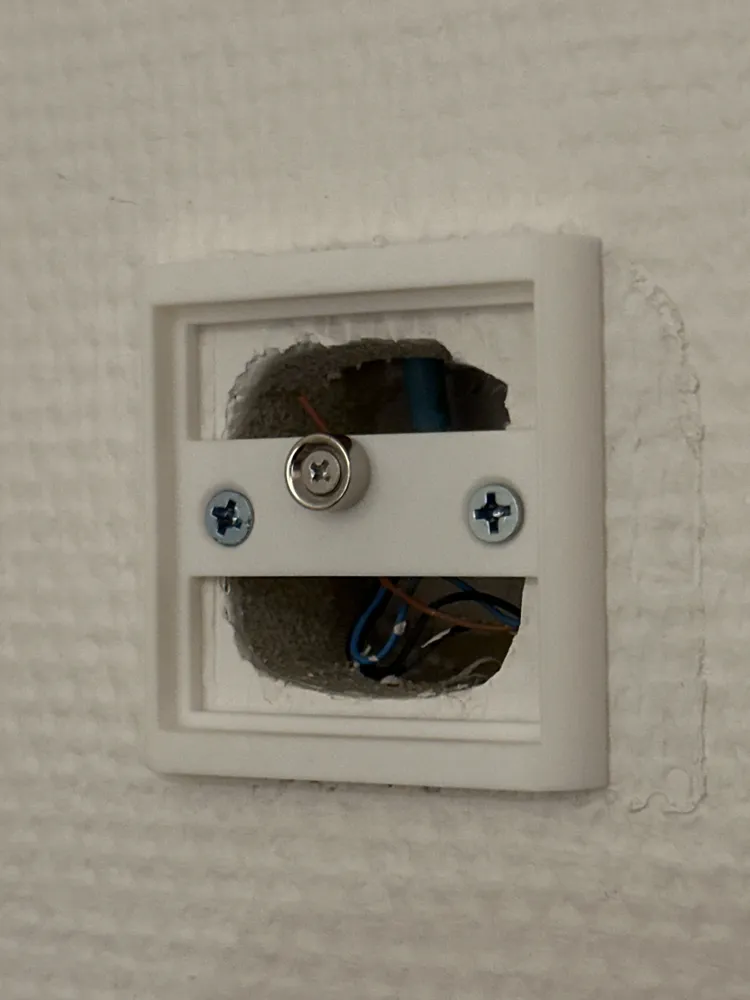

- Align the plate with your LK Fuga wall box
- Secure with screws through the two mounting holes
- Attach the Danfoss magnetic holder using an M3 screw and bolt through the center hole

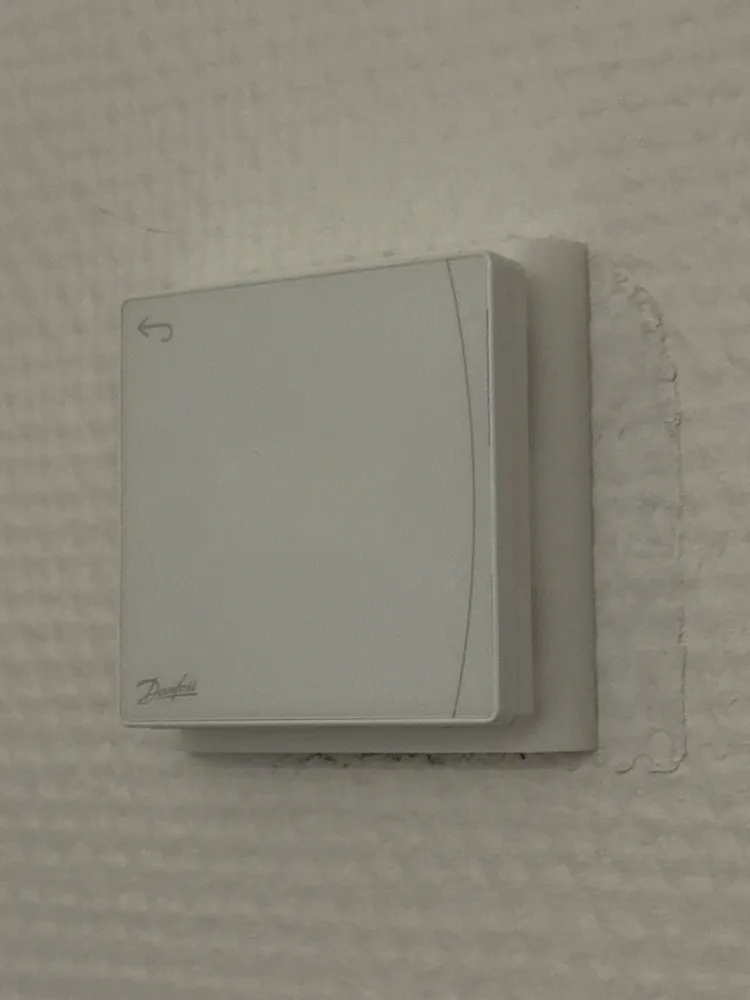

- Mount your Danfoss Icon2 thermostat
Print Settings Recommendations:
- Supports can be used for perfect bolt mounting
- Use a smooth print plate for flush wall mounting
- Standard PLA or PETG works well
- 0.08mm layer height recommended
Perfect for Danish homes upgrading to smart, wireless climate control while maintaining a clean, professional look!
