Radiomaster Pocket Gimbal Protection - Honeycomb
Print Profile(1)
Description
🛡️ Protection for the gimbals when sticks are removed!

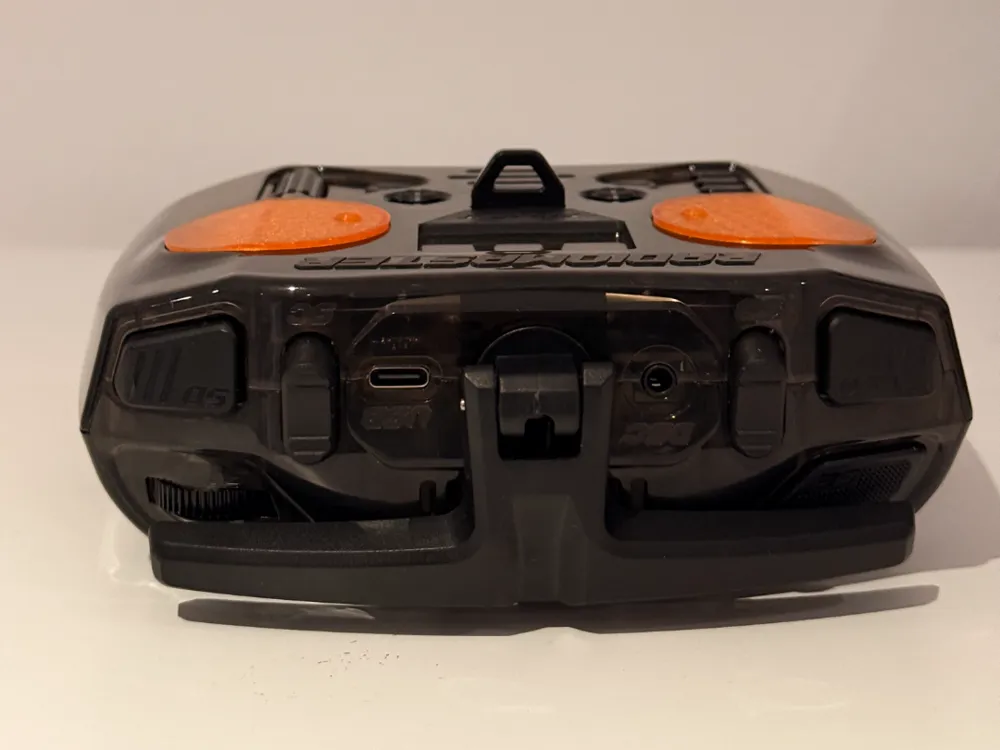

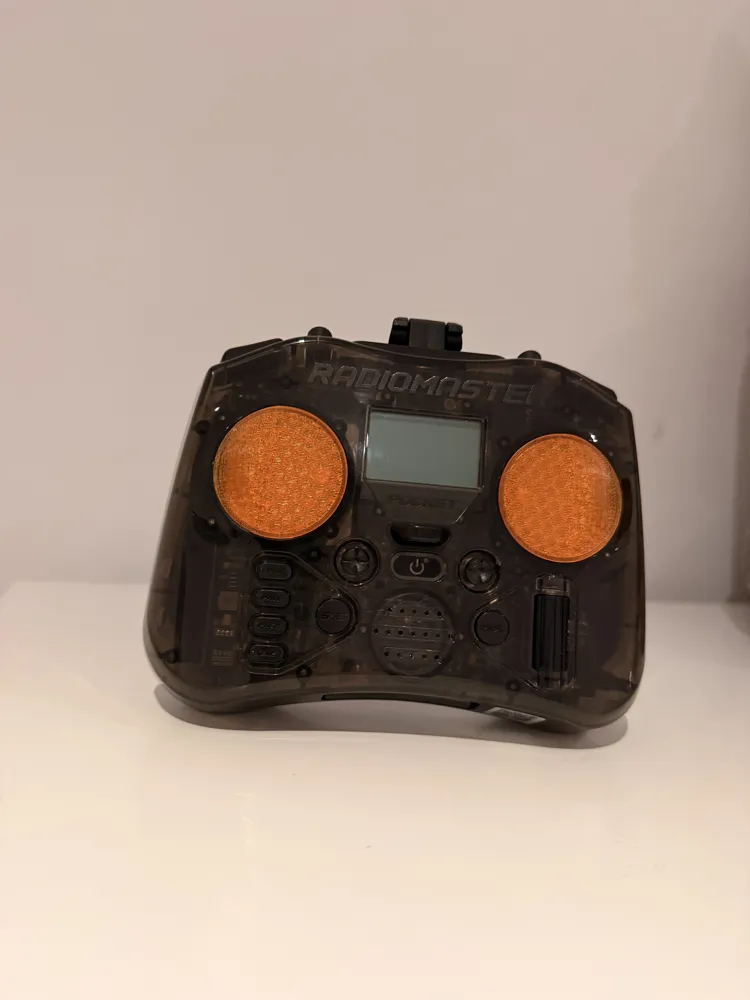

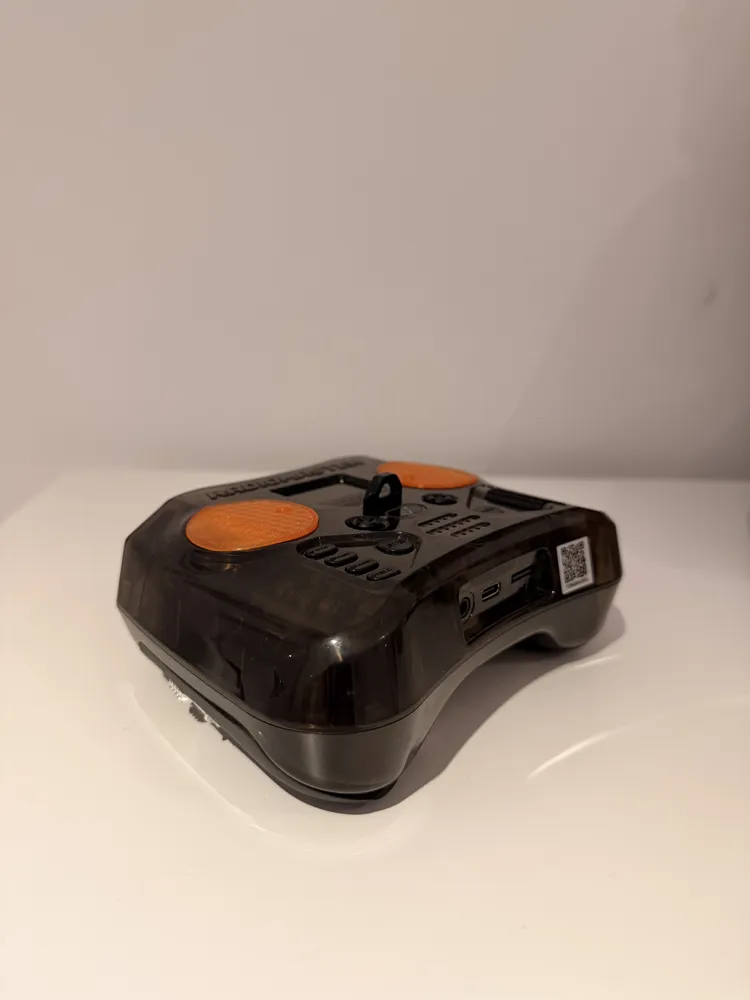

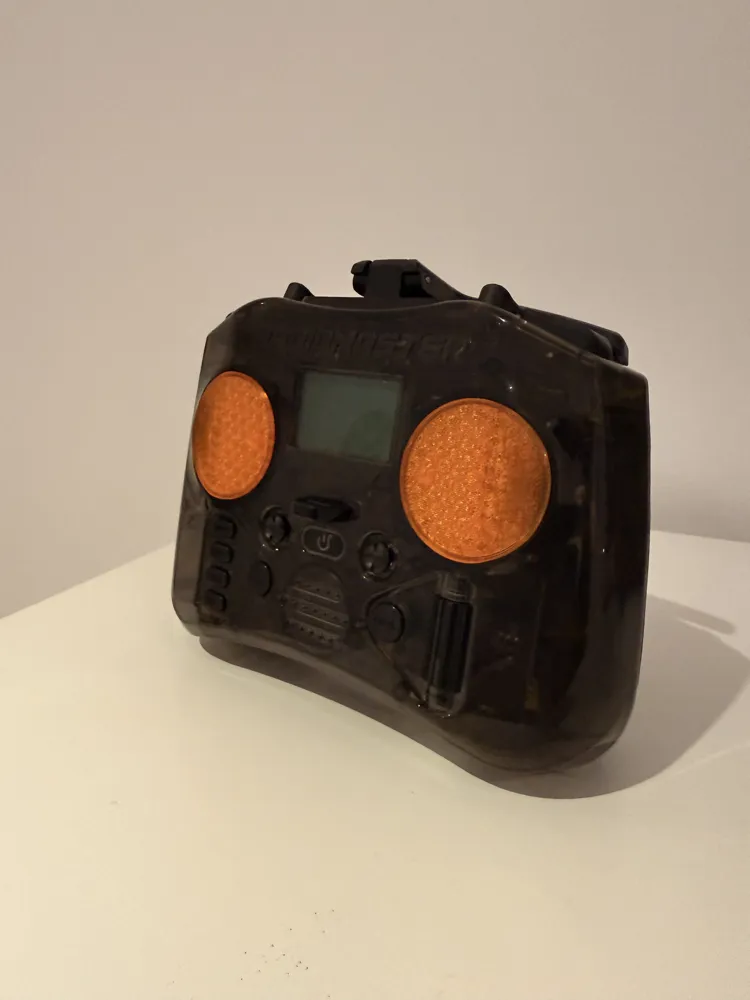

Anyone using their Radiomaster Pocket in the wild or at the beach (like here in the Canary Islands) knows the risk: If the sticks are unscrewed for transport, the gimbal mechanism is exposed. A single grain of sand can cause devastating damage here. These covers perfectly seal the openings.
Details & Features:

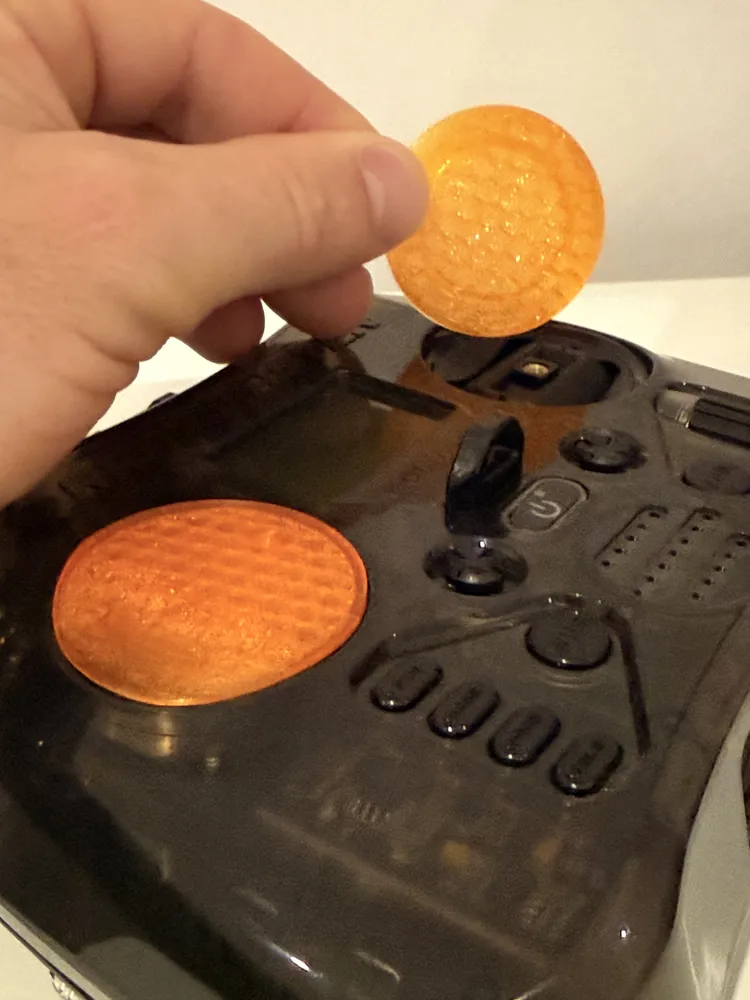

- Secure Mechanism Protection: Reliably protects the gimbals from dust and sand when the sticks are unscrewed.

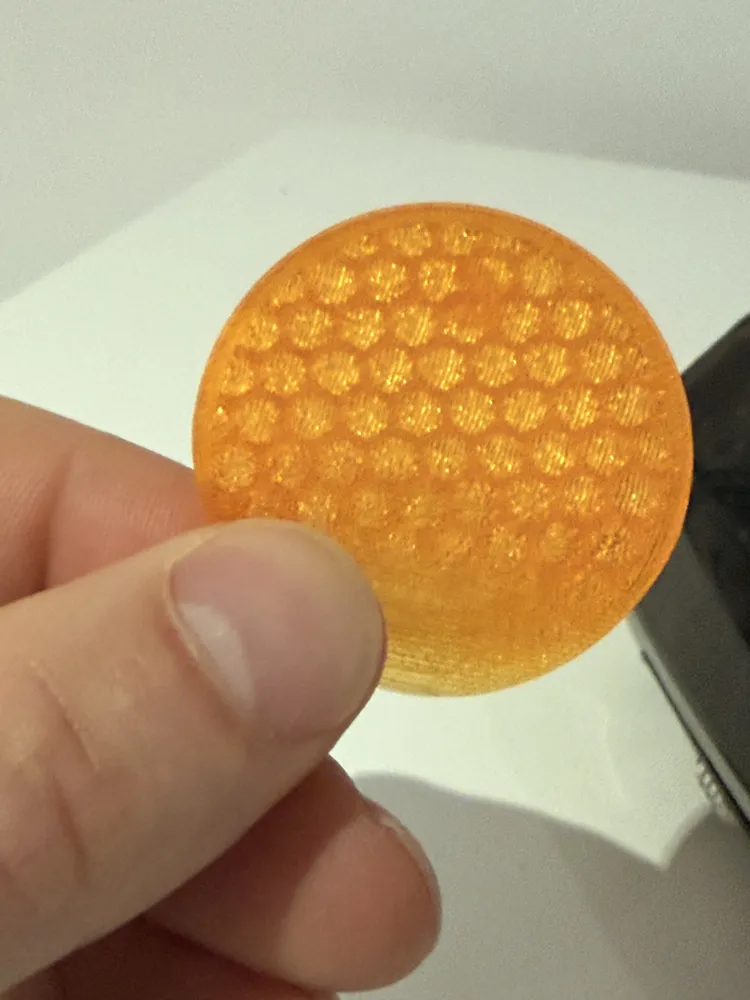

- Honeycomb Look: The integrated honeycomb structure provides a technically high-quality look.

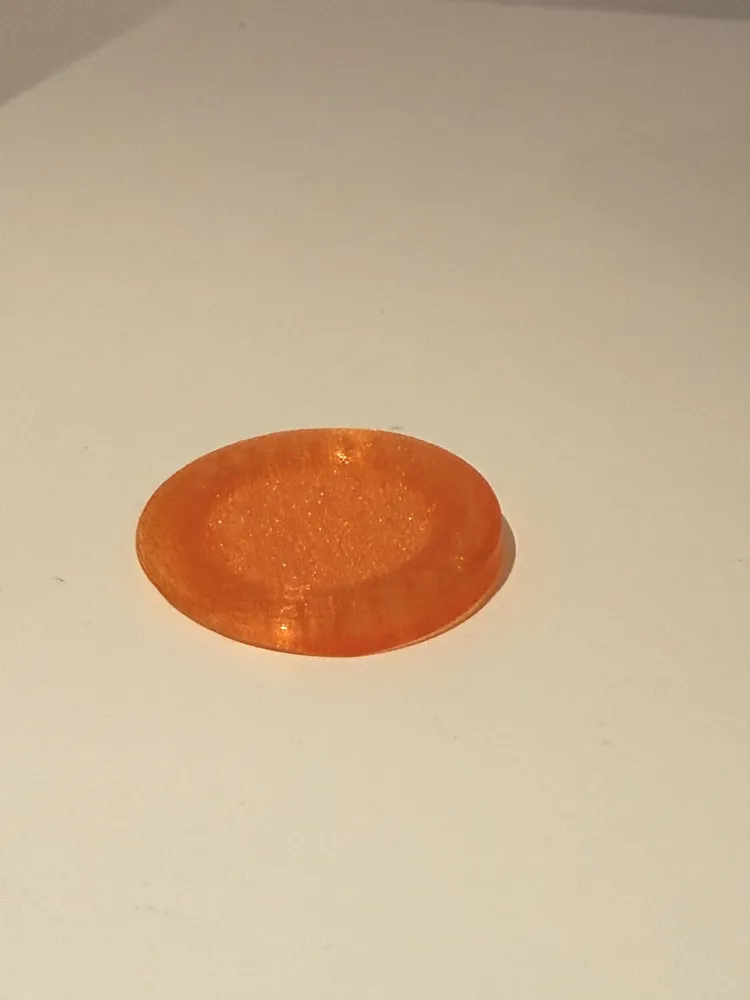

- Gimbal Clearance: A 1mm recess on the underside ensures a perfect fit over the mechanism.
- Optimized for Transparency: The design really shines when using transparent filament (e.g., Sunlu PLA Translucent).
⭐ The 3MF Project
The provided .3mf file is optimized for Bambu Lab printers (A1, X1C etc.):
- Variable Layer Height: Pre-set for perfectly smooth curves on the top.
- Support-free: The design is engineered so that no supports are needed.
🔧 Recommended Print Settings
- Material: PLA Translucent (successfully tested), PETG, or ASA.
- Nozzle: 0.4 mm.
- Wall lines: 3 (important for clean contours).
- Infill density: 20%.
- Infill pattern: Honeycomb – absolutely essential for the visual honeycomb design!
⚡ Bambu Lab Verified
Every design is perfected by me on the Bambu Lab X1C or A1. I optimize every model down to the last detail for FDM printing, extracting everything technically possible. Load, print, fits.
