Description

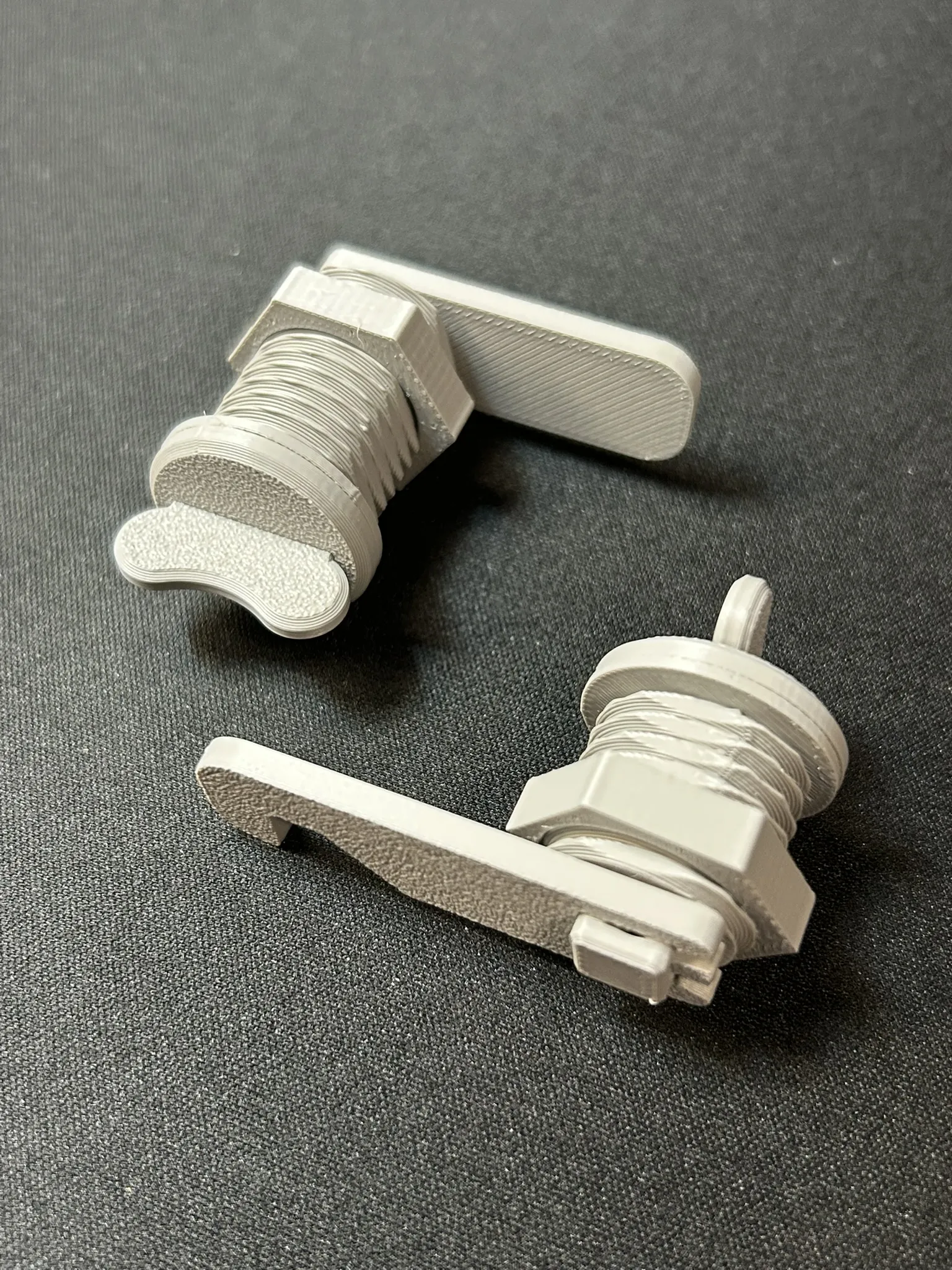

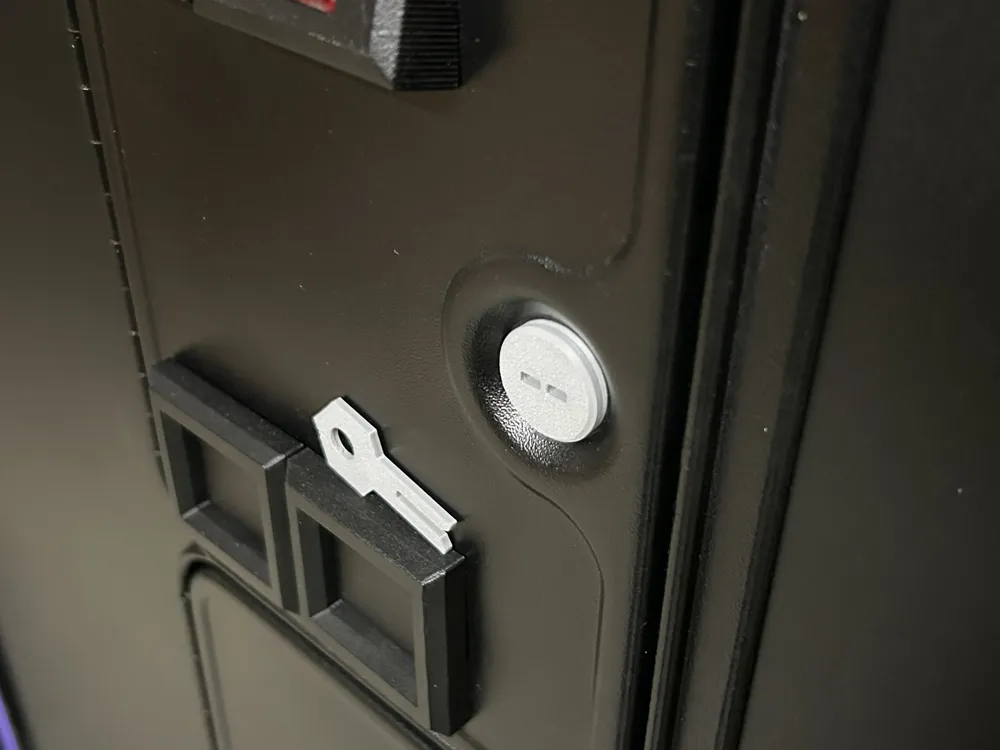

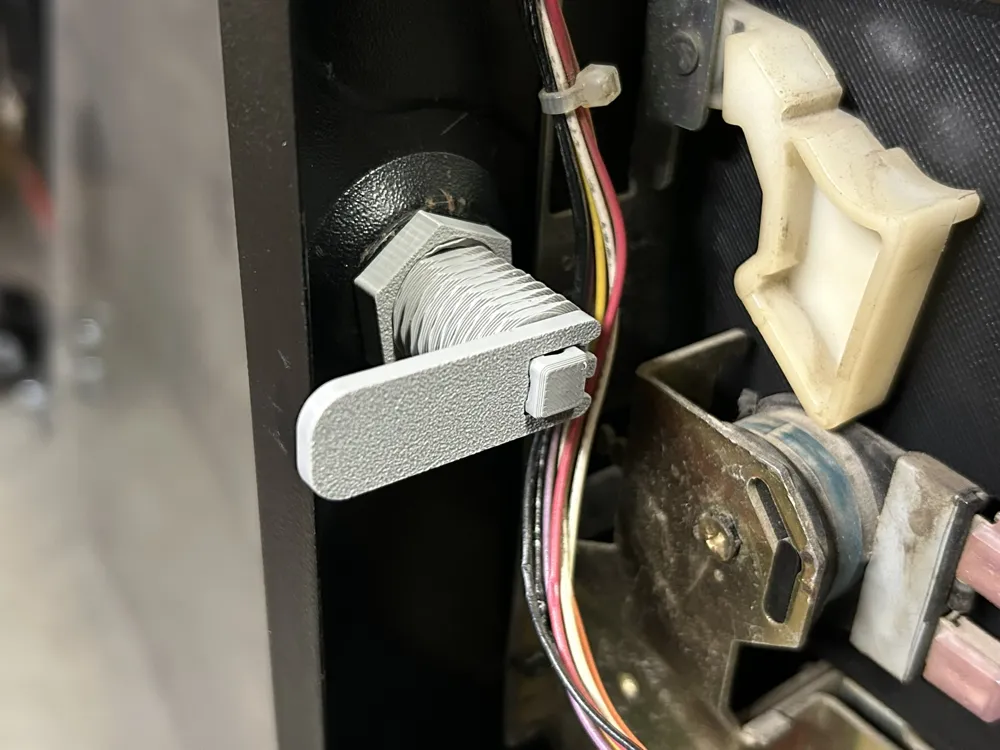

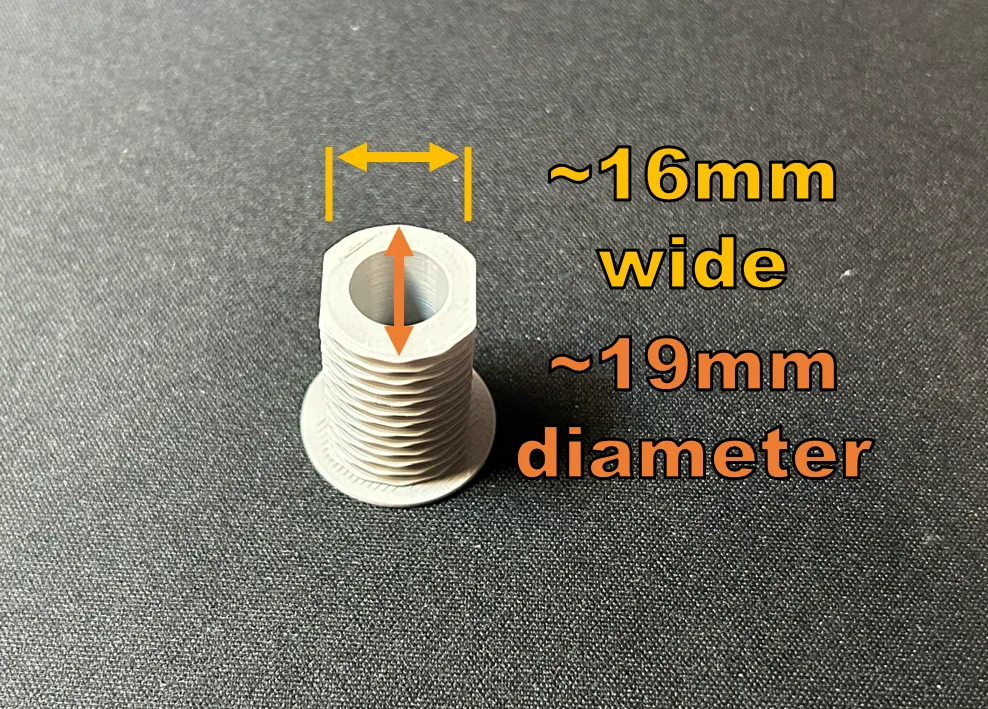

Designed this fully printable Keyed Cam Lock for to use on arcade and pinball machines, enabling easy access while still providing a simple key latch mechanism. Would also work well on cabinets / cupboards / toolboxes around the house, as it fits a standard 19 mm diameter x 16 mm wide cam lock hole.

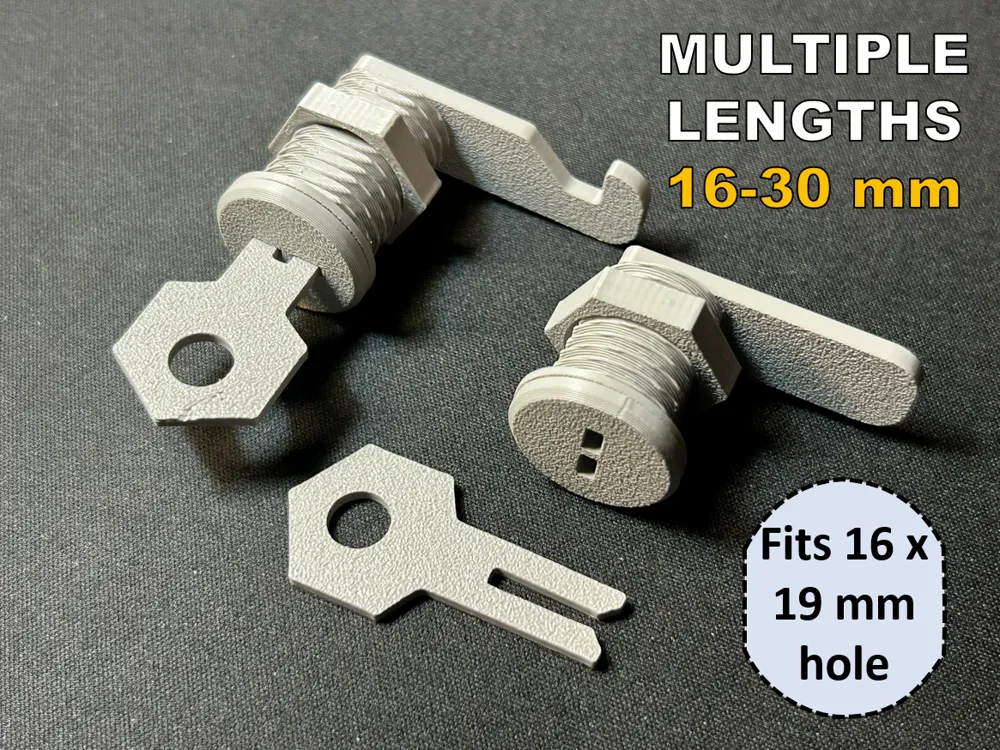

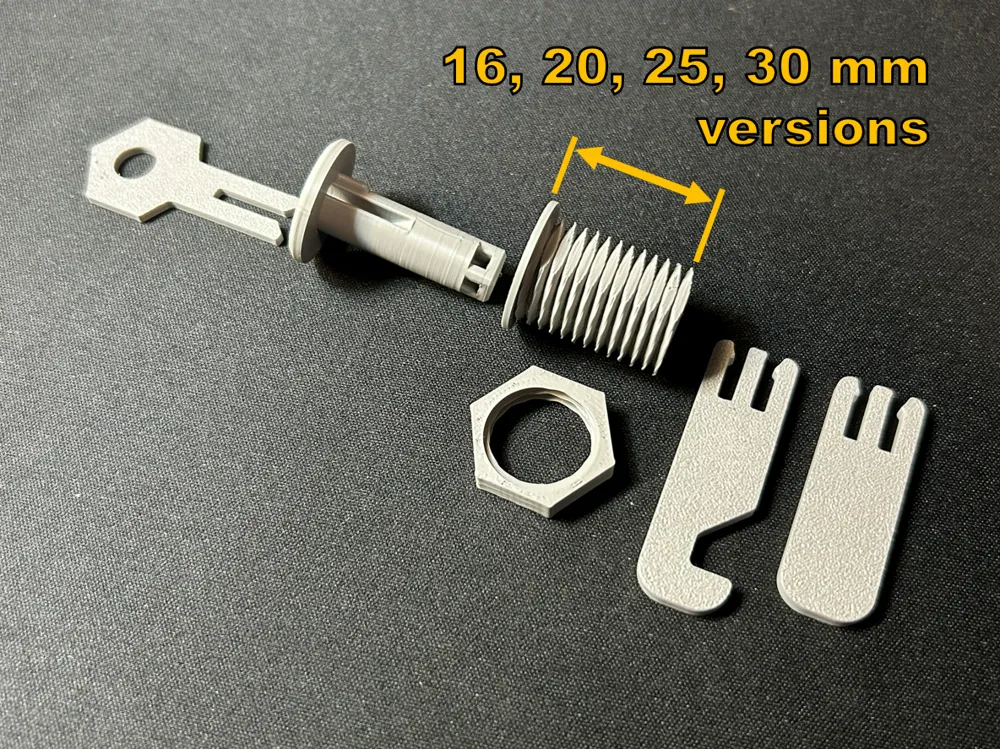

Four length sizes are provided:
- 16 mm (~5/8 inch) long
- 20 mm (~0.8 inch)
- 25 mm (~1.0 inch)
- 30 mm (~1.2 inch)
Each size is provided on a separate plate, please confirm your lock depth before printing. Each lock can turn up to 90 degrees.
NOTE: This is a very simple lock - it will keep things closed, but shouldn't be used to store valuables.
Boost Me (for free)
Please consider leaving a like or boost if this model helped you out. Thanks! :)
If you are looking for a non-keyed lock, check out this fully-printable twist -open cam lock model.
