Description

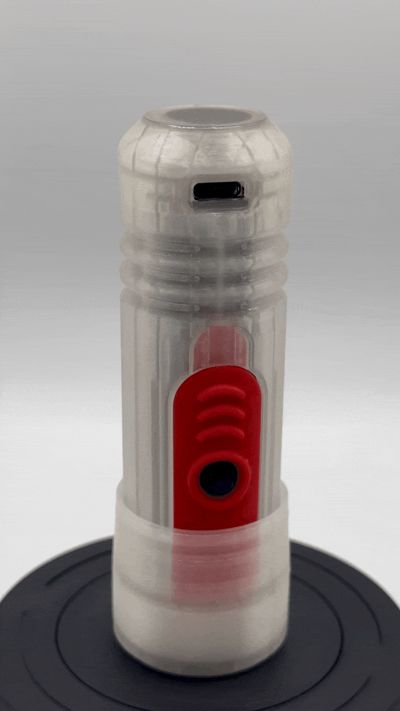

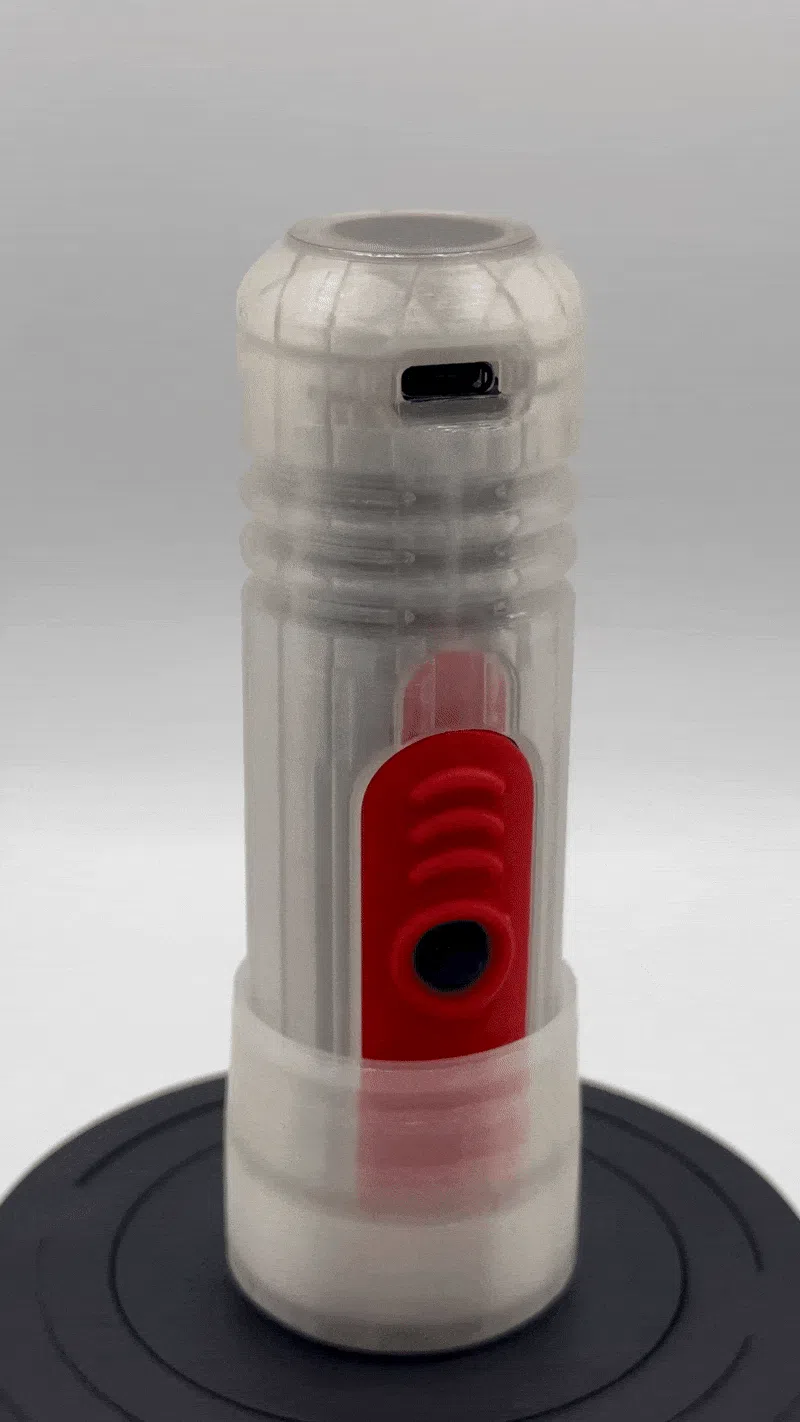

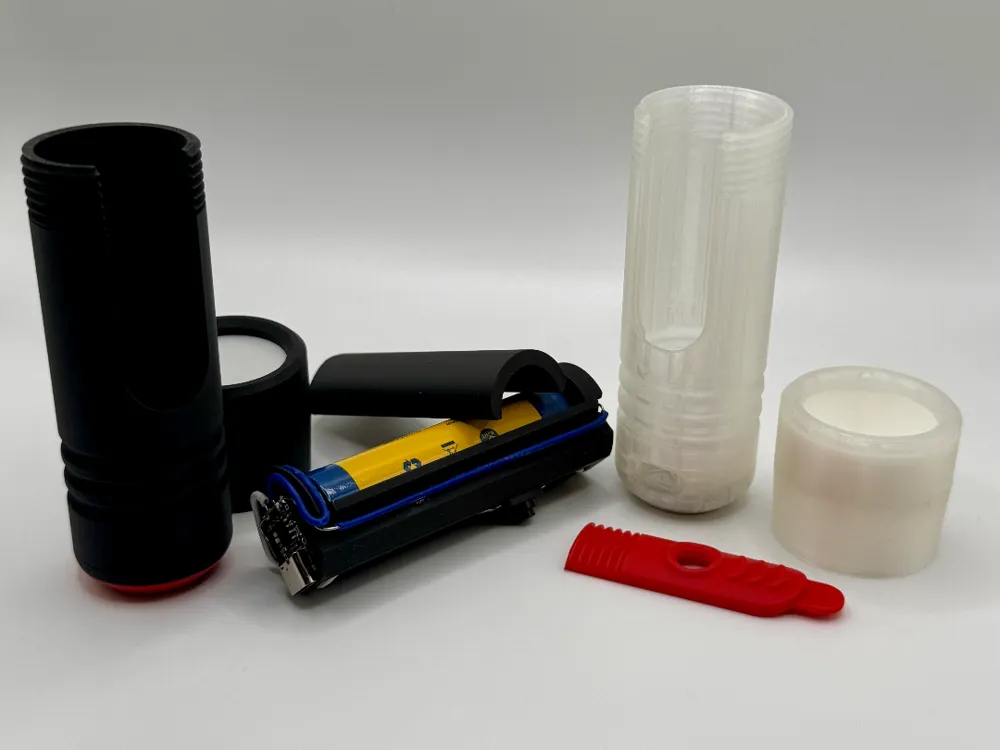

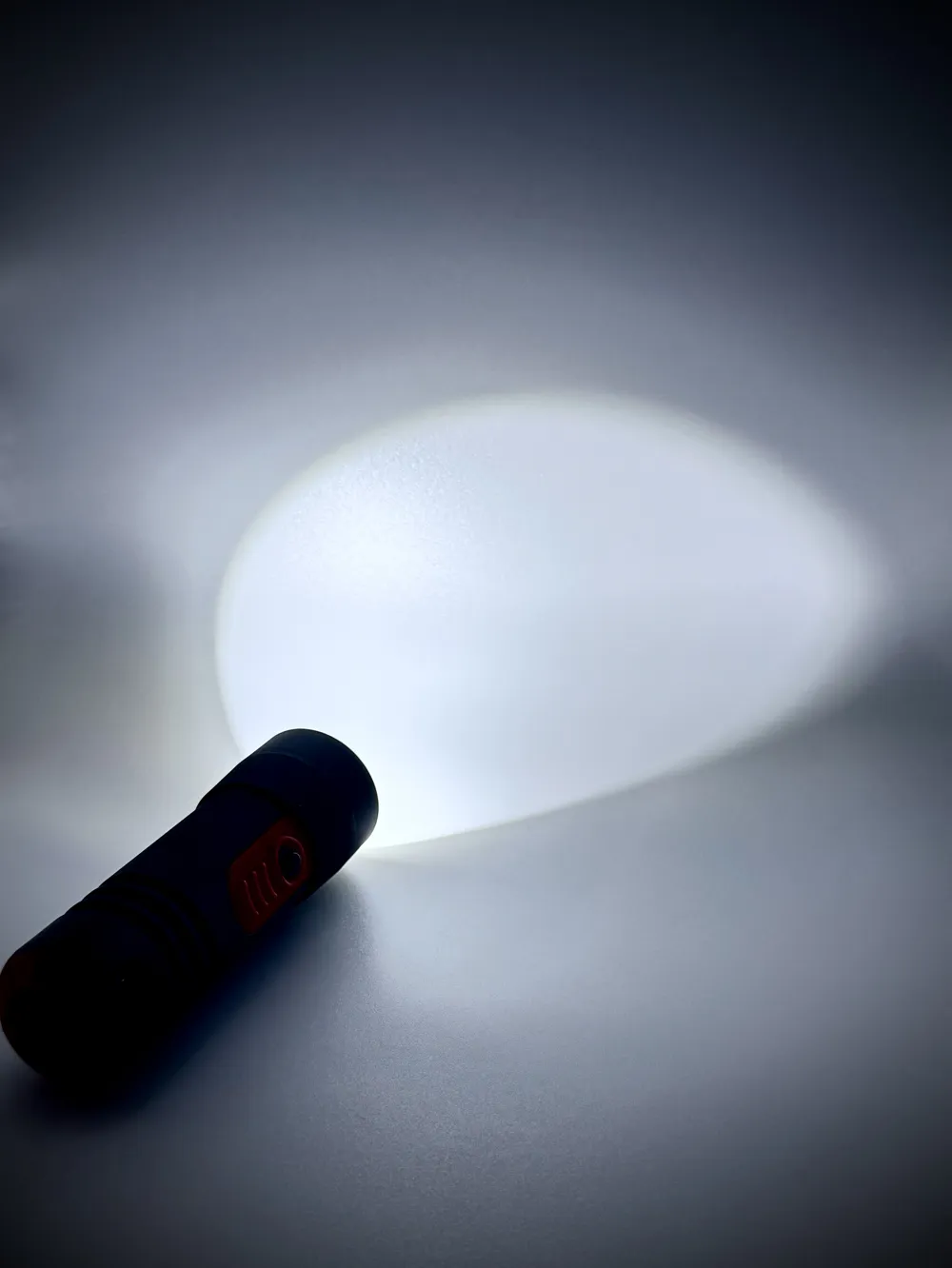

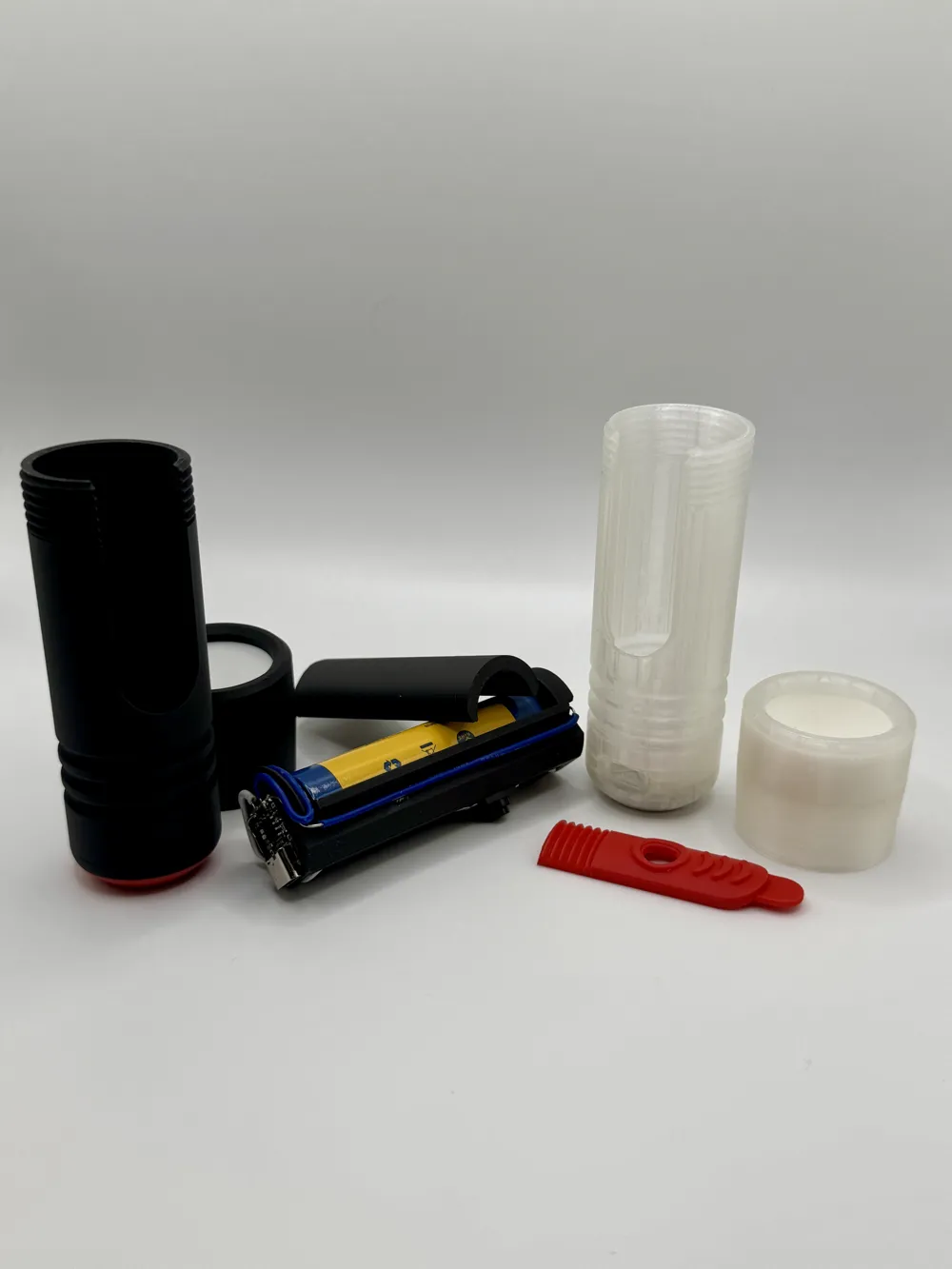

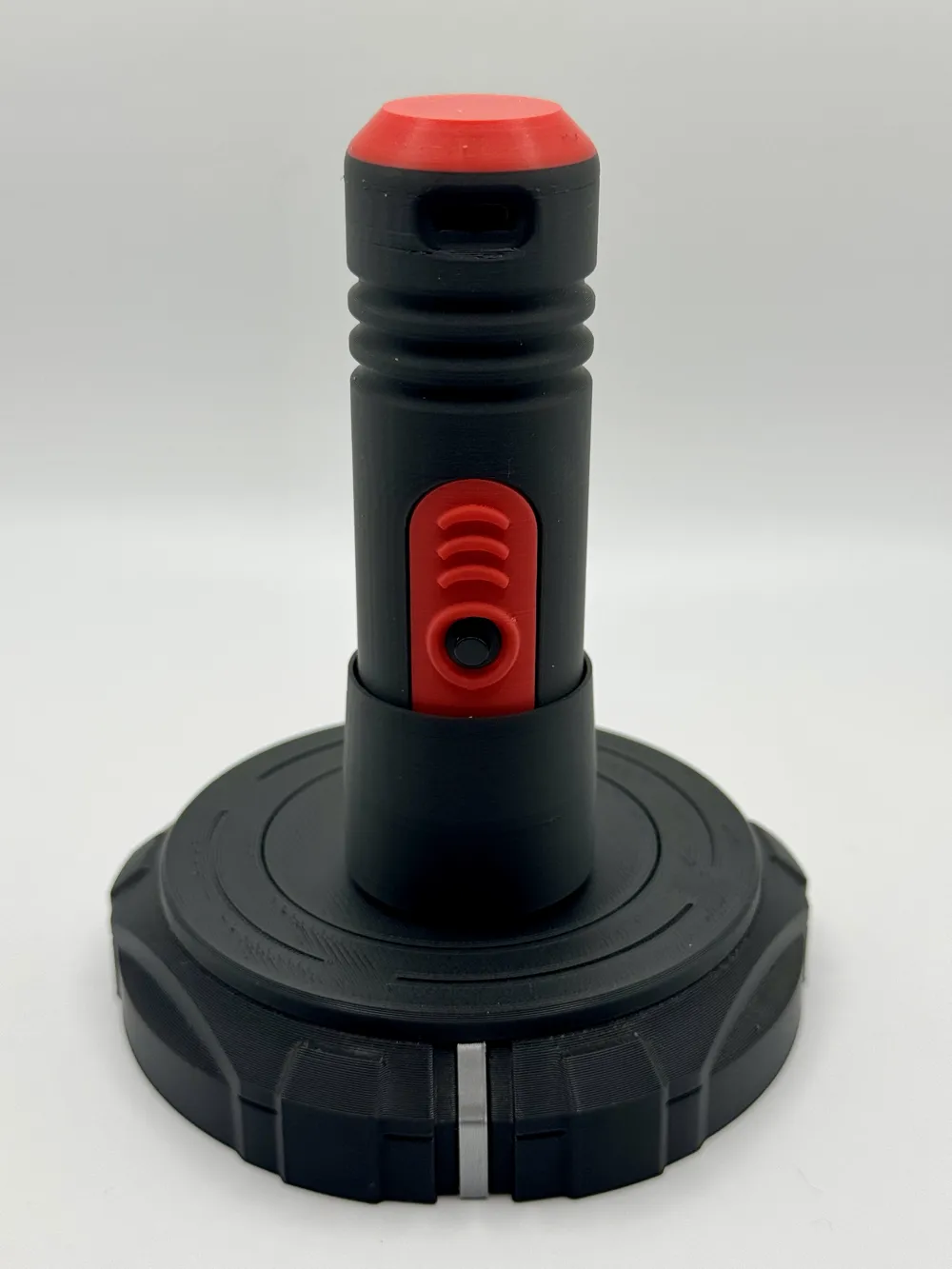

This is a small flashlight that I designed. It has an 18650 battery that is recharged via USB C. You can optionally insert a couple magnets in the base so it can be stuck to metal places for easier lighting.

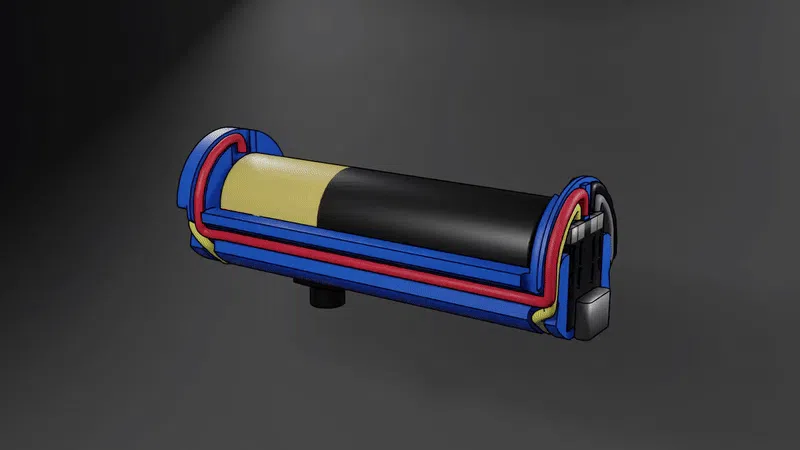

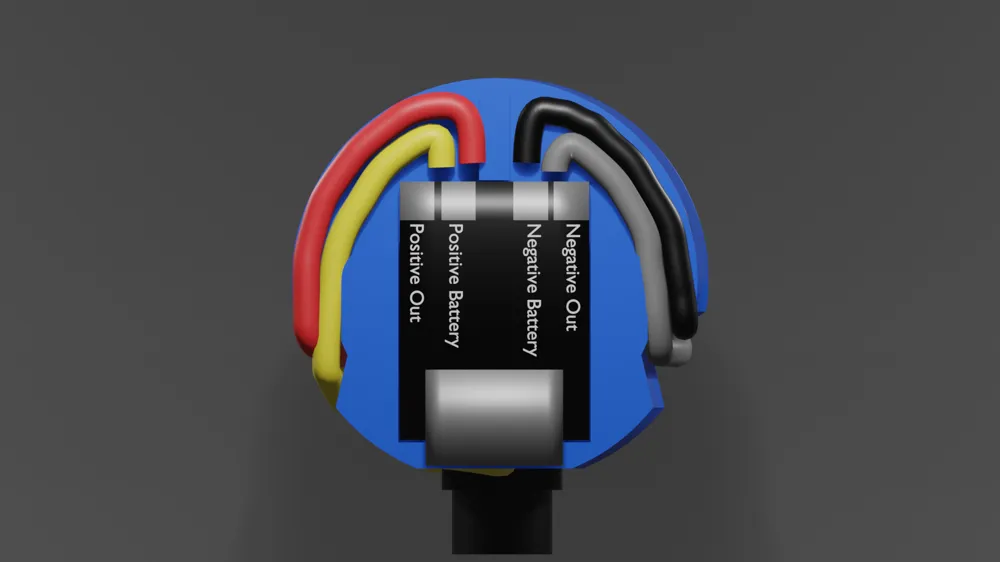

You will need to be able to do a little bit of soldering. Attached images show how to wire everything up.
For the cap, you should print the “Cap_Cone” in a lighter color, like white first to help with reflecting the light. Then, when printing the cap, there is a pause and the Cap_Cone can be inserted.
The case also has a pause at the bottom where you can insert two 18x3 mm magnets. This is completely optional.
Non-printed hardware needed (Below are Amazon affiliate links that would earn me a small commission, which is greatly appreciated):
LED:
18650 Batteries:
Battery Contacts:
TP4057 Battery Charging Board:
Self-Lock Micro Push Button Switch:
22 Gauge (or smaller) wire:
Magnets (Optional):
Boost Me (for free)
Please consider dropping a boost or two if you enjoy my designs! Cheers!
