Valvetrain Tray - Classic Japanese Motorcycles
Print Profile(1)
Description

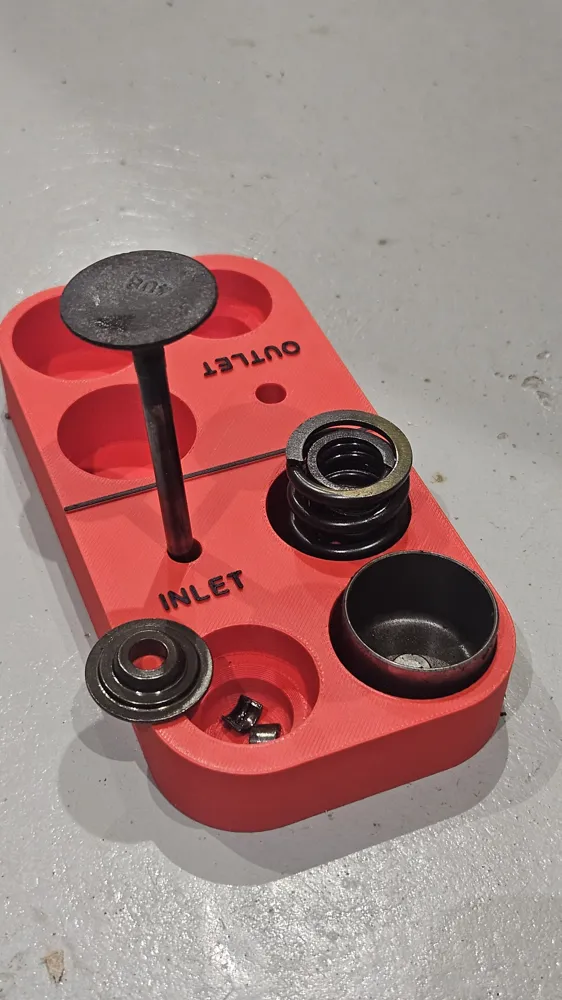

Professional-grade valvetrain organizer specifically designed for 70's and 80's Japanese motorcycles (Honda, Kawasaki, Suzuki, and Yamaha). This tray ensures critical engine components remain organized and paired during engine rebuilds.
PLEASE POST A PICTURE OF YOUR CLASSIC MOTORCYCLE! :-)
Technical Specifications & Features:

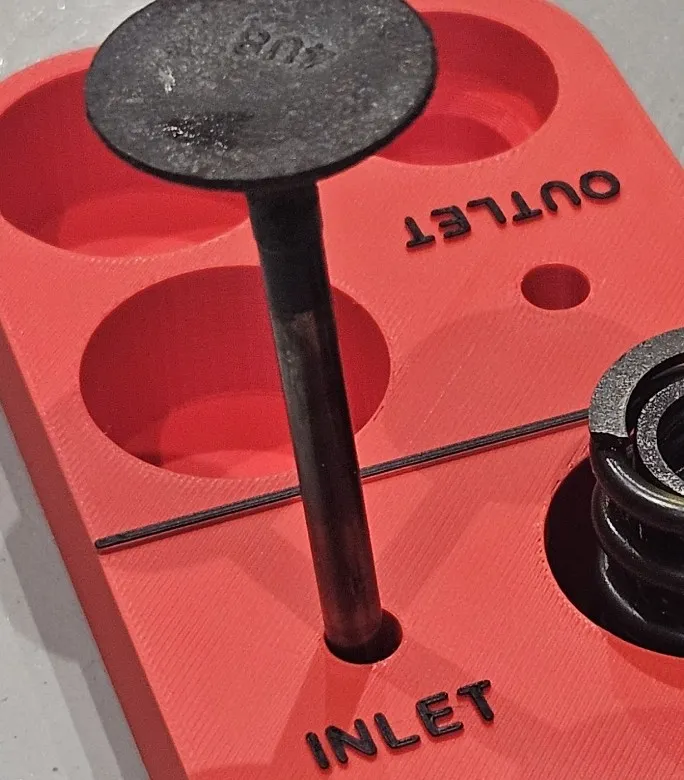

- Valve Stem Support: 8 mm holes compatible with standard vintage valve stems.

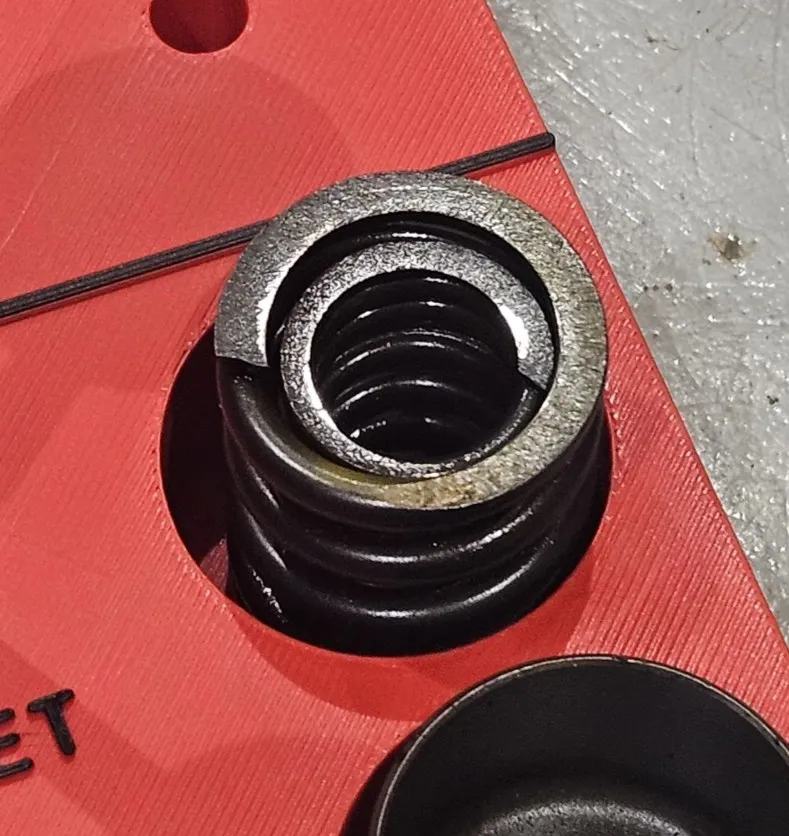

- Spring Clearance: Sufficient space for both inner and outer valve springs.

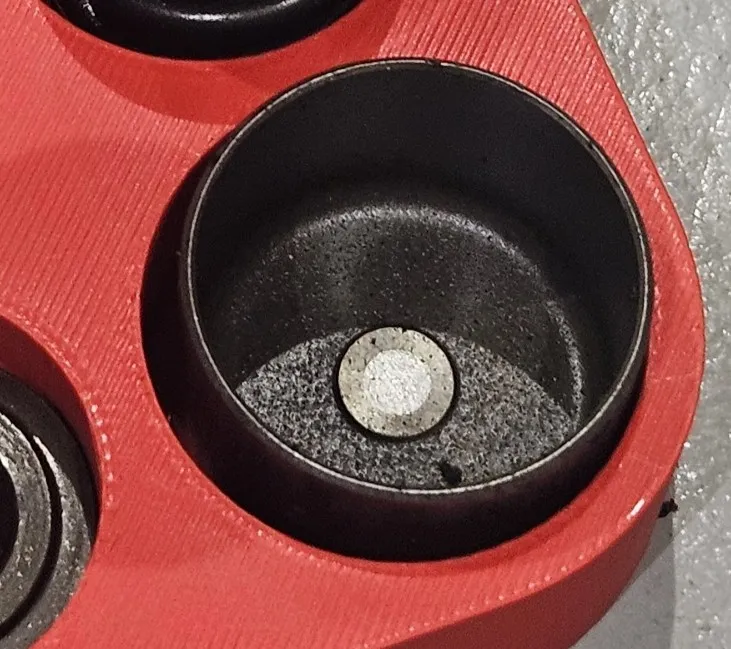

- Bucket/Shim Storage: Dedicated slot for valve/shim buckets.

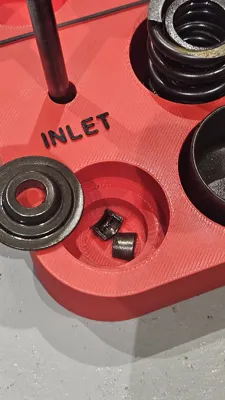

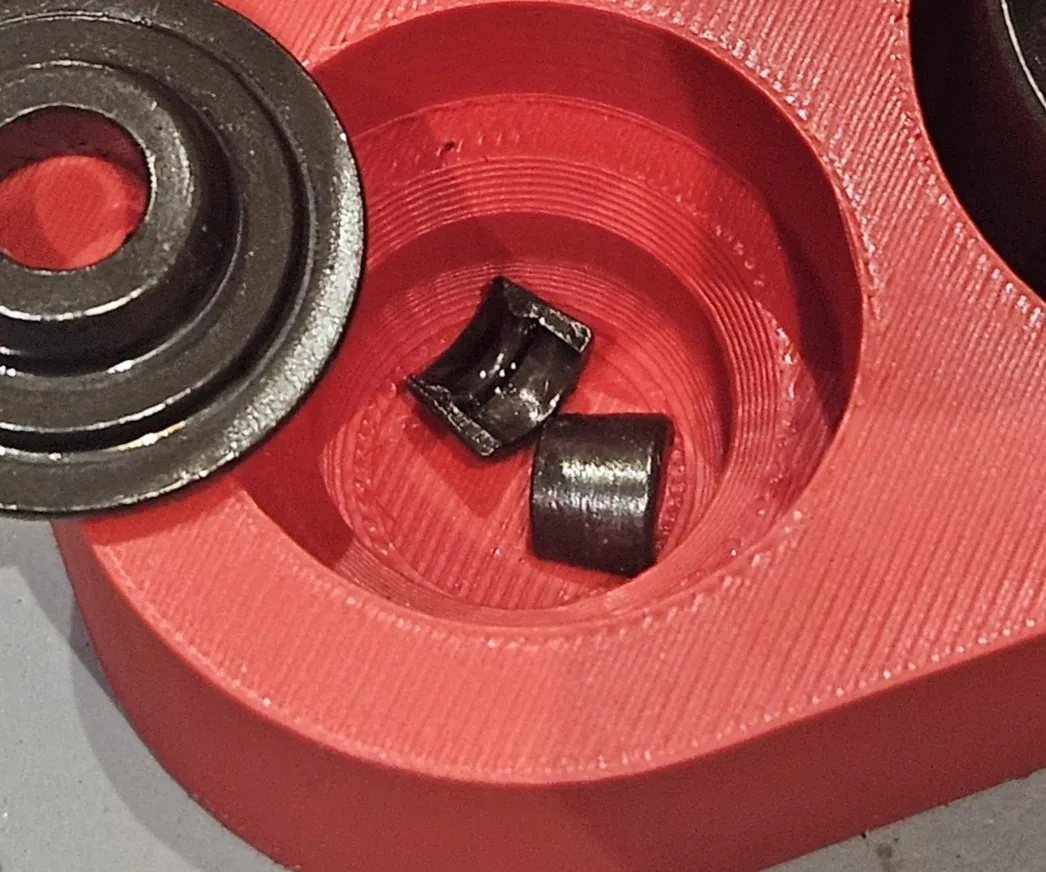

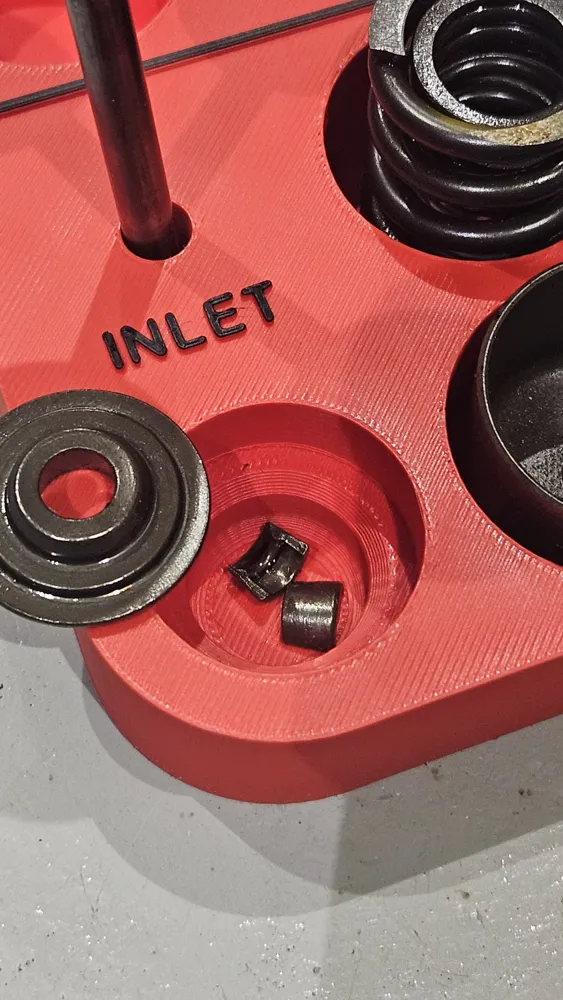

- Collet/Keeper Slot: Lower compartment for collets with a rounded bottom for effortless pickup.

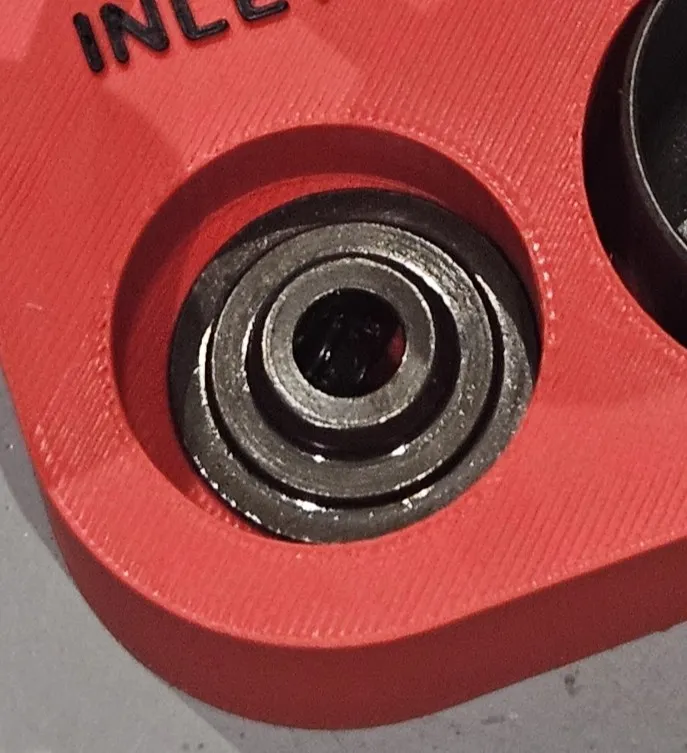

- Spring Washer Seat: Designed so the valve spring washer fits securely on top of the collets.

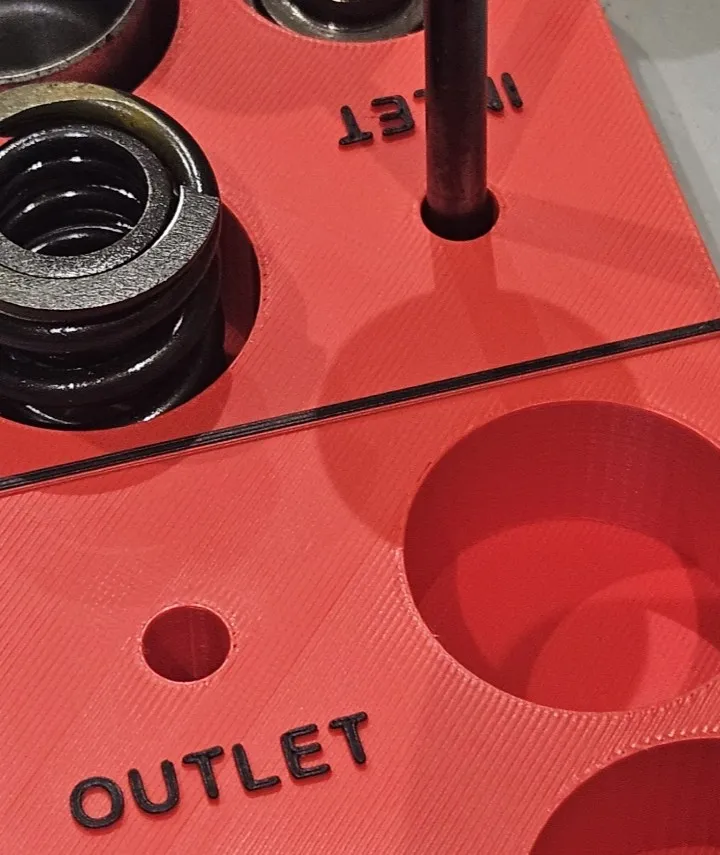

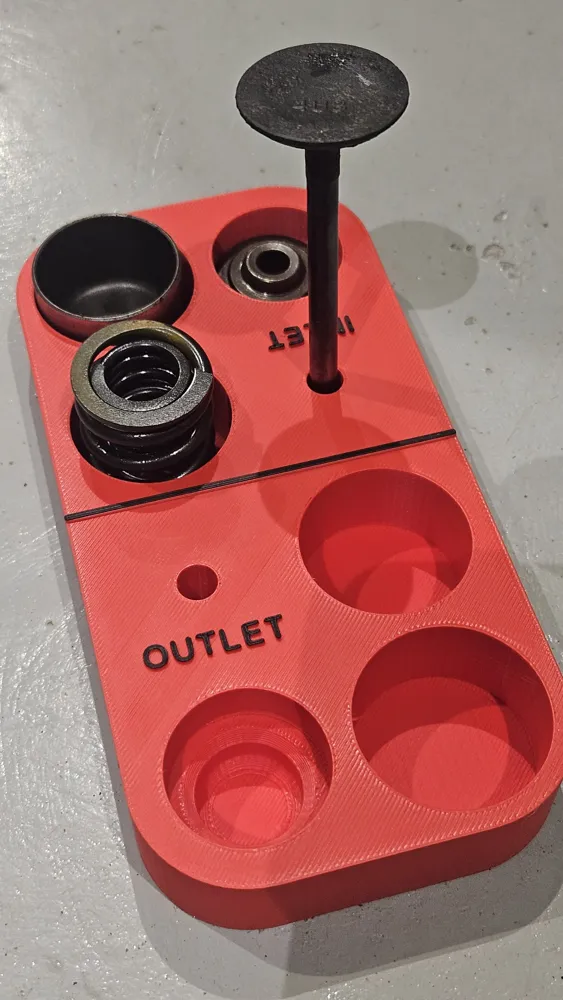

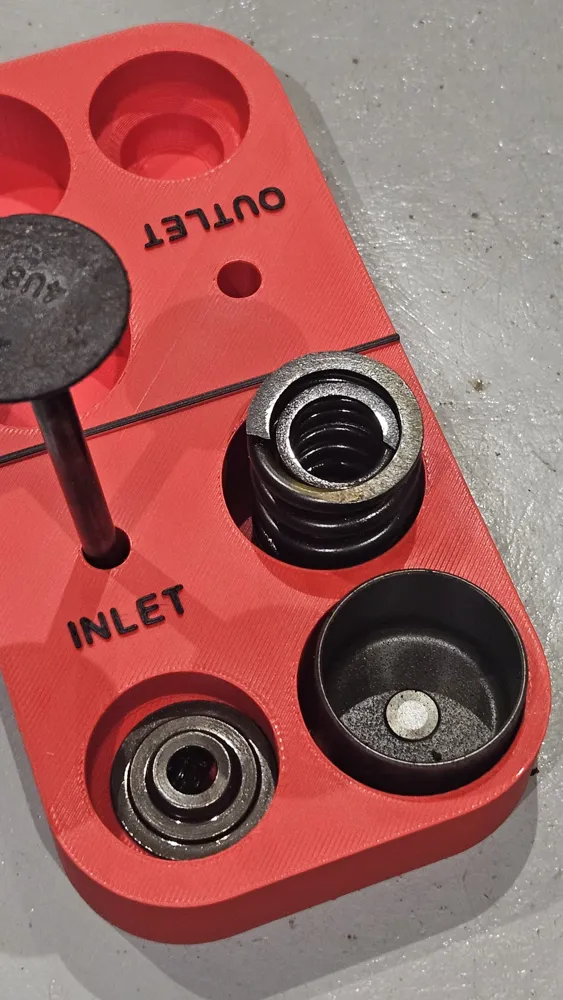

- Dual-Sided Layout: Clearly separated sections for Inlet and Outlet.
Usage Instructions:
- Scalability: Print one tray per cylinder. For engines with more than two valves per cylinder, use two trays.
- Identification: Use an adhesive label on the designated area to note the cylinder number.
- Bed Efficiency: Optimized for 256x256mm build plates. Fits 4 trays in a single print.
Fast & Efficient Production
- High-Speed Design: Optimized for rapid printing without compromising structural integrity.
- Print Time: Only ~1.5 hours per unit.
- Batch Printing: Complete a full set for a 4-cylinder engine in under 6 hours on a 256x256mm bed.
