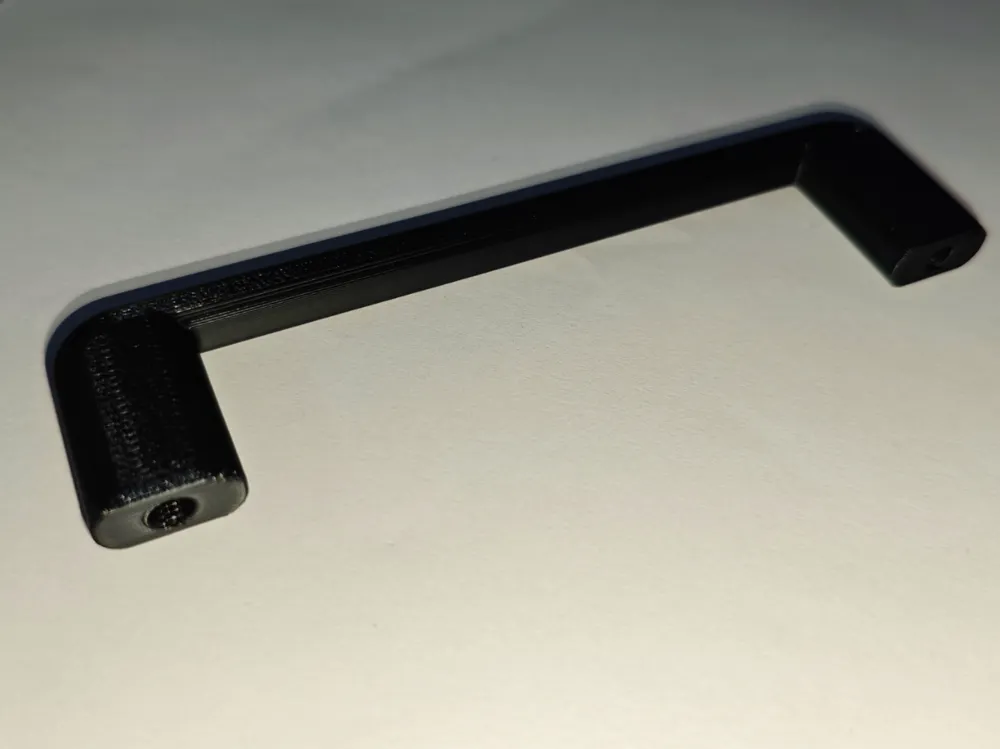

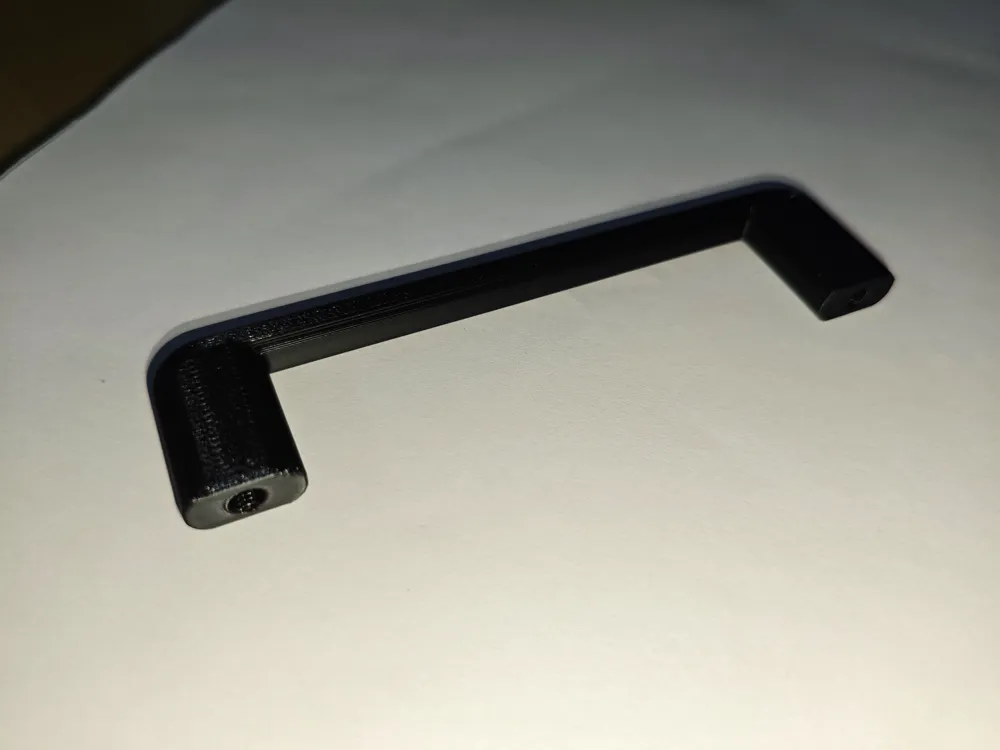

Drawer Handle | 9.5mm Hole Spacing | M4 Thread

This is a functional and sturdy replacement drawer handle/pull designed for furniture with specific mounting requirements. It features a compact 9.5mm center-to-center hole spacing, making it ideal for [repairing specific cabinets, small drawers, tackle boxes, or custom DIY projects].

Designed with a focus on durability and ease of printing.

📏 Dimensions & Specifications

• Mounting Hole Distance: 9.5mm (Center-to-Center)
• Screw Size: M4
• Thread Depth: 5mm
• Overall Length: 110mm

🔩 Hardware Required

To install this handle, you will need:

• 2x M4 Screws
• Screw Length Calculation: Measure your drawer thickness and add 3-4mm. (Do not exceed 5mm insertion depth to avoid cracking the model).

🖨️ Printing Recommendations

• Material: PLA is sufficient for light use, but PETG or ABS is recommended for high-traffic drawers for better layer adhesion and durability.
• Walls/Perimeters: Use 3 to 4 walls to ensure the area around the screw holes is solid.
• Infill: 20% - 40% (Gyroid or Grid recommended).
• Supports: [No supports needed / Supports required only for the bridge].
• Orientation: Print with the [flat face down / screw holes facing up] for the best strength.

Installation Tip

The holes are modeled with M4 threads/tolerances. When screwing in the bolts for the first time, proceed slowly to allow the screw to seat properly without splitting the plastic. Hand-tightening is recommended over using a power drill.

Happy Printing! If you print this, please upload a make and rate the print profile—it helps a lot!
