Winwing FCU+EFIS mounting system
Print Profile(1)
Description

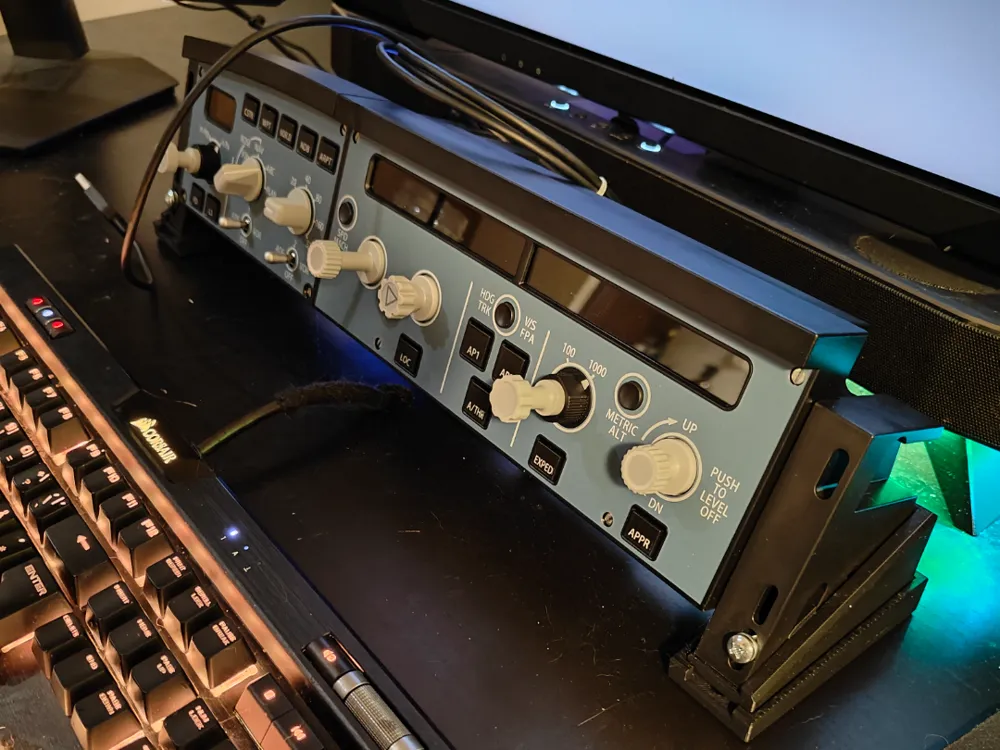

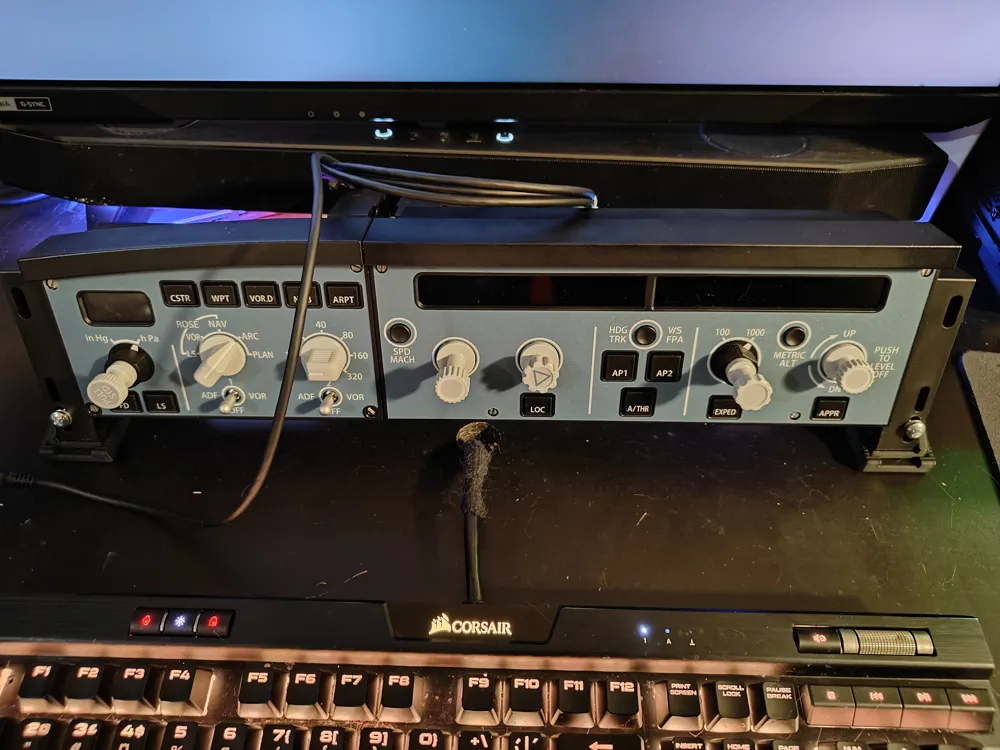

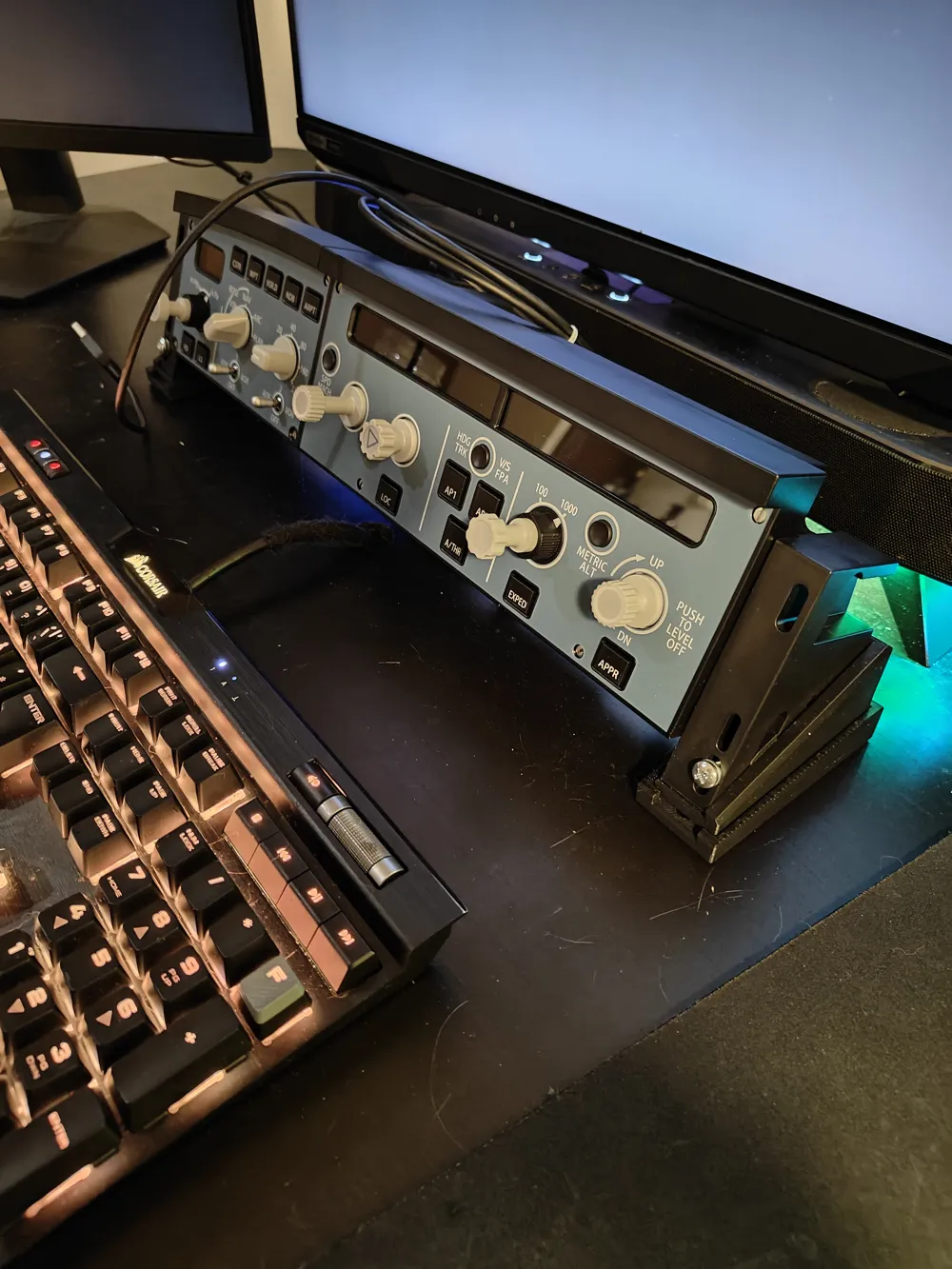

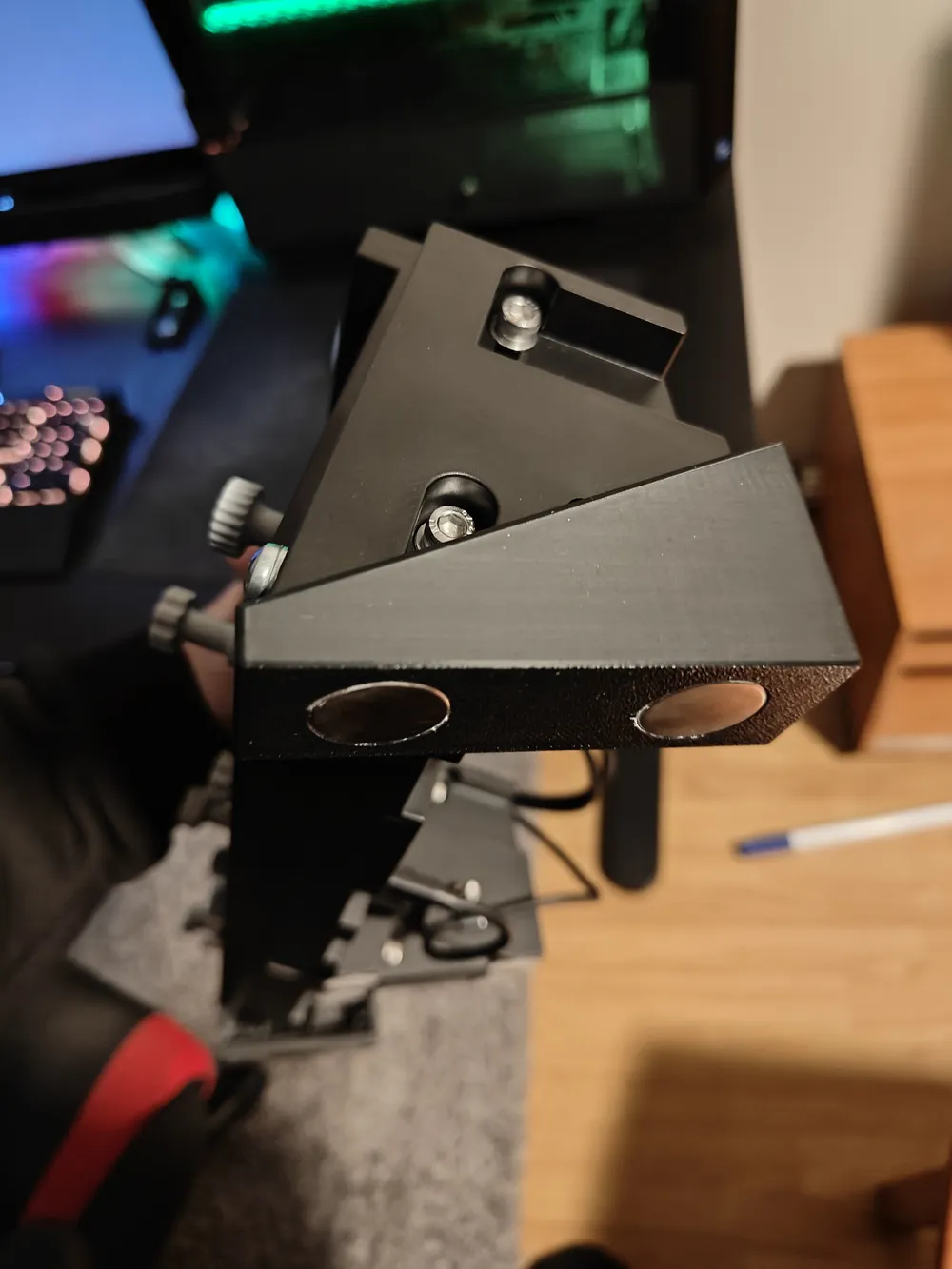

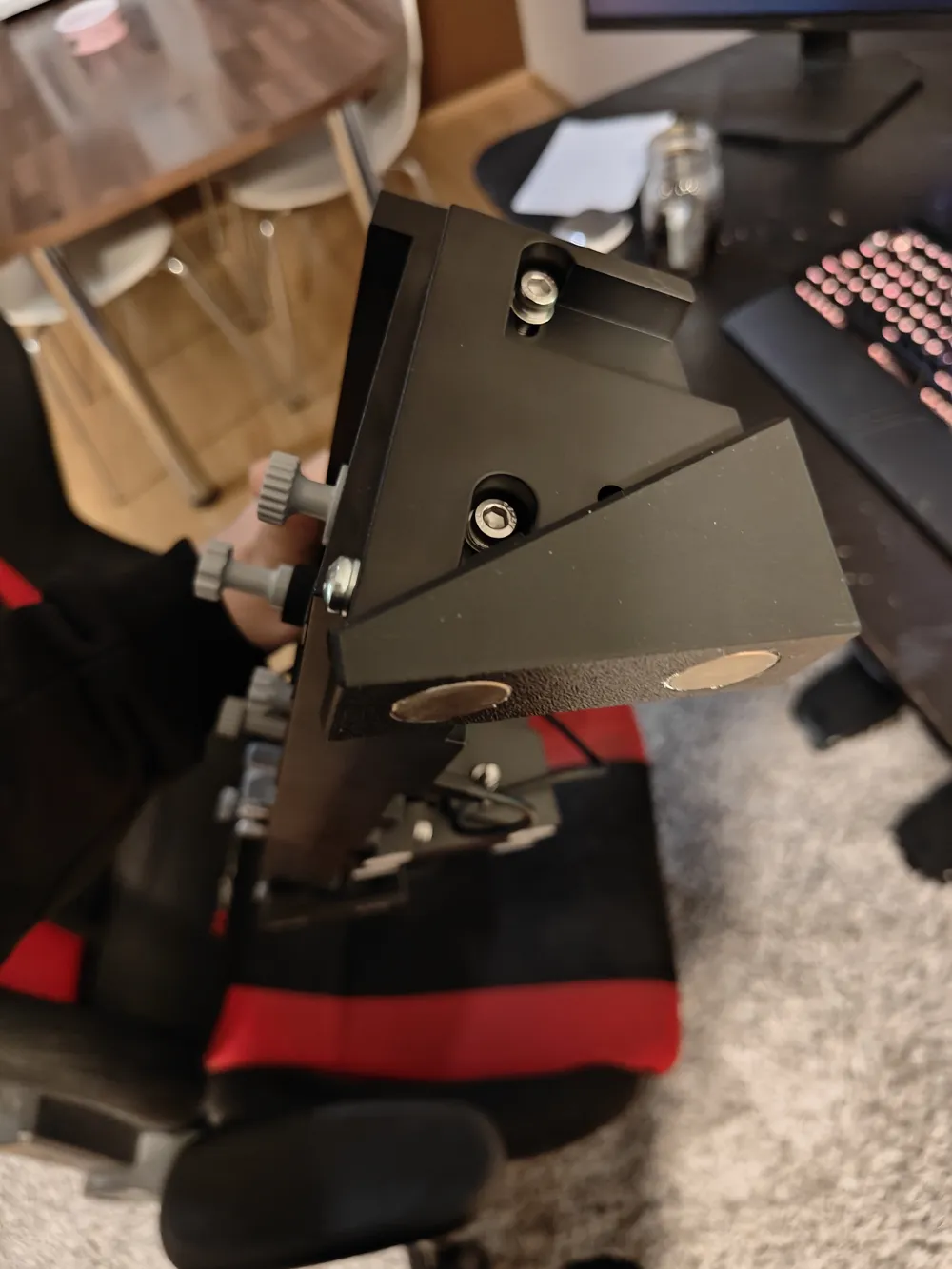

Heres my mounting system for Winwing FCU+EFIS default mounts. It Utilizes neodymium magnets to pull the FCU mount into table mounted socket locking it in place. All you need is:
- Round 20mm X 4mm neodymium magnet 8 pcs
- M5 heat-set insert 2 pcs
- M5X25mm Bolt/screw with optional washer 2 pcs
- Glue for magnets

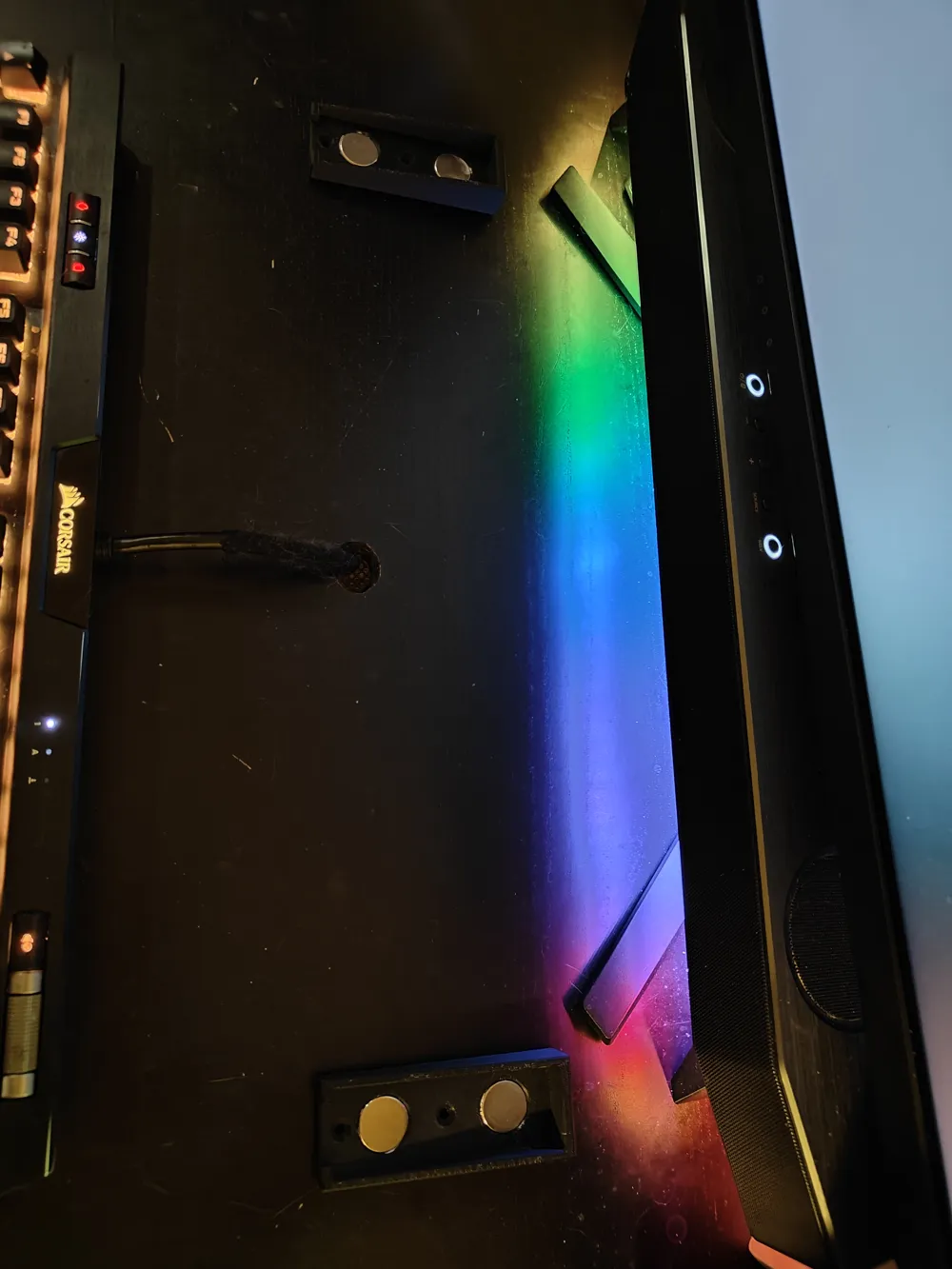

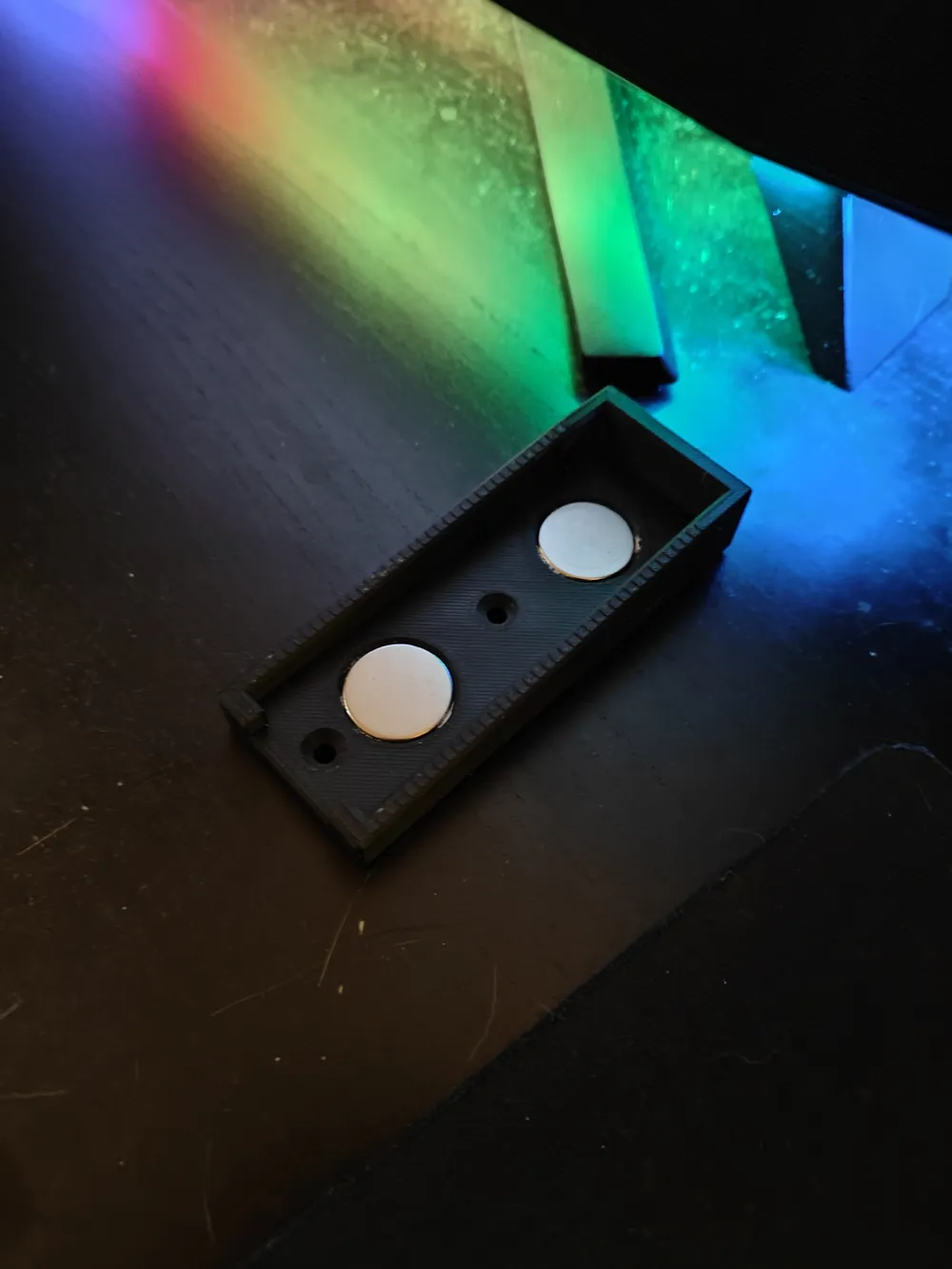

I used some gorilla 2-sided tape to hold the sockets on table. I made also two holes for mounting with small counter-sunk woodscrews, I still haven't mounted with screws, tape seems to fixed it so well in place
