Sig 55X Series Magazine Speed Loader 5.56 Caliber
Print Profile(1)
Description
This is a new version of my Magazine Speed Loaders specifically for the Swiss Model Sig 55X Series Rifle Magazines in .223 or 5.56!
Special Thank You to Gibbs | Home - MakerWorld for All of his help during the design and testing of this version!
This Loader functions like my others using minimal hardware and simple PLA material.

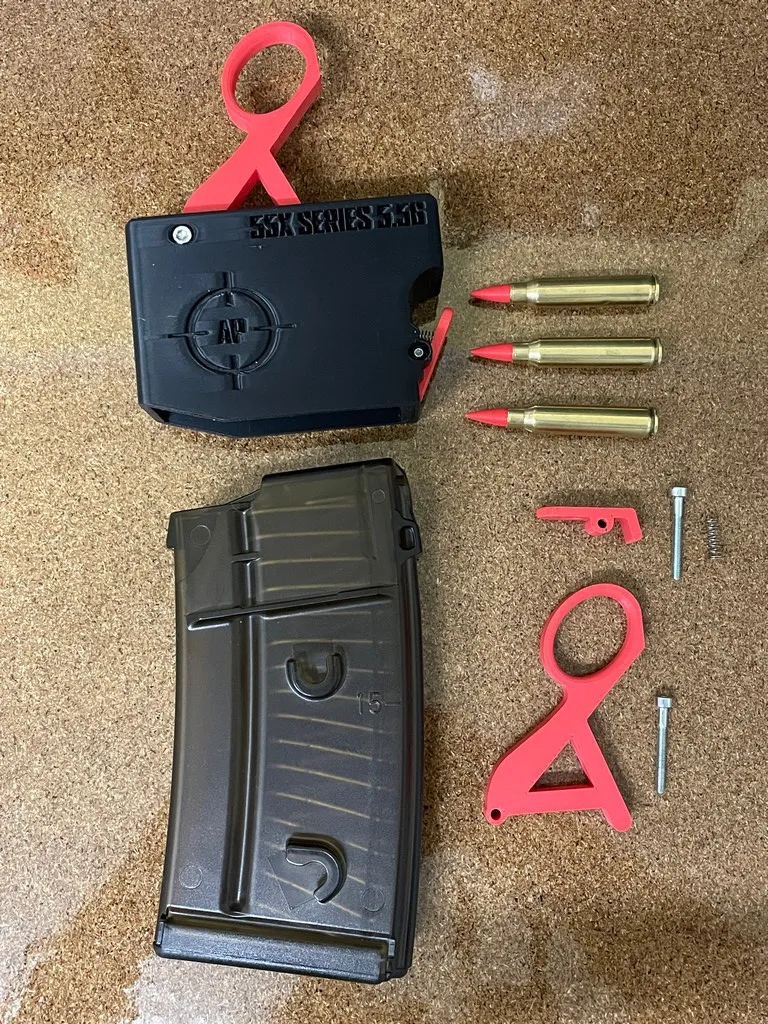

Required hardware.
1x m3 x 20-30mm socket head screw for the lever pivot pin, (can also use a 3mm x 30mm rod pressed in.)
2x m3 x 10mm socket head screws for the mag release lever, (can also use 1 long one again)
1x compression spring similar to a pen spring measuring 5mm OD and 12mm L (dimensions not critical)

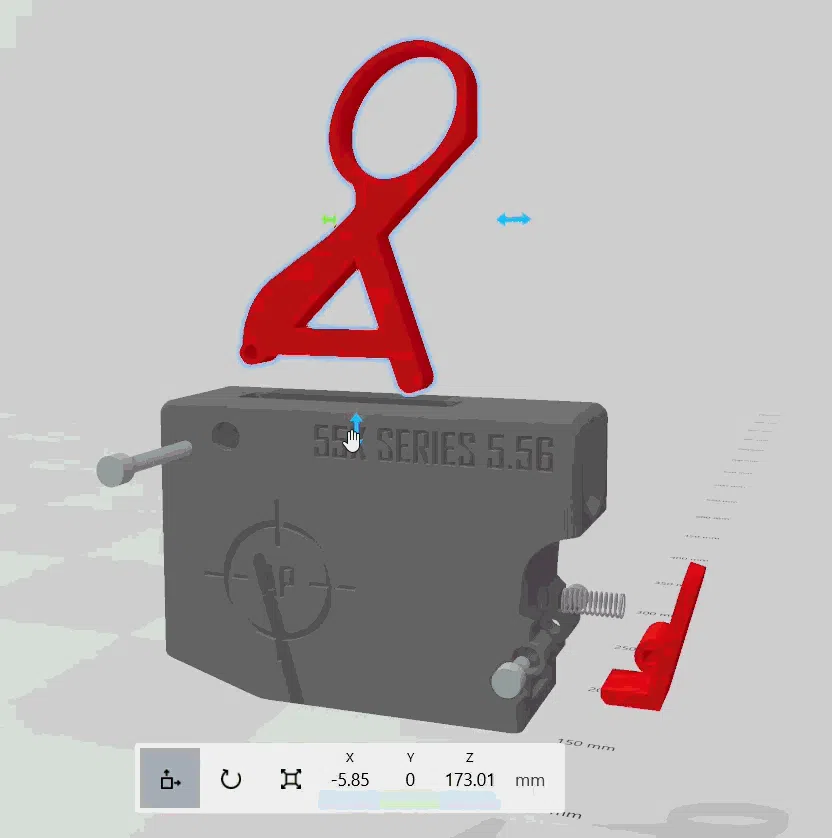

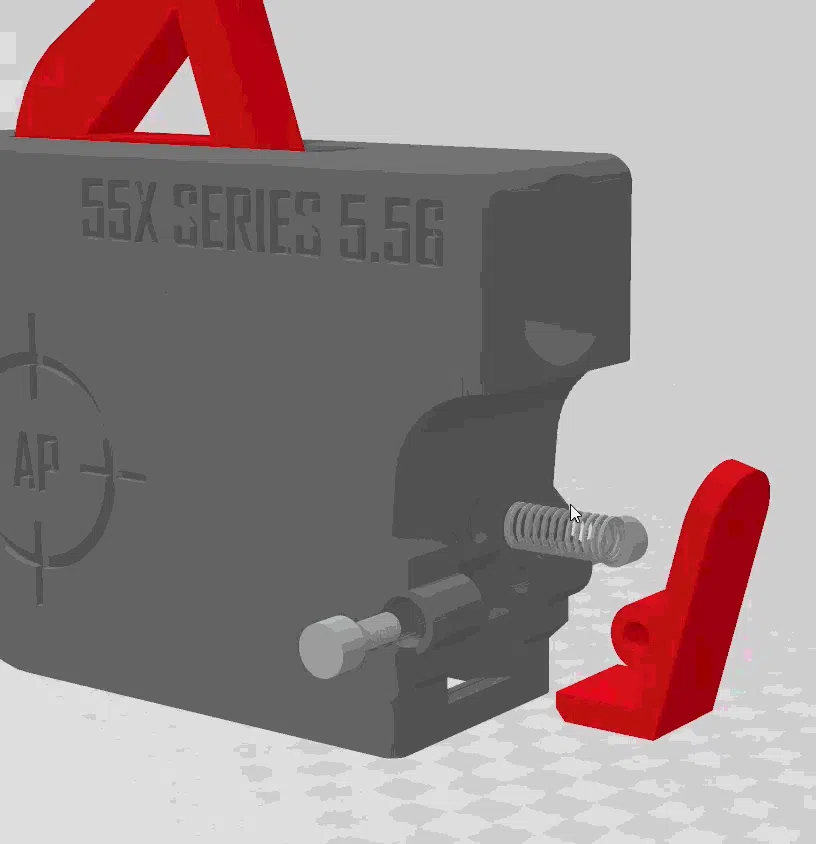

See Images for assembly
Happy Loading
Boost Me (for free)
Every Boost Helps, Thank You!
