Gridfinity Case for Lab Power Supply DPS3005
Print Profile(2)
Bill of Materials
Description

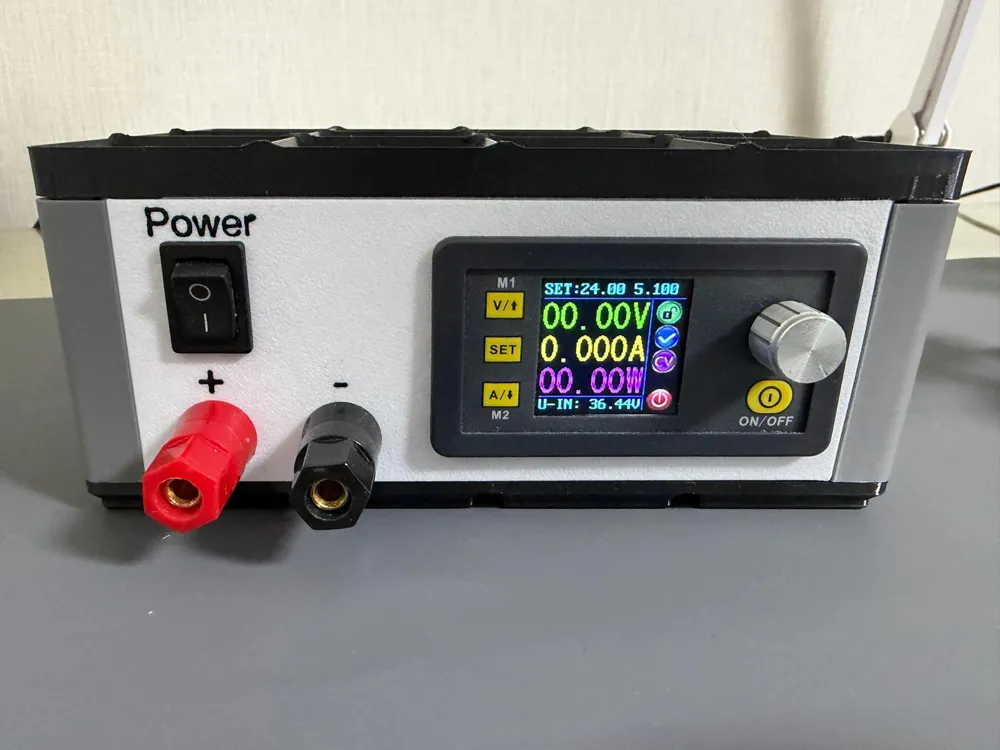

This self-designed Gridfinity-compatible case is designed for building a DPS3005 lab power supply module
The design is functional, compact, and clearly intended for use in the laboratory or on the workbench
The front panel offers space for:
- DPS3005 display and encoder
- On/Off switch
- 4mm banana jacks (+ / −)
All controls are easily accessible and clearly arranged – without unnecessary frills

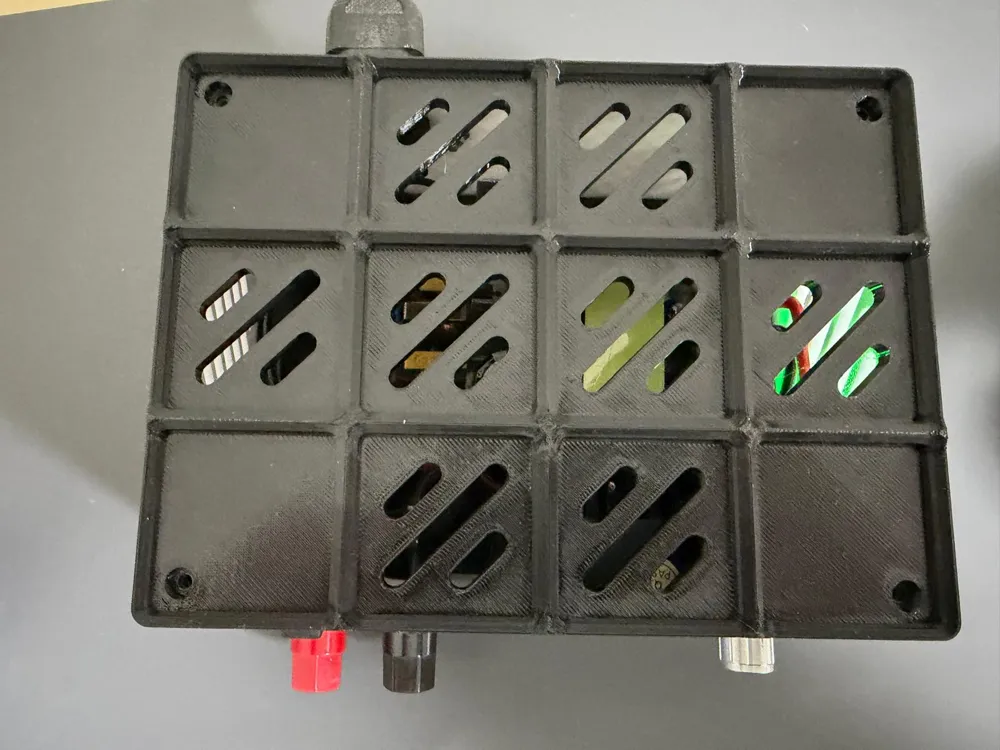

The dimensions follow the Gridfinity standard:
- Base area: 4 × 3 Grid units
- New Area 5 x 4 Grid units
- Height: 9 height units

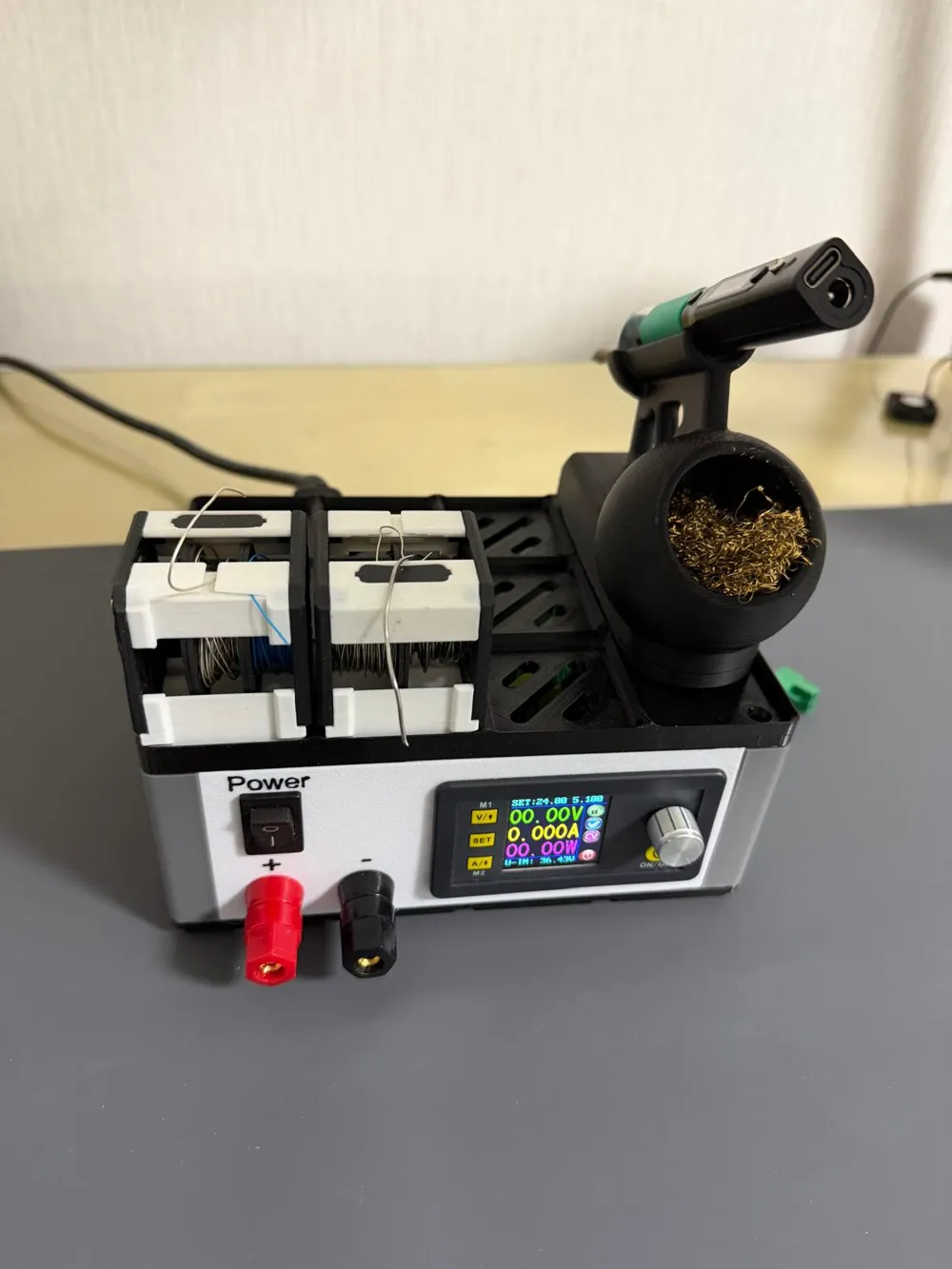

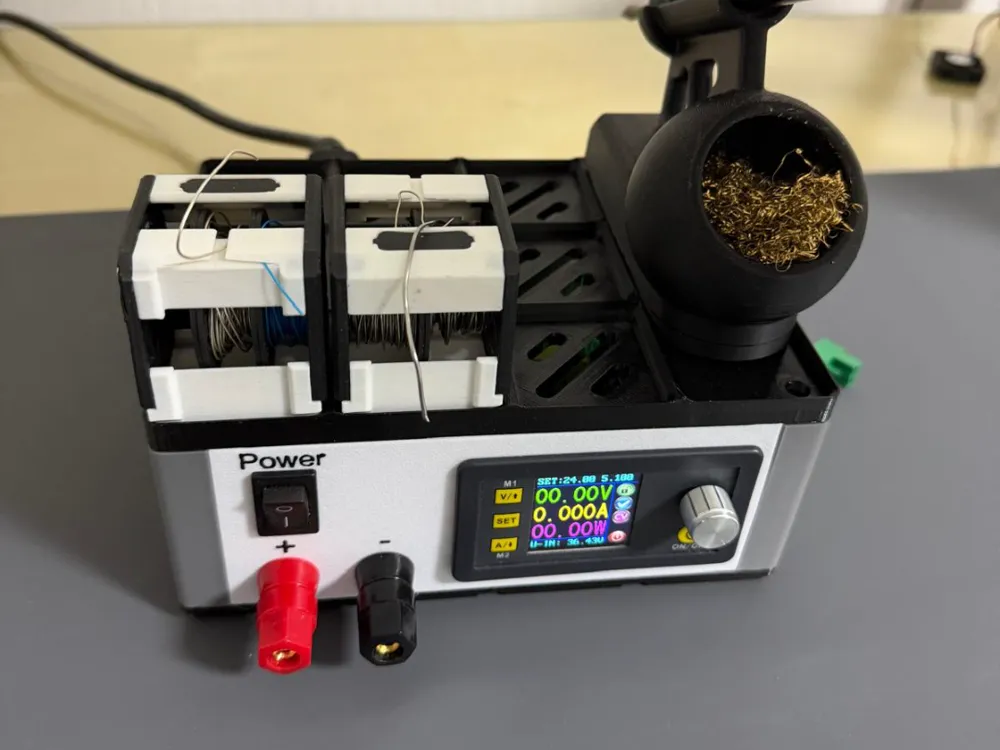

The case is universally designed and can easily be used for other electronics, control, or power supply projects
Print Settings (updated)
- Material: PETG (recommended)
(due to higher temperature resistance in power supply operation) - Layer height: 0.2 mm
- Walls: 3–4 perimeters
- Infill: 15–20 %
Support: not required

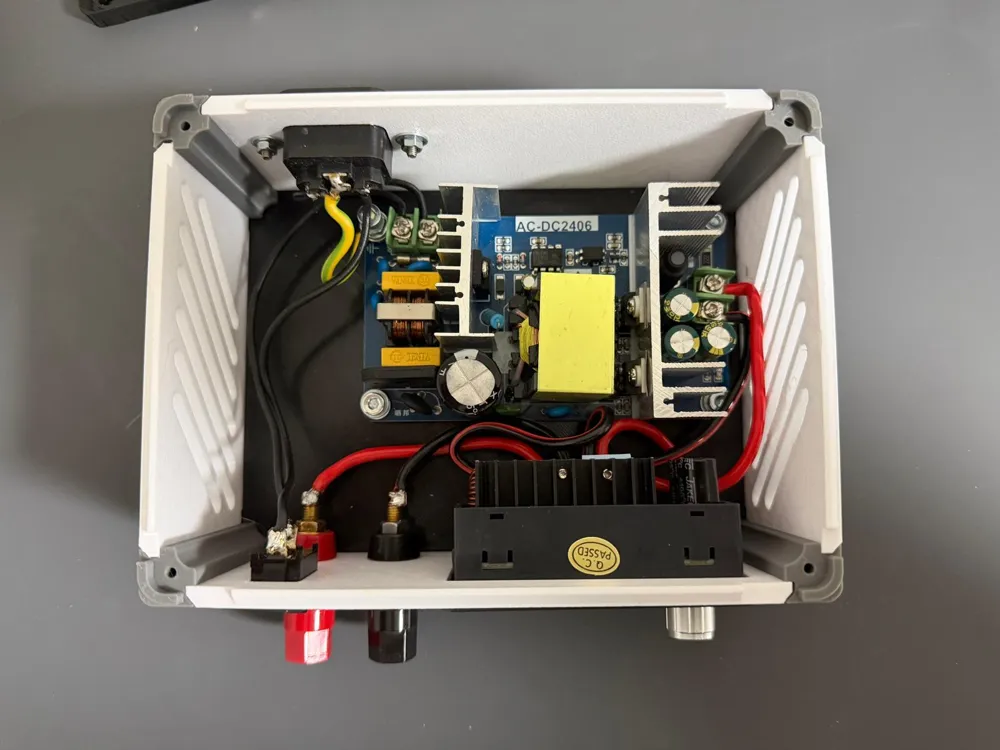

A comparable switching power supply was used as the internal power supply (see link) Link to Aliexpress

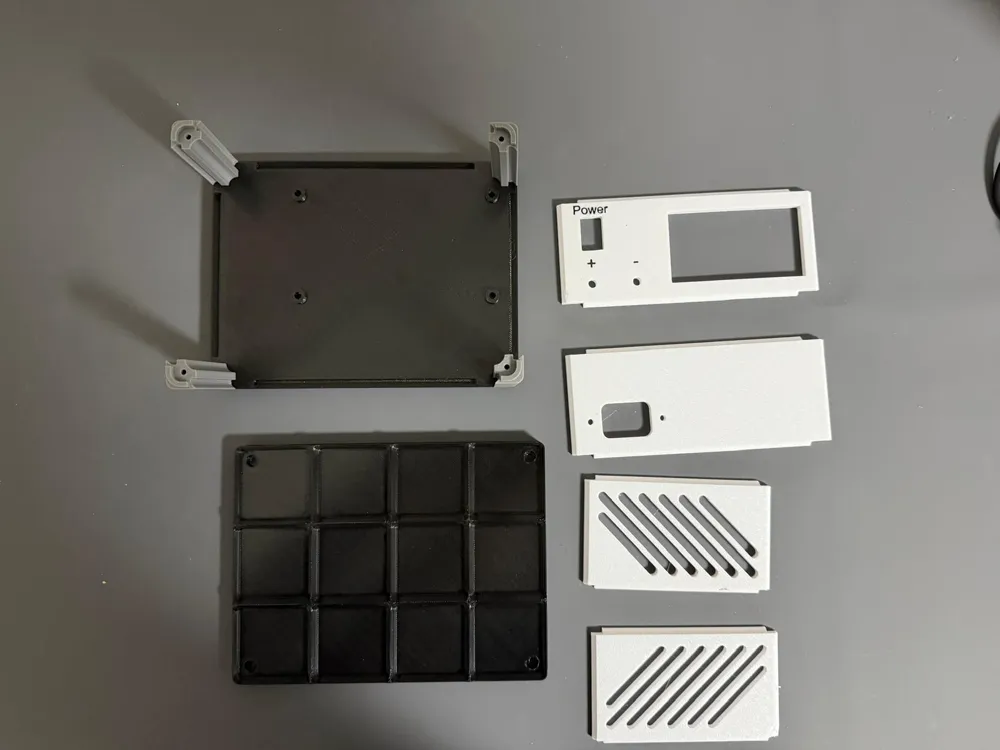

For assembly, 8× M3×10 mm screws are required

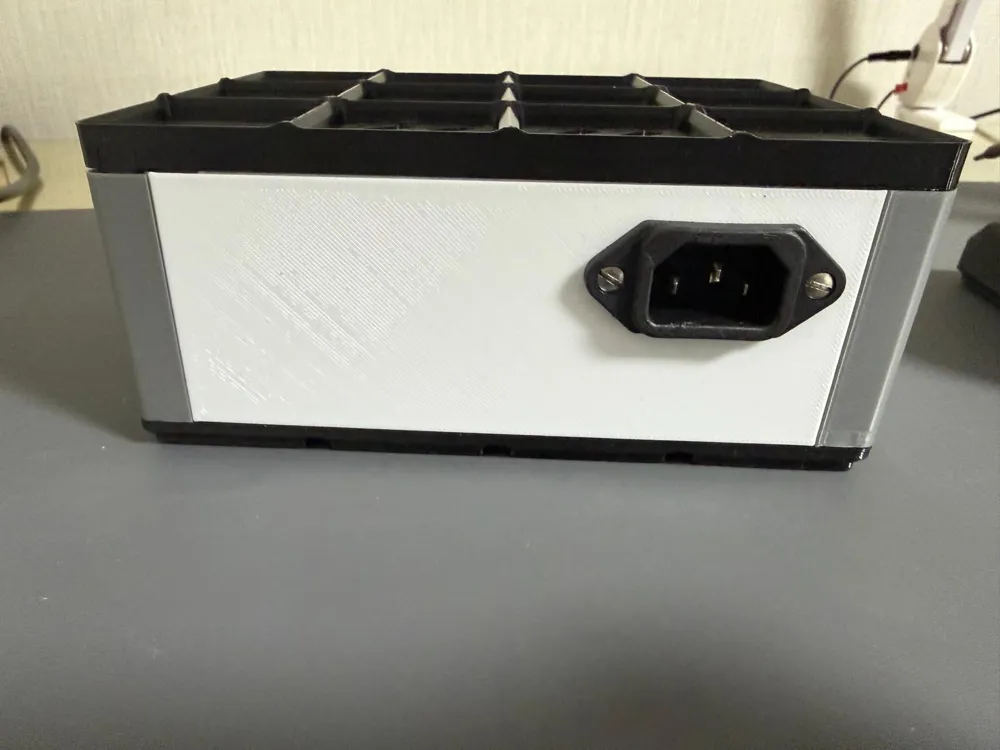

1x IEC-C14 cold appliance inlet Link to Aliexpress
2x 4mm jacks Link to Aliexpress
All models are available as STEP files for download
