Pulley / Rope Deflection Pulley parametric
Print Profile(1)
Description

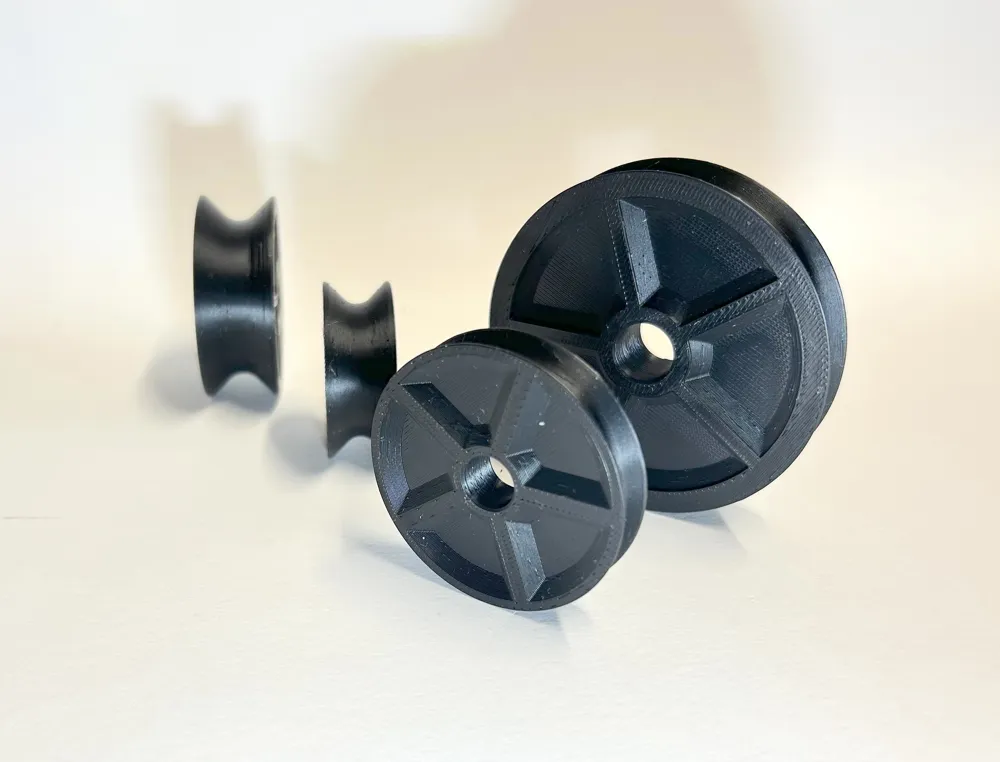

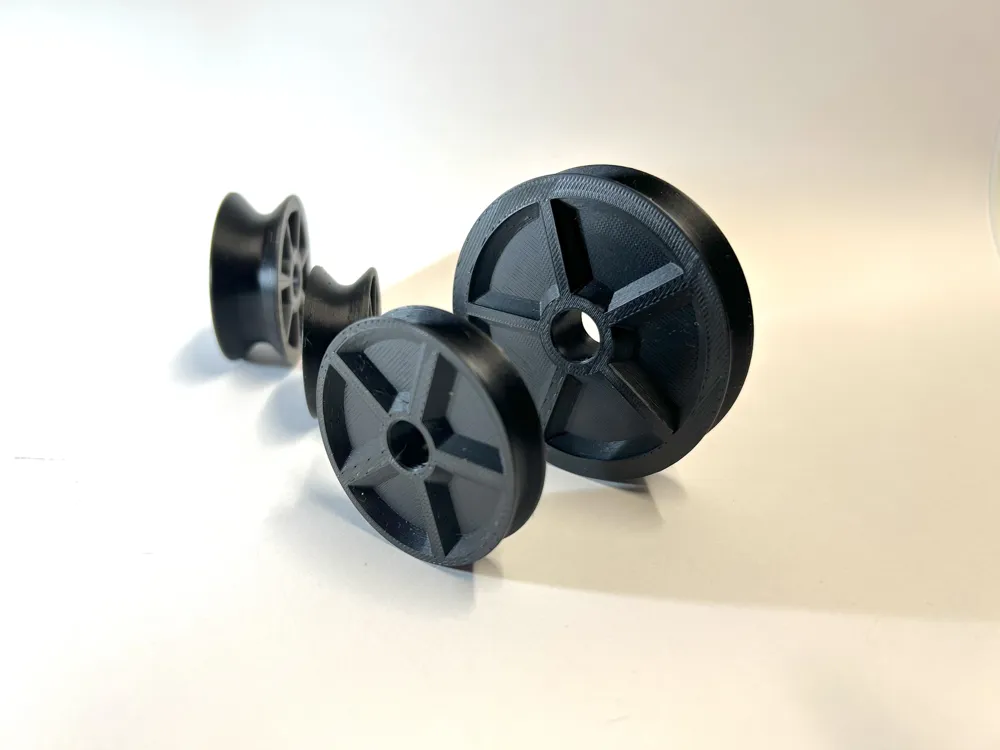

Pulley parametric
This is a universal pulley for deflecting ropes
For example, as a spare part for:
- Blocks for sailing
- simple deflection pulleys in the house / workshop or
- pulley systems
The dimensions of the pulley can be adjusted as required
Note: If you want to use these pulleys on a sailboat, I recommend the Attack on Duck in ASA-CF or PC-CF
Then you should also set a higher wall thickness and a higher infill density with Gyroid
It is also advantageous if the print speed is reduced to achieve the best possible layer adhesion

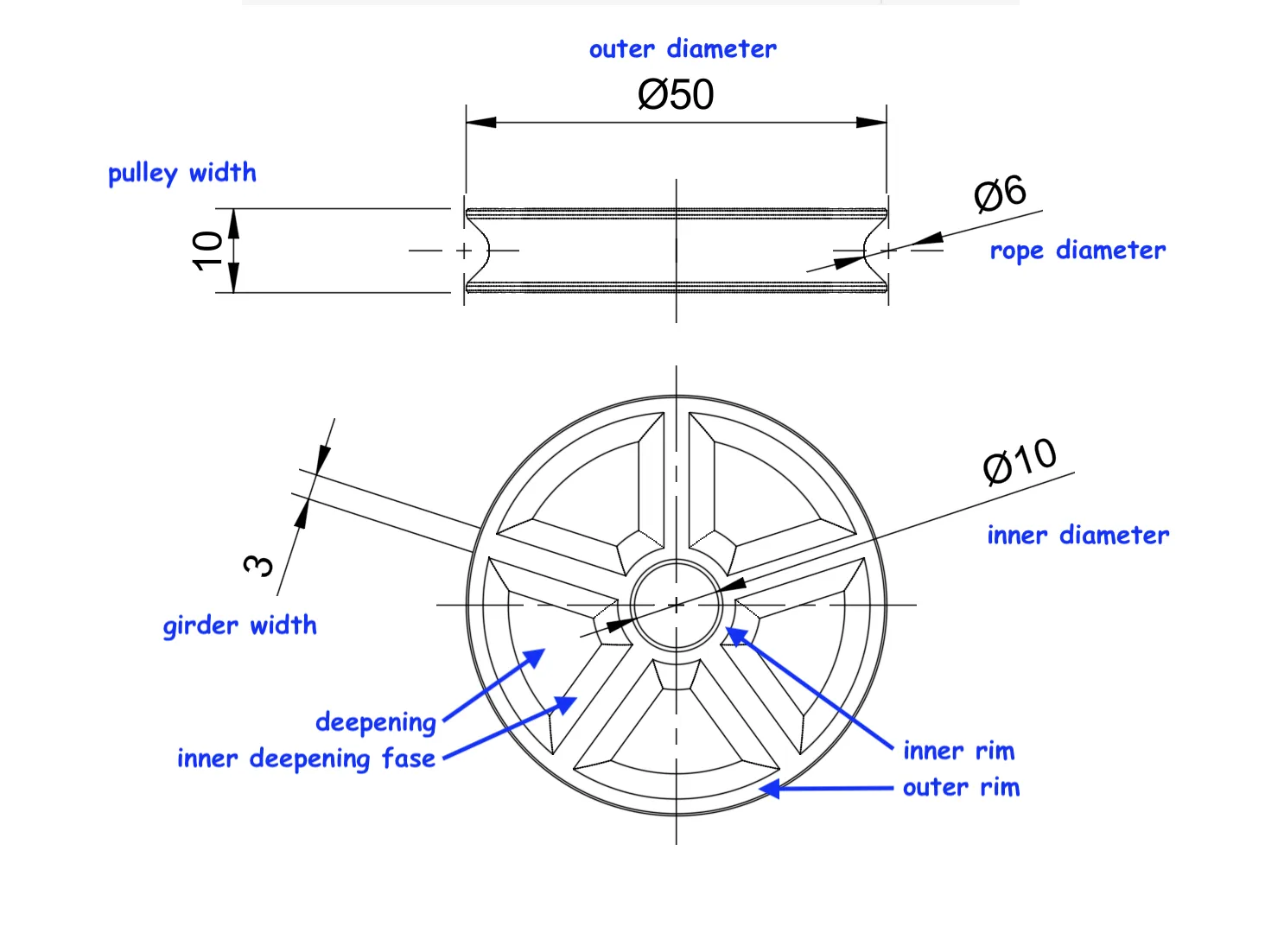

The following parameters can be set, for example:
If the pulley is to be printed without support, the chamfer inside the recess should be chosen as large as possible, as this reduces the area that needs to be bridged on the underside during printing. Alternatively, it can of course also be printed with support

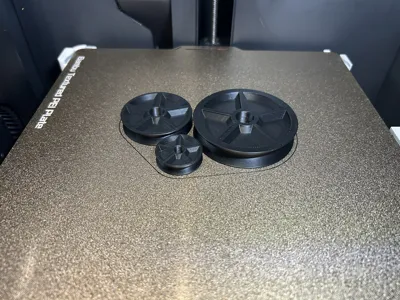

As an example, I have included 3 pulleys in the print profile with the following parameters:

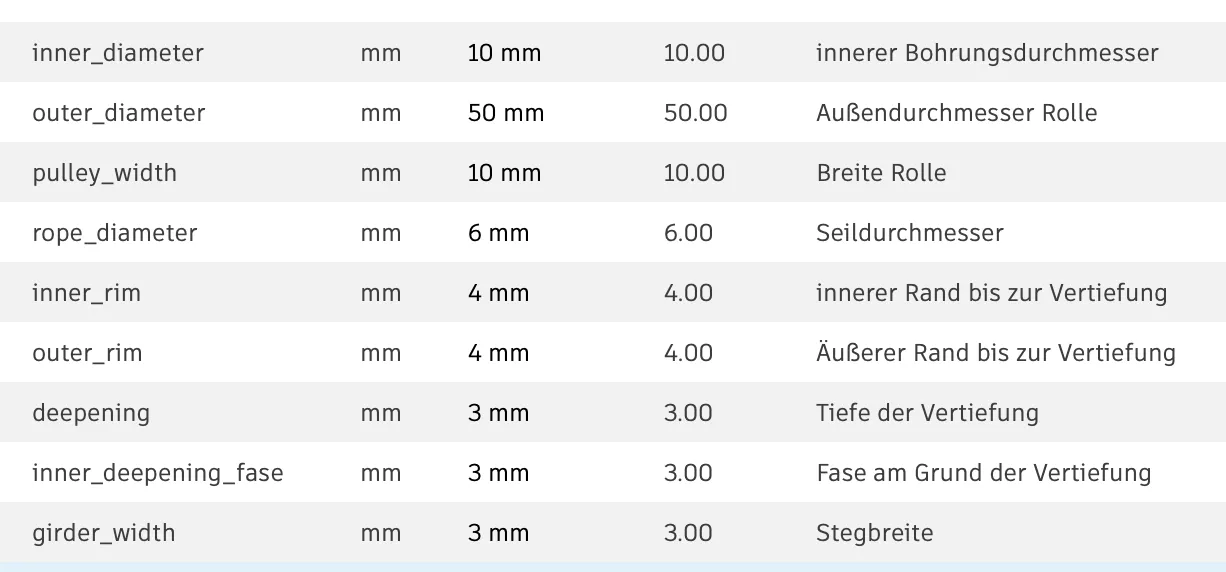

Pulley 1)

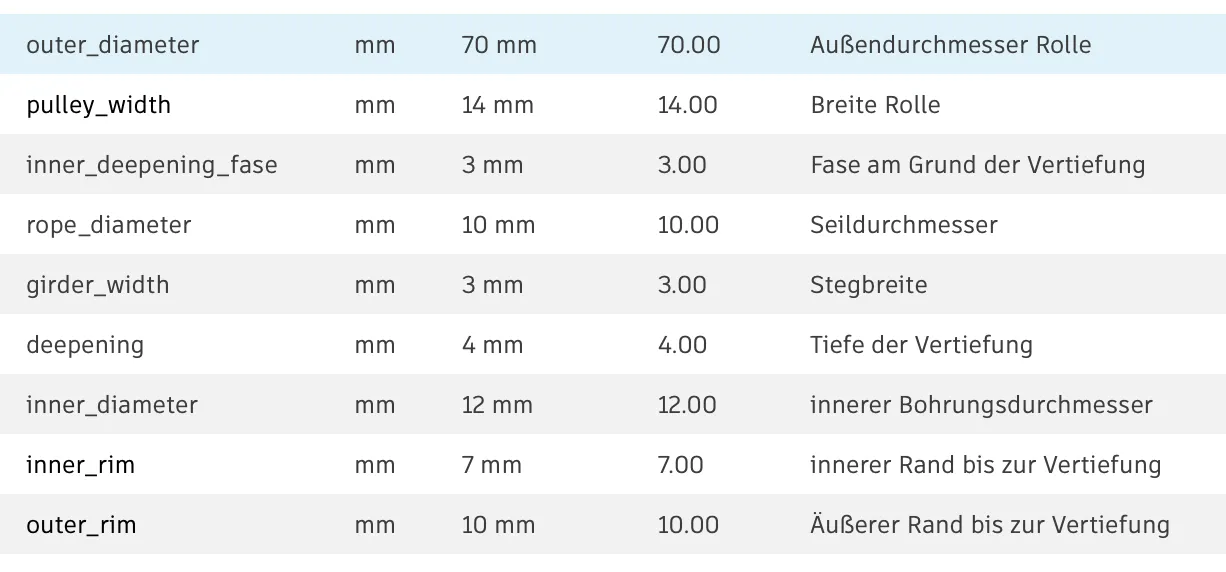

Pulley 2)

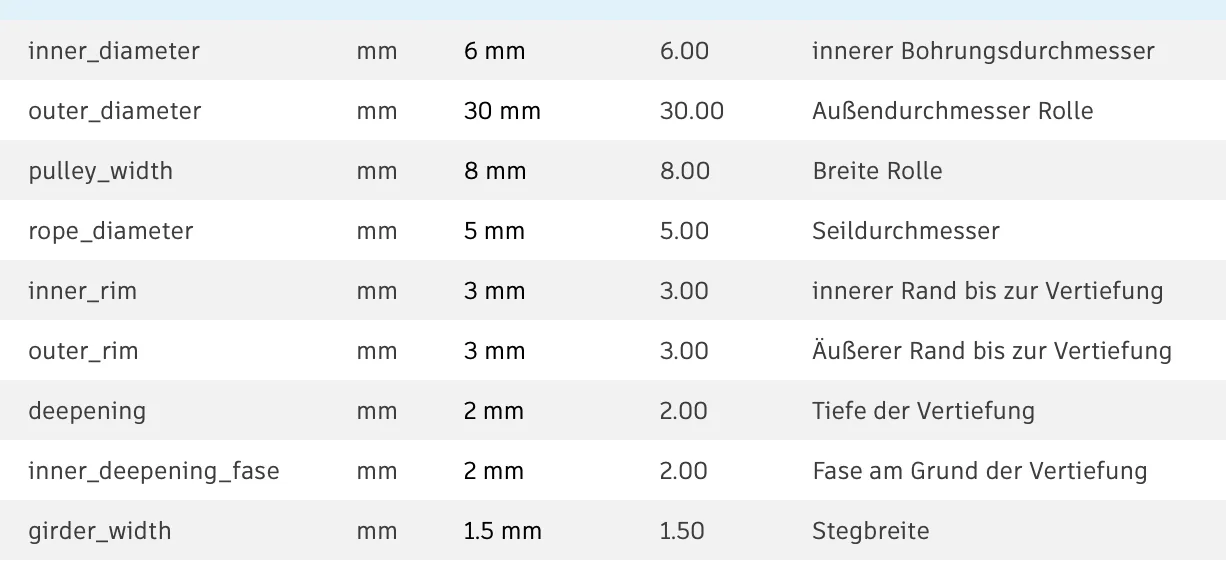

Pulley 3)
