AkroBin Style Storage with Custom Label
Print Profile(1)
Bill of Materials
Description

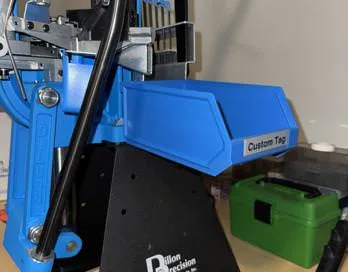

This is an AkroBin-style open dump bin designed for storage of small parts, hardware, or shop supplies. The model includes a separate customizable front tag so you can easily label contents without reprinting the entire bin.
Bin dimensions are roughly 6.5in x 3.5in x 3in (LxWxH) ID.
Recommended Print Settings (my project settings)
These are the settings I used for PLA. Other materials will require different support settings. They should be in the 3MF file. You can use these or your own if you have your own favorite support profile. These are what I know works with my X1C printer.
Bin
- Enable Supports (tree auto)
- threshhold angle 35°
- on build plate only ✅
- remove small overhang ❌
- initial layer density 70%
- top z distance 0.22
- bottom z distance 0.22
- pattern angle 45
- top interface spacing 0.1
- support/object xy distance 0.38
Label/Tag Text
- Size 7-10mm
- Thickness 0.4
- Embeded depth 0.1
