RIVE /// Emergency Utility Knife Credit Card

IP Report
GIF

Print Profile(1)

All
H2D
H2S
P1P
X1E
X1
X1 Carbon
P1S
A1
H2C
A1 mini
H2D Pro
P2S

0.12mm layer, Solid, 8 Grams!
0.12mm layer, Solid, 8 Grams!
Designer
3.4 h
2 plates

Open in Bambu Studio
Boost
26
69
0
0
22
7
Released

Bill of Materials

List other parts
  • Utility Blade x 1: Standard Box cutter blade

Description

RIVE

A User Error Liability Tool

  1. The Activation: Snap the card along the perforated axis. If it feels like you are destroying something of value, you are performing the action correctly.
  2. The Hazard: This tool contains a standard utility blade. It does not have a safety lock, a handle, or a conscience.
  3. The User: By deploying this blade, you acknowledge that any resulting stitches are a "you" problem.
  4. The Storage: Safely discard after use OR return to your wallet immediately and discard later.  Leaving it on a counter is considered "negligent surrender."

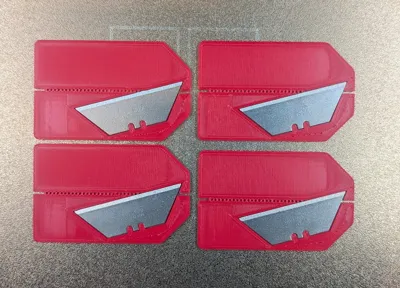

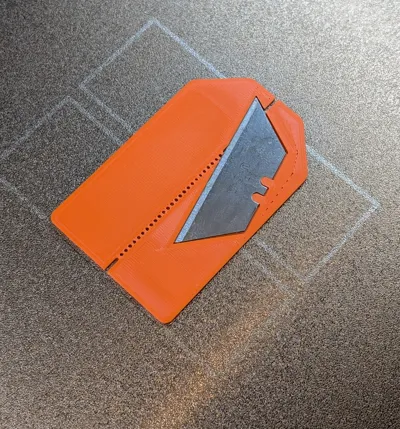

Print in place, with added pause to insert standard utility blade.



Printing Tips:  IMPORTANT!

  • If oily, clean blade with alcohol or soapy water and dry.
  • Apply a thin film of adhesive to the top side of the blade using a glue stick or I've found a mist with spray adhesive works really well.  The temperature difference and smooth steel surface aren't ideal for bonding filament without this step
  • CAUTION: When inserting the prepped blade, ensure the blade is fully seated and flush with the current paused layer height before proceeding.  Any bumps or print contamination must be cleared out to allow the blade to sit flat. If the blade does not fit for any reason do not proceed.  Confirm correct blade and try reprinting.
