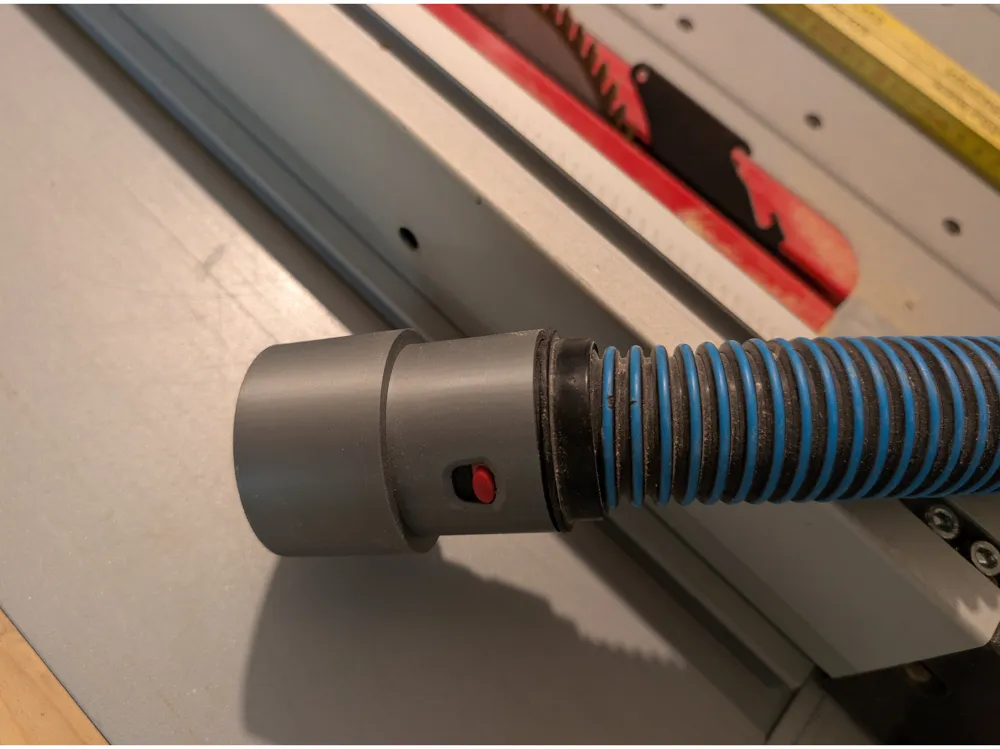

This is an adapter to connect a machine with the suction lines to the Click & Clean system from Bosch or Cen-Tec.

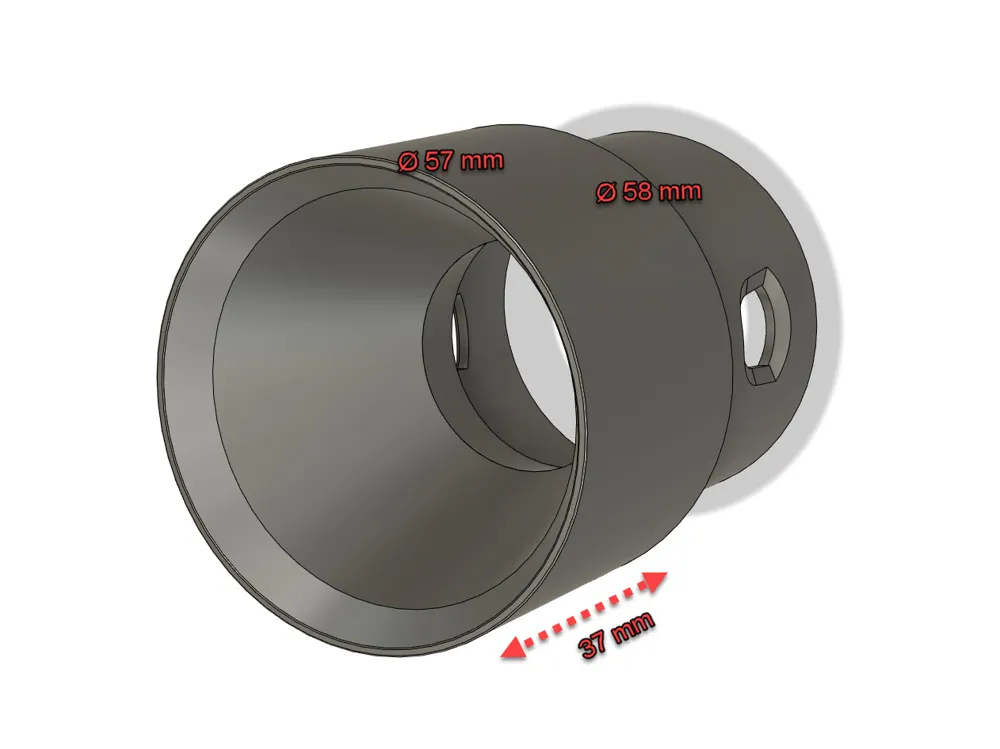

This adapter has an inner diameter of 57-58 mm on the machine side and is 37 mm long there.

The machine side is conically shaped on the outside, similar to the original adapter included by Bosch.

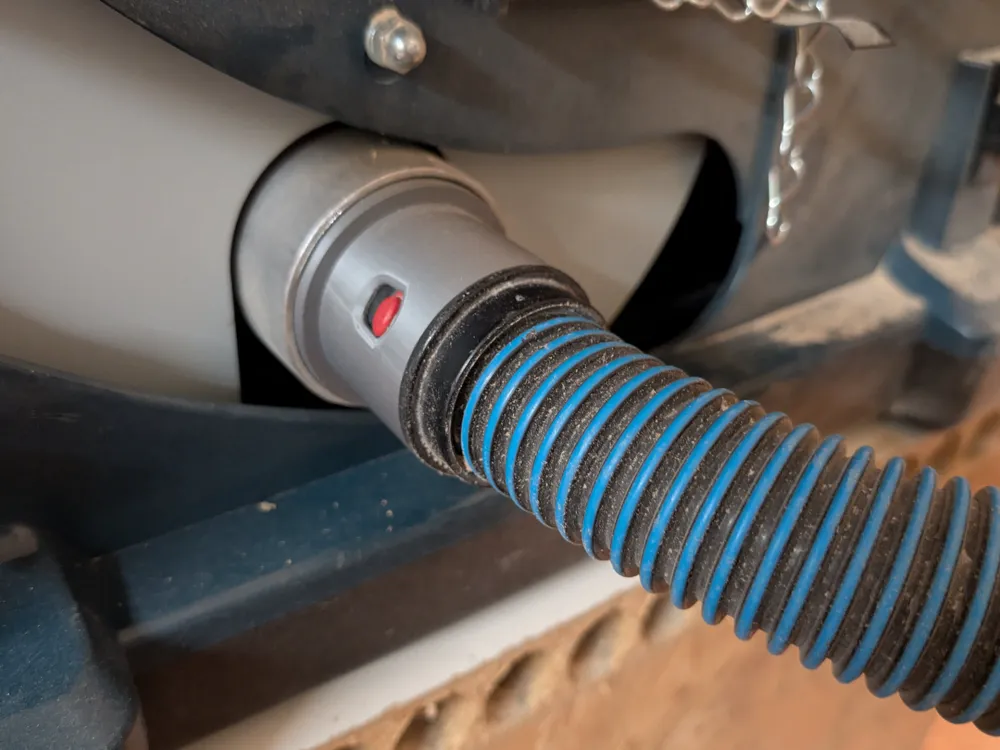

It fits into the dust extraction port of the Bosch GTS 10 XC shown in the picture.

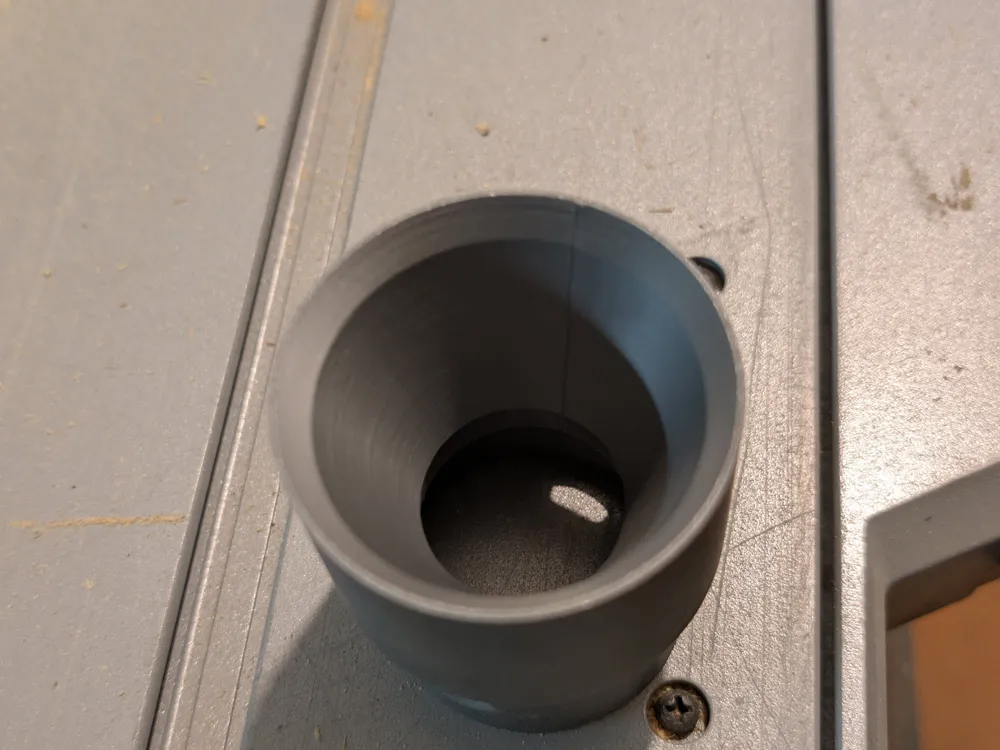

It is also strongly conical on the inside to match the diameter of the suction hose.
