3-point nozzle for 3d Printable Turbojet Engine
Print Profile(2)
Bill of Materials
- Super glue x 1: Can be any adhesive of your choice.
Description
Description

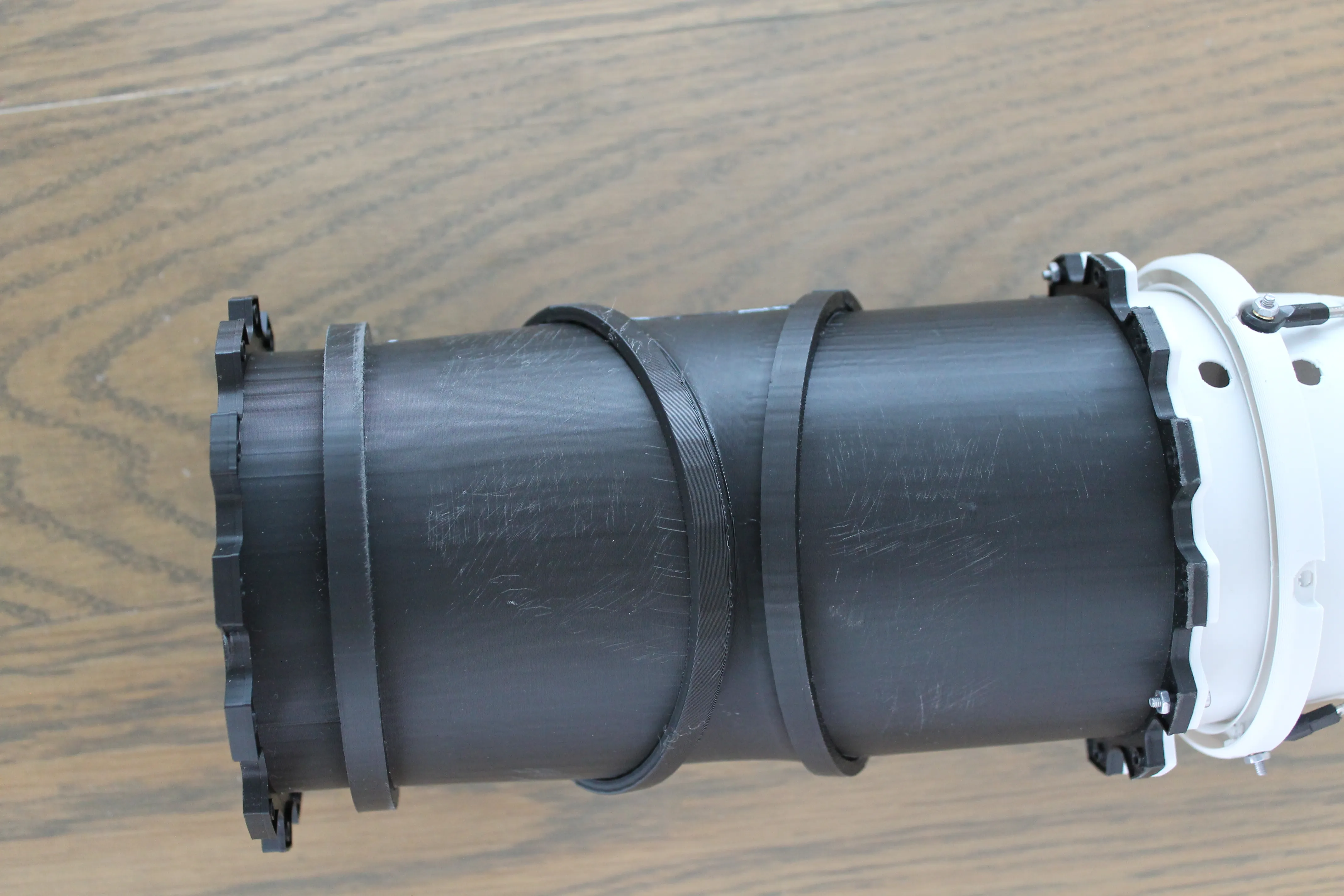

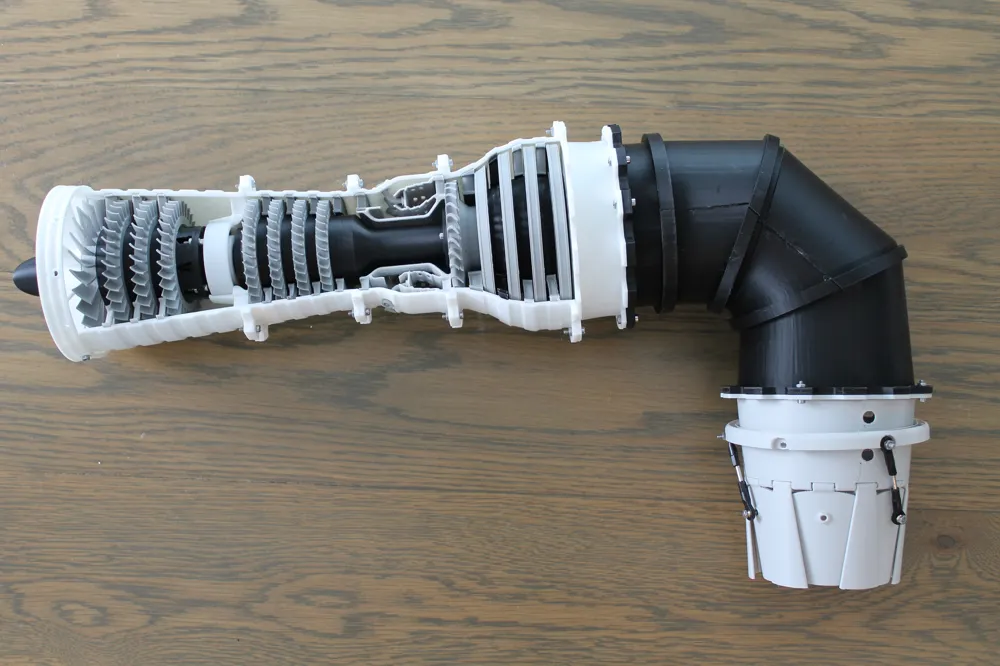

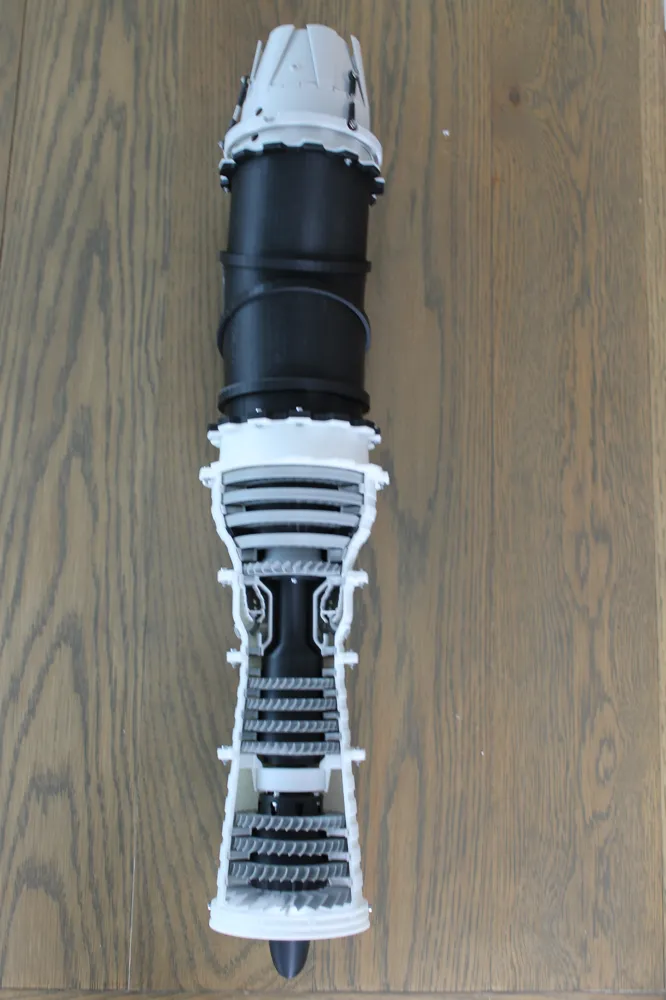

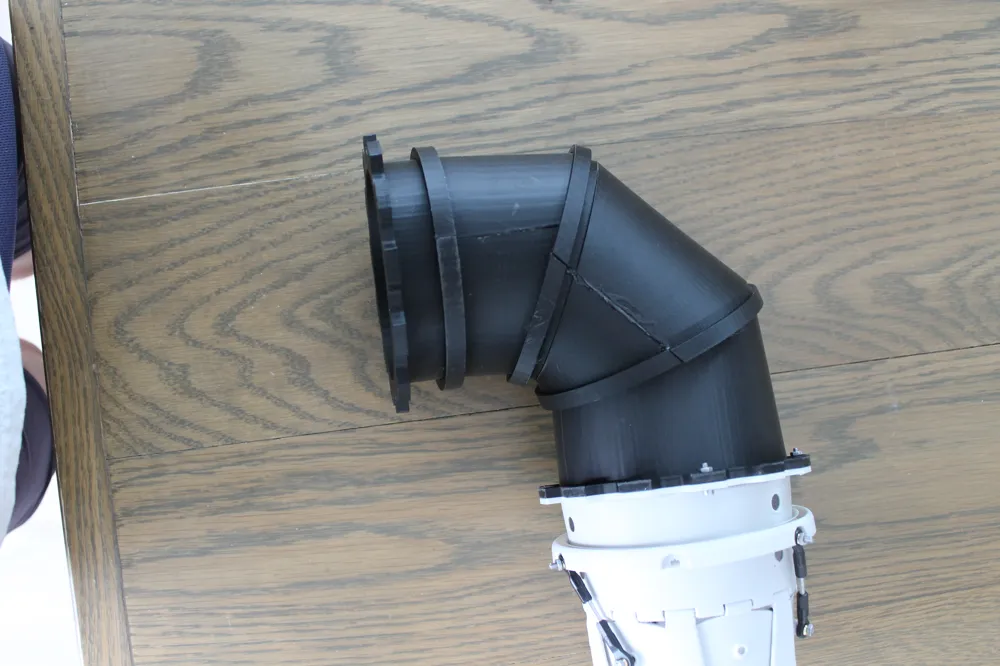

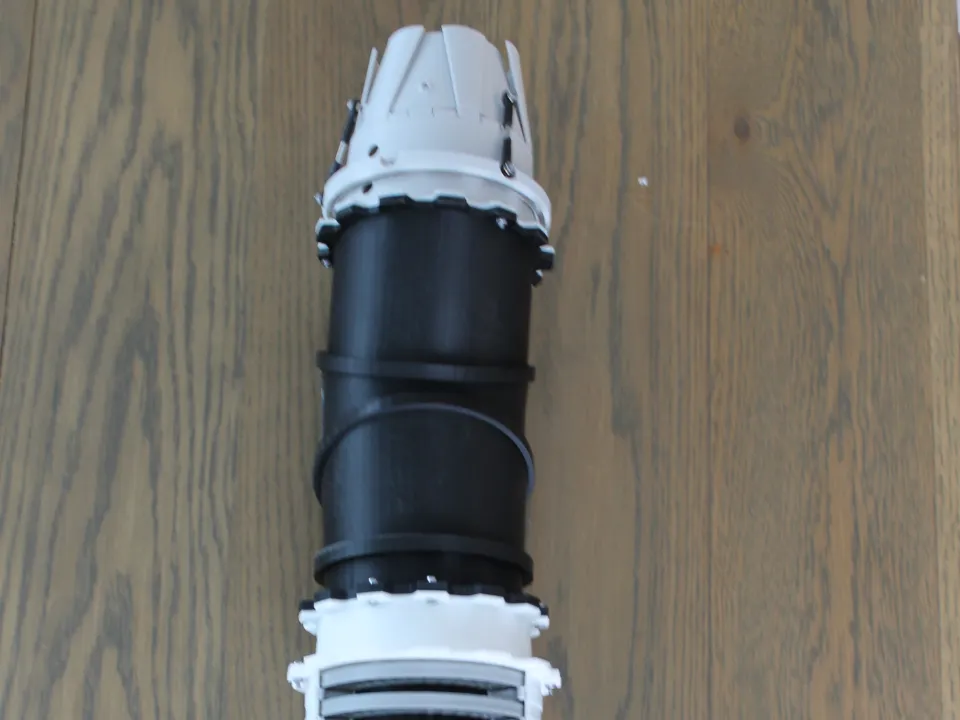

This is a functional add-on for Linus3D’s turbojet engine, recreating the three-bearing swivel nozzle (3BSM) used on the F-35B S/VTOL aircraft. The nozzle supports continuous thrust vectoring from 0° to 95°, enabling realistic vertical-lift and transition configurations.
Find the stand adapter by searching 3bsm stand. Stand Adapter for 3BSM - Free 3D Print Model - MakerWorld
Updates:
V2. Coming soon:
Next projects:
F35B lift fan
F35B winglets*
F22A thrust vector nozzle
F135/119 jet engine*
*(Only if I receive enough boosts, likes, and prints)
Directions

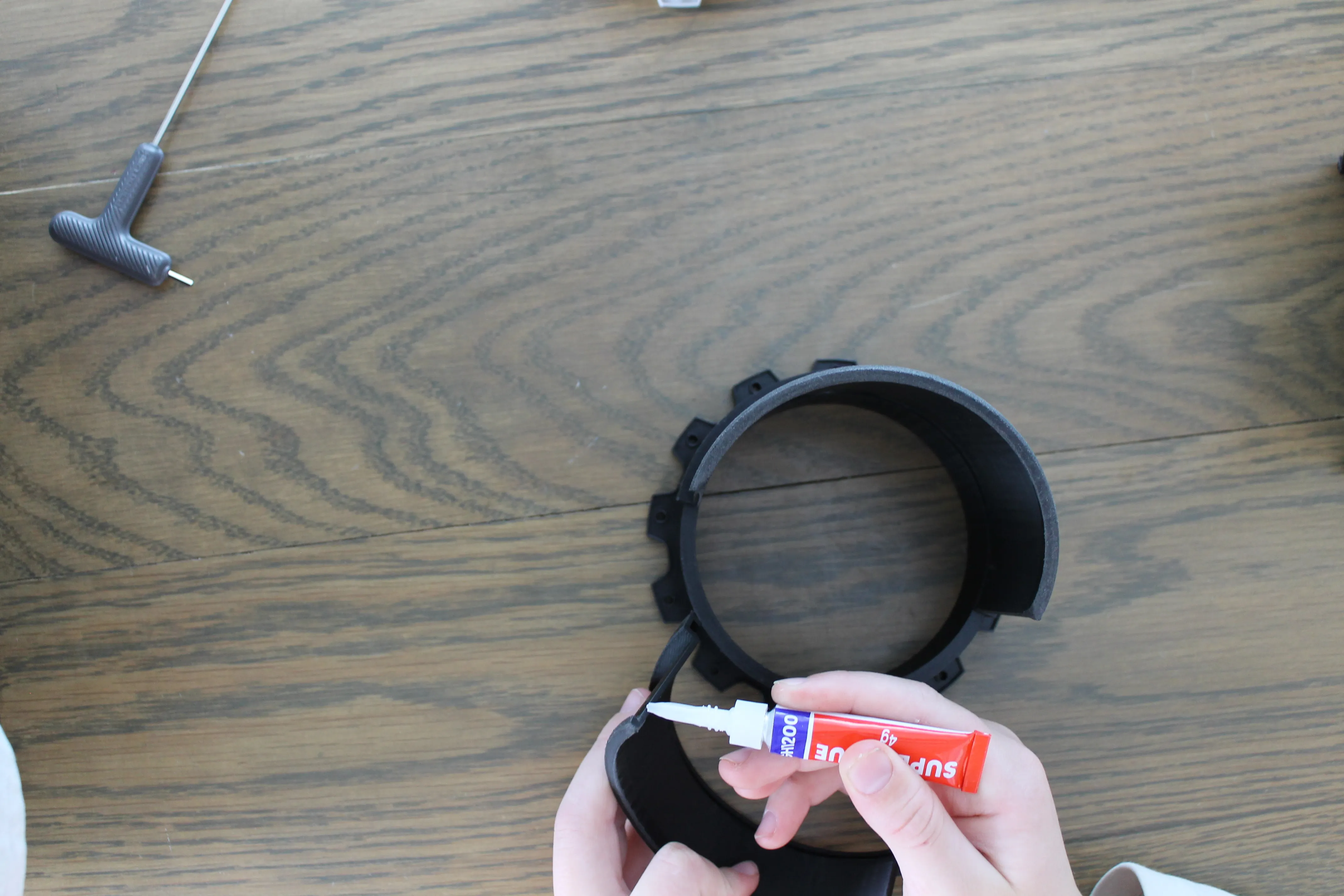

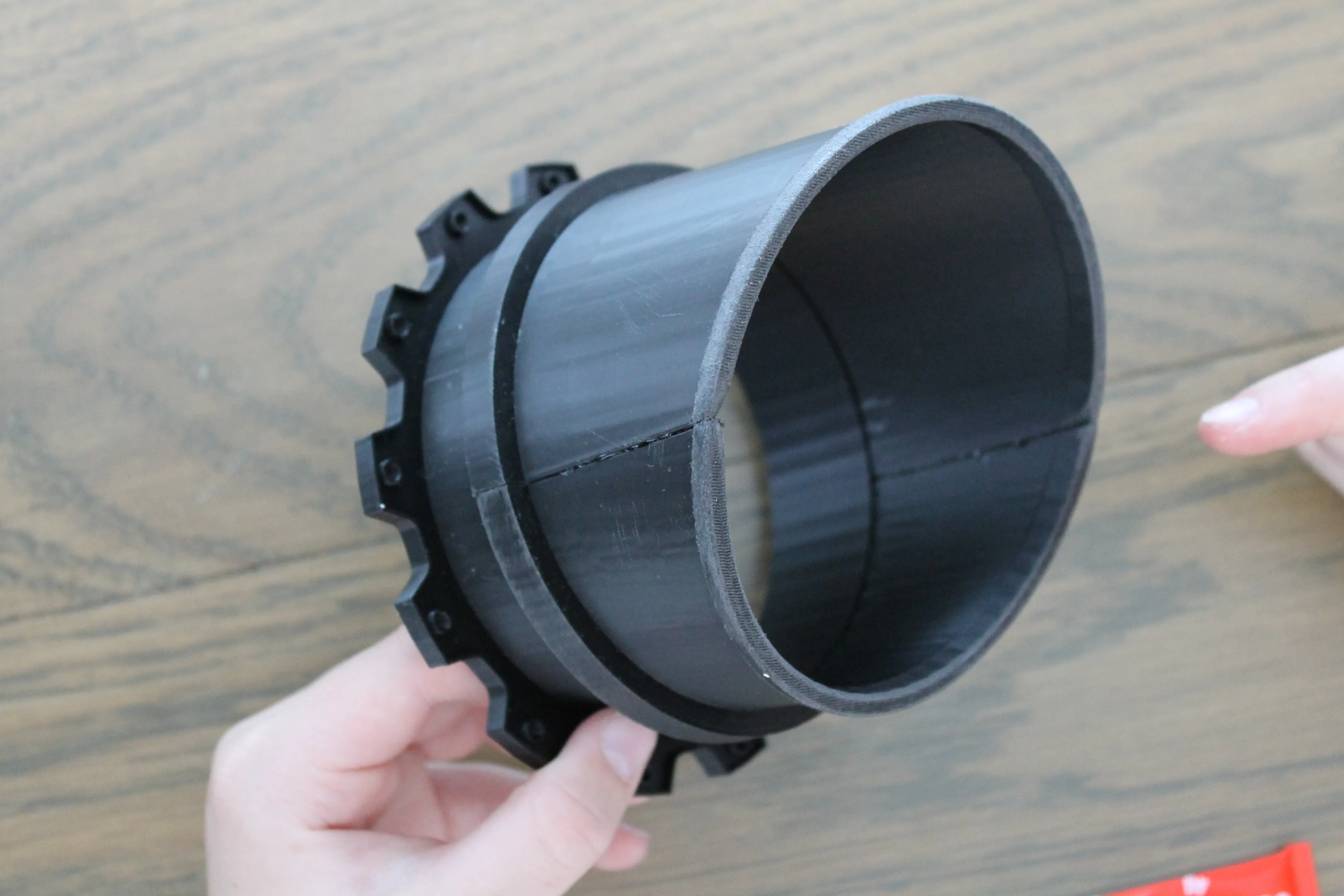

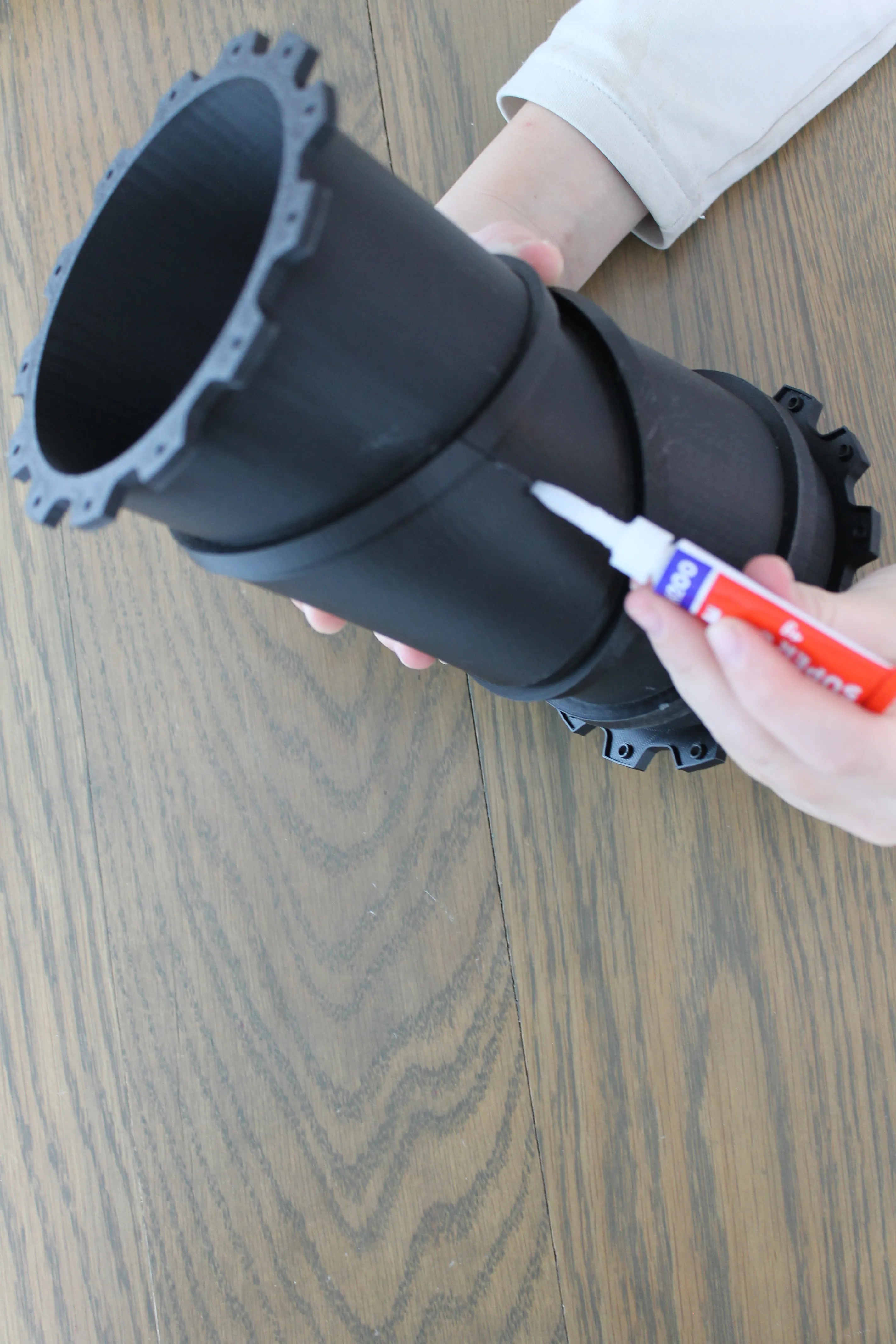

Step 1: Take part 1.33 and 1.67 add it on to part 1 with adhesive between 1.33 and 1.67.
|

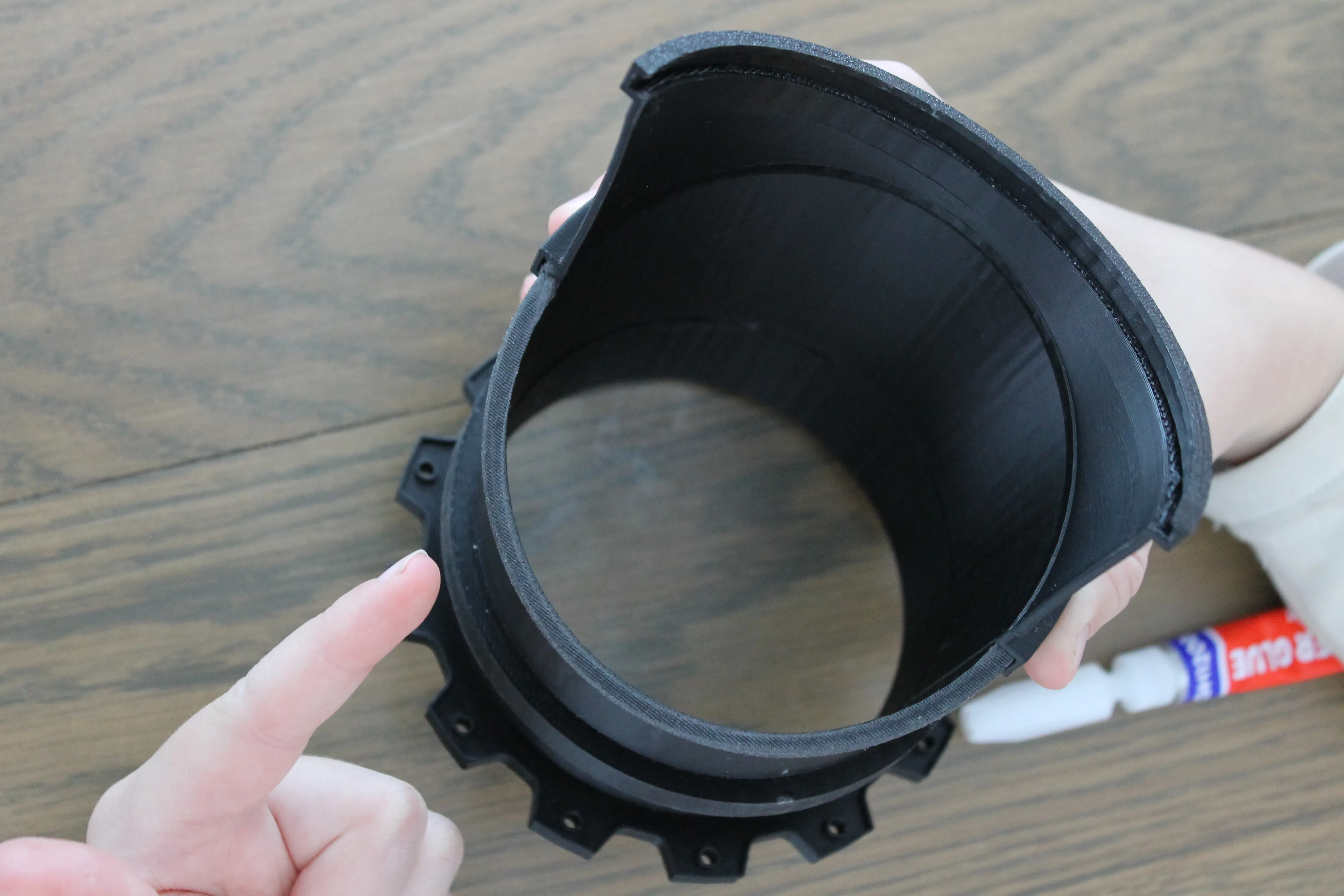

Step 2: Add part 2 onto step 1 without adhesive.
|

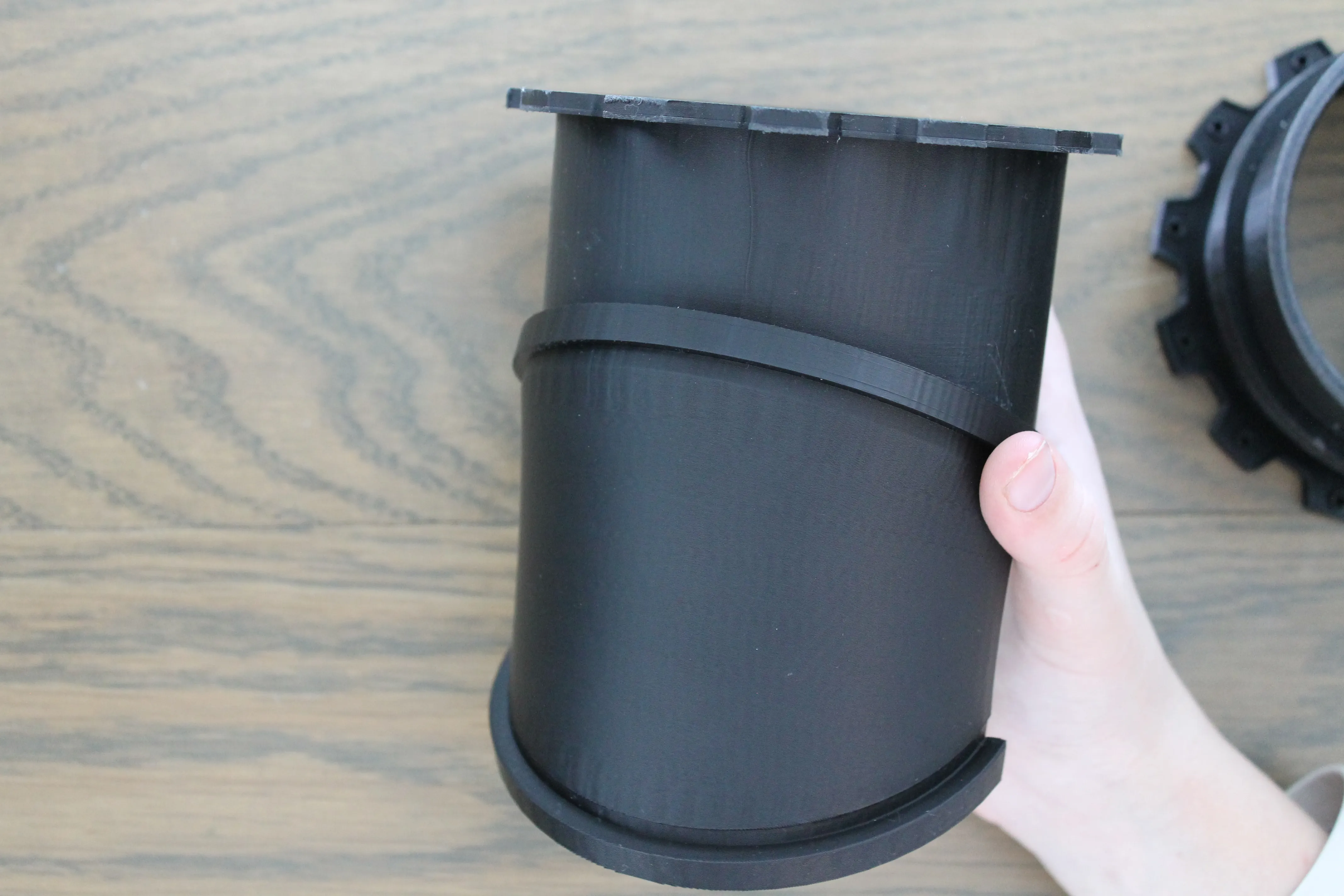

Step 3: Connect part 2.5 onto part 3 without adhesive.
|

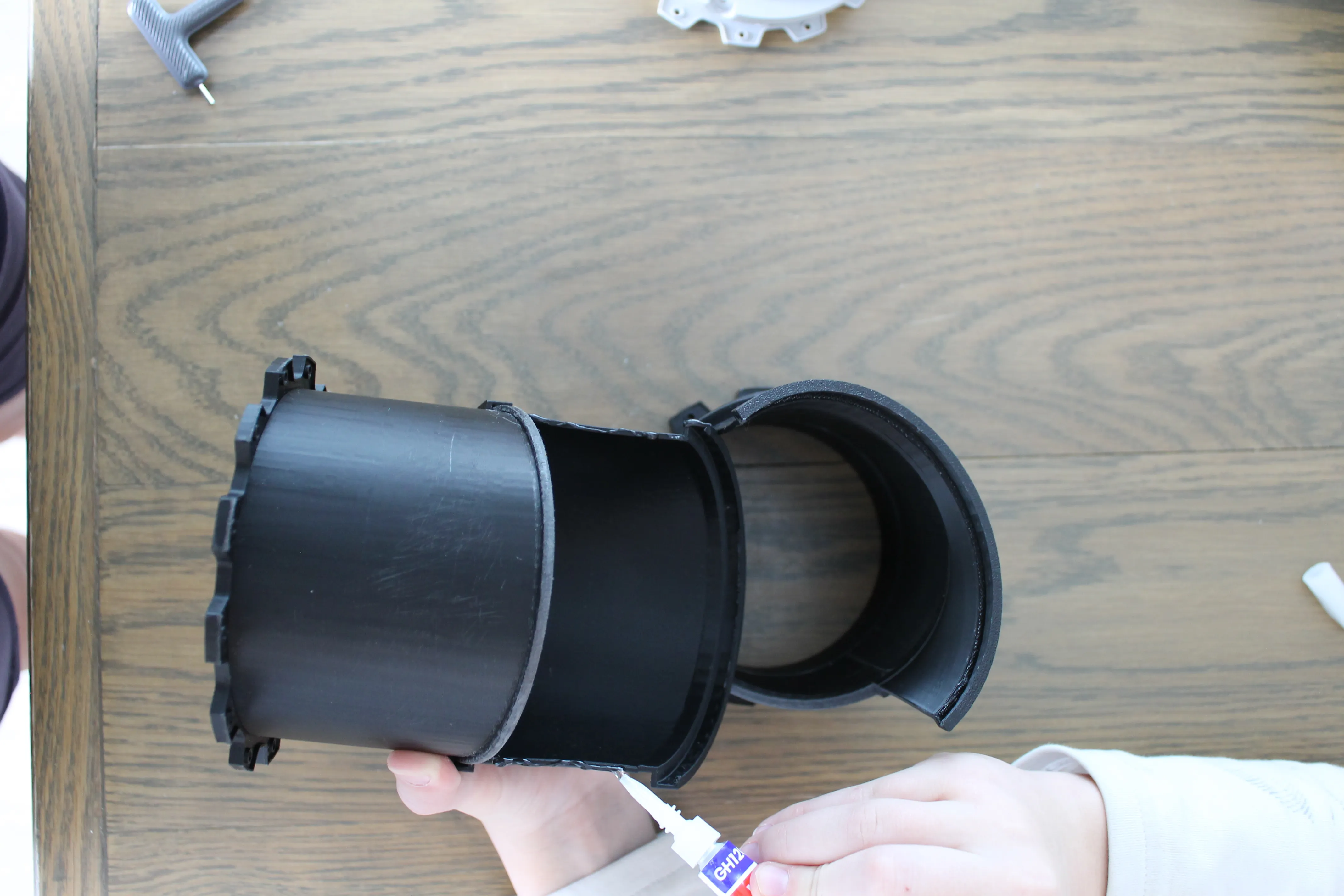

Step 4: Connect steps 2 and 3 with adhesive between part 2 and 2.5.
|

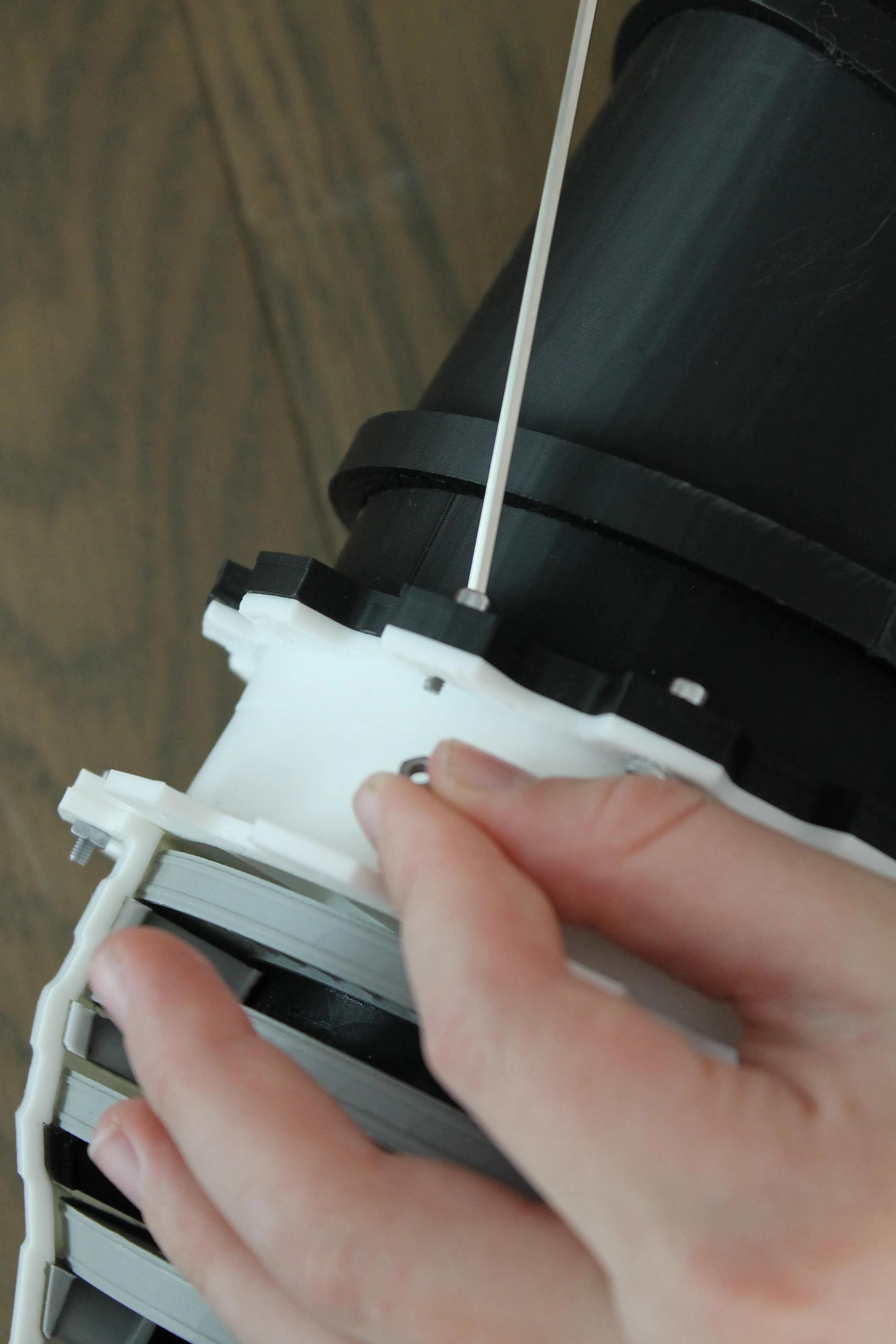

Step 5: Using M2.5 fasteners connect variable thrust nozzle to part 3.
|

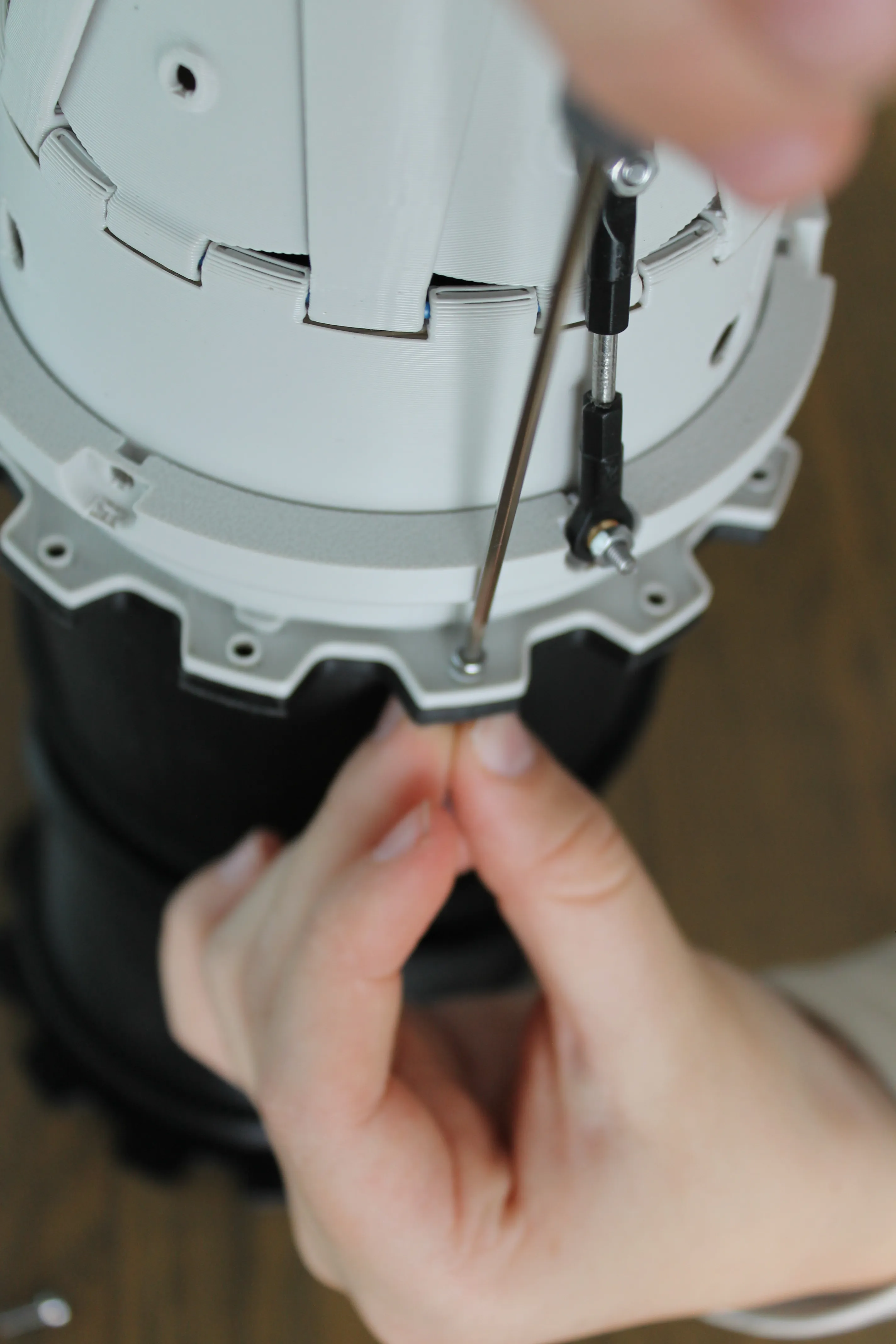

Step 6: Connect assembled 3-point nozzle to jet engine using M2.5 fasteners.
|
