Dual WiFi Antenna - Stable Desk Stand
Print Profile(1)
Description

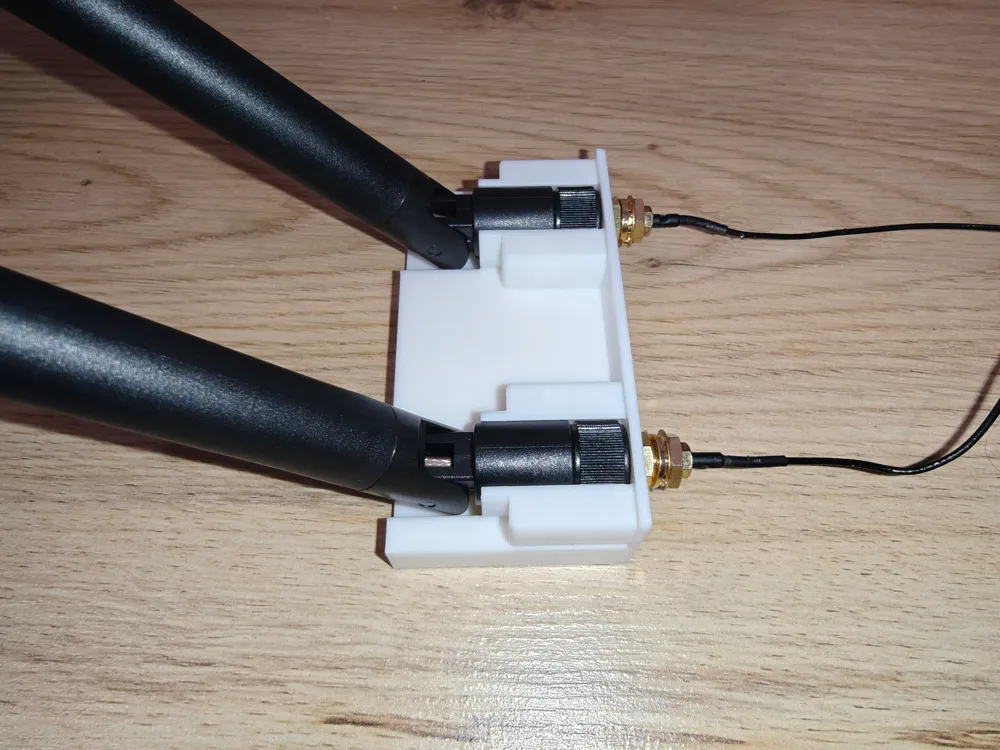

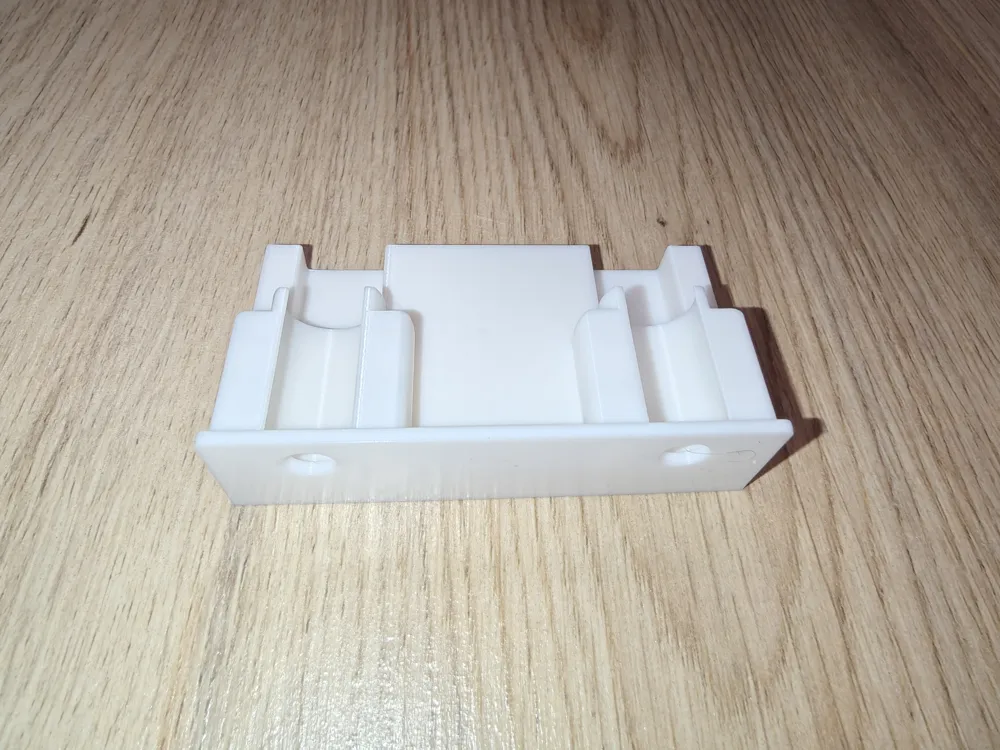

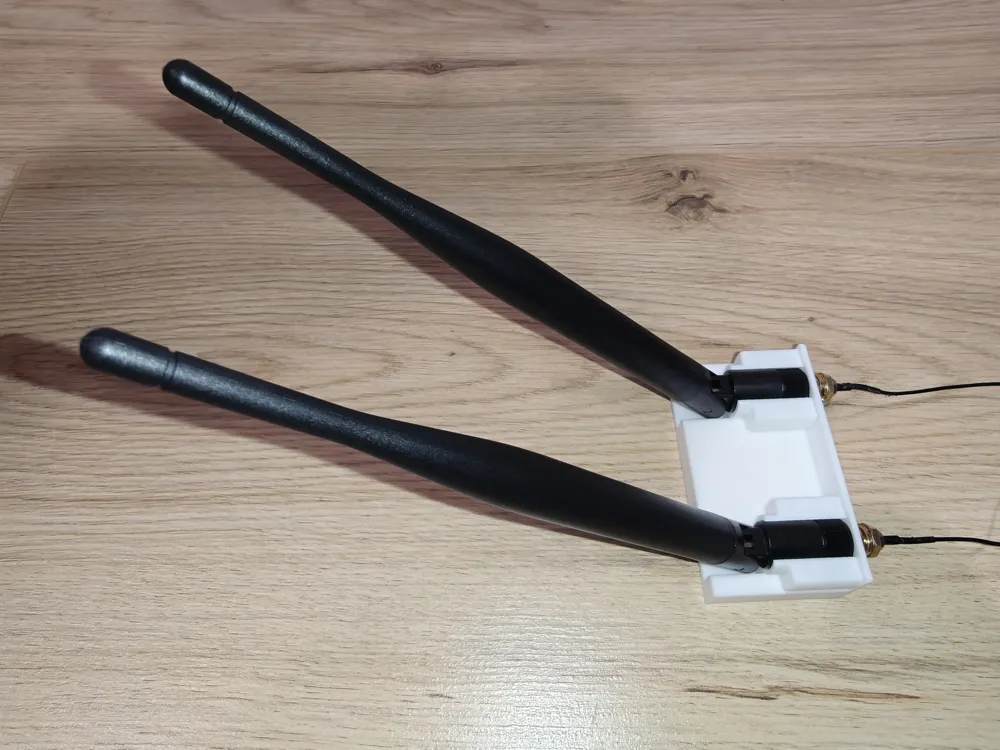

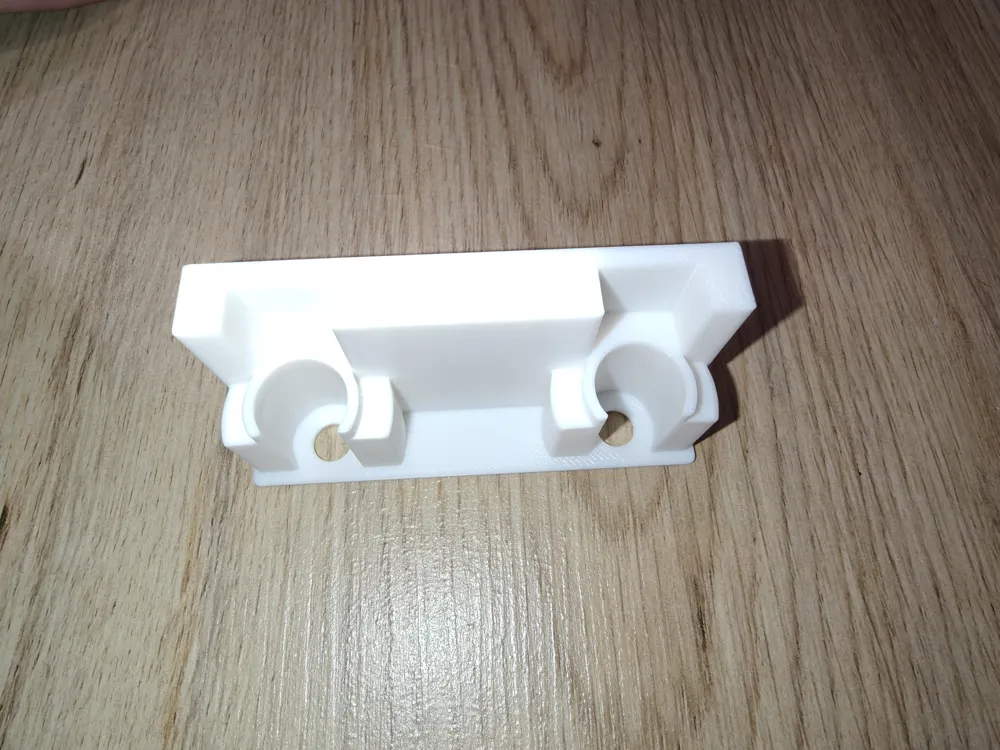

A stable dual WiFi antenna stand for SMA / RP-SMA bulkhead antennas, optimized to prevent tipping even when antennas are angled. The base is extended in the antenna direction and designed for 100% infill in the lower section to keep the center of gravity low.
This version supports all antenna angles.
For angles of 90° (vertical) or straight only, you can also use my small stand version.
Compact, efficient, and easy to print without supports.
Printing Recommendations
You can use the print profile included in the .3mf file. A simple modifier cube is used to apply 100% infill to the lower 0–10 mm of the model, creating a solid and stable foundation.
Recommended Material: PLA works perfectly well. Other materials (PETG, ABS, etc.) should also work, but have not been tested.
