1 Player Bartop Arcade - HEXCADE - Complete Guide
Print Profile(1)
Description
WE APPRECIATE PEOPLE MAY WANT THE STL FILES AND NOT JUST THE 3MF FILES. We will look into this at our next model review. In the mean time you can extract the files from the 3MF files provided should you require the STL file itself. Thank you.
-----------------------------------------------------------------------------------------------------

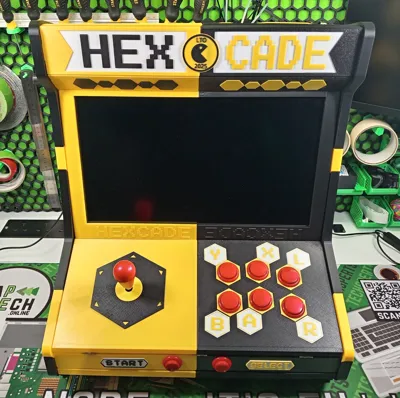

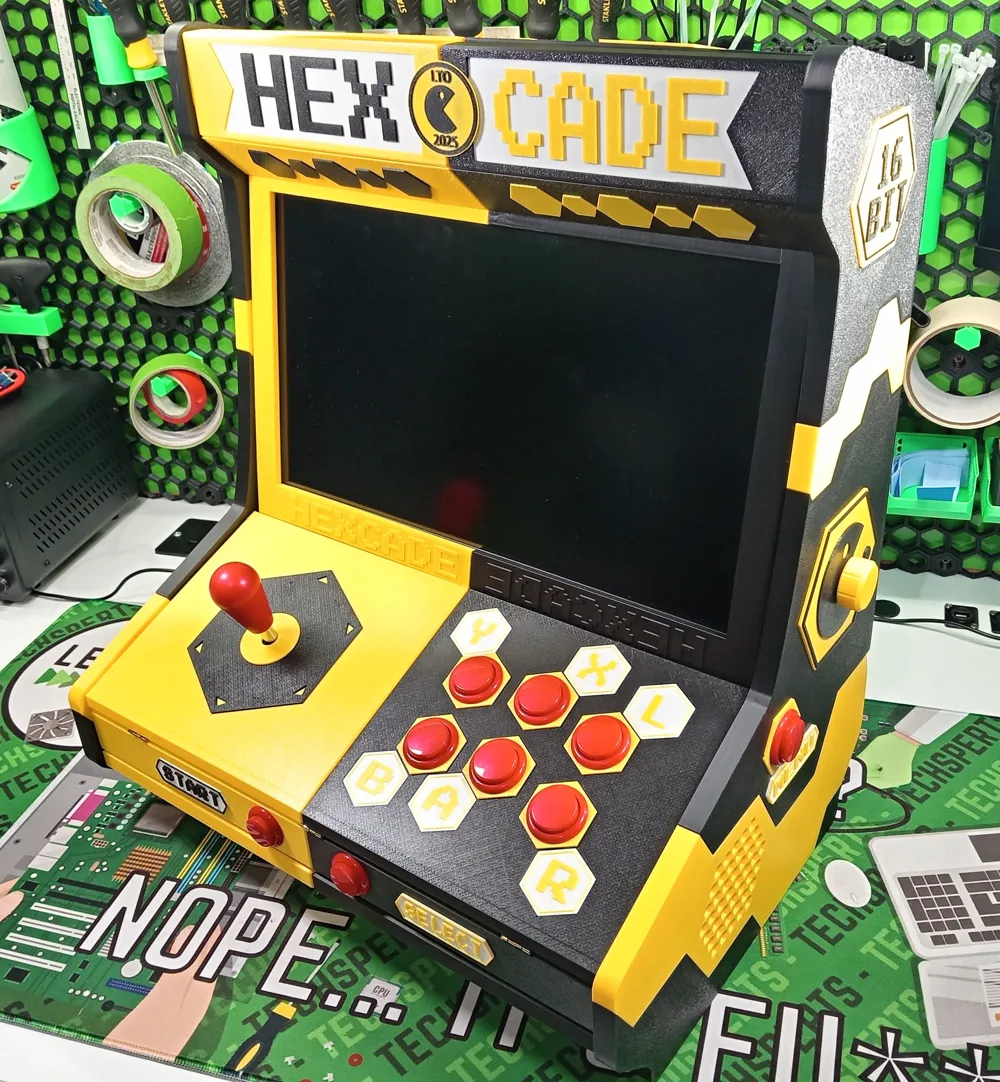

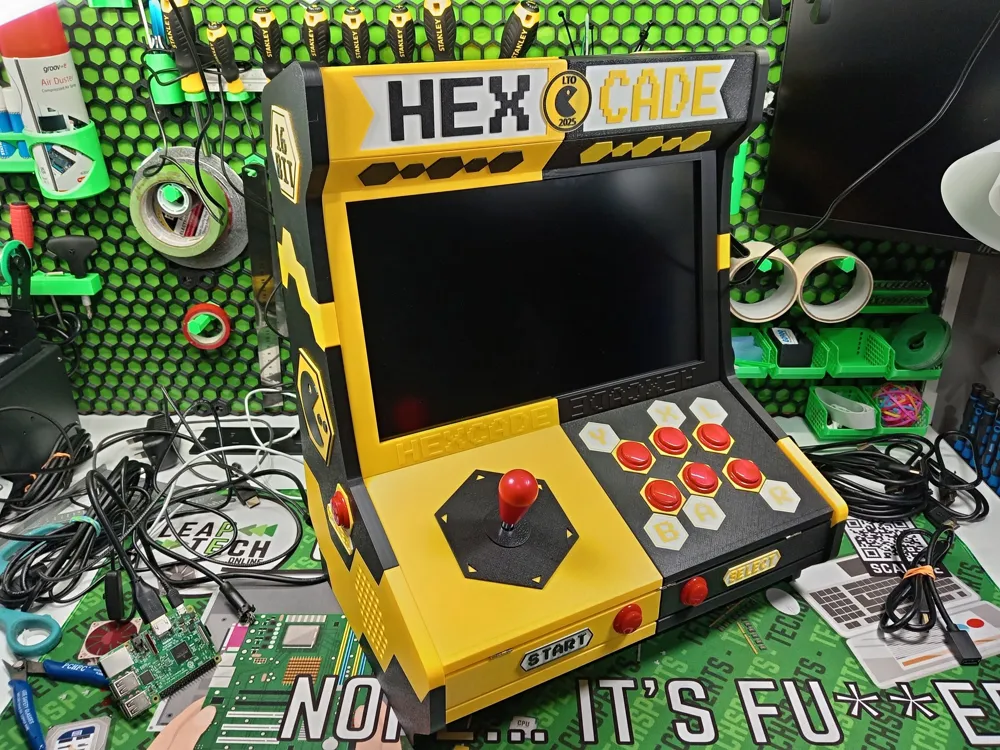

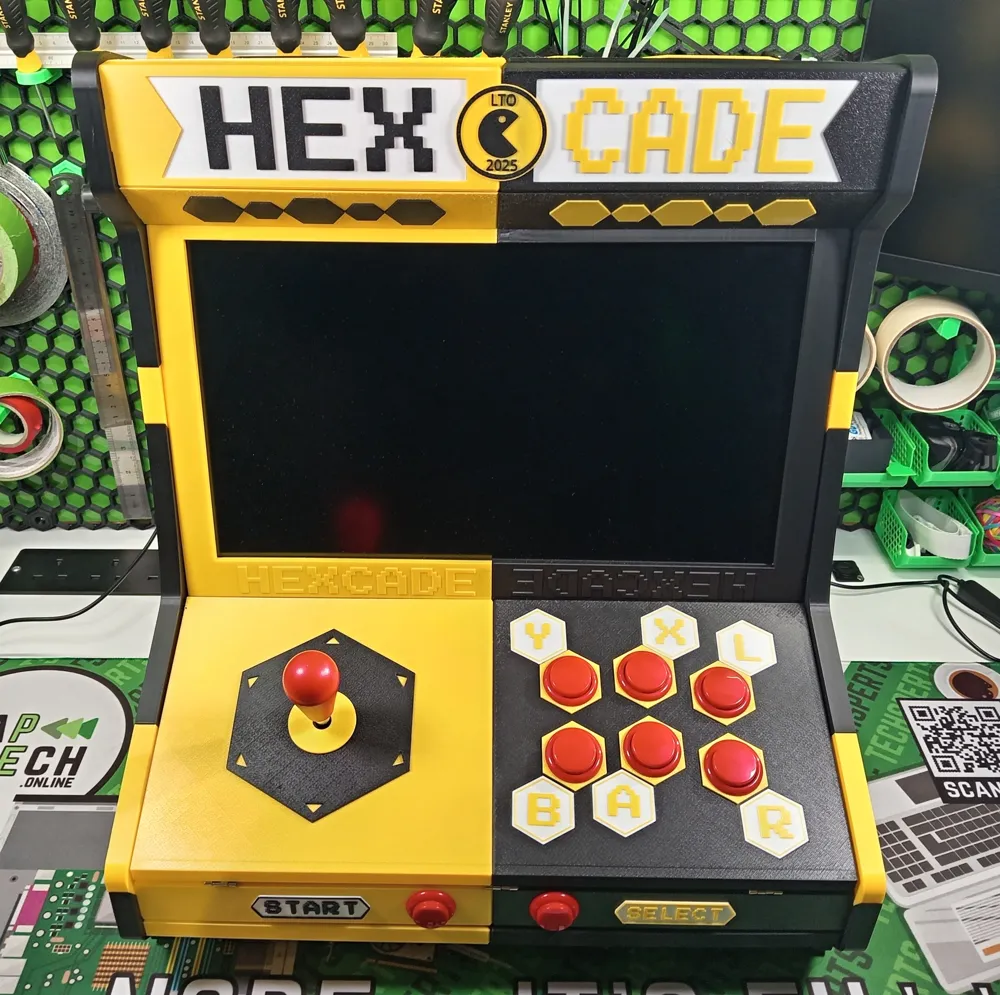

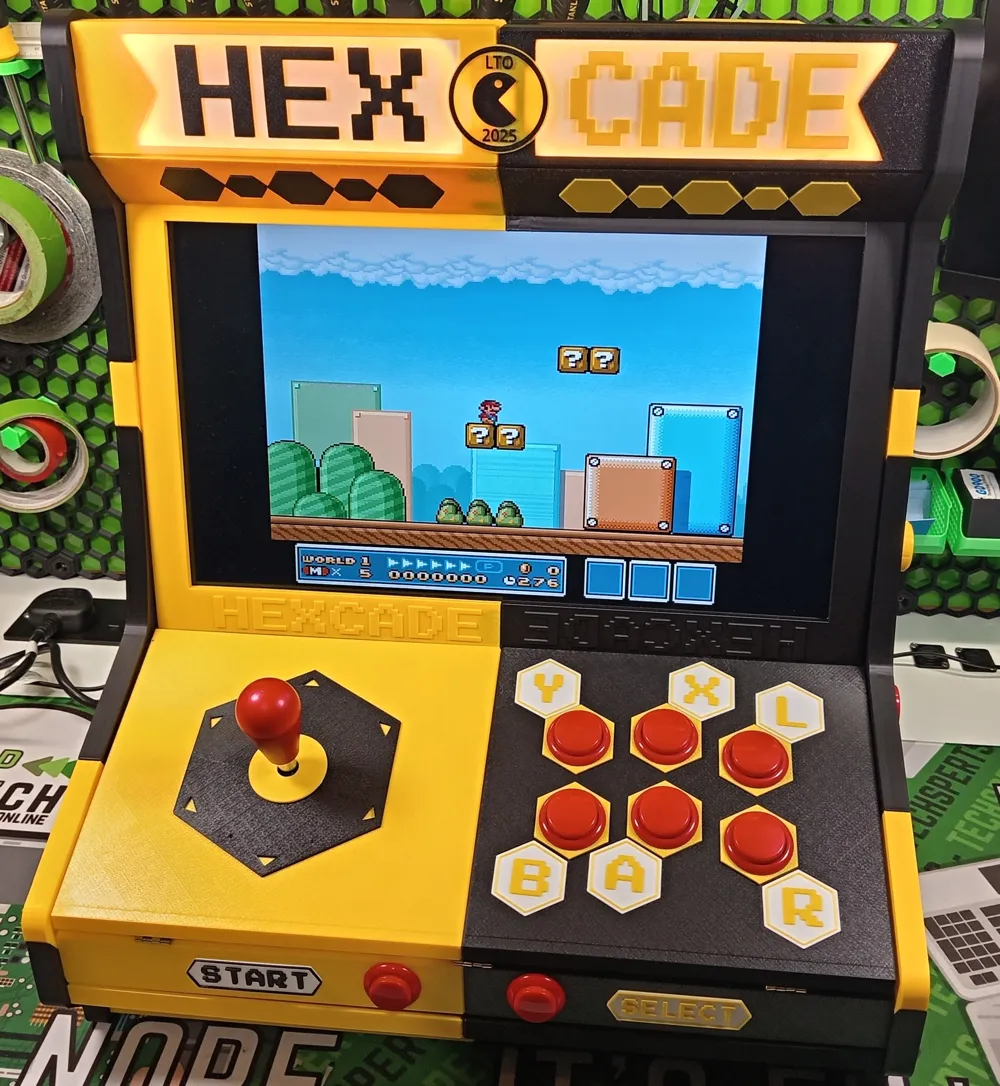

1 Player Bartop Arcade Machine.
-----------------------------------------------------------------------------------------------------
Total required filament - 3.8kg Approx Depending on levels of customisation.
Recommended type - PLA.
AMS required - No.
Size when printed - H(480mm)W(410mm)D(310mm).
Notes - See below.
-----------------------------------------------------------------------------------------------------

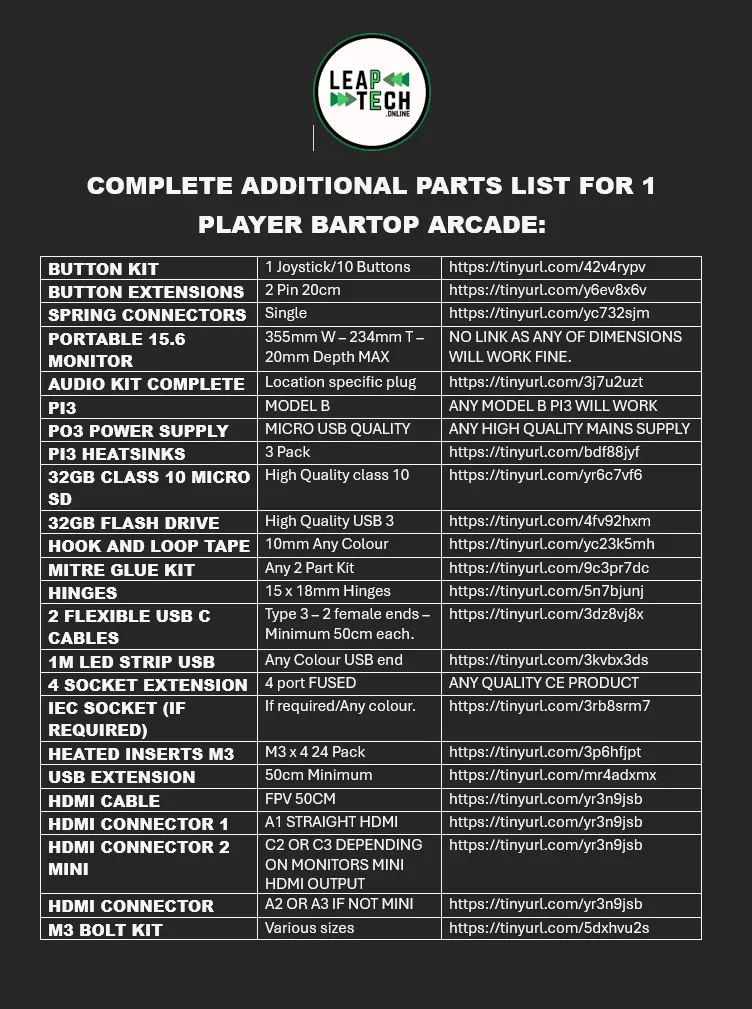

Additional needs/parts:
See below or visit our website for suggested links as we are unable to share them here any more.
-----------------------------------------------------------------------------------------------------
Assembly Instructions:
See video listed below.
DOWNLOAD ALL RAW MODEL FILES FOR THE ENTIRE PROJECT, WE ALSO SUGGEST WATCHING THE VIDEO ON ASSEMBLY AND TIPS PROVIDED BELOW.
Before we get into this please note:
Should you be using any other printer please note the following general guidelines on printing settings:
- 10% infill with Gyroid pattern.
- Minimum of 3 walls.
- Supports where needed.
Please note the following points before printing:
- We have designed this machine to be a mostly dowel and glue assembly. We recommend a small rubber hammer for assembly. Glue should be used in any places you see fit but ESPECIALLY ON THE PANEL ASSEMBLY AND THE TOTAL MACHINE ASSEMBLY. A LITTLE GOES A LONG WAY… DO NOT OVER USE GLUE AS THIS WILL LEAD TO A POOR FINISH.
- This is a NON AMS design so should be able to be printed by anybody without loads of poop or complicated changeshowever we do have a video listed below showing how to do the colour changes as required in the files.
- Some parts of the machine use heated inserts but this is only due to custom changes that might be needed if you use a different monitor or electronic internals etc.

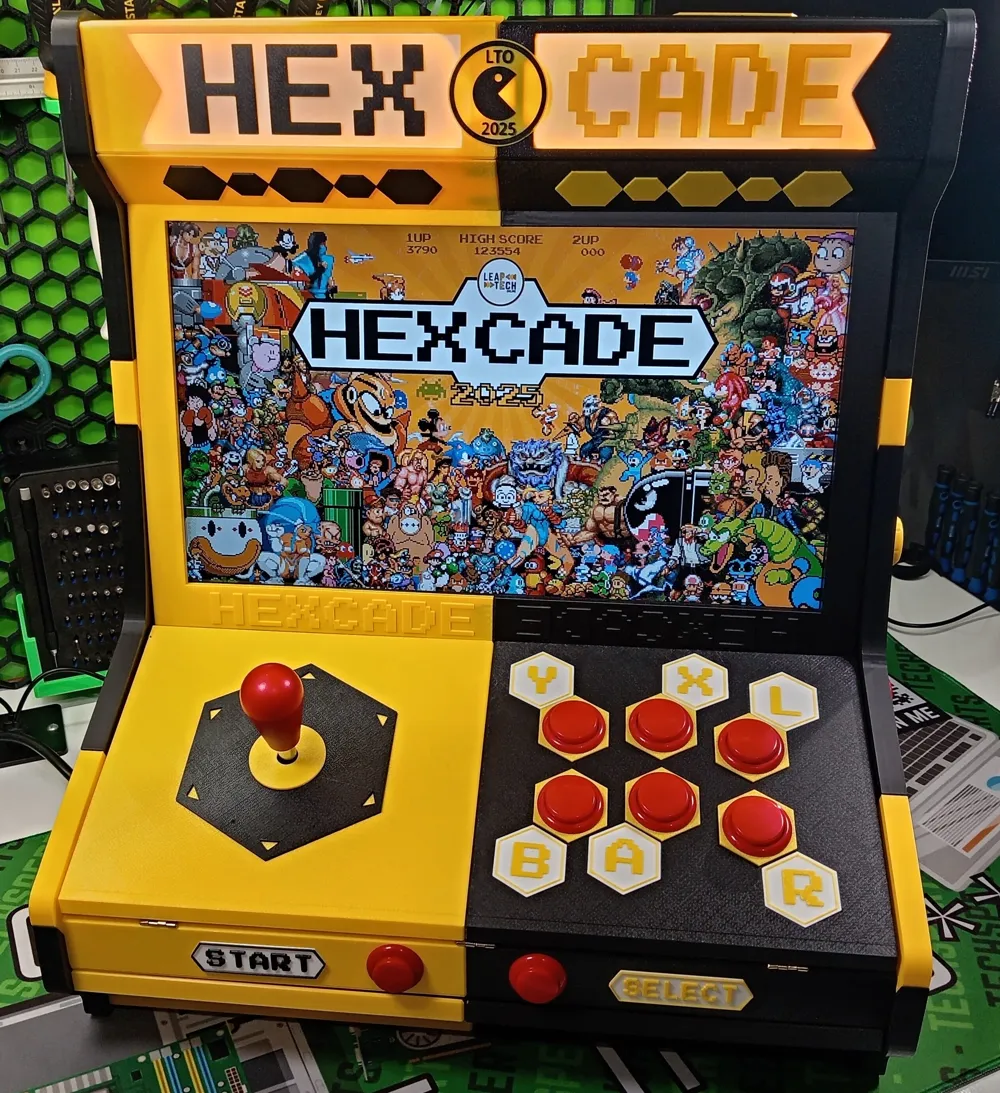

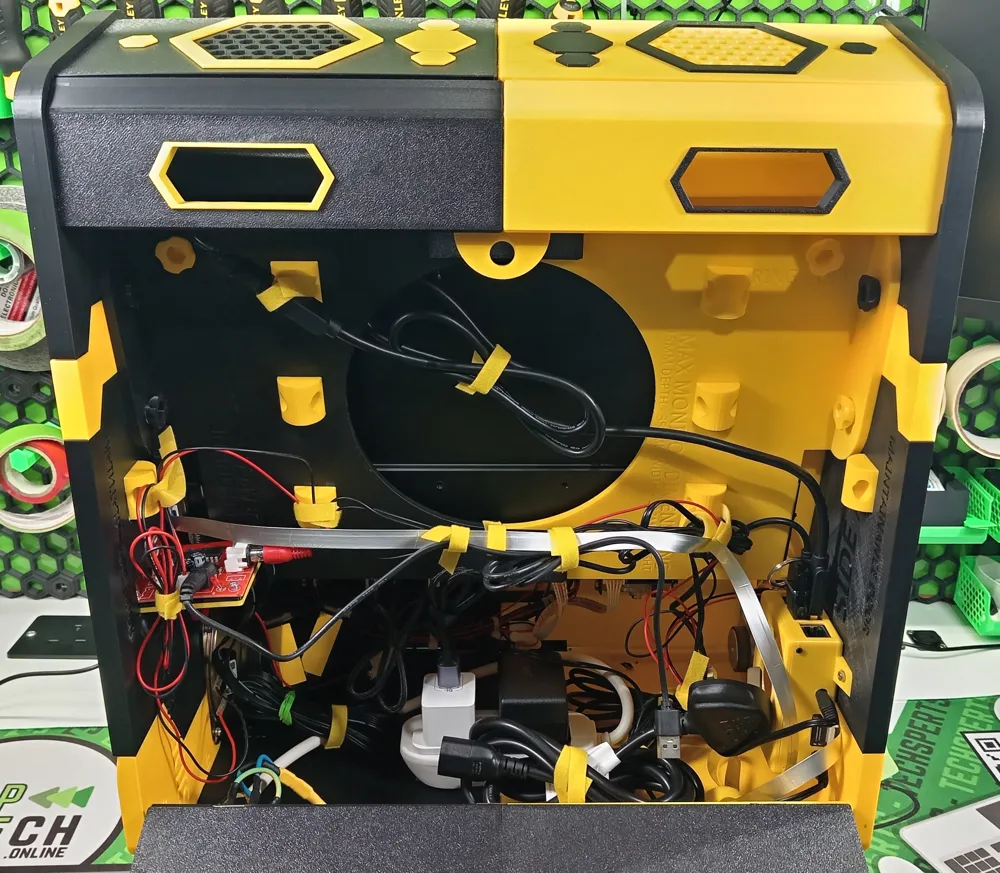

- This cabinet was designed to be used with a simple PI3 and retro pie setup and we have included a ready to go file you can load and have your machine up and running quickly without a complicated setup. You can find all of this info in the video below or on our website.
Total print time and materials after optimisation:
- 3.8kg PLA Plus (Allow up to 4 for any errors or poor prints and do not use the aux fan etc).
- 138 Hrs total print time for the P1S on the profiles provided.
(Please calibrate your machine and filament of choice before beginning).
ADDITIONAL PARTS SPECIFICS CAN BE FOUND ON OUR WEBSITE WITH LINKS AS MAKERWORLD WILL NOT ALLOW US TO UPLOAD LINKS ANYMORE TO OUTSIDE SOURCES.
