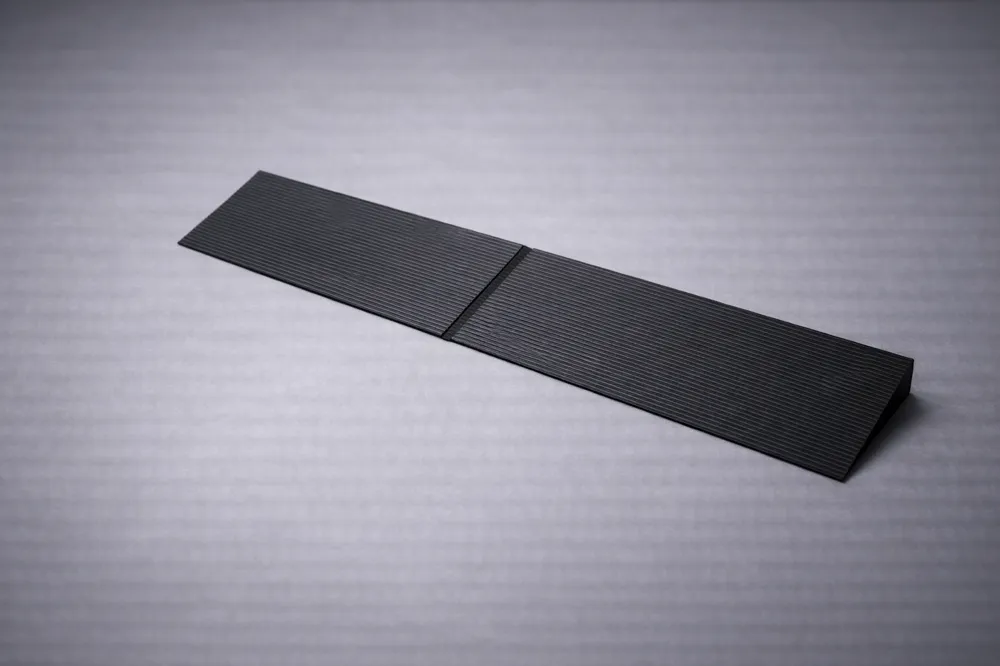

Modular ramp for robot vacuum cleaner any length

This modular ramp is designed to help robotic vacuum and mopping robots overcome low thresholds and small height differences between rooms. Thanks to its modular system and connectors, the ramp length can be easily customized to fit the exact requirements of a specific space.

The ramp provides a smooth transition with an anti-slip surface to ensure reliable robot movement. It can be used as a temporary or permanent solution without drilling.

🔧 Main Features
• Designed for low thresholds up to 2 cm
• Basic ramp length: 6 cm
• Inclination angle: approx. 18.4°
• Modular system with combinable ramp segments
• Connector module allows extending the ramp to virtually unlimited length
• Anti-slip surface for secure robot passage
• Minimal supports required – easy printing

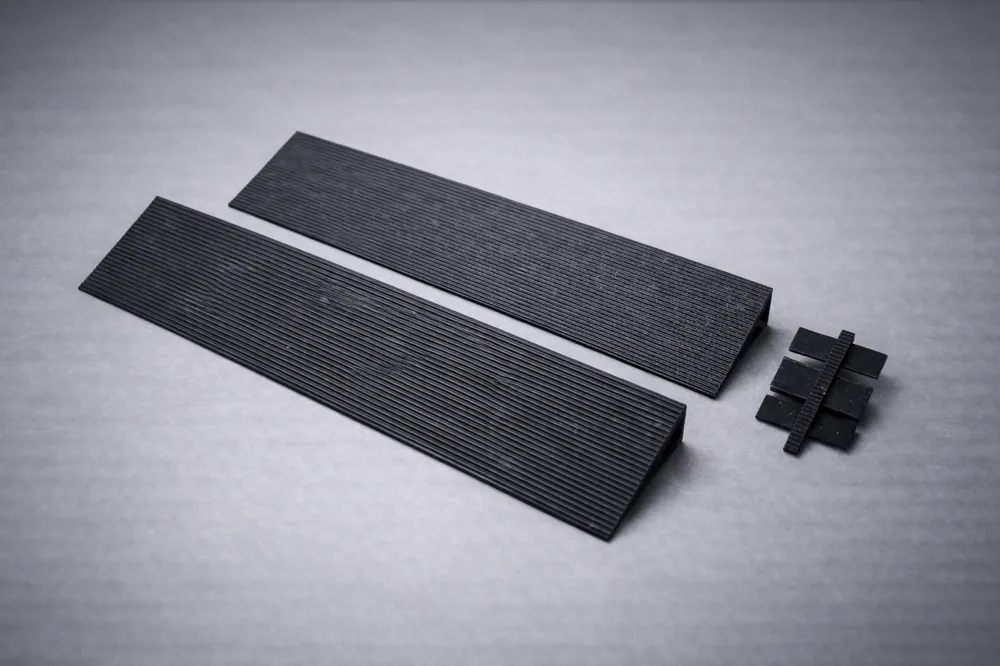

Available Module Lengths
• 25 cm
• 20 cm
• 15 cm
• 10 cm
• Connector module for joining segments

🖨️ Printing Recommendations
• Material: PLA or PETG
• Layer height: 0.2 mm
• Supports: required only for the connector
• Standard print settings recommended

💡 Typical Uses

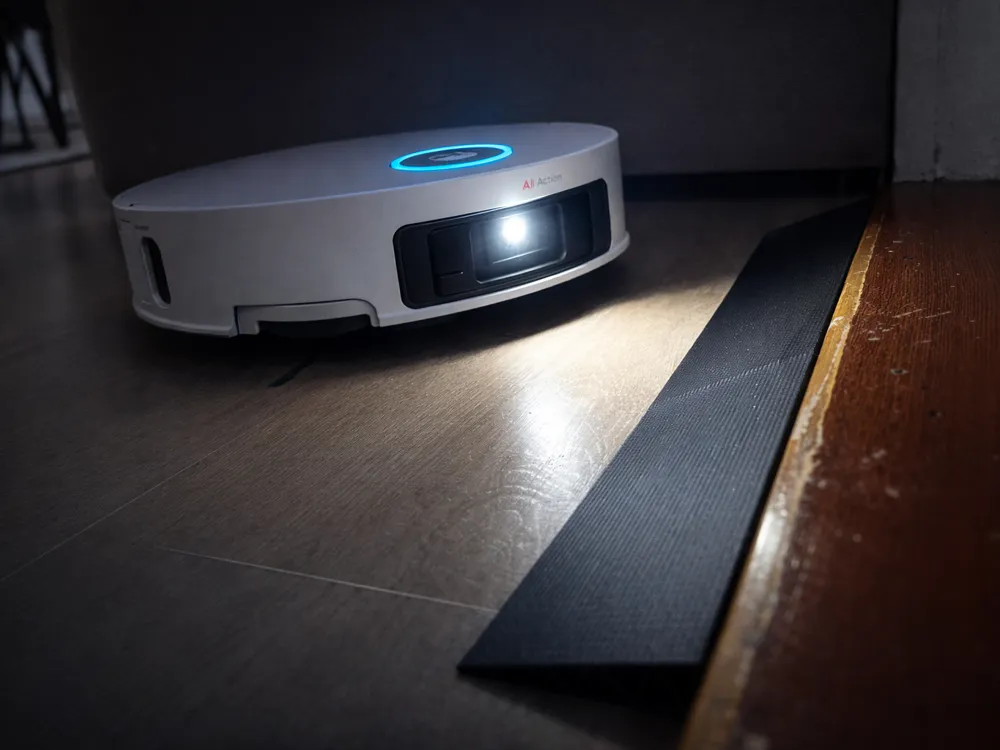

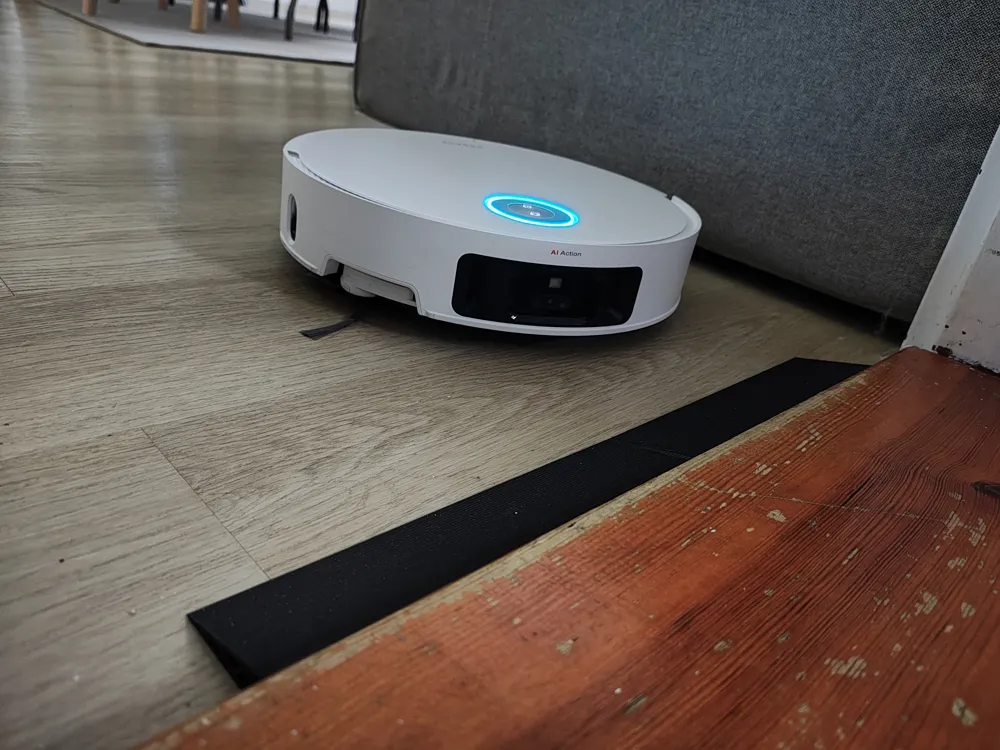

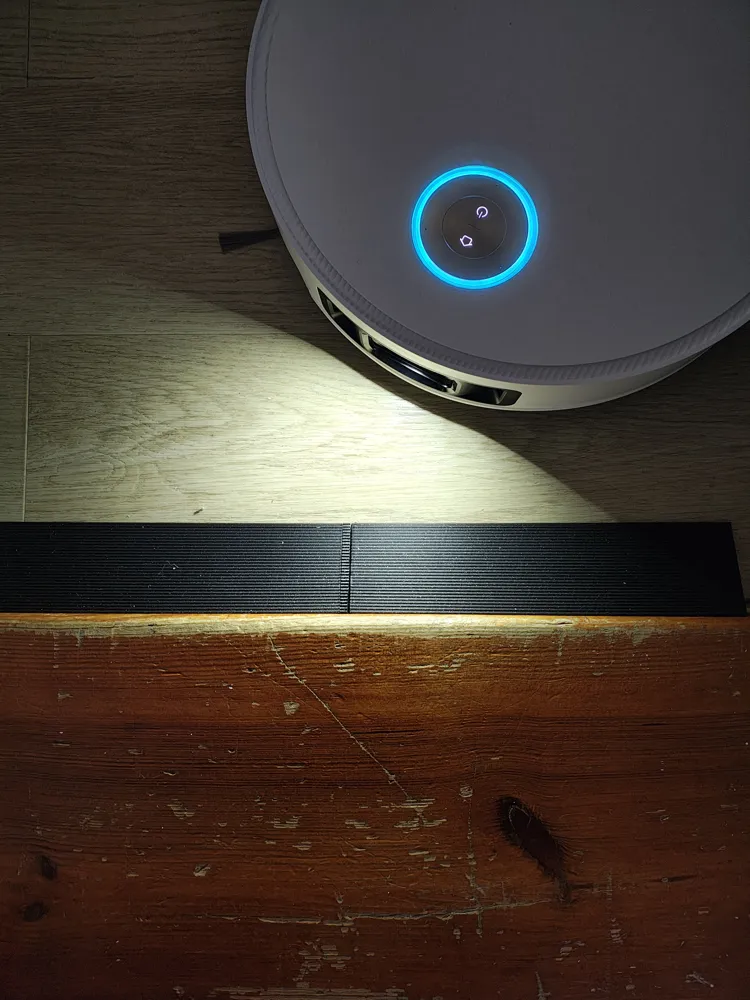

• Robotic vacuum and mopping robots
• Room-to-room transitions
• Low thresholds and moldings
• Temporary or permanent installation without drilling (e.g. fixed using hot glue)
