Mitutoyo Battery Cover [Model # 500-196-30]
IP Report
Print Profile(1)
0.08mm layer, 4 walls, 100% infill
Designer
16 min
1 plate
Open in Bambu Studio
Boost
33
79
4
1
241
146
Released
Description

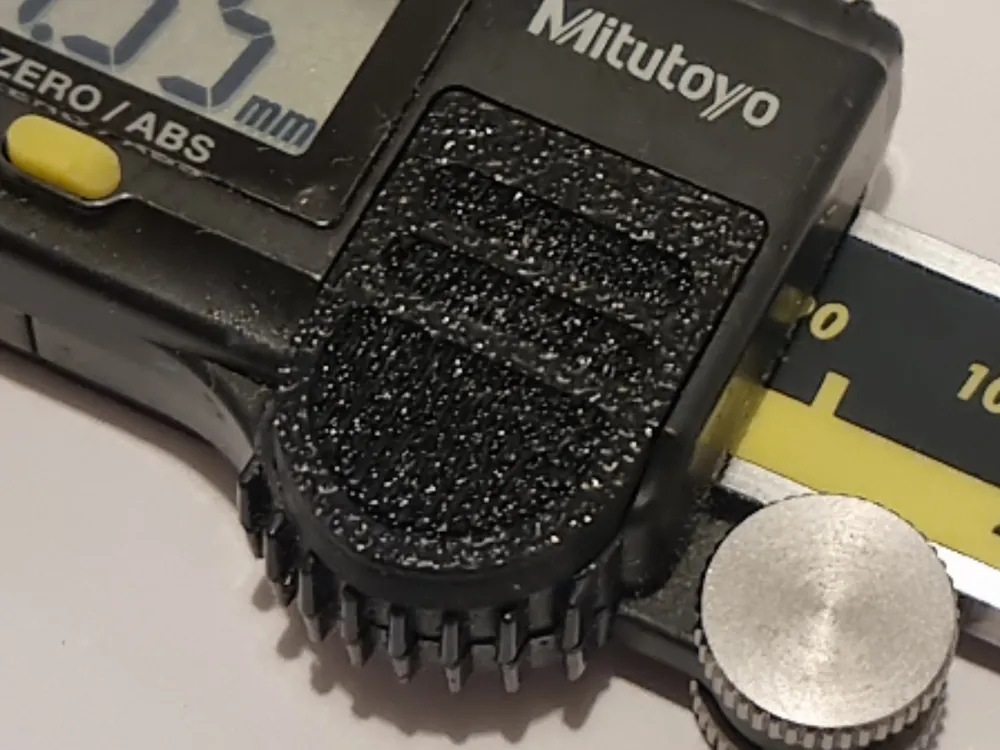

Battery Cover Replacement - Mitutoyo Vernier Caliper ABSOLUTE & DIGIMATIC
For the inevitable loss of the original battery cover, I was unable to find a replacement that fit my vernier - they were either too short, too wide or didn't secure the battery correctly. Here is my contribution for anyone who manages to stumble upon the need for it!
Feel free to remix if required, but this version & 3mf file keeps the battery secure, doesn't pop off when moving & simply does the job I need it for, now if I somehow lose this one, I've got plenty of replacements! There is always room for improvement though so any contributions are welcome!

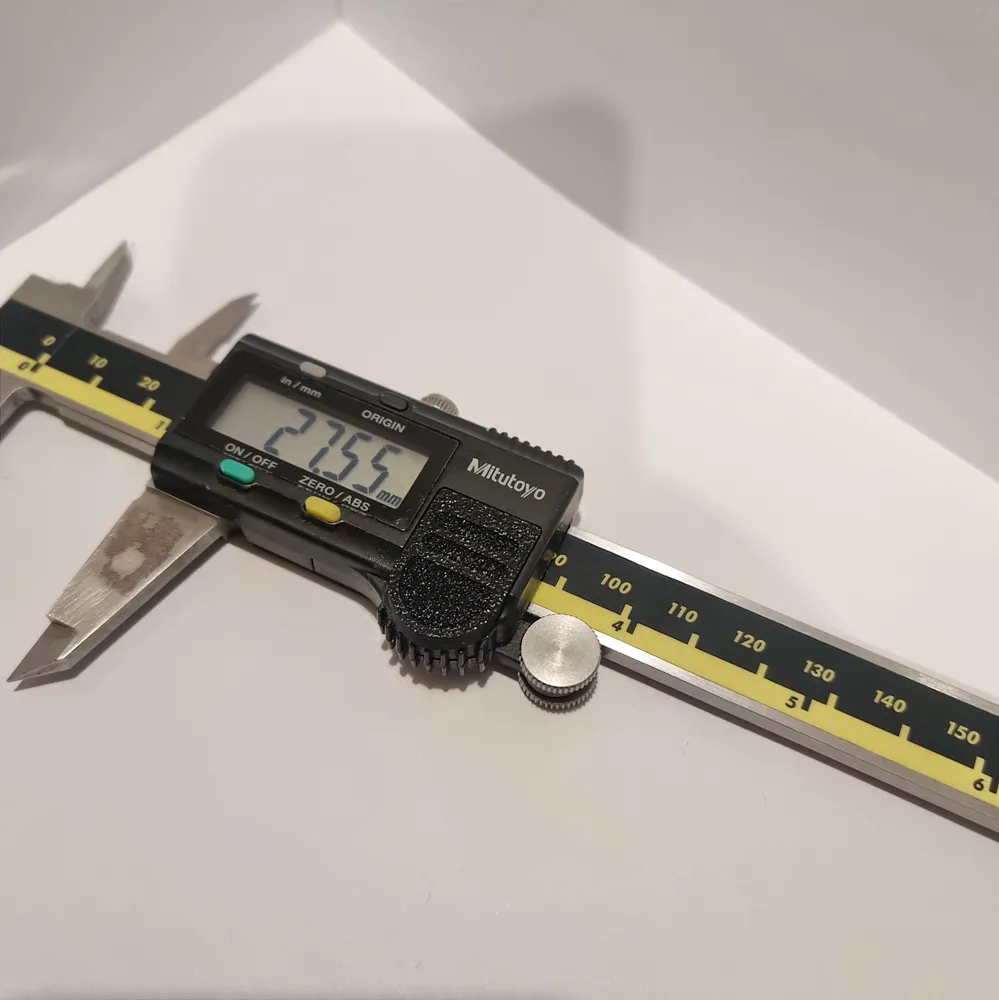

This was hobbyist designed for the Mitutoyo Model # 500-196-30 ~ 6"/150mm Vernier Caliper
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial
