Dupont 20 pin SWD JTAG Connector
IP Report
Print Profile(1)
0.08mm layer, 2 walls, 15% infill
Designer
43 min
1 plate
Open in Bambu Studio
Boost
4
14
0
0
10
2
Released
Description

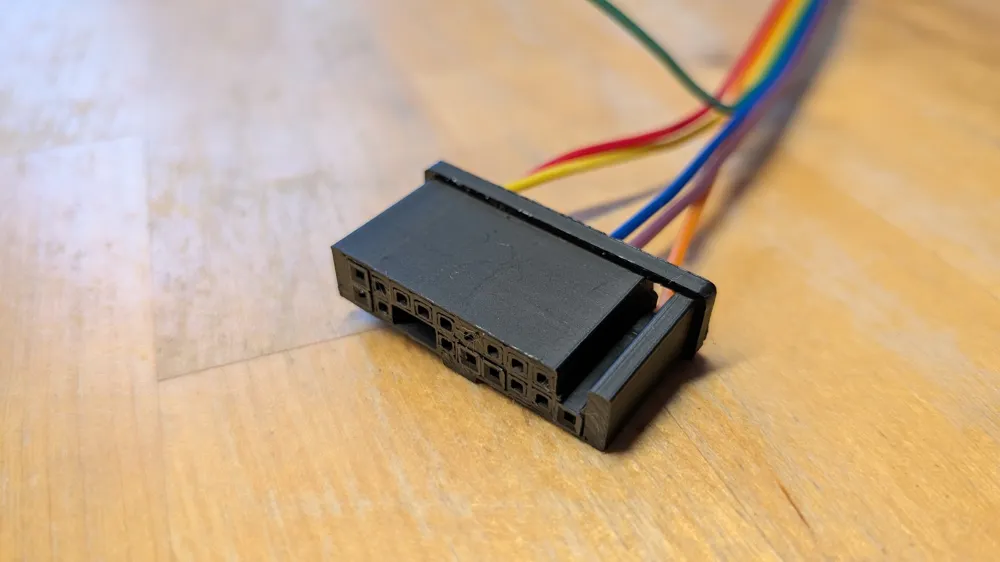

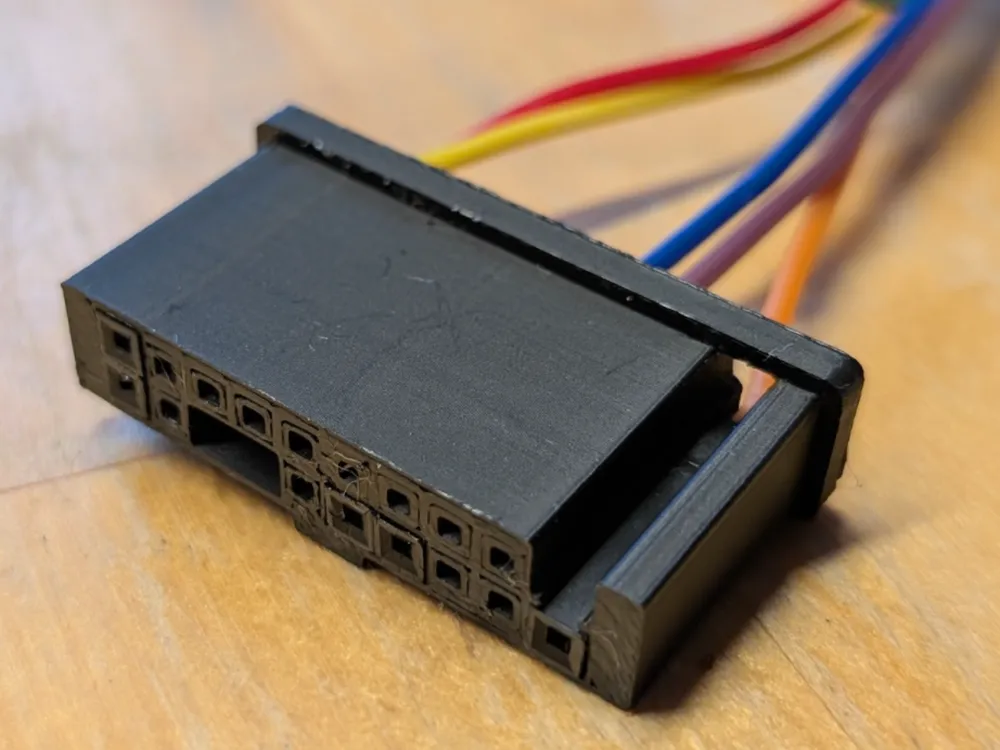

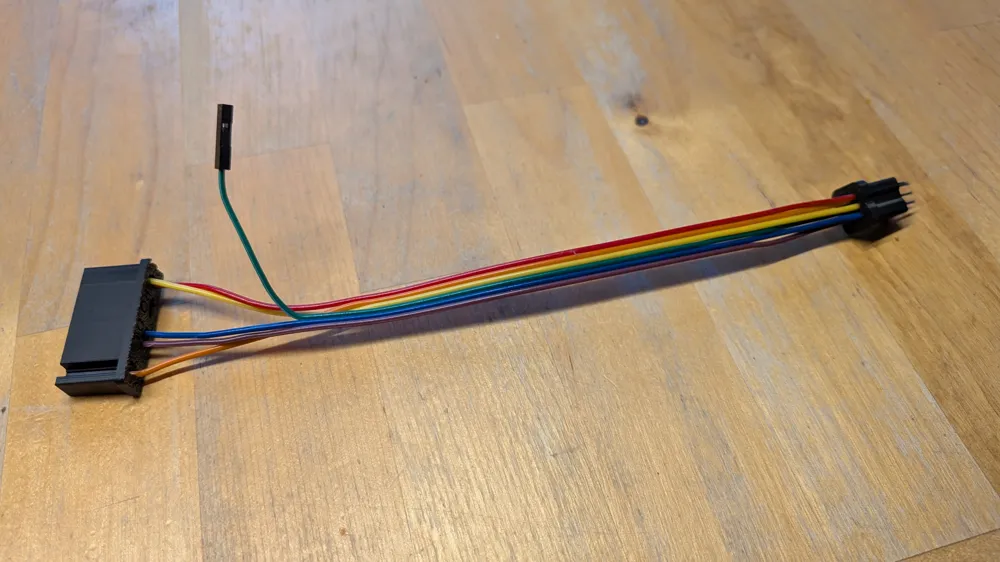

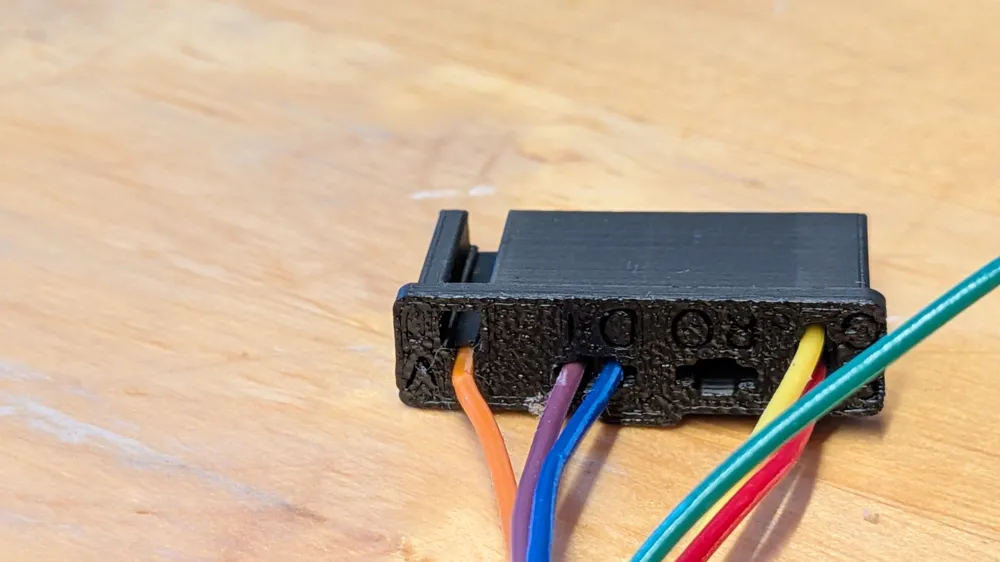

A 20pin Connector for SWD/JTAG connection using custom cable harnesses built from Dupont cables.
Can be used together with:
- https://makerworld.com/de/models/87730-parametric-custom-2x5-dupont-adapter#profileId-93922
- https://makerworld.com/de/models/1649945-4p-dupont-wire-connector-sleeve-for-swd-serial-por?from=search#profileId-1744286
- https://makerworld.com/de/models/233758-simple-dupont-cage-1x5x2
- https://www.printables.com/model/231733-8-pin-dupont-connector
https://www.printables.com/model/797850-dupont-connector-6-stack
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
