đ 18650 Battery Storage Boxes with Secure Lid

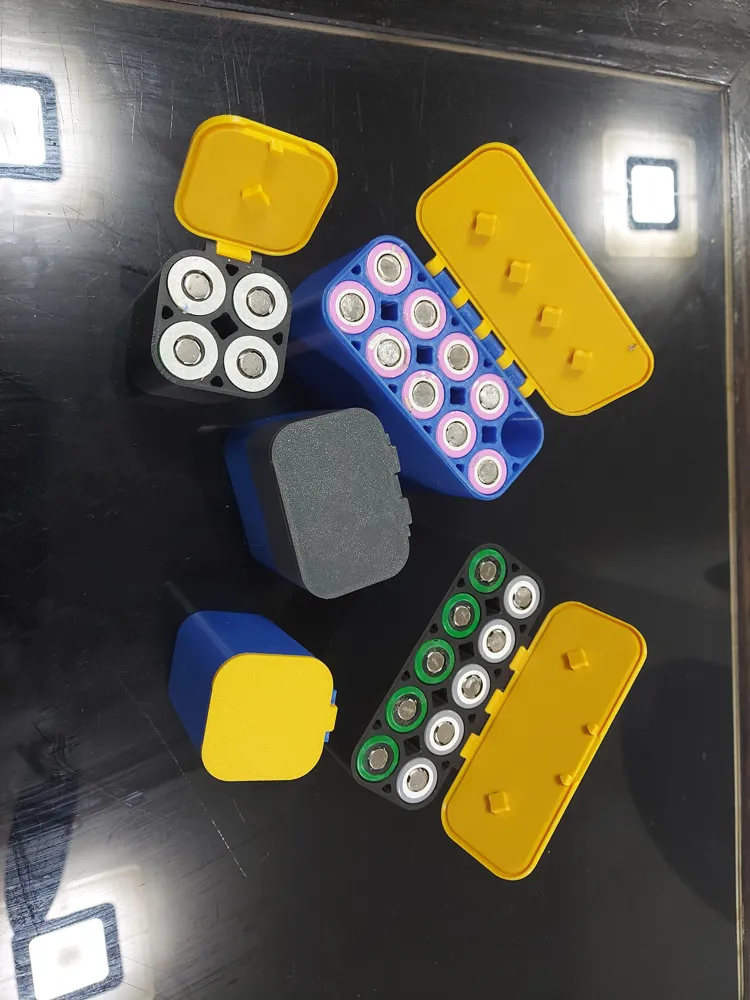

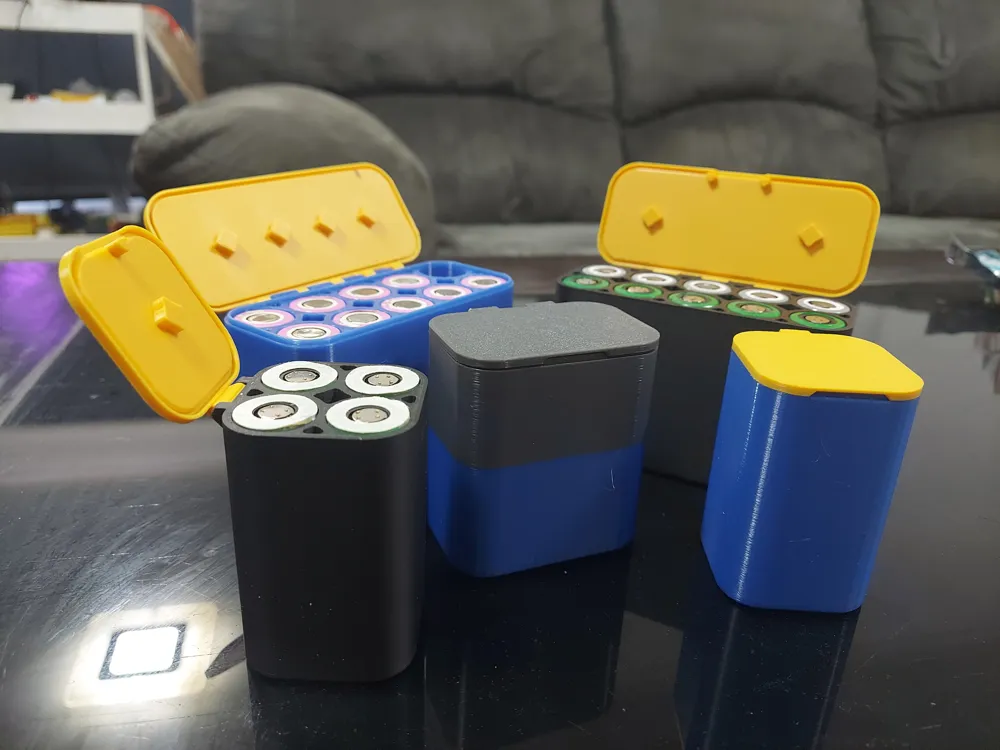

Organize and protect your power! I have designed and optimized a print profile for these 18650 Li-ion battery storage boxes. Whether you need a compact 4-cell carrier or a larger 10-cell desktop organizer, these boxes provide a perfect fit and safe storage environment.
đ ď¸ Assembly Instructions: Quick & Easy
One of the best features of this design is the simplified assembly. No screws or hardware are needed!
- Step 1: Align the lid hinge with the box hinge.
- Step 2: Snip a small piece of any standard 1.75mm filament.
- Step 3: Insert the filament through the hinge holes to act as the pivot pin.
- Step 4: Trim the ends, and youâre done!
Boost Me (for free)
Boost Me (for free)
Dear Community,
I dedicate significant time and effort to designing and printing models, refining them until they achieve success. If you appreciate my work, I kindly ask you to value my time by boosting my models, providing feedback, and liking my designs. Your support can help me earn credits for Bambu Lab gift cards, which I will use for further development.
Thank you for your motivation and kind support!
Best regards
FortuneAU
đ Major Advantages of This 3D Printed Design
- Safety First: Storing Li-ion batteries loosely is dangerous as they can short-circuit. These individual compartments keep the terminals separated and the batteries stable.

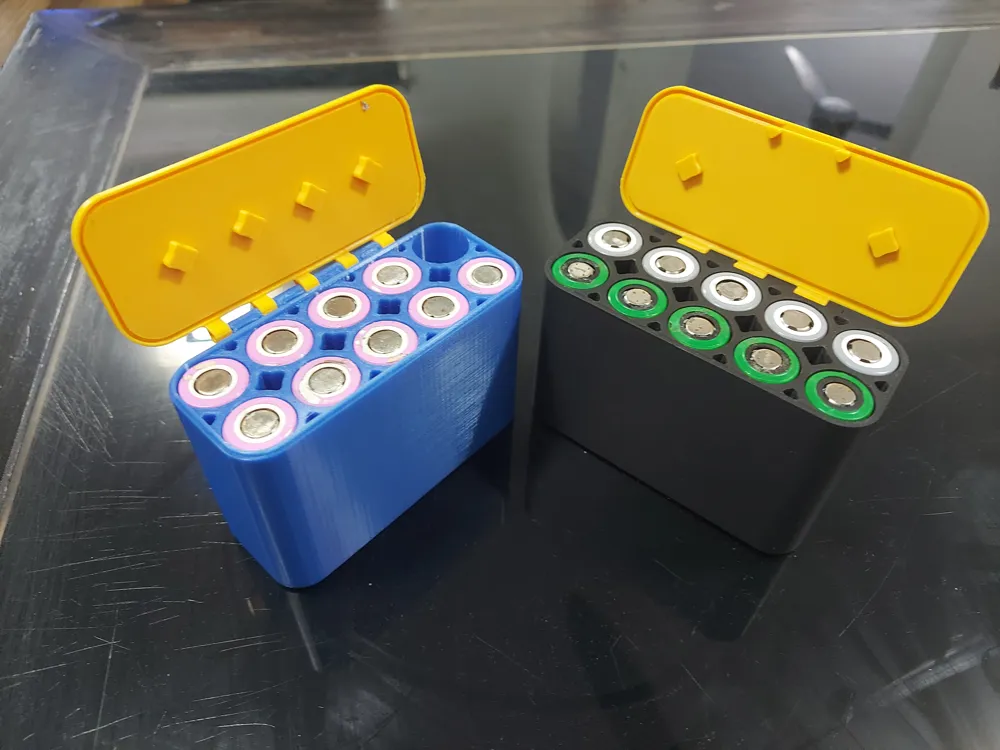

- Internal Stabilization: As seen in the photos, the lid features integrated diamond-shaped pressure pads. These hold the batteries firmly in place, preventing rattling and movement during transport.
- Filament Hinge System: By using a piece of filament for the hinge, the box is more durable than a "living hinge" (which can snap over time) and cheaper than buying metal hardware.

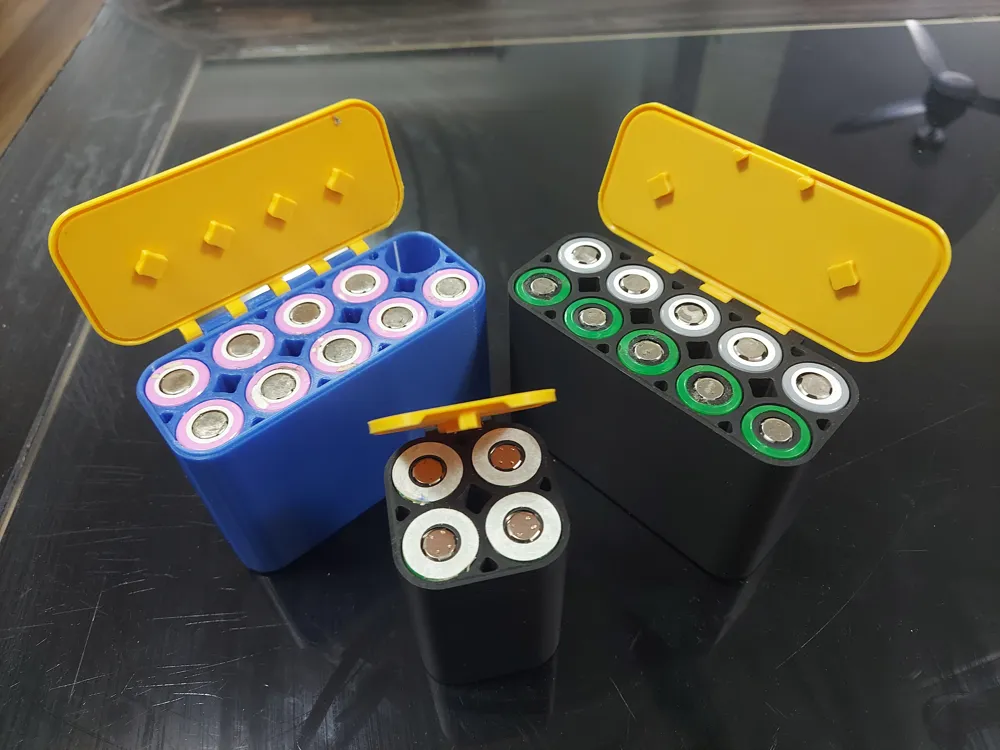

- Customizable Capacity: The design is modular, allowing you to print the exact size you need (4x, 8x, or 10x configurations) to save space in your bag or drawer.

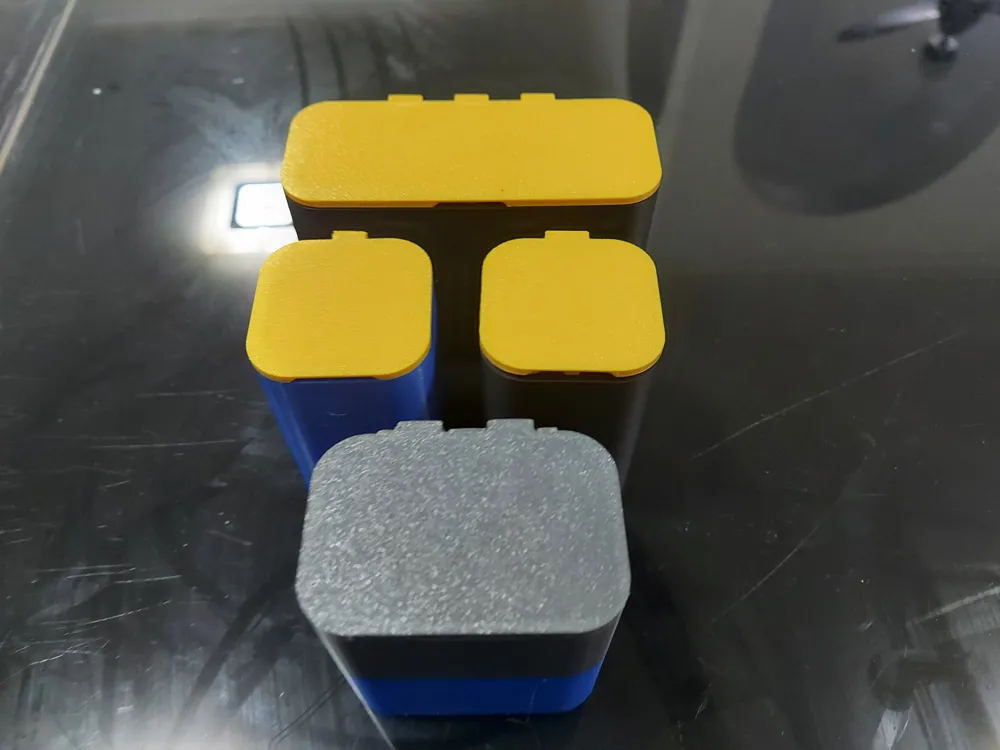

- Multi-Color Aesthetic: The two-part design makes it easy to print the lid and body in different colors to quickly identify "Charged" (Green) vs. "Dead" (Red) batteries.
đ¨ď¸ Recommended Print Settings
- Material: PLA, PETG, or ABS (PETG recommended for extra hinge flexibility).
- Infill: 15-20% (Grid or Gyroid).
- Supports: Not required for most printers due to the optimized geometry.
Safe, organized, and easy to build. Download the profile and start organizing your workbench today!
