20x20 Modular Joint for Metal Square Tubes
Print Profile(1)
Description

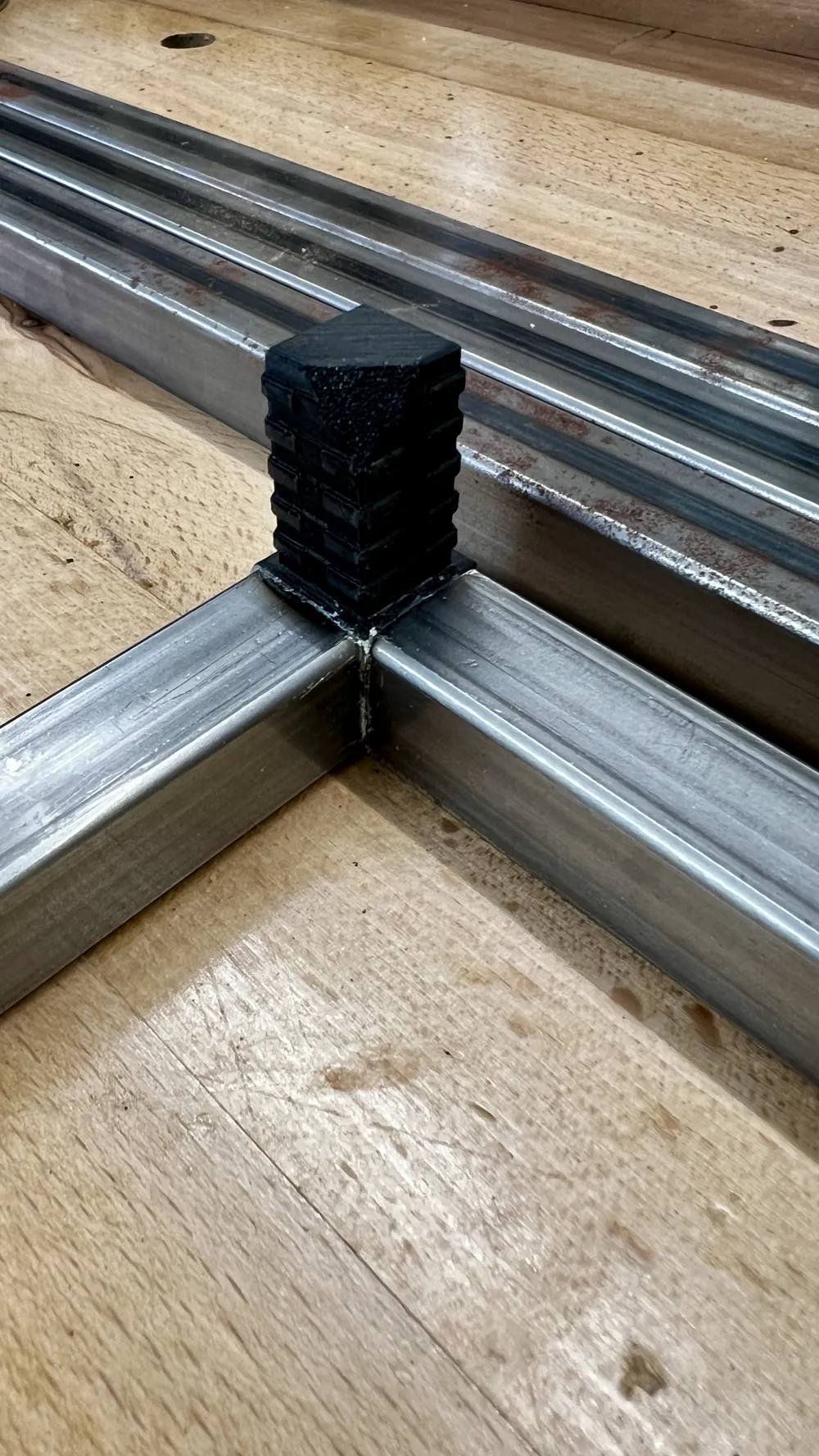

Joints for 20×20×1.5 mm tubes – 2-way and 3-way – For modular metal structures – 3D Printed
Set of 3D printable joints designed to join 20×20 mm metal tubes with a thickness of 1.5 mm (https://www.leroymerlin.it/prodotti/profilo-standers-in-acciaio-grezzo-grigio-opaco-l1m-l20xsp1-5xh20-mm-87825768.html), ideal for creating modular structures, frames, supports, and custom projects.

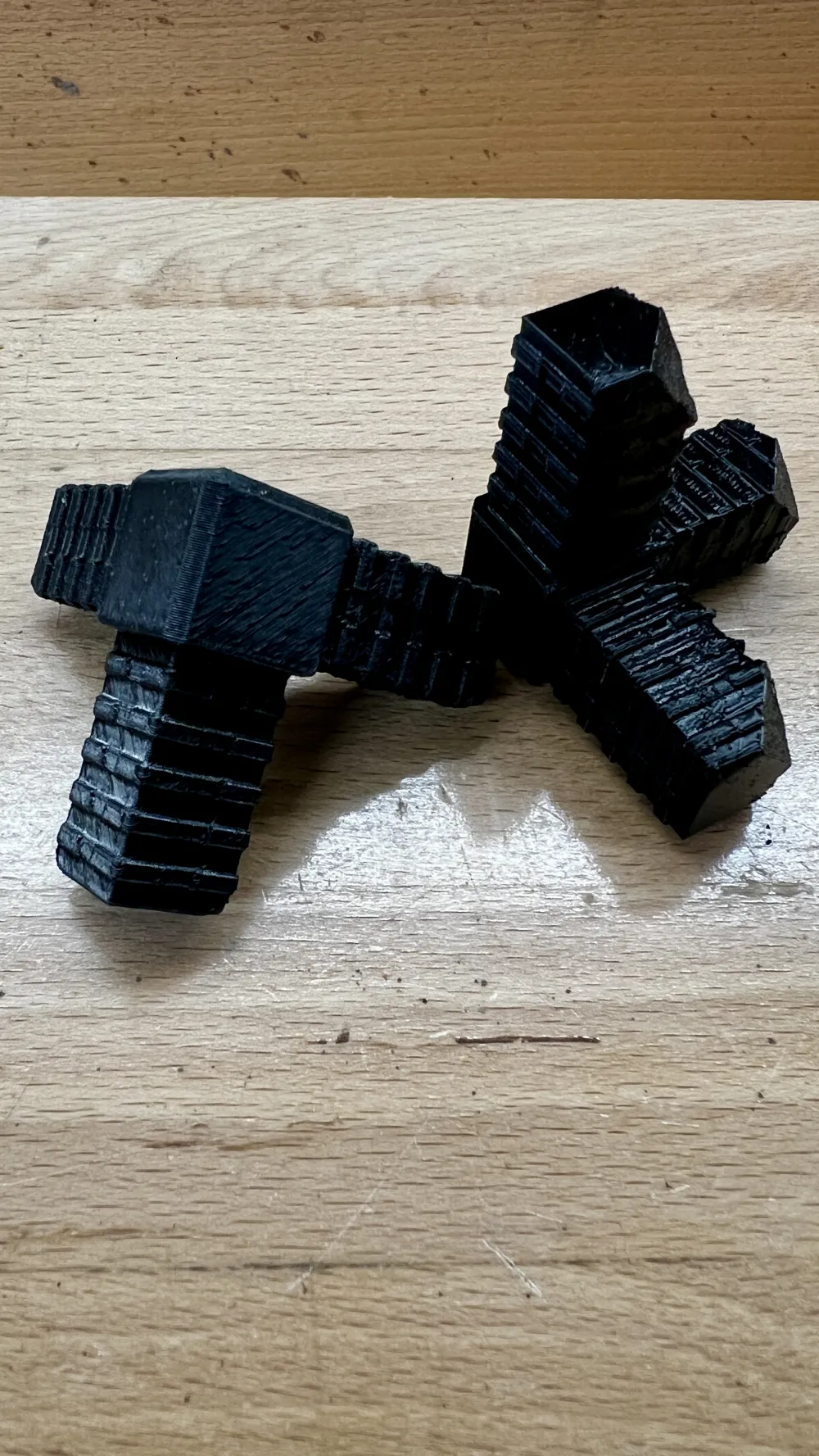

The joints were designed in Fusion 360 and include:

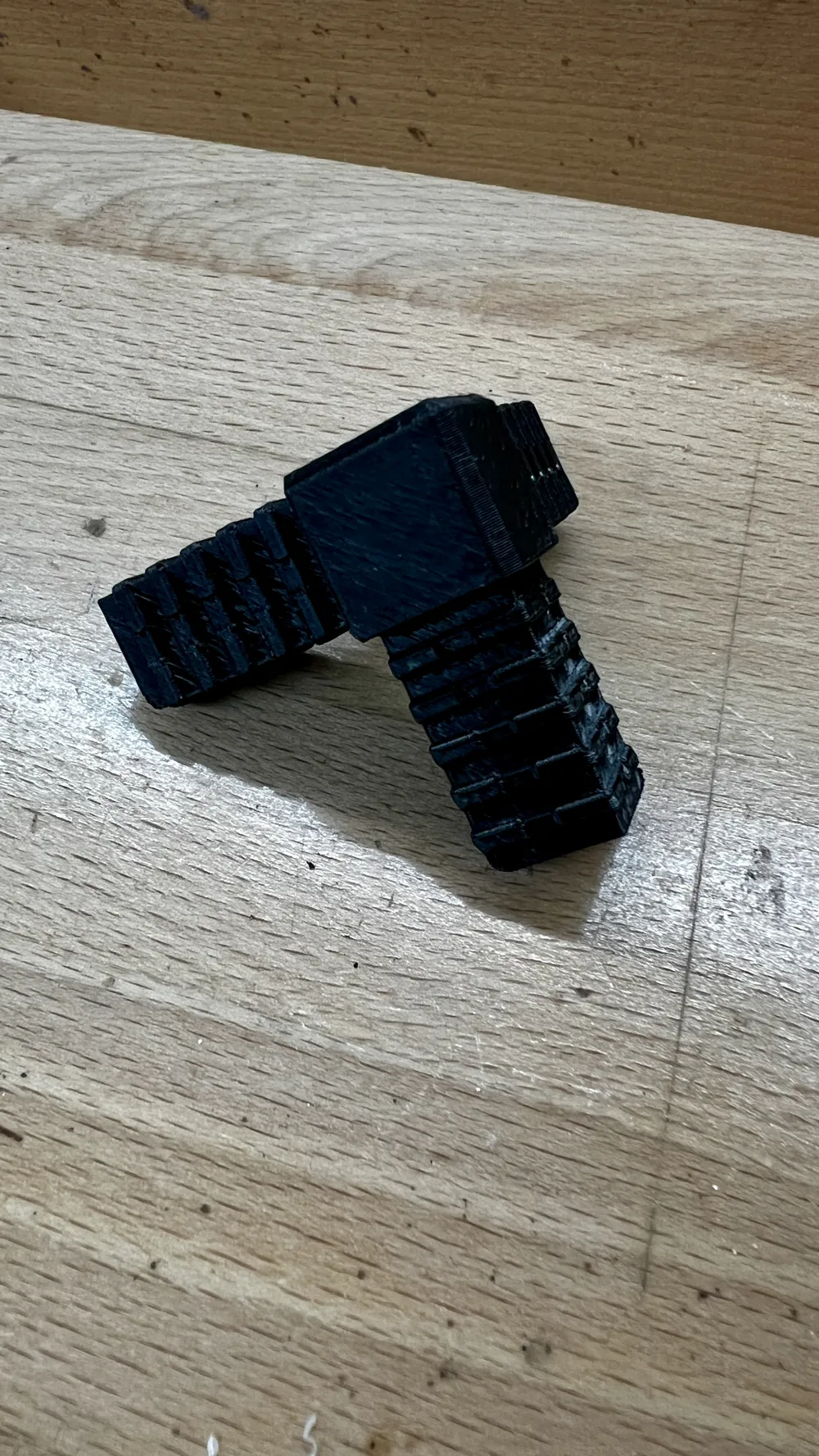

- 2-way joint (90°)

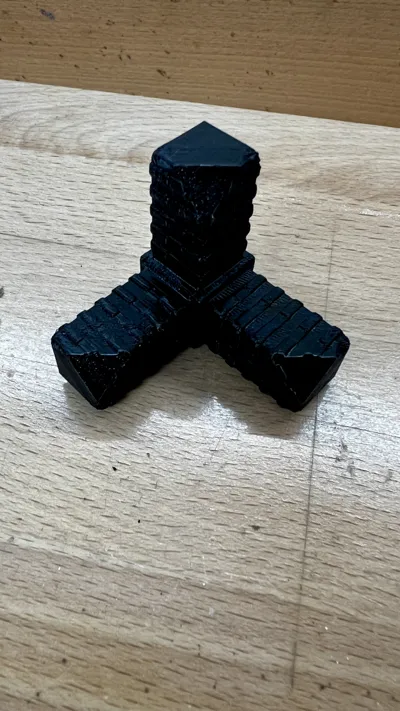

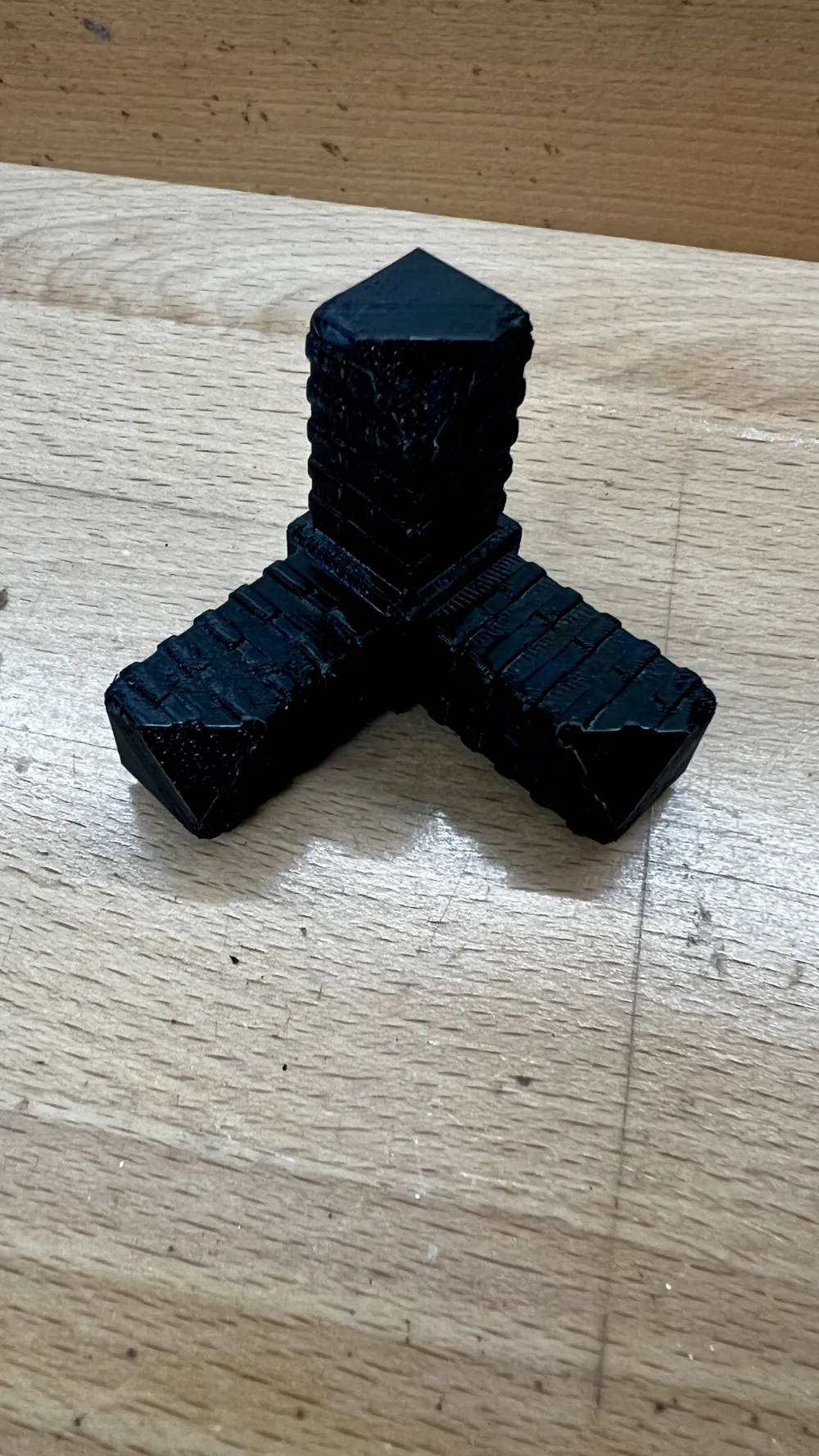

- 3-way joint (90°)
Both top and bottom versions are visible in the images, the latter prepared for the insertion of a threaded bushing (https://www.leroymerlin.it/prodotti/bussola-autofilettante-con-esagono-in-ferro-grezzo-grigio-l-8-x-h-8-x-sp-13-mm-12-pezzi-85651850.html), useful for mounting adjustable feet or other threaded accessories.
🧩 Fastening System
The joints do not use tightening screws:
fastening to the tube is done by gluing with two-component epoxy glue, which ensures a solid and durable bond.
This solution allows for:
- greater aesthetic cleanliness
- absence of through holes on the tube
- uniform distribution of forces
🧱 Materials and Recommended Print Settings
To achieve maximum structural robustness, it is recommended:
- Material: ABS (recommended)
- Layer height: 0.2 mm
- Walls: 8-10
- Infill: 80–100%
- Supports: only in the central area
- Orientation: as shown in the images
- brim recommended
The use of PLA is possible for light applications, but not recommended for structures subject to prolonged loads or stress.
🔧 Assembly
- Thoroughly clean the inside of the tube
- Apply two-component epoxy glue on the joint

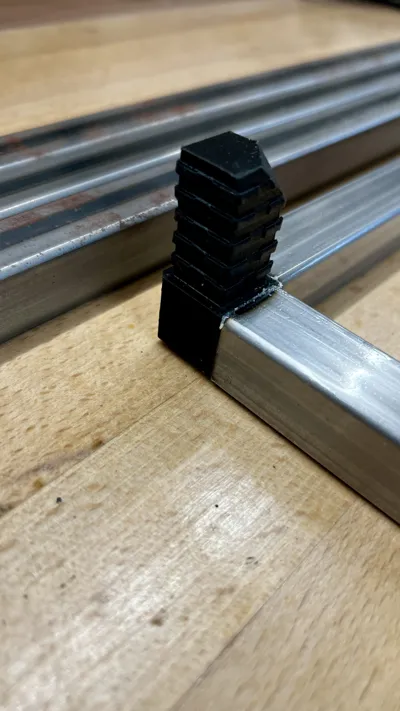

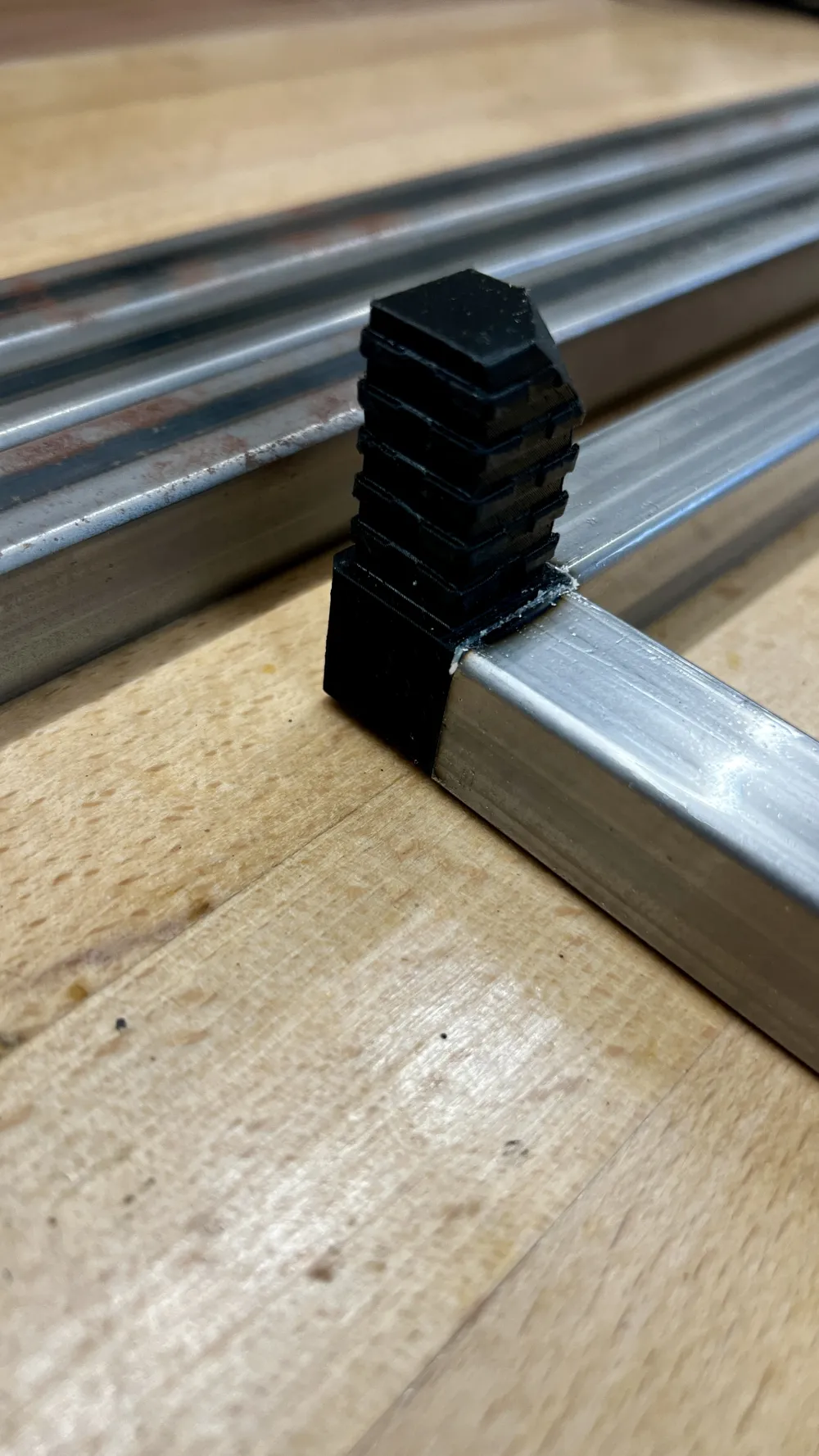

- Insert the joint into the tube until it stops
- Allow to fully cure according to the glue instructions
- (Optional) Screw the adjustable foot into the threaded bushing of the bottom joint

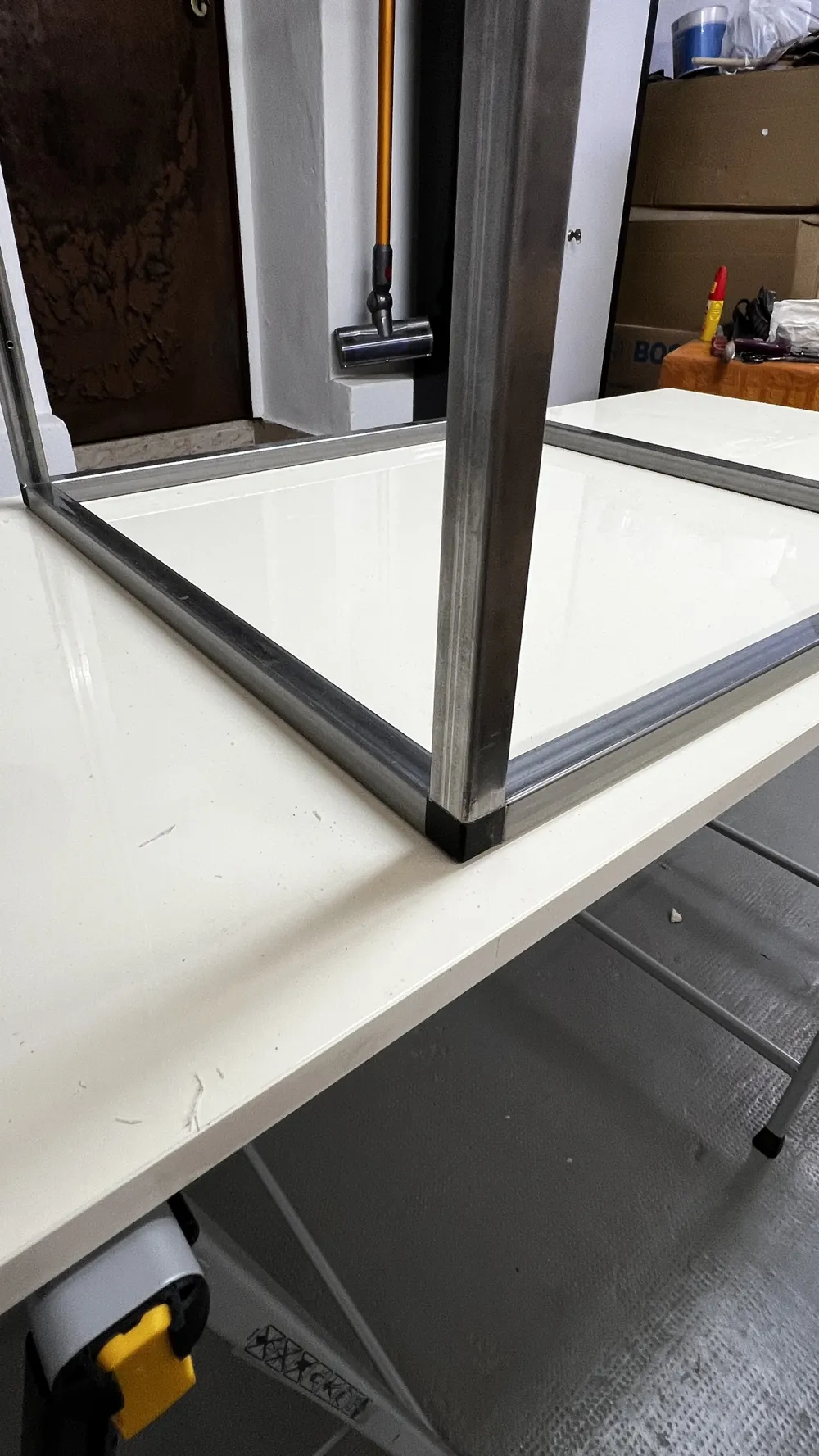

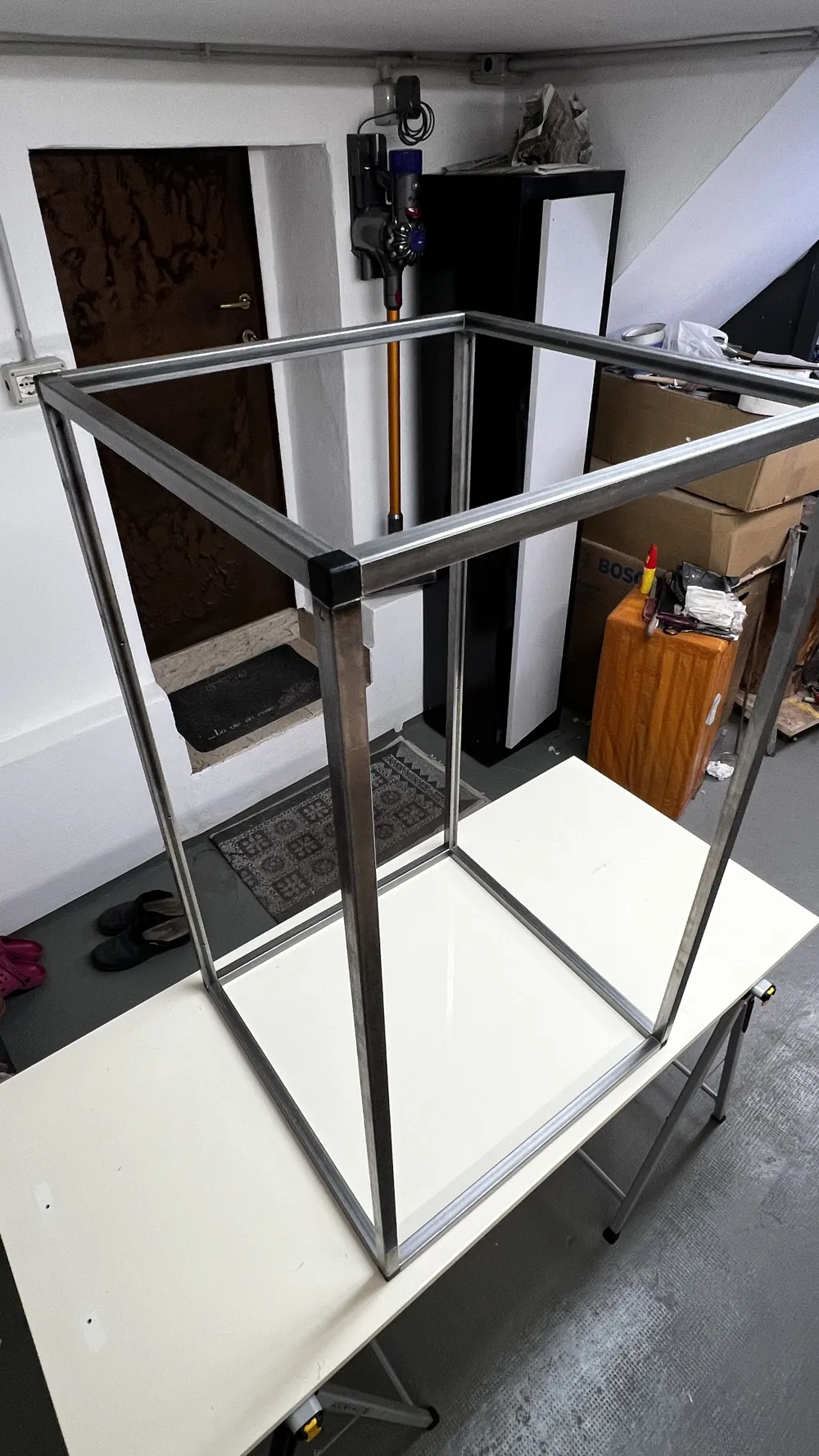

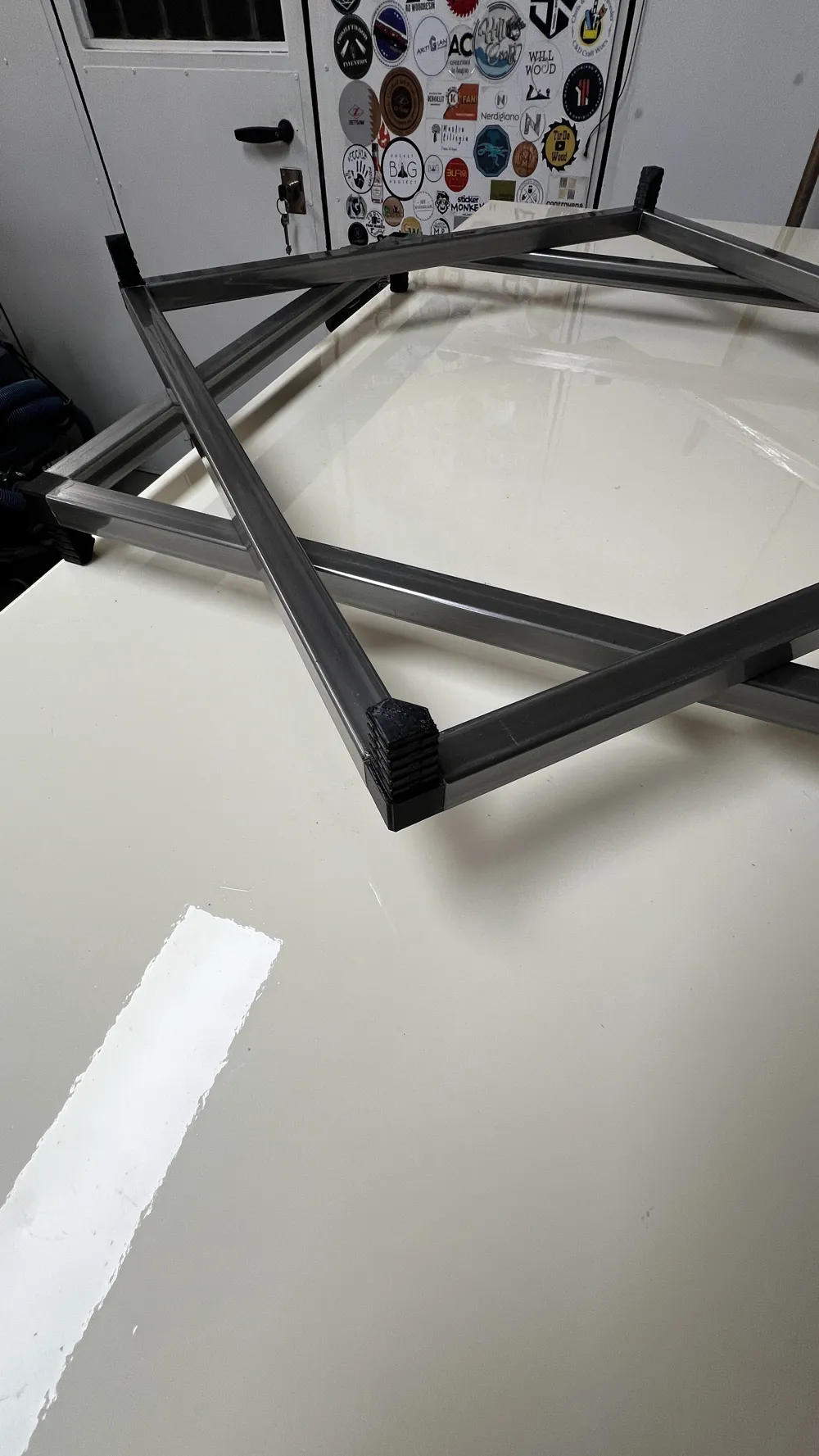

📐 Typical Applications

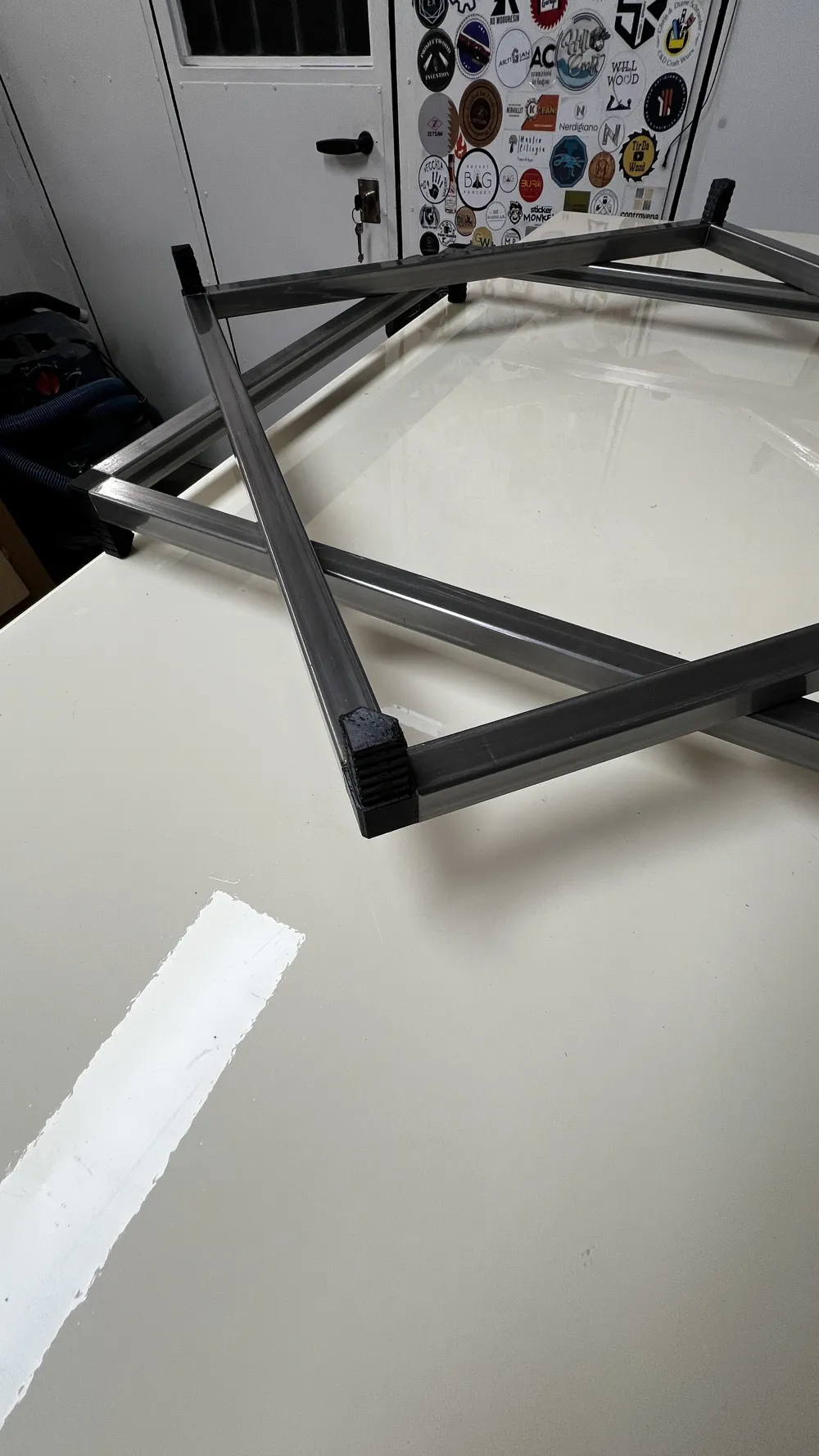

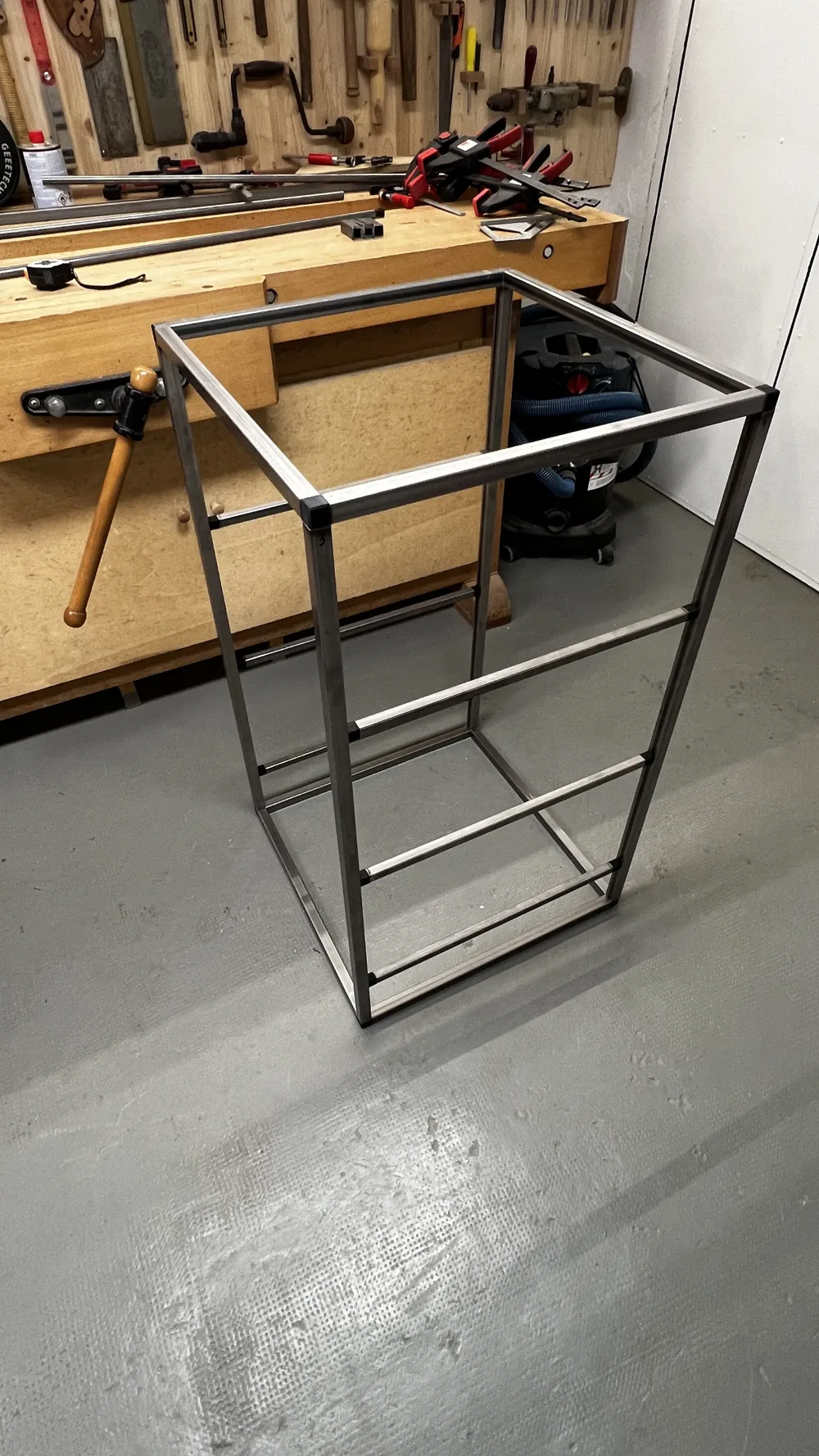

- Modular tube structures
- Workbenches
- Frames and technical supports
- Self-supporting structures
- Custom projects and prototypes
⚠️ Important Notes
- Designed for 20×20 mm tubes – 1.5 mm thickness
- Always check your tube's tolerances before gluing
- Not designed for safety-critical structural applications or high dynamic loads
