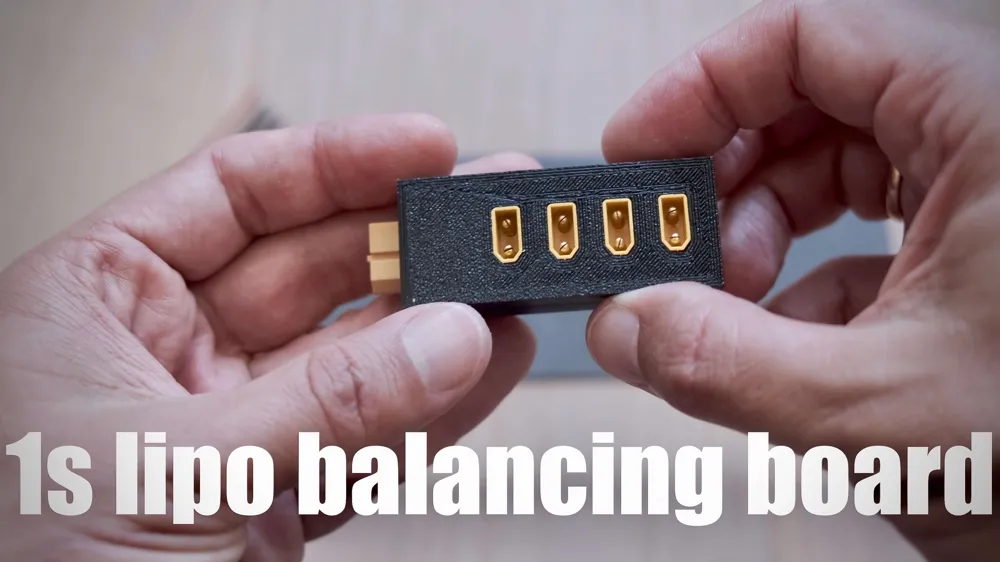

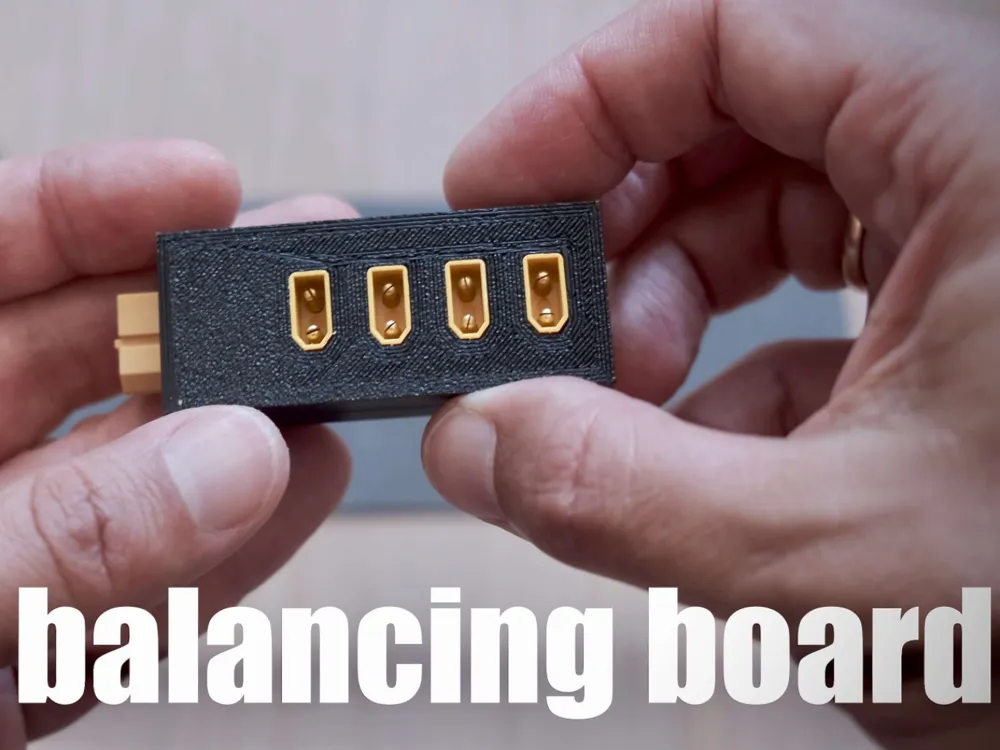

1s XT60 to 4x XT30 charging board
Print Profile(1)
Description
Boost Me (for free)
Hi MakerWorld community š
If you find this model useful, Iād really appreciate a Boost. This design was created with print reliability, clean geometry, and real-world usability in mind, and it has been tested to work well on common printer setups. Boosts help support continued development and new free models. Thanks for your support and happy printing! ššØļø
I love flying my 1s 3" babytooth - it's silent, affordable and safe. However, charging 1s lipos was always a hassle. Simple 1s charger usually use PH2.0 connectors and don't offer charging functions like storing. On the other hand, more expansive chargers usually don't feature parallel charging of 1s lipos. Therefore, I designed this simple device to connect to your standard lipo charger (XT60 output) and charge up to 4x 1s lipos parallel. Please watch the video for building instructions.
BOM:
4x XT30 male plugĀ
1x XT60 female (head)Ā
1x 4s Balance cableĀ
2x M3 screws 8mm
Wire
