Happy new year all. Last model for this year and more engine fidget coming! Your likes, collects and boosts are well appreciated!
Description

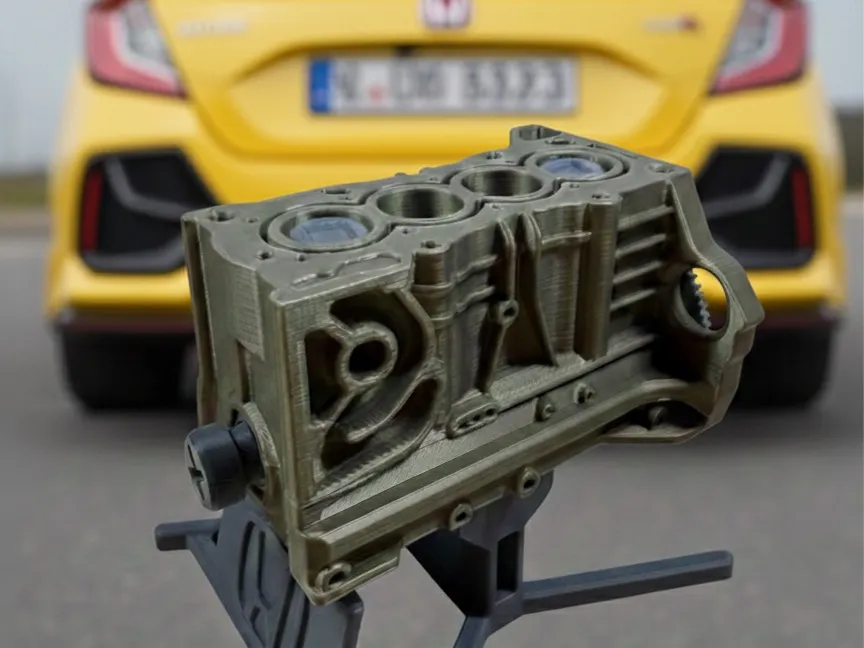

š„ Mini I4 Honda K series Engine Fidget ā A pocket-sized powerhouse! This mini engine fidget is a replica of a Honda K series engine.
- NO SUPPORT
- NO HARDWARE
- PRINT IN PLACE CRANKSHAFT ASSEMBLY and detailed engine block.
Boost Me (for free)
Appreciate for the boost!
š ļø Features:

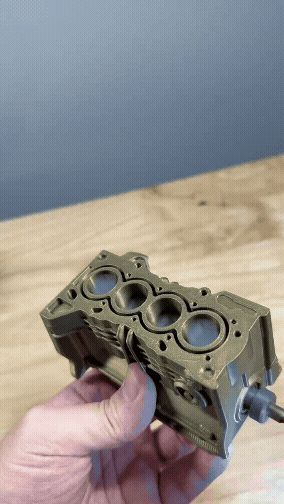

- Functional piston motion powered by a simple flick or twist
- Driveable by cross head screwdriver (electric drill or impact driver to enjoy the ultimate RPM)
- Compact design that fits comfortably in your palm
- Satisfying tactile feedback and rhythmic movement
š ļø Print Tips:
- CLEAN THE BED and make sure a good adhesion for crank shaft assembly and bearing.
For best results, i suggest use 8*14*4 ball bearing for a frictionless spinning. However, you are also welcomed to use my 8*14*4 bearing for this engine. Link below, make sure use the profile with DT (double teeth). You may need several turns to loose the inner and outer ring;
https://makerworld.com/en/models/1088520-8-14-4-bearing#profileId-1081576
- The print file works well with PLA, if you want to use different filament, try different hole compensation for best results.
š ļø Assembly Instructions:
- Thread the four cylinder heads with the crankshaft assembly
- Put the crankshaft assembly on lower block and put upper block on top

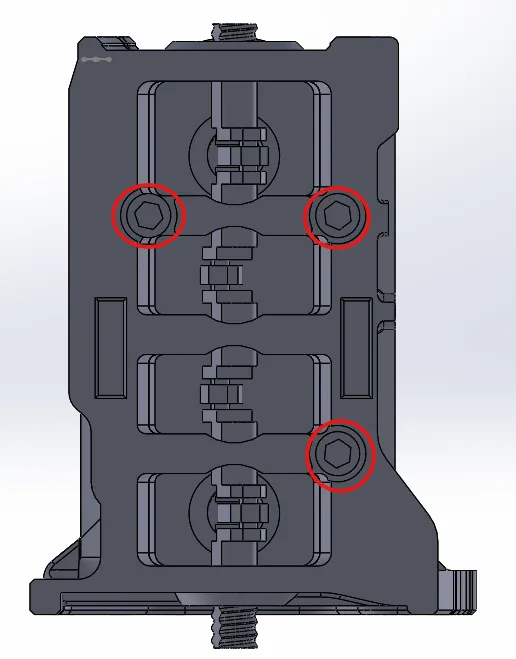

- i have the sacrifice layer for bolt connection (marked by red circle). Use screwdriver to poke through it and clean the excessive filaments. Put on three bolts from the bottom

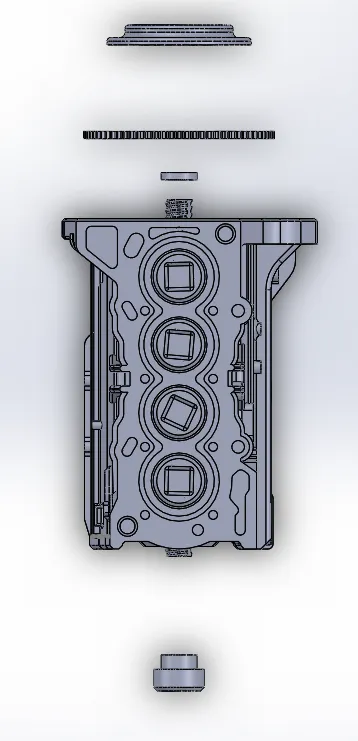

Fr side: bearing--front pulley nut
Rr side: bearing--spacer--interface plate--interface plate cover
Done. Now you have a great engine to play with. Smooth robust and good for display. Hope you like it and any questions. LMK
Next engine is porsche flat 6. 85% done, stay tunnedā¦.
