Printer Exhaust Gate System with Merge Collector
Print Profile(1)
Description

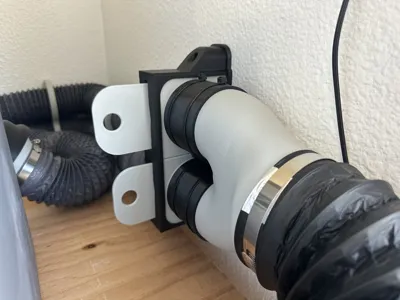

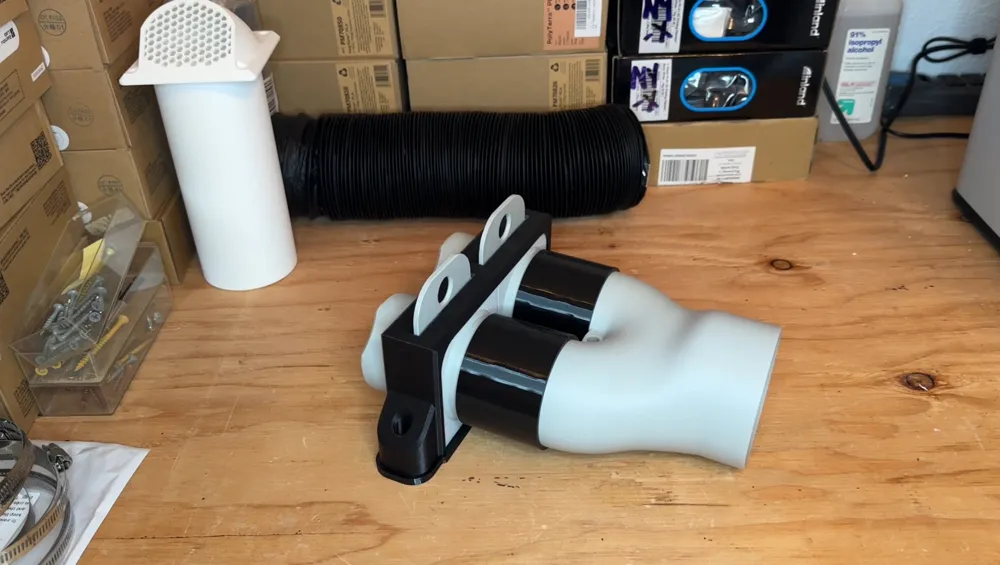

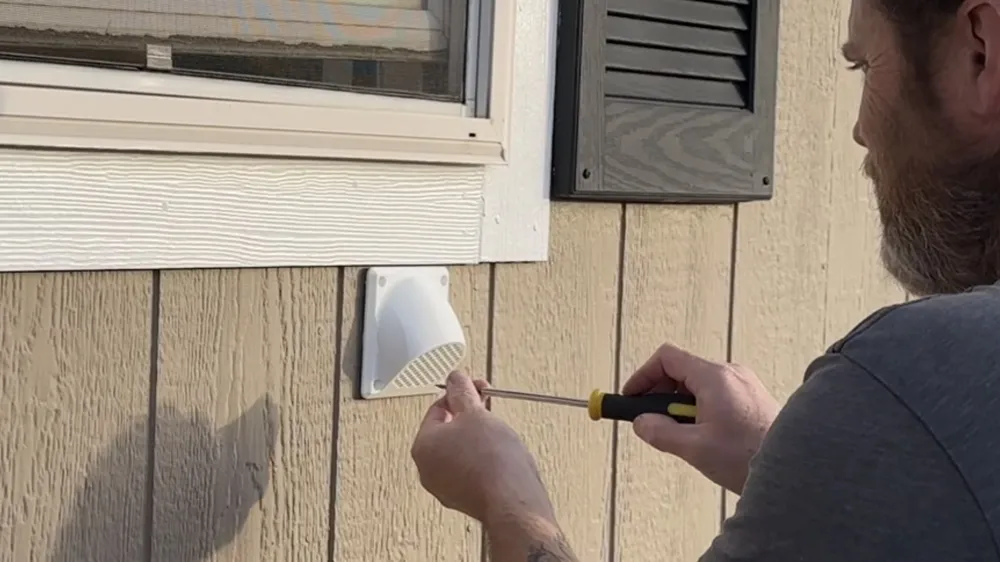

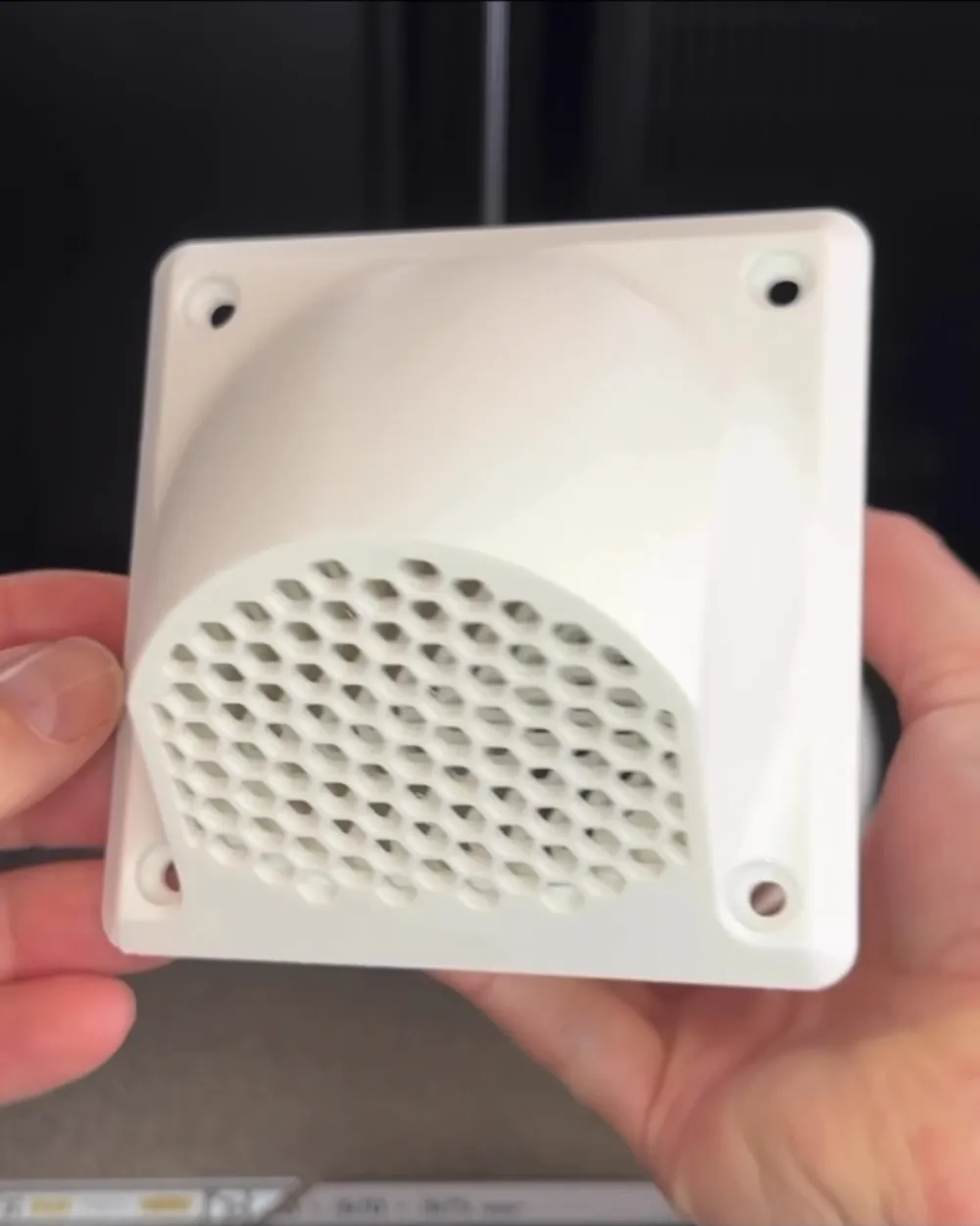

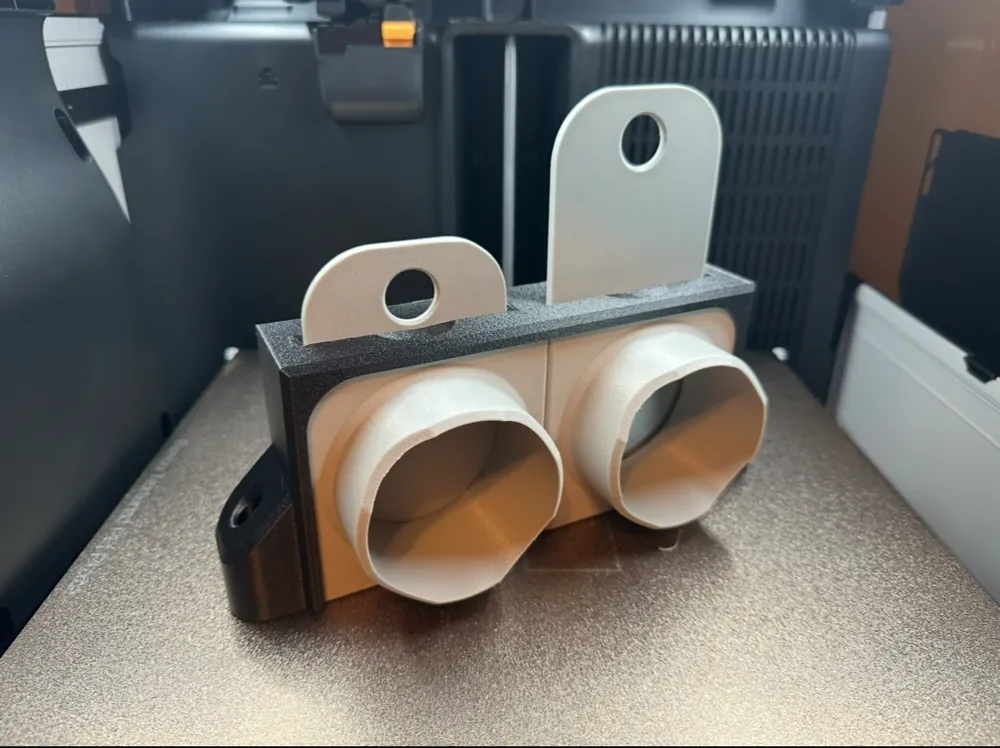

Inspired by Functional Print Friday's exhaust printer exhaust system for the H2D, I designed this gate system to be completely adjustable so that I could create a minimal amount of draw on my printers to evacuate noxious fumes without over-cooling the print chamber. This system is setup to plumb multiple 3D printers on 3" hoses to a 4" duct fan, and exhaust through a wall. Please see my YouTube videos linked below for more details on how I developed this exhaust system for my own Bambu Lab 3D printers. PLEASE don't hesitate to ask any questions you may have; I will be happy to answer them, and/or provide assistance in any way that I can.
***The screw holes are designed around #8 decking, drywall, or general construction type screws, with lengths to fit your particular installation.
