<p>Got it! You want a <strong>3D print profile</strong> tailored for a <strong>Troy Lee Designs action cam mount</strong> that’s compatible with <strong>GoPro, Insta360, and DJI cameras</strong>. I’ll use your base settings and optimize for <strong>strength and durability</strong> since this mount will be under stress during action sports. I’ll also suggest enhancements for layer adhesion, impact resistance, and overall print reliability.</p><p>Here’s a comprehensive profile:</p><h3><strong>Troy Lee Designs Action Cam Mount – 3D Print Profile</strong></h3><p><strong>Printer Type:</strong> FDM / FFF<br><strong>Filament:</strong> PETG or ABS (PETG recommended for strength + impact resistance)</p><h4><strong>Layer Settings</strong></h4><ul><li><strong>Layer Height:</strong> 0.2 mm ✅ (good balance of detail and strength)</li><li><strong>Perimeters / Shells:</strong> 6 walls ✅ (maximizes strength on edges)</li><li><strong>Top/Bottom Layers:</strong> 6–8 layers (for solid surfaces, helps distribute load)</li><li><strong>Layer Adhesion:</strong> Use a slightly higher extrusion multiplier (+3–5%) for better inter-layer bonding</li></ul><h4><strong>Infill</strong></h4><ul><li><strong>Density:</strong> 70–90% ✅ (higher infill ensures mount doesn’t flex under load)</li><li><strong>Pattern:</strong> Gyroid or cubic ✅ (excellent strength in multiple directions)</li><li><strong>Infill Overlap:</strong> 20–25% (improves bonding between shells and infill)</li></ul><h4><strong>Print Speed</strong></h4><ul><li><strong>Outer Wall:</strong> 30–40 mm/s (slower = better surface finish)</li><li><strong>Inner Walls / Infill:</strong> 50–60 mm/s</li><li><strong>Travel Speed:</strong> 120 mm/s (reduce stringing)</li><li><strong>Brim / Raft:</strong> Brim recommended for PETG/ABS to prevent warping</li></ul><h4><strong>Temperature</strong></h4><ul><li><strong>Nozzle:</strong><ul><li>PETG: 240–250 °C</li><li>ABS: 245–260 °C</li></ul></li><li><strong>Bed:</strong><ul><li>PETG: 75–85 °C</li><li>ABS: 90–110 °C</li></ul></li><li><strong>Enclosure:</strong> Recommended for ABS to prevent warping</li></ul><h4><strong>Retraction / Stringing</strong></h4><ul><li>Retraction: 5–7 mm @ 35–45 mm/s (Bowden)</li><li>Reduce travel moves over open spaces to limit stringing</li></ul><h4><strong>Cooling</strong></h4><ul><li>PETG: 20–40% fan</li><li>ABS: 0–10% fan (mainly to avoid warping)</li></ul><h4><strong>Supports</strong></h4><ul><li>Minimal supports, only under overhangs &gt;60°</li><li>Use <strong>touching buildplate only</strong> for easier cleanup</li></ul><h4><strong>Adhesion / Warping</strong></h4><ul><li>Use <strong>glue stick or PEI sheet</strong> for PETG</li><li>ABS: Kapton tape + enclosure</li></ul><h4><strong>Additional Tips</strong></h4><ul><li>Orient mount so the main stress direction aligns with the layer lines to prevent layer separation.</li><li>Chamfer stress points slightly in the CAD model for improved durability.</li><li>For extremely high impact scenarios, consider carbon-fiber PETG for extra stiffness.</li></ul>

For action cams 6 walls,70-90%infill for strength 0.2mm

tld cadm thigbn.webp

<p><strong>Printer Type:</strong> FDM / FFF<br><strong>Filament:</strong> PETG (best balance of strength, flexibility, and temperature resistance)<br>Optional: ABS for high-heat environments</p><h4><strong>Layer Settings</strong></h4><ul><li><strong>Layer Height:</strong> 0.2 mm ✅ (good balance between detail and strength)</li><li><strong>Perimeters / Shells:</strong> 5–6 walls (slightly less than heavy mounts, but still strong)</li><li><strong>Top/Bottom Layers:</strong> 6–8 layers (solid coverage to prevent weak spots)</li><li><strong>Layer Adhesion:</strong> Slightly higher extrusion multiplier (+3–5%) to prevent layer separation</li></ul><h4><strong>Infill</strong></h4><ul><li><strong>Density:</strong> 60–80% (high enough for rigidity without overkill)</li><li><strong>Pattern:</strong> Gyroid or cubic (supports multi-directional stress)</li><li><strong>Infill Overlap:</strong> 20–25%</li></ul><h4><strong>Print Speed</strong></h4><ul><li><strong>Outer Wall:</strong> 30–40 mm/s (smooth finish for camera contact points)</li><li><strong>Inner Walls / Infill:</strong> 50–60 mm/s</li><li><strong>Travel Speed:</strong> 120 mm/s</li><li><strong>Supports:</strong> Only where needed, overhangs &gt;60°, touch build plate only</li></ul><h4><strong>Temperature</strong></h4><ul><li><strong>Nozzle:</strong><ul><li>PETG: 240–250 °C</li><li>ABS: 245–260 °C</li></ul></li><li><strong>Bed:</strong><ul><li>PETG: 75–85 °C</li><li>ABS: 90–110 °C</li></ul></li><li><strong>Enclosure:</strong> Recommended for ABS</li></ul><h4><strong>Cooling</strong></h4><ul><li>PETG: 20–40% fan</li><li>ABS: 0–10% fan</li></ul><h4><strong>Retraction</strong></h4><ul><li>5–7 mm @ 35–45 mm/s (Bowden setup)</li></ul><h4><strong>Adhesion</strong></h4><ul><li>PETG: Glue stick or PEI sheet</li><li>ABS: Kapton tape + enclosure</li></ul><h4><strong>Additional Tips</strong></h4><ul><li>Orient mount to minimize layer lines on critical load-bearing areas.</li><li>Chamfer corners and stress points to reduce stress concentration.</li><li>Ensure the camera interface (screw holes, clips) is accurately dimensioned; consider <strong>slightly oversizing holes by 0.1–0.2 mm</strong> for smooth fit.</li><li>Optional: add <strong>fillets or ribs</strong> in CAD for extra rigidity without increasing print time or material too much.</li></ul>

Troy Lee Designs & 360° Action Camera Mount High-Strength 3D

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

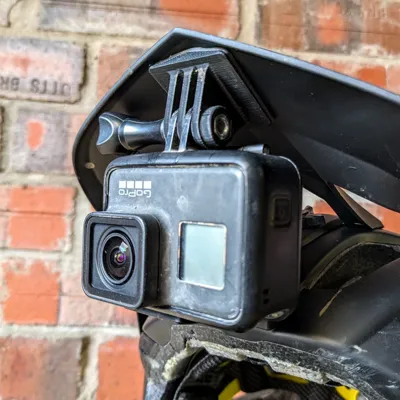

<p>This is a mount for a action cam u need to get your own nut and 3m tape to mount it this mount is designed by me and it is designed to fit the troy lee designs d4 and stage helmets and will fit all moto and mtb full faces </p>
