AR Magazine Speed Loader v4 Multi Caliber
Print Profile(3)
Description
Membership
Join My Commercial License Program!
This is an Updated version of my v4 Speed Loader.
This New version allows the user to choose between the 3 simple “Triggers” to load the magazine.
It also can now load multiple calibers that use the same AR15 Style Magazine, 223 Rem, 5.56 NATO, 7.62X39, and 300 Blackout.
This Loader has also been simplified even further in its simplest form requiring just 1 spring measuring about 20mm long by 8mm OD x 6.5mm ID for the magazine release.
Features
Designed to be printed in PLA like my others, no need for exotic materials.

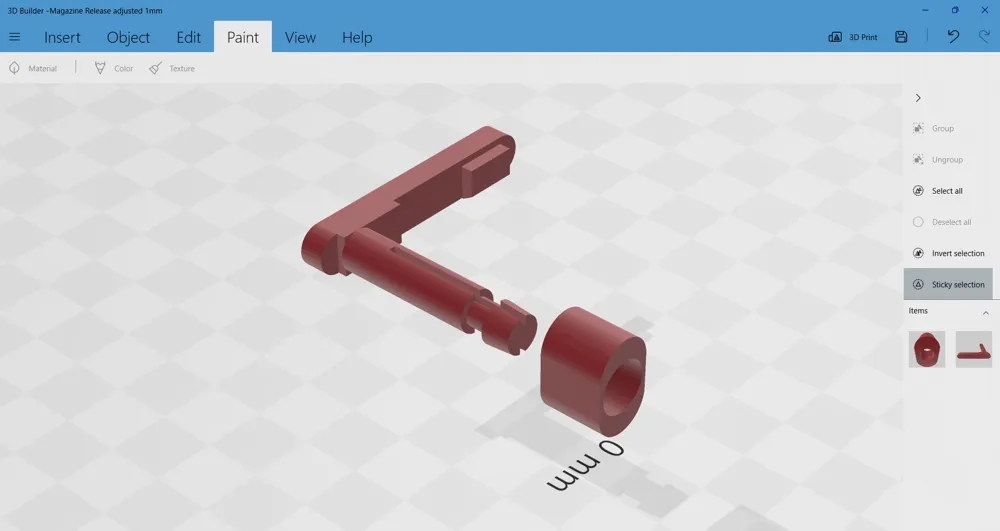

Simplified “Snap Fit” Magazine Release

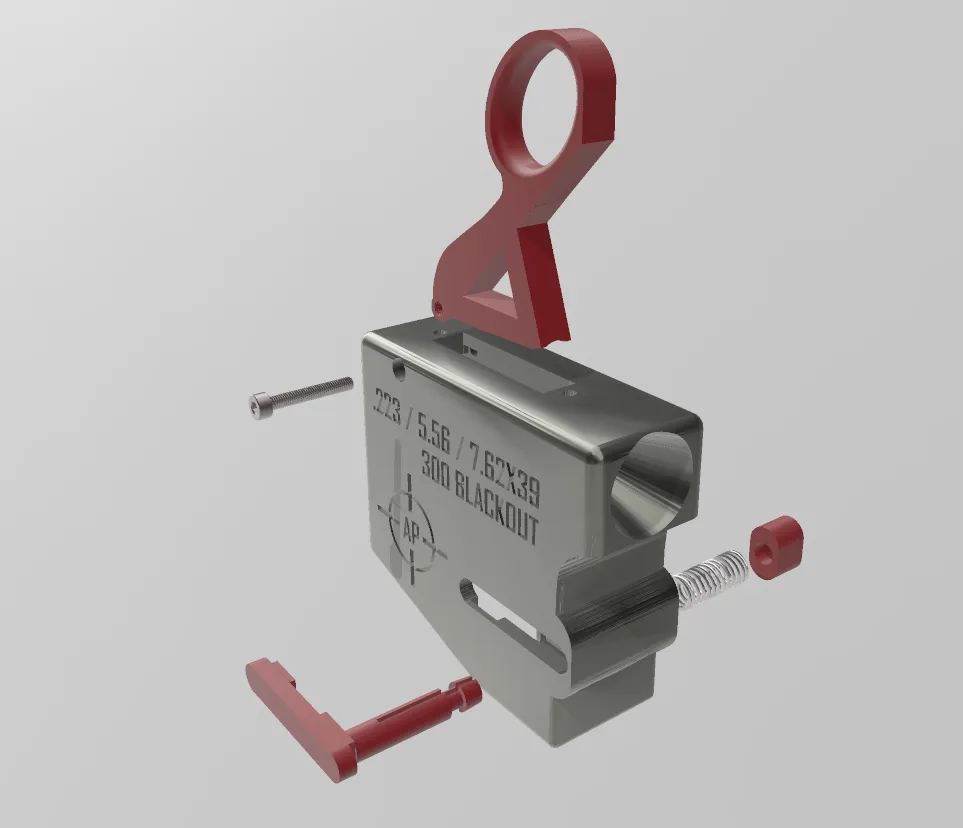

Choose Between 3 Simple “Trigger” configurations to operate the Loader.
- Lever trigger, Requires 1 x m3 x 25mm socket head screw (or 3mm rod 30mm long)
- Dovetail Pusher Trigger, no hardware required
- Bolt on Pusher Trigger, requires, 2x M3 x 25mm Socket head screws
- Optional Trigger return assist mod left in place requires 2 additional m3 x 25mm socket head screws and springs with ID of 3.5 and length of 20mm approx.

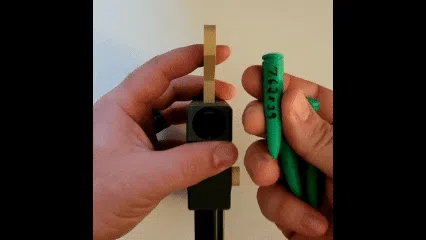

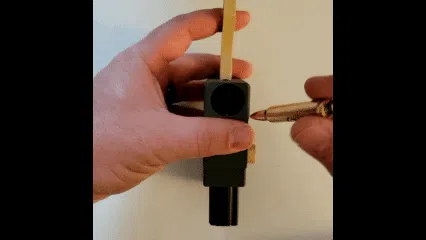

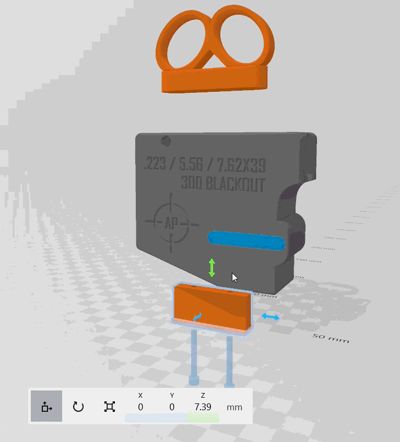

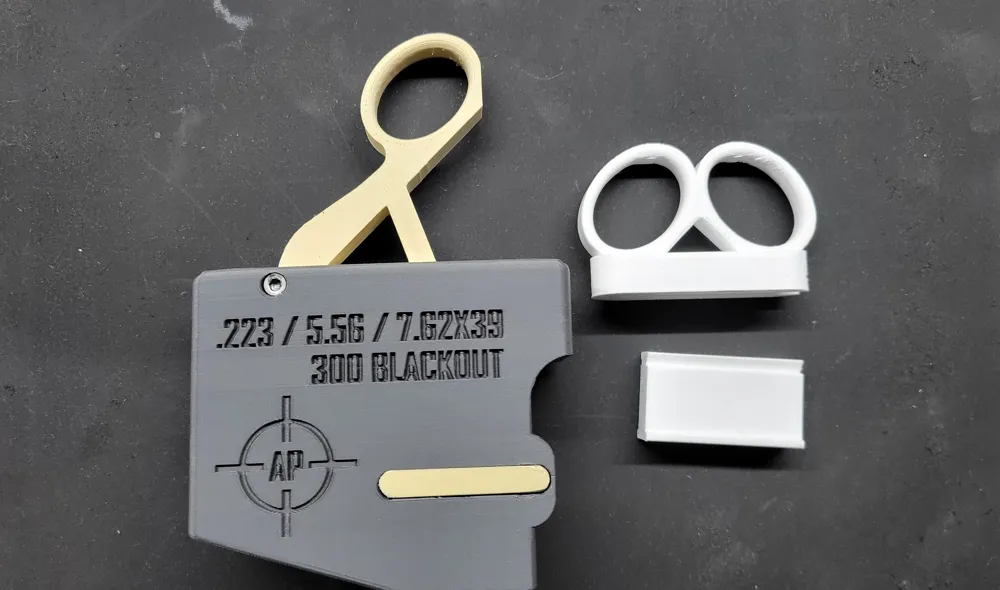

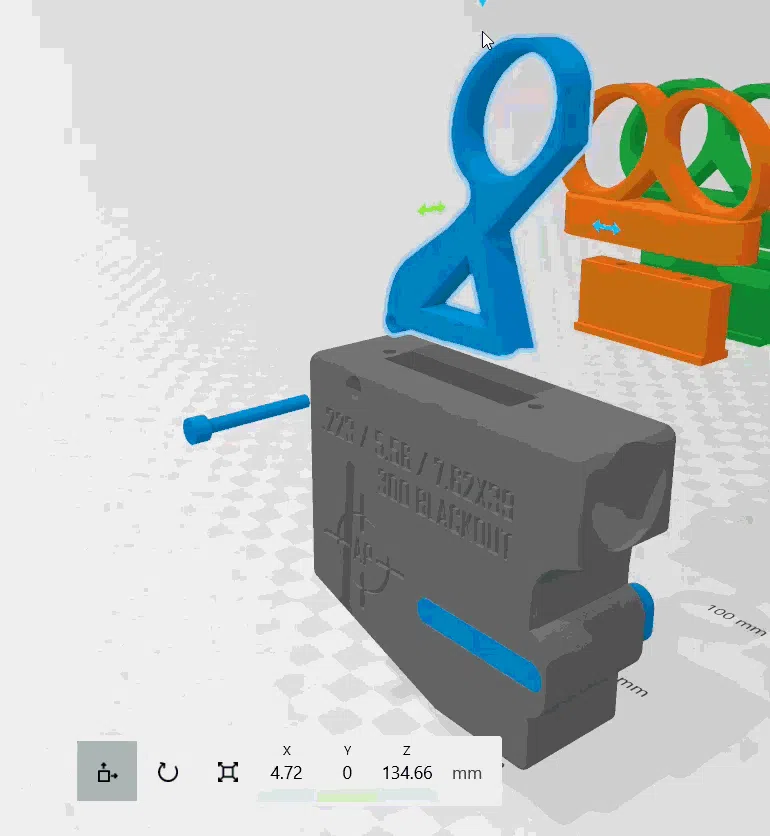

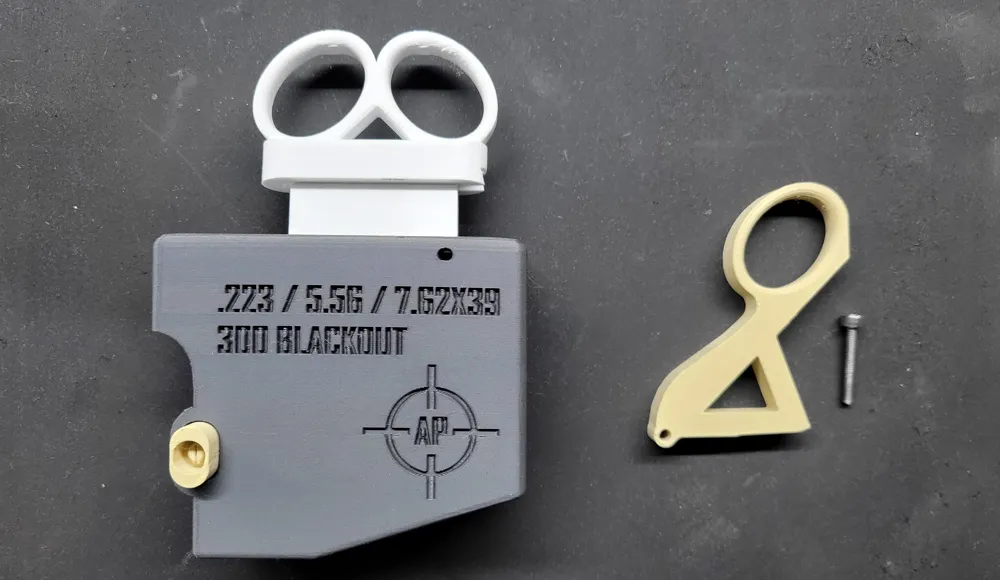

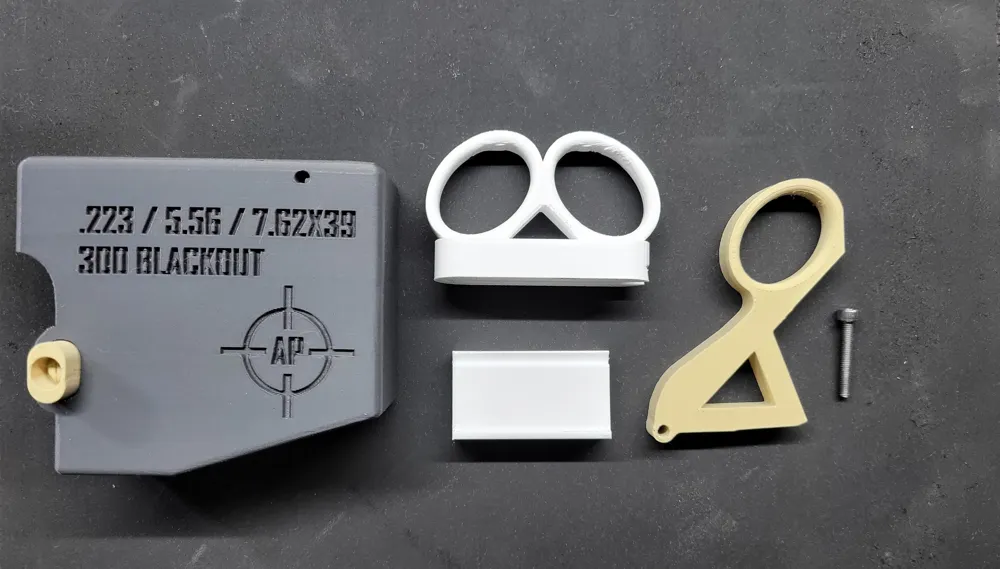

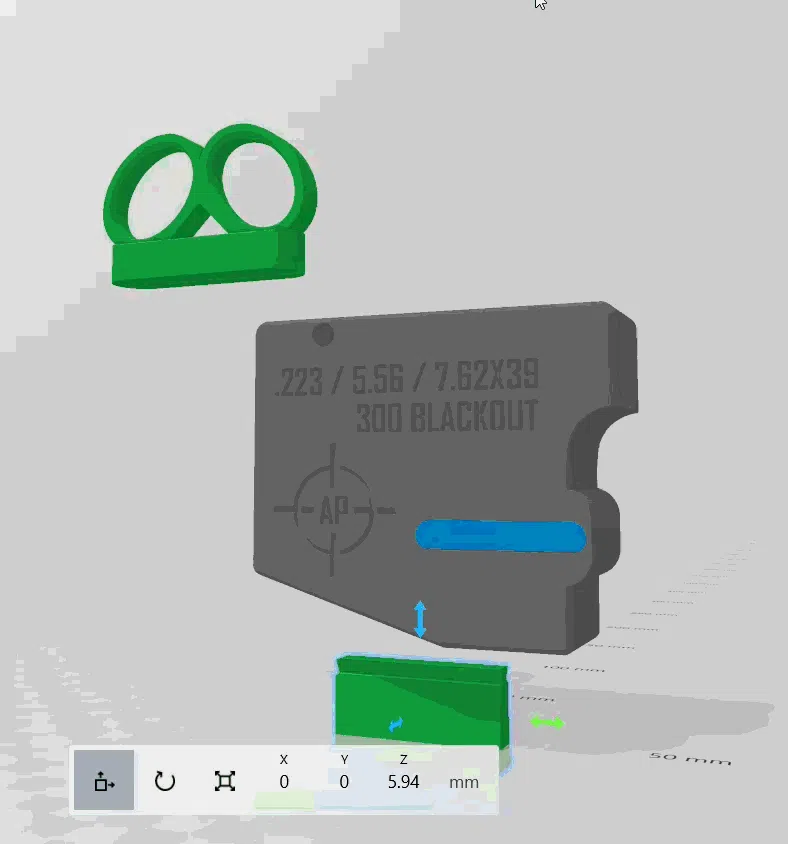

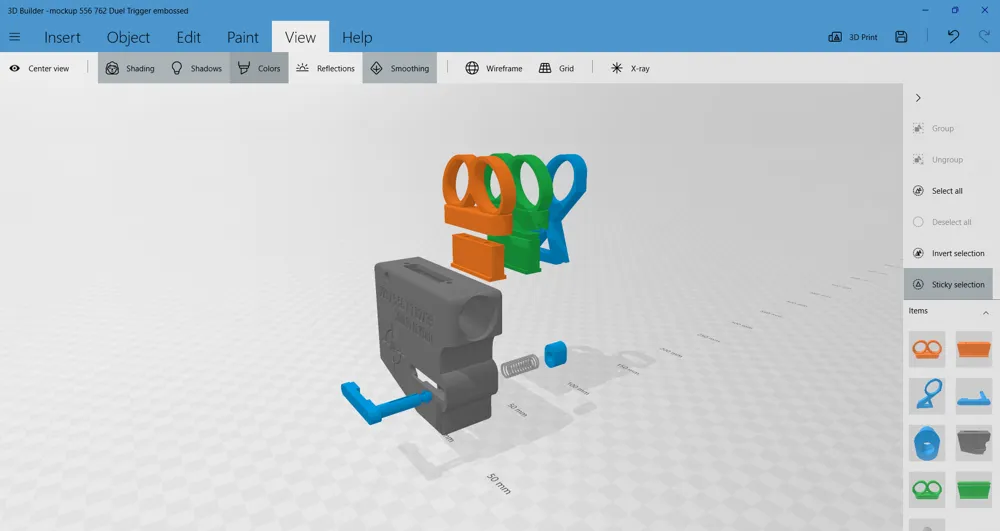

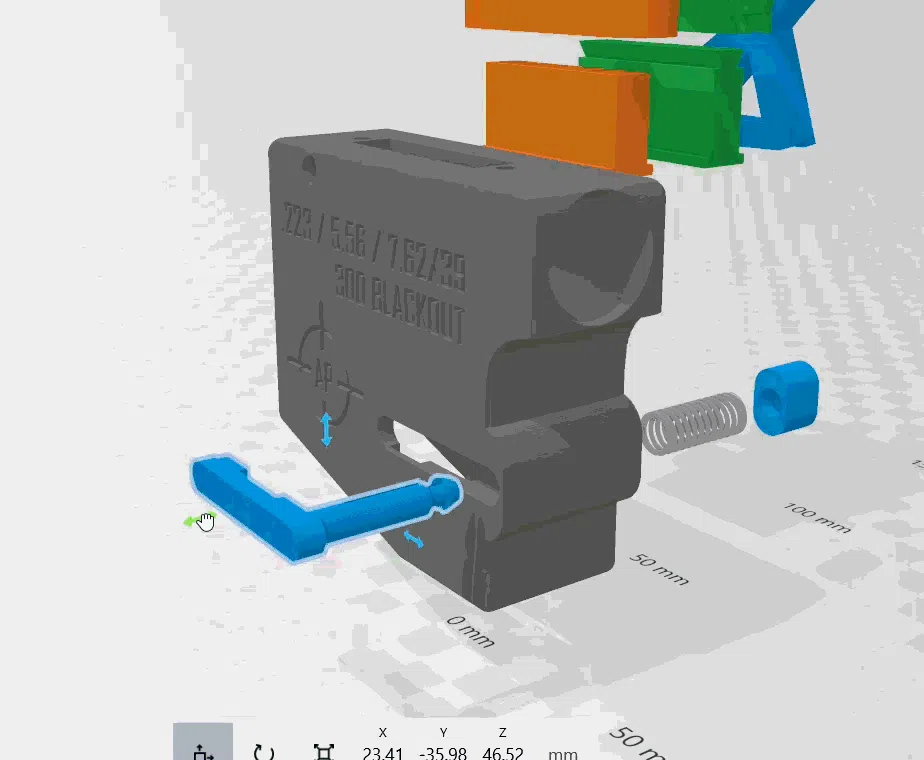

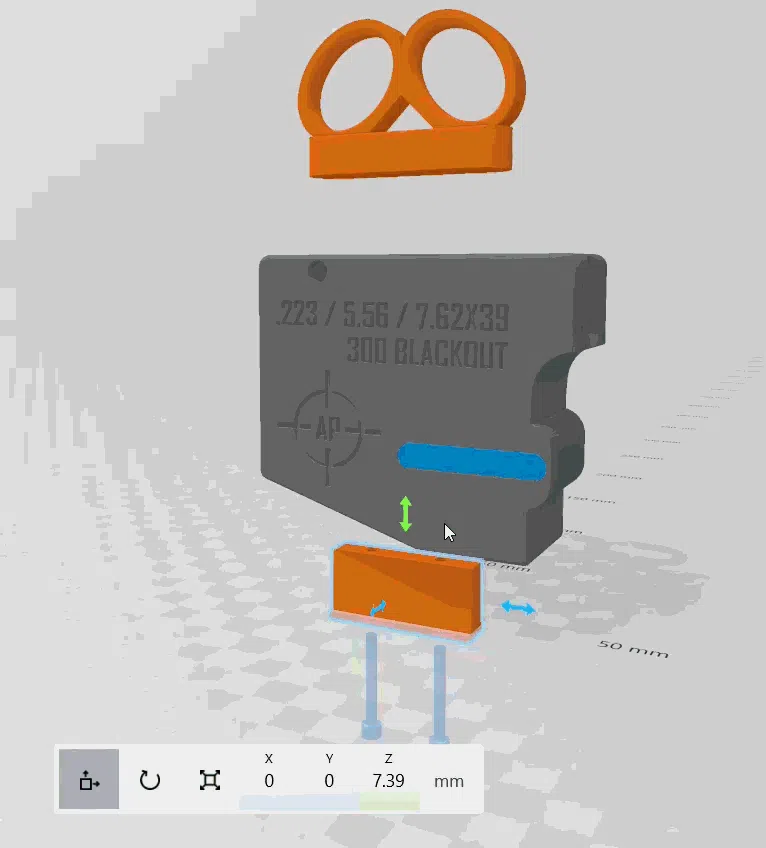

See images for Assembly
