2022+ BRZ/GR86 Intake Snorkel
Print Profile(1)
Description

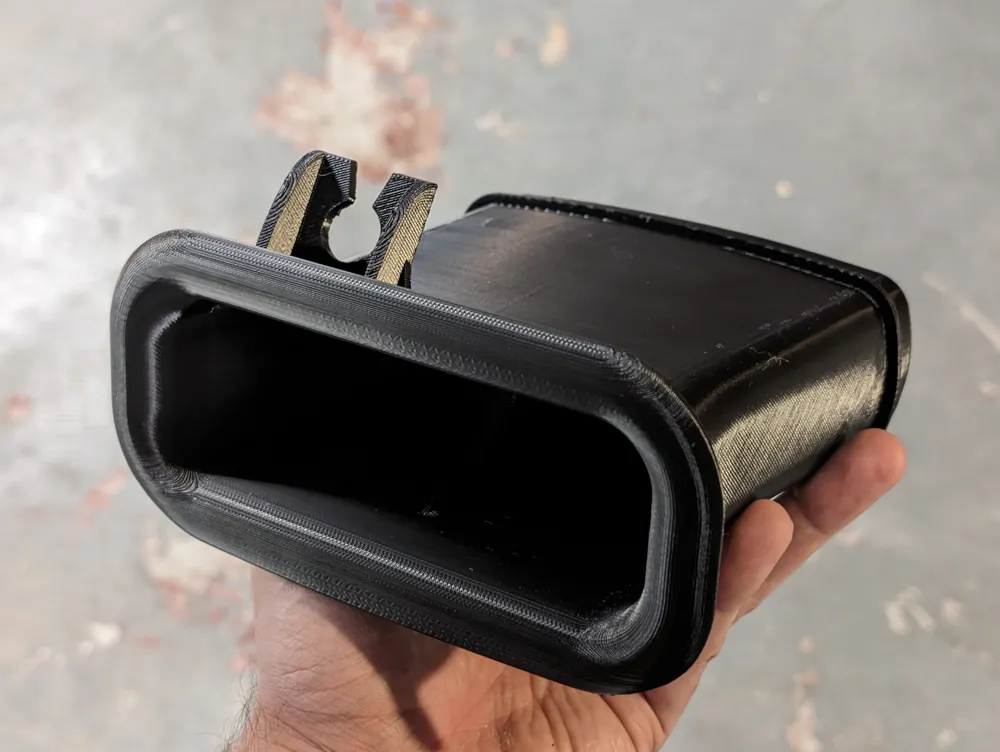

I designed this intake snorkel a few years ago for the 2022+ Subaru BRZ and Toyota GR86 inspired by the GR86 Cup Car intake snorkel. This intake snorkel adds a bit more intake noise and removes a small intake path restriction. Mostly just for the cool noise though!
Highly recommended to print in something that can handle some heat soak from the surrounding area, I've had success with ABS and ASA. The snorkel fits the OEM airbox loosely on some cars due to manufacturing tolerance on the airbox, you can use 1/16" or 1.5mm thick foam tape to seal the snorkel into the airbox.

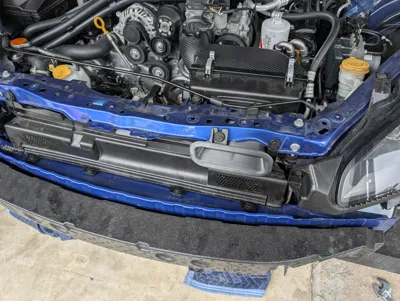

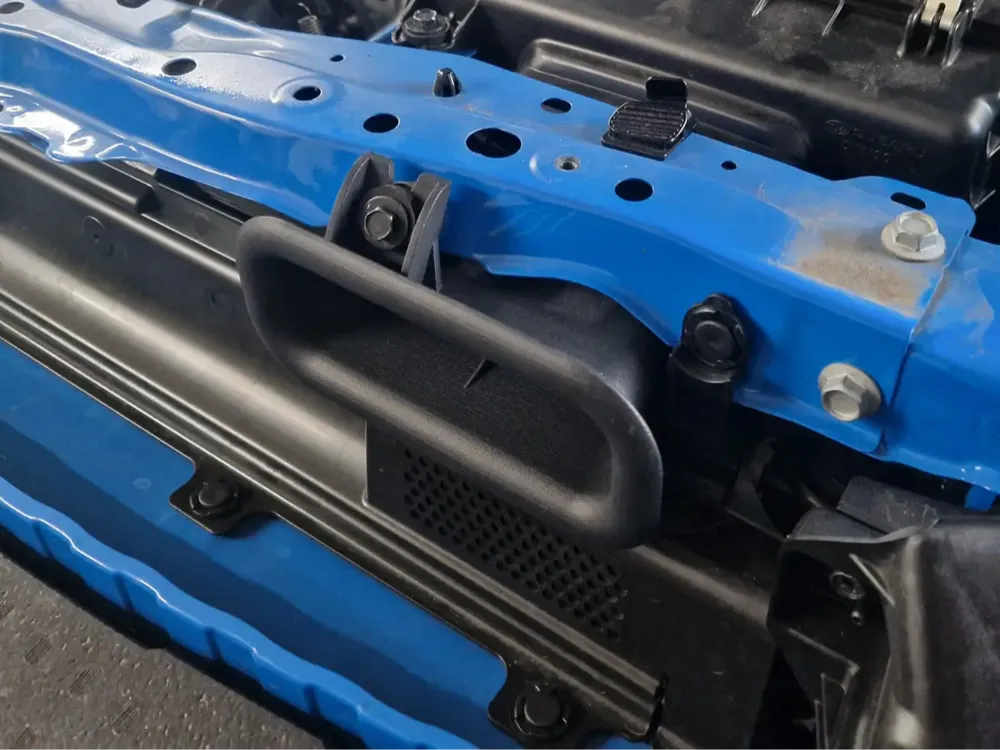

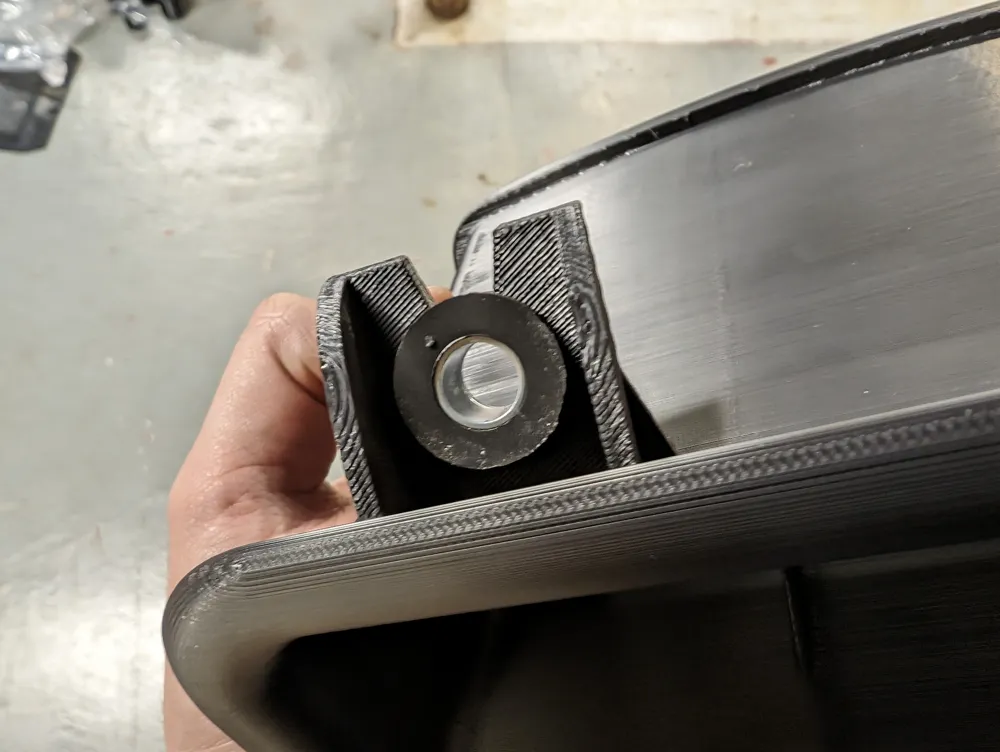

Fairly simple to install, remove the front bumper and unbolt the factory snorkel, transfer over one of the rubber mounting grommets by pushing the steel sleeve out of it so you can easily squish the grommet out of the factory snorkel and into the new snorkel before reinserting the steel sleeve and installing the new snorkel.
