Moonscape in a Modern Frame Lamp Kit MH001

// Update 02/2026:

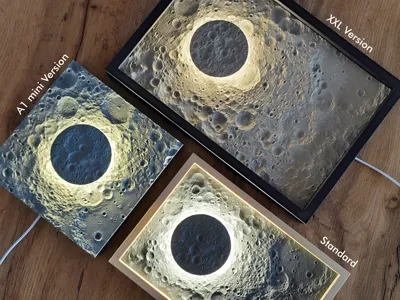

1. ) XXL version available for large printers like the H-series 🥳
2.) The A1 mini version of the lunar surface for small printers is online!
(since the design deviates significantly, I uploaded it as a new model)



// Update 01/2026:
1.) Now with a lunar surface on the round reflector.

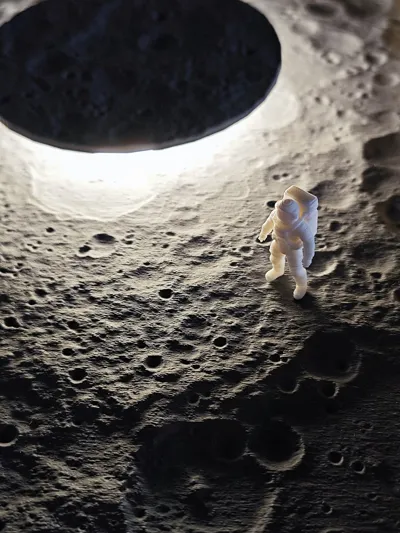

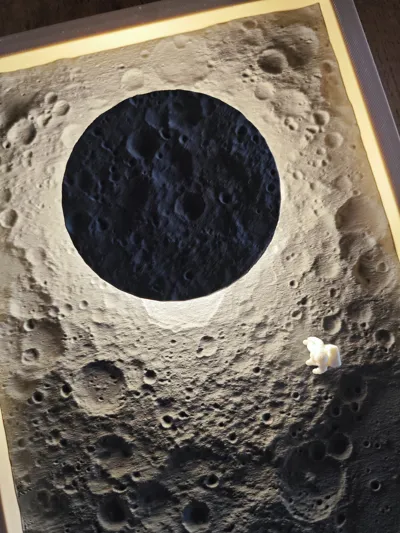

2.) On the last print bed, you will find an 👨‍🚀 astronaut figure. If you like, you can place it on the lunar surface 😌

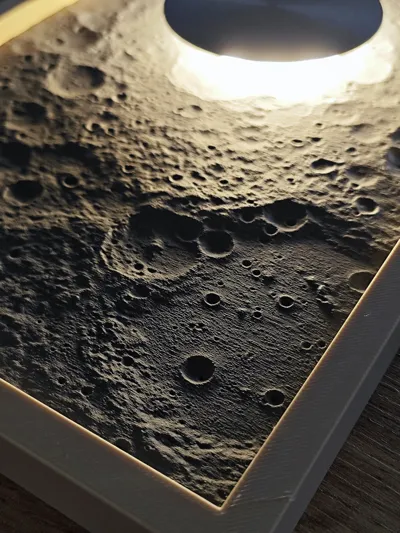

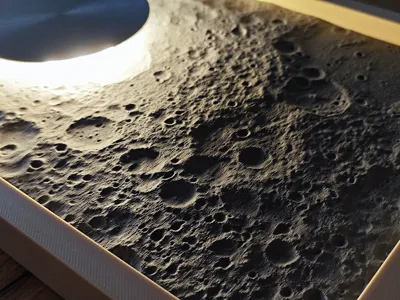

With this model, I wanted to create an alternative, simpler design for a "Moon Lamp".

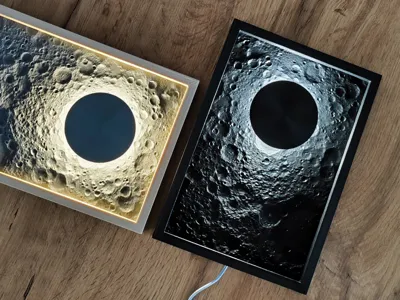

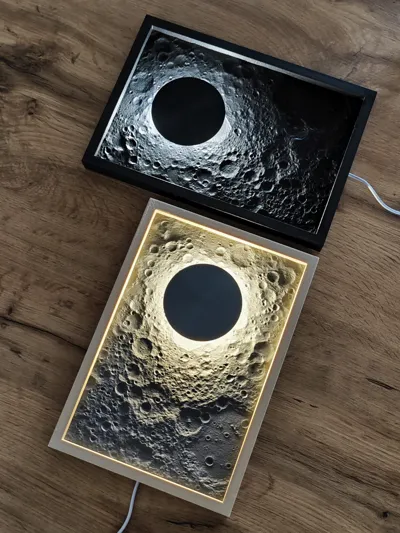

The illuminated lunar landscape in a modern gallery picture frame is compatible with the LED Lamp Kit 001 from Bambu Lab

Dimensions of the standard version: approx. 25 x 17 cm / 9.8 x 6.7 inch
Dimensions of the XXL version: approx. 32 x 22 cm / 12.6 x 8.7 inch

Due to its simple look and the interesting topological structure of the moon, this model is an eye-catcher even without lighting.
It is suitable for wall mounting or leaning against a wall, for example on a dresser

Note: The Lamp Kit from Bambu Lab is currently sold out.
An alternative is available here: LED Lamp Kit on AliExpress

🎨 Filament Recommendation:

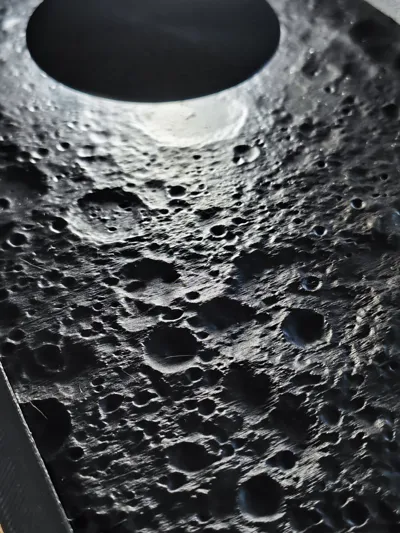

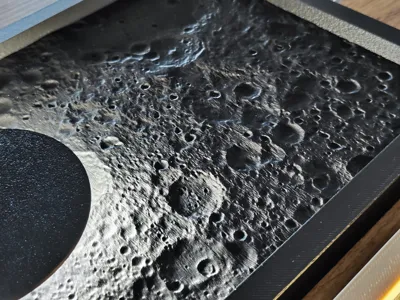

For the lunar surface, matte filaments such as matte dark grey PLA are particularly suitable. All shades of grey from medium grey to dark grey to black look excellent.
You can print the frame in the same color, or a shade darker. PLA Wood filaments also come into their own here.

☝️ Printing Notes:

The lunar landscape should be printed standing up. I recommend printing with additional supports. These are moved up to the model in the slicer and must slightly overlap

🤓 Installation:

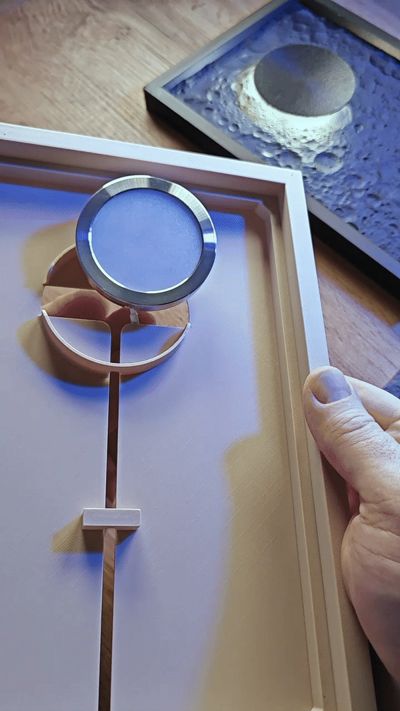

After all parts have been printed, the lamp is installed first. It is pushed from behind through the frame / base. The cable can be routed along the recess.
Next, the lunar landscape is inserted. It fits snugly into the frame; if necessary, a little adhesive can be used to secure it against falling out.
The last step involves the reflector. Either you have already printed it in two colors, or it needs to be painted in a light or even reflective color in the cone area. This is now glued centrally with some hot glue onto the diffuser of the Lamp Kit

In accessory stores, you can also find RGBW versions with remote control, which can turn this lamp into a stylish mood lamp in no time 🤩
