CH270 Magnetic Figure Stand
Print Profile(1)
Bill of Materials
- Figure That You Want to Display x 1: Please mind the clearance between the figure and side panel. Measurement of internal temperature when running suggested (typical figure uses PVC which soften's at 60℃).
Description
No support needed

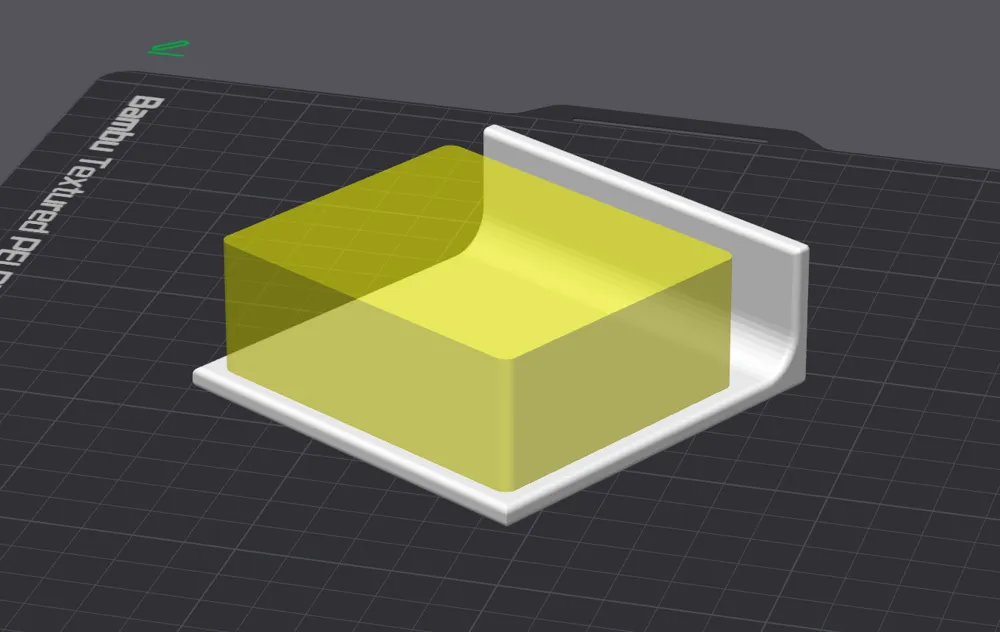

Variable Layer Height and Ironing Recommended
Should also work on other cases
Please use materials that have equivalent or better high-temperature performance than PETG, or the stand might soften under high temperatures and cause what's on top to fall

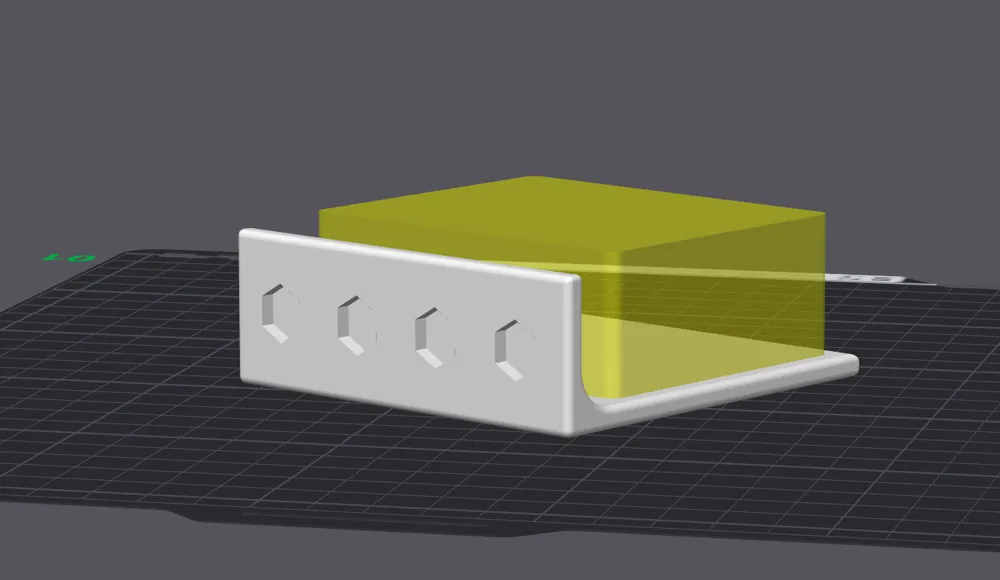

Insert 4 10*3mm magnets from Maker's Supply (Or other same size strong magnets).

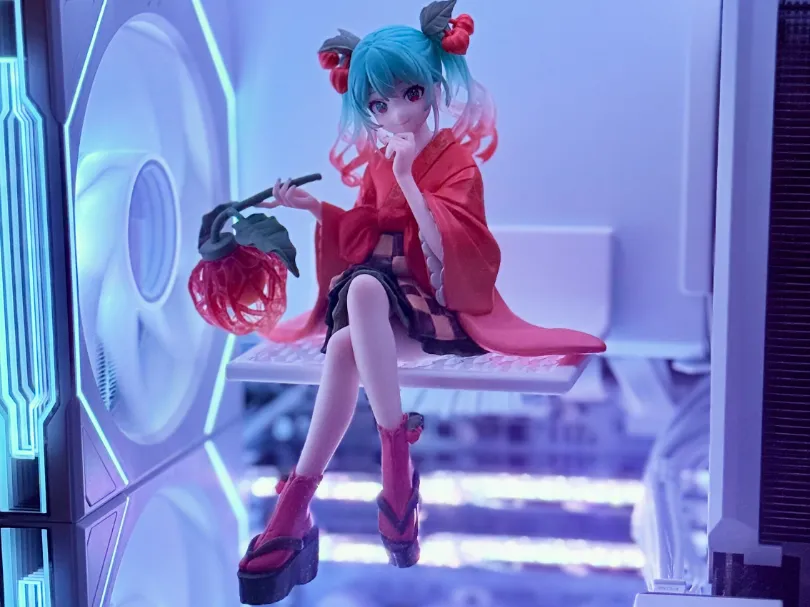

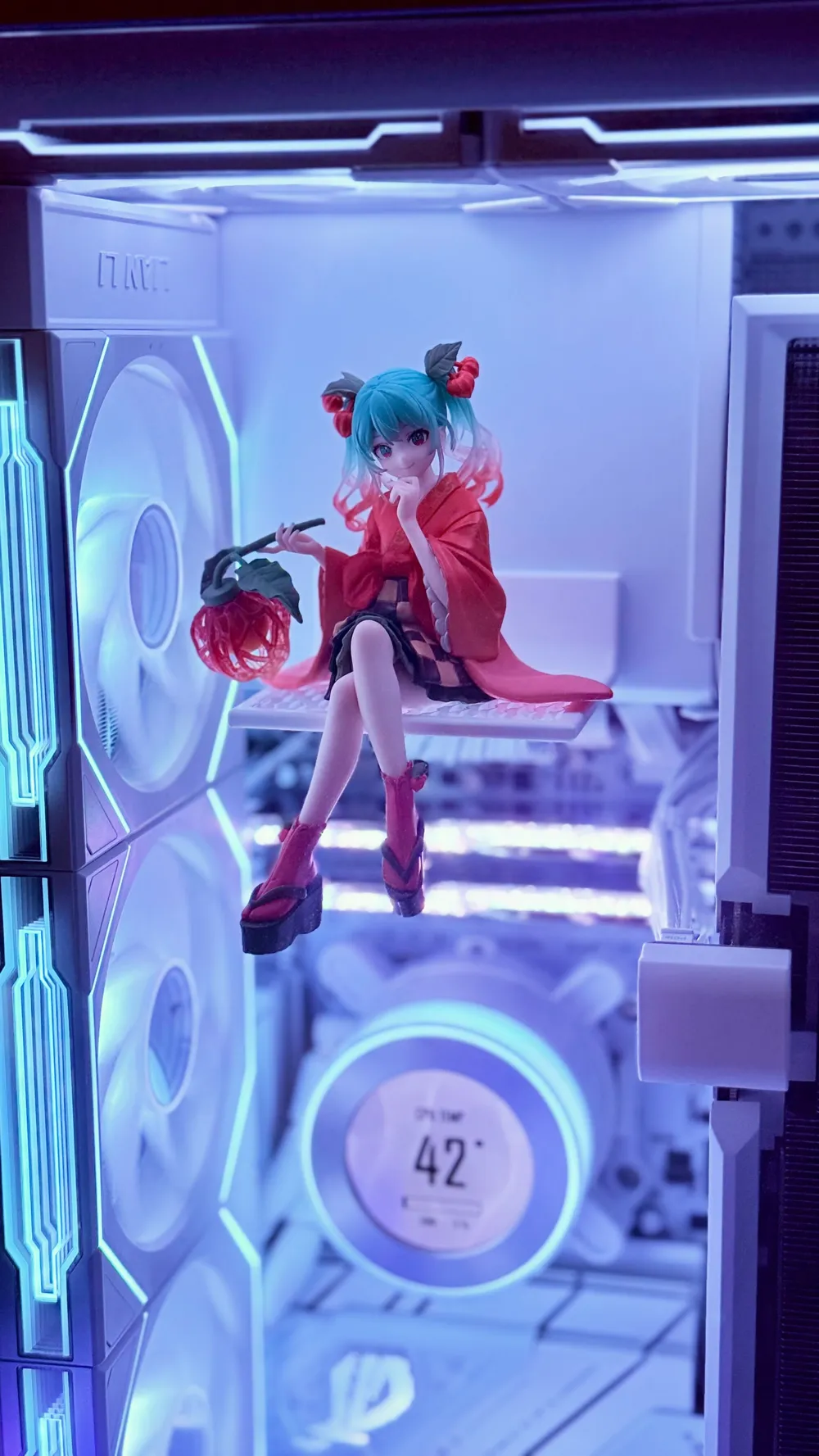

Magnetically sticks to the metal PSU shroud and other metal parts
It is recommended to fix the magnets in the slots with tape or glue to avoid hassle when removing (I personally used scotch tape, which increased friction and has been working well so far)

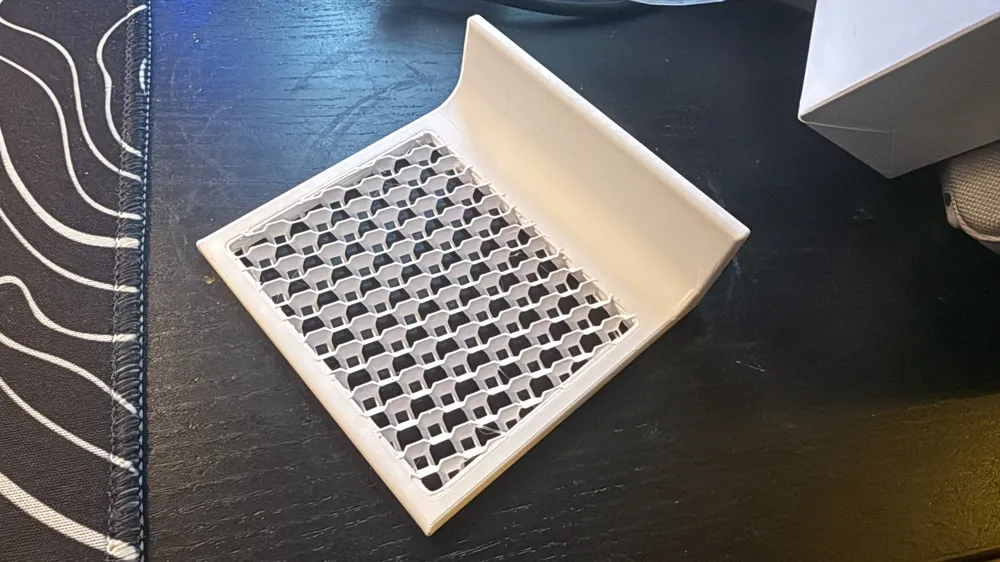

You can experiment with different infill patterns in the middle part
P.S. Depending on your PSU/other places you want to mount it to, the strong magnets might interfere with internal components and cause issues (e.g. whine noise from PSU or other malfunction); High internal temperature could also cause the figure to be damaged (typical figures use PVC, which softens at 60 ℃). Please proceed at your own risk.
