Secret Storage Wall Shelf (Magnet Lock)
Print Profile(2)
Bill of Materials
Description

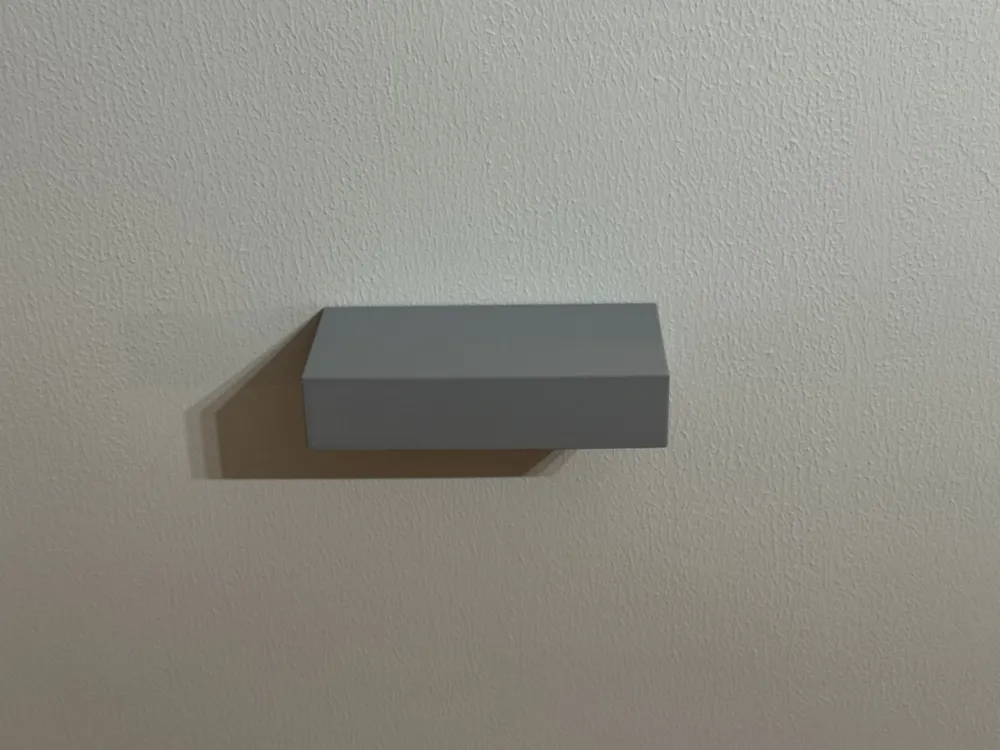

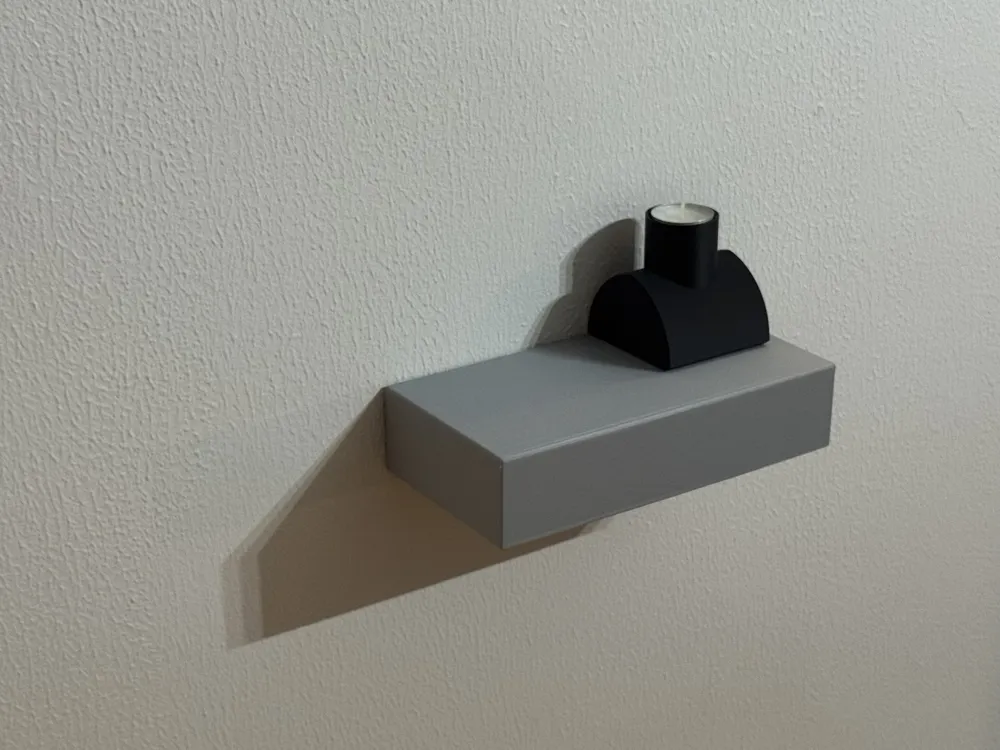

This compact wall shelf hides a secret compartment behind a clean, minimalist design. The outer cover slides forward to reveal the hidden storage space, and both parts are securely held together with 10× 4×2 mm round magnets for a satisfying, solid closure.
Size: 240 × 120 × 55 mm
Features:

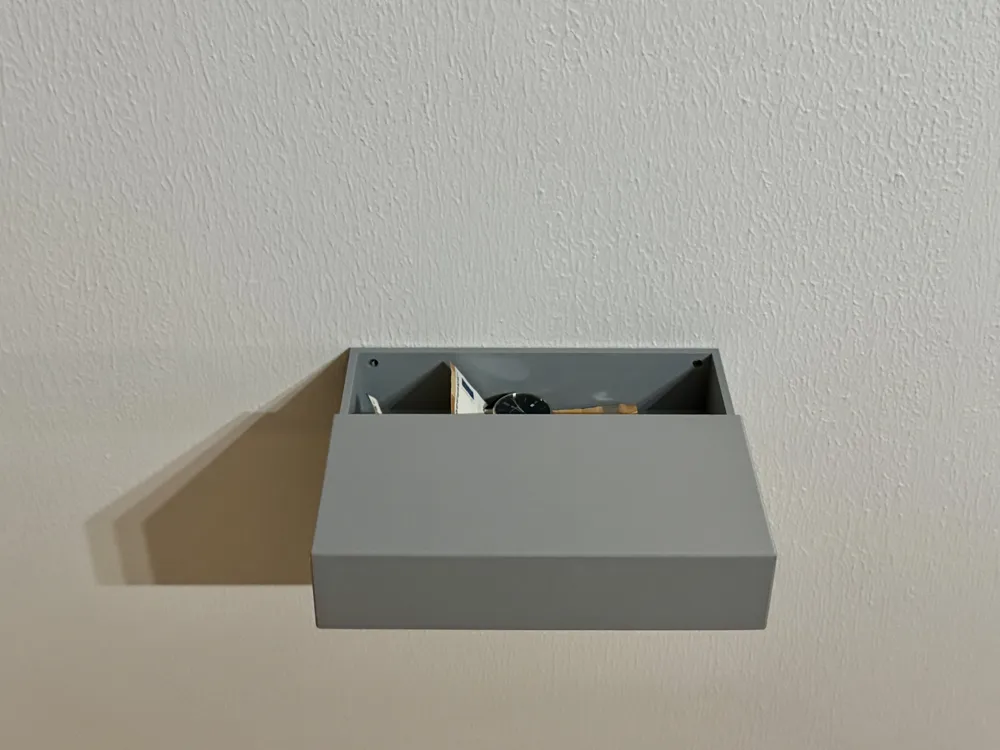

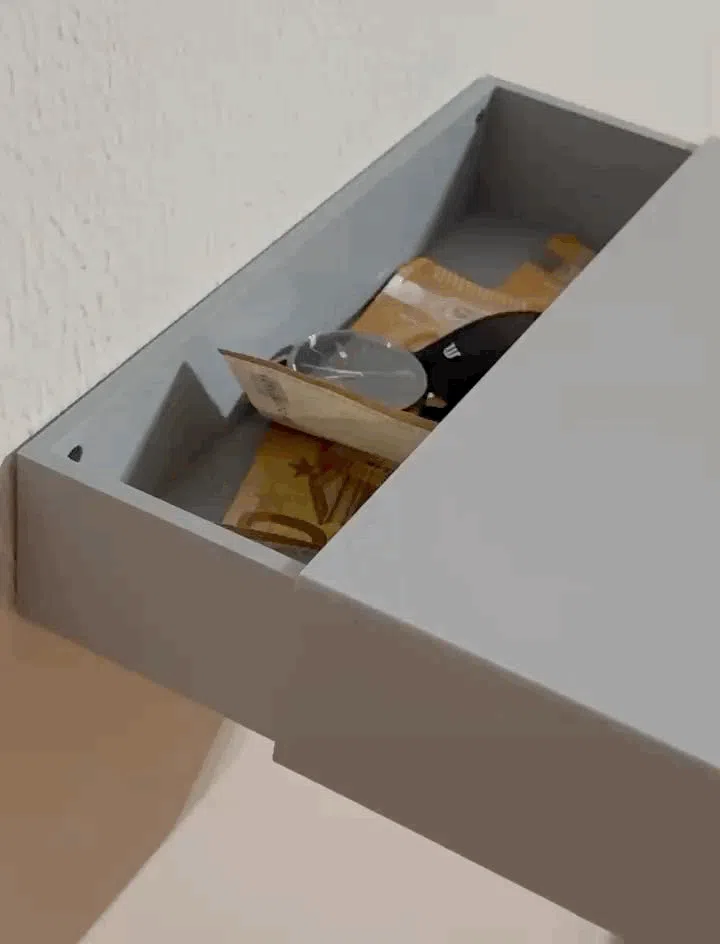

• Sliding front cover (pull forward to open)

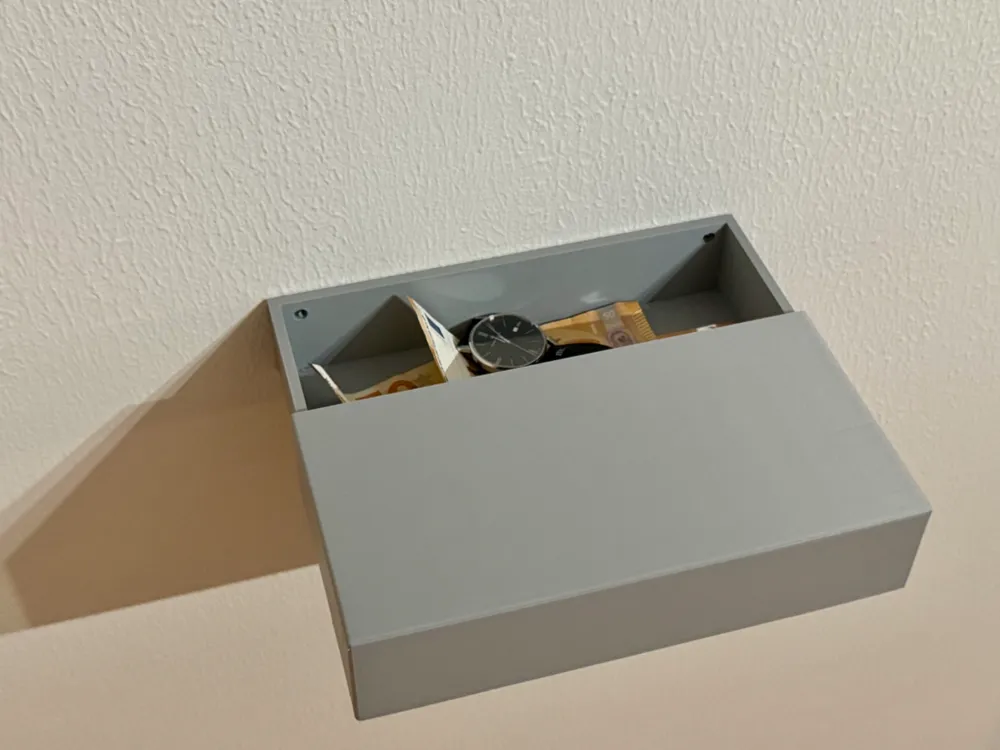

• Hidden compartment for small valuables, keys, cash, or notes
• Magnetic hold with multiple 4×2 mm magnets for even, strong contact
Wall Mounting:

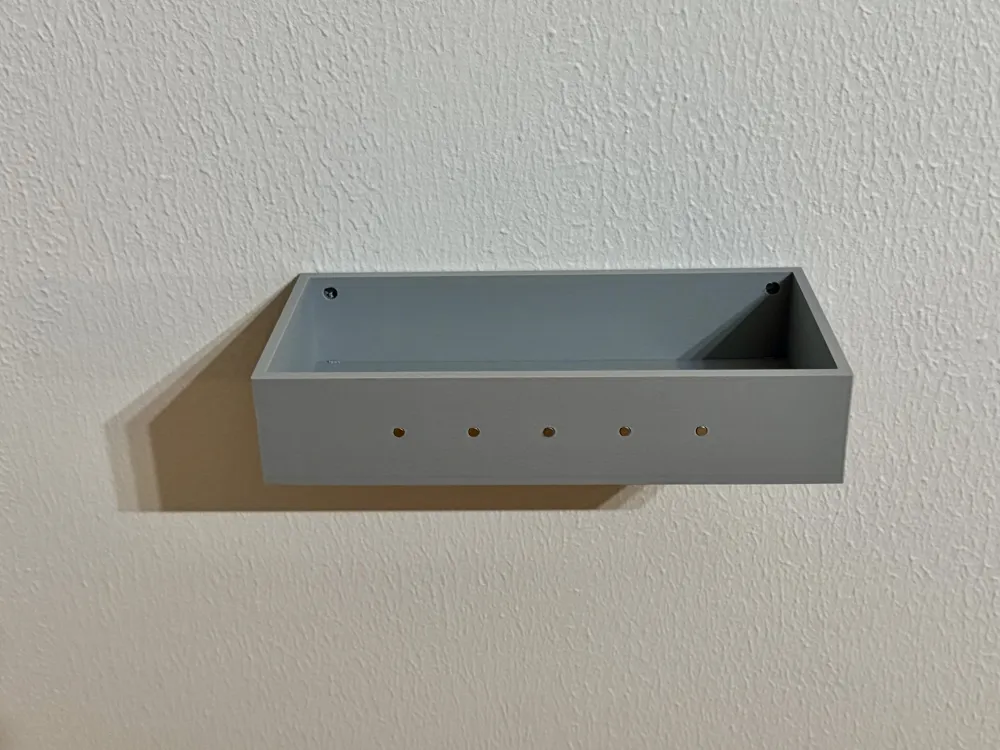

The inner part is mounted to the wall using 2× M5 screws. The mounting holes are designed with a 5.5 mm diameter for easy fit (use suitable wall plugs/anchors for your wall type).
Printing:
I’ve included a print profile using 4 walls, 20% Gyroid infill, and only minimal supports where needed. Prints well in PLA or PETG (PETG recommended for extra toughness).
Assembly:
Insert the magnets (watch the polarity) and glue them in place if desired. Screw the inner part to the wall, then slide the outer cover on from the front.
If you print it, I’d love to see your makes and photos—happy printing!
