Wall Mount for Stanley Pop-Up Workbench
IP Report
Print Profile(1)
0.2mm layer, 5 walls, 40% infill
Designer
2.8 h
1 plate
Open in Bambu Studio
Boost
1
4
0
0
1
0
Released
Bill of Materials
Bambu Filaments
Select all
Description

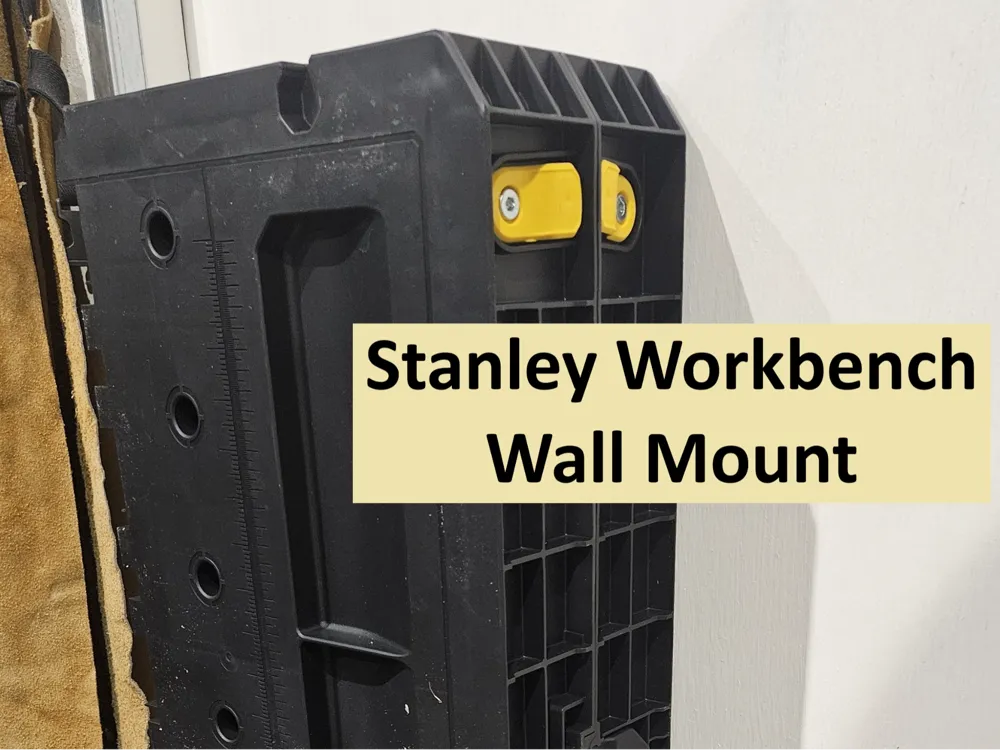

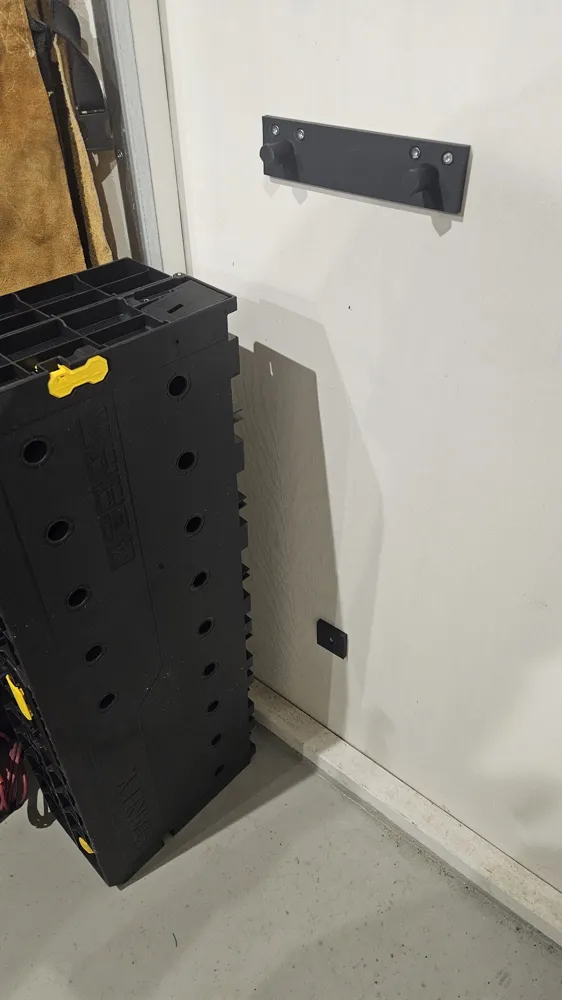

Securely store your Stanley Pop-up Workbench (Model STST11552) on the wall to save space. This mount is designed for strength and stability.
Components

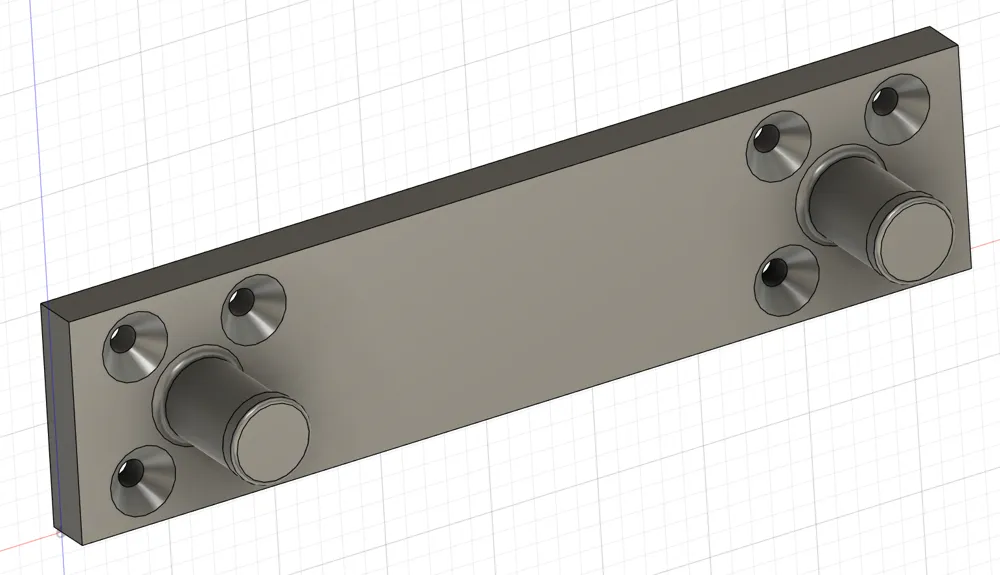

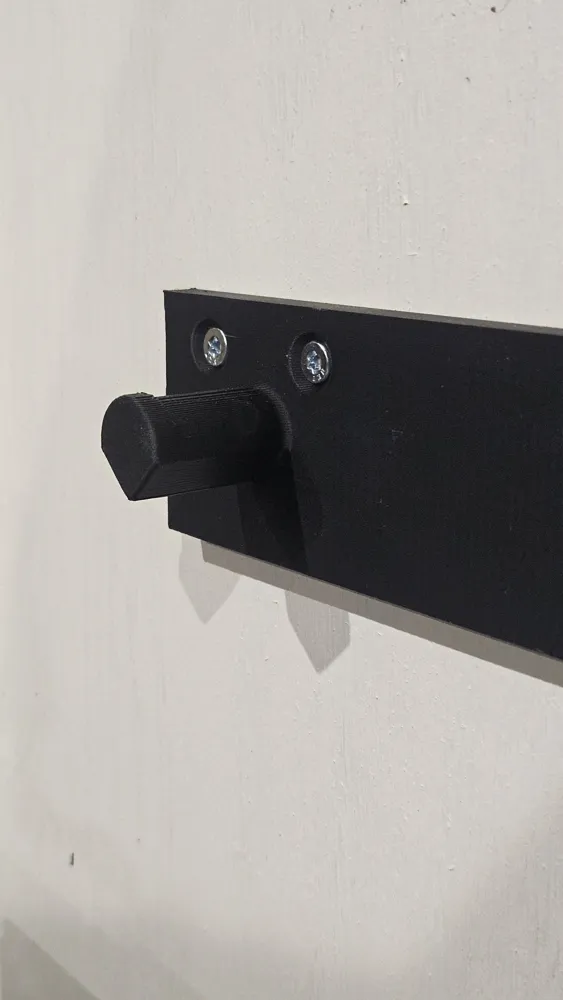

- Top Bracket: The main load-bearing mount.

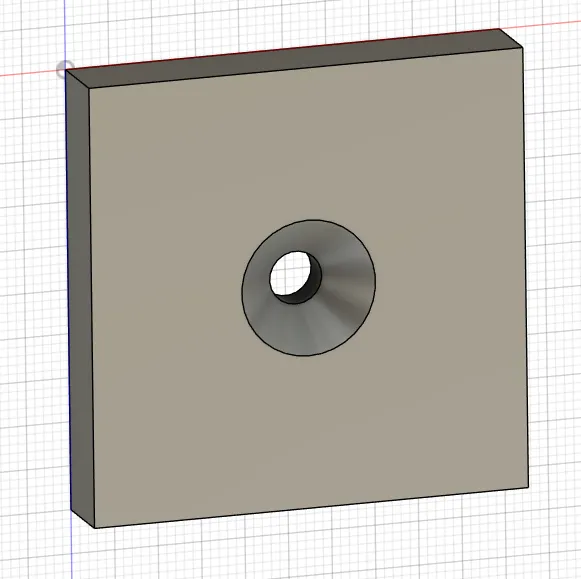

- Lower Square Block: Mounted at the bottom to keep the workbench perfectly parallel to the wall. This shifts the center of gravity closer to the wall, reducing leverage and increasing safety.
Technical Specifications:
- Fits Hole Diameter: 20 mm
- Center-to-Center Distance: 152 mm
Recommended Print Settings
Top Bracket:
- Orientation: Print on the side for optimal structural strength.
- Supports: Yes.
- Walls: 5 walls.
- Infill: 40% Gyroid (for maximum strength).
Lower Bracket:
- Walls: 2 layers.
- Infill: 15% (Your choice).
