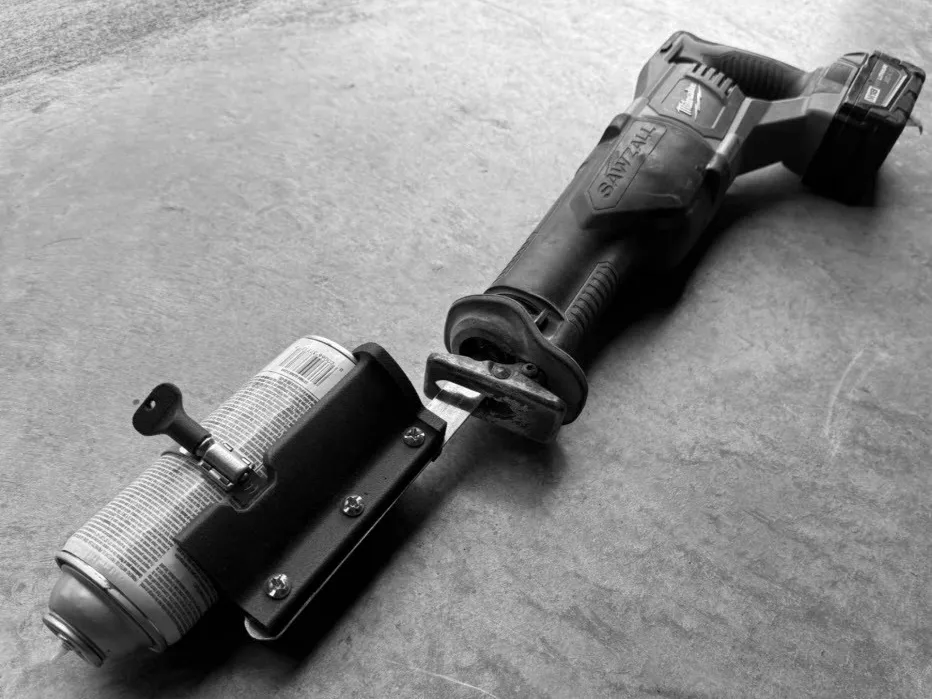

Sawzall Paint Can Shaker
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
37
117
6
5
184
58
Released
Description
Content has been automatically translated.

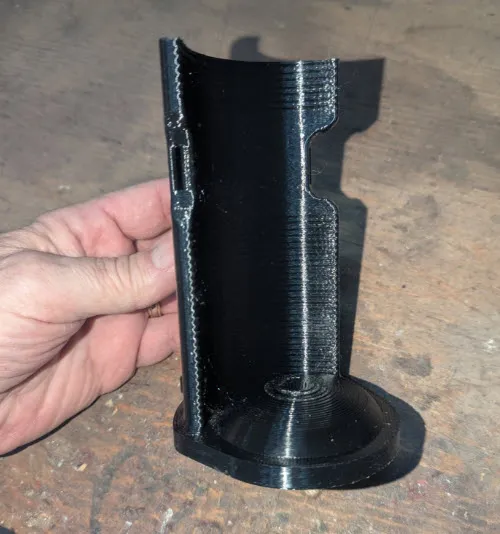

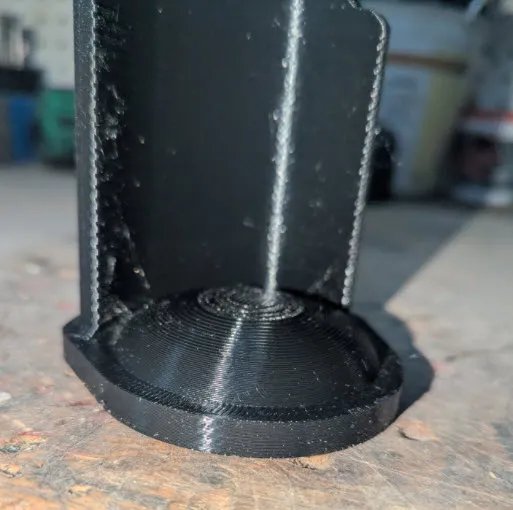

Improved model with a domed bottom to prevent deforming the can's base.
0.2mm layer, 6 walls, 25% infill
Only a few things are needed to create this!
- (1x or 2x) 2-3 inch worm drive hose clamp.
- Use a high-quality hose clamp, such as a “BREEZE” brand clamp.
- (1x or 2x) Sacrificial sawzall blade
- Optionally grind the teeth off the blade.
- After the model is printed, slide the print onto the blade and mark the hole locations. Remove the print and drill the three ¼-inch holes.
- (3x) ¼-inch screws, 1 inch long.
- I used ¼ x 20.
- (3x) ¼-inch nuts, matching the screw thread.
