Description

Content has been automatically translated.

Show original

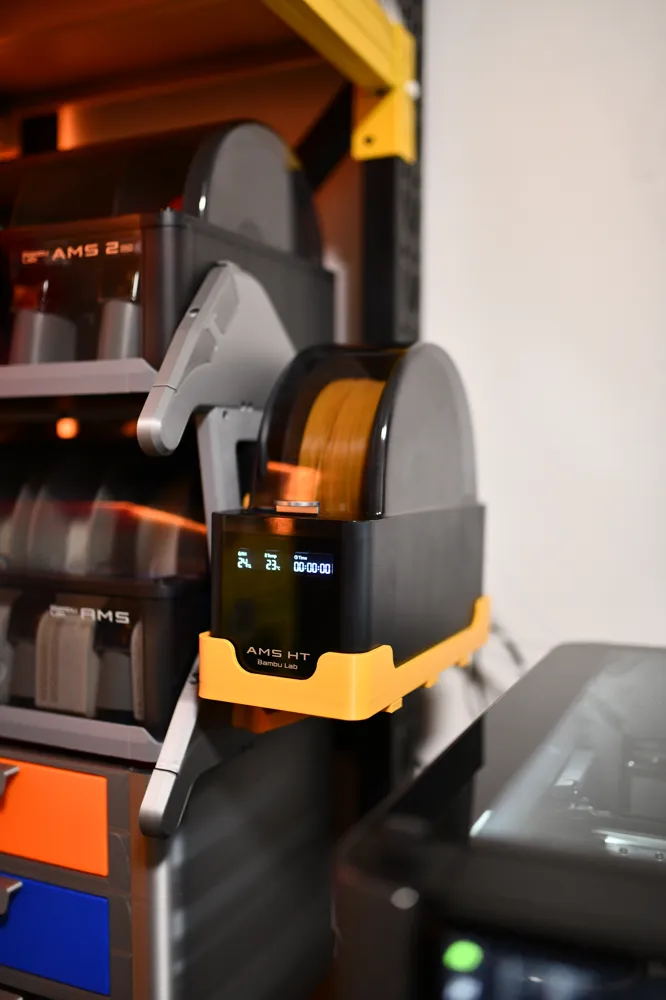

Compatible with [BaBo duo] AMS Drawer Stacker byWilli 3D

Requires 21 M3*8 screws (self-tapping screws recommended)

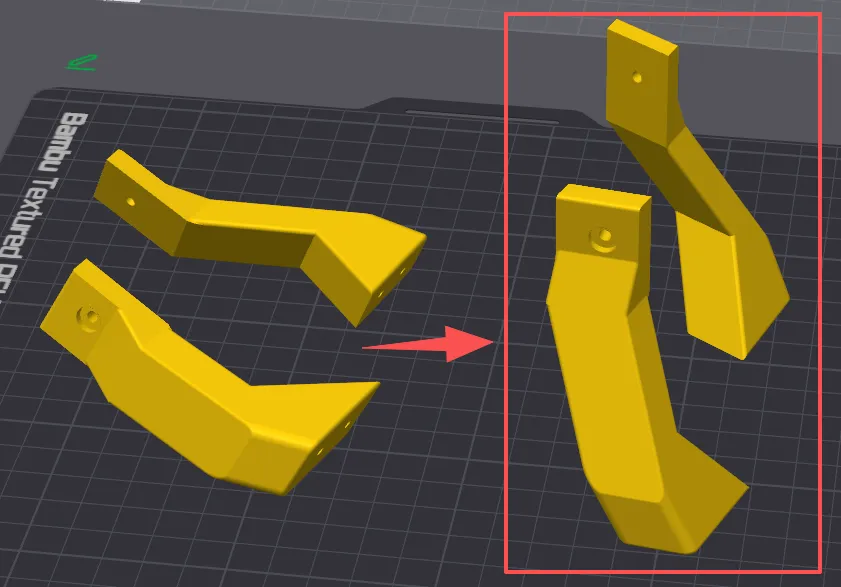

If the support surface effect is not good after printing these two load-bearing parts, you can change to vertical printing (horizontal printing might provide higher strength)

Installation Guide

ams ht

babo duo

Comment & Rating (17)

@euphoricked

Print Profile

XPA Dovetail PETG

tends to lean but it does the job well

Show original

@user_1302992128

Print Profile

0.2mm layer, 4 walls, 15% infill

The profile uploader has replied

@ZhangSheng

The print quality is very good! The buckle on top of the hanger can be installed in reverse, with reserved space

Show original

@JerryGray

Print Profile

0.2mm layer, 4 walls, 15% infill

@user_2236624342

how do you assemble, do you have the instructions

The designer has replied

@ZhangSheng

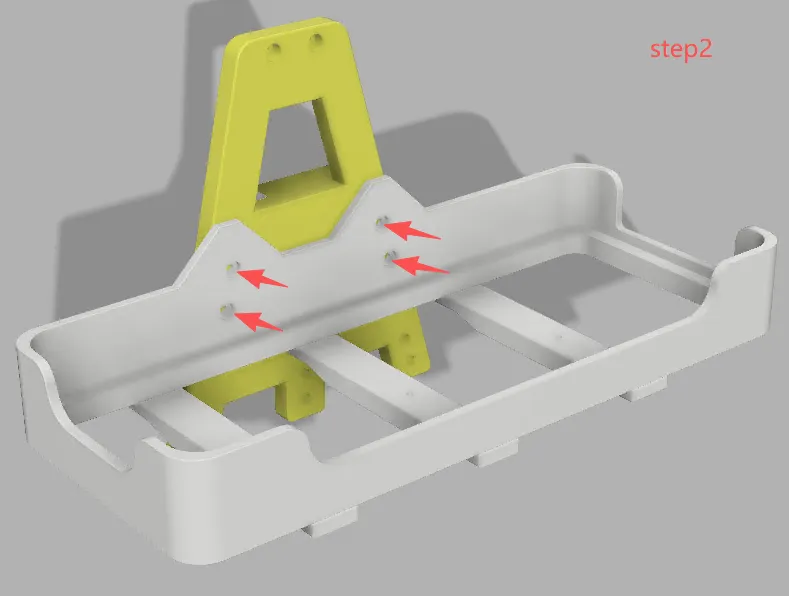

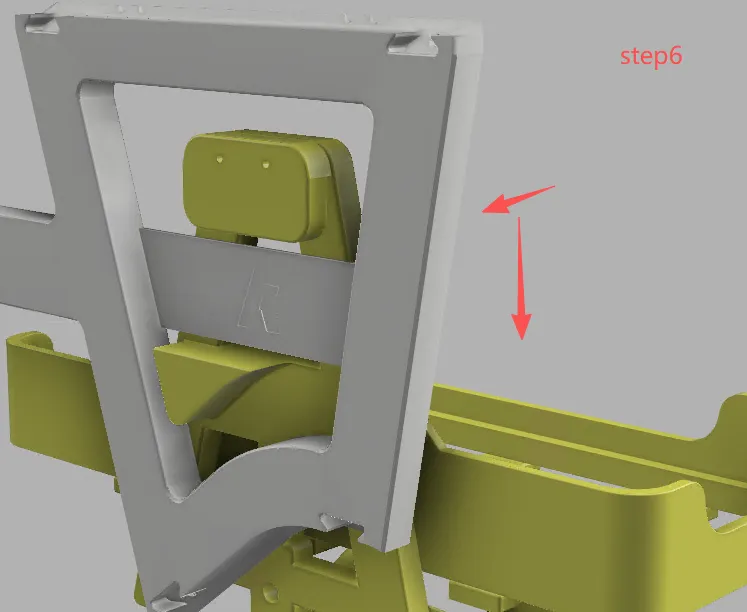

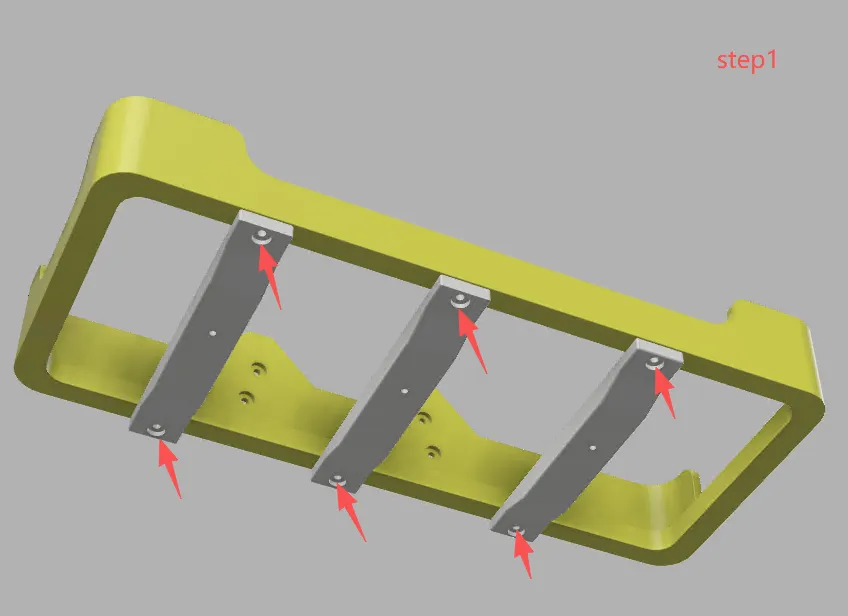

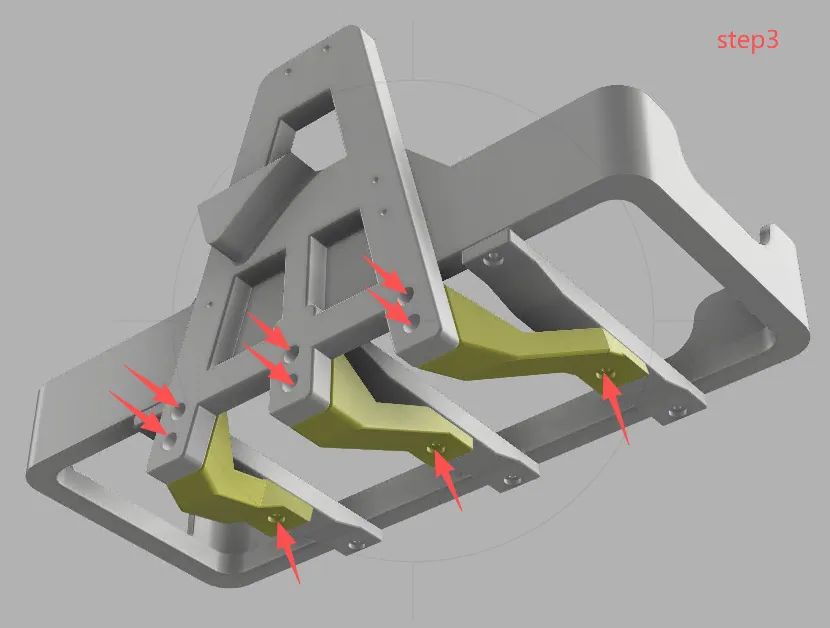

Sorry I forgot to make it, first fix the HT tray on the A-shaped bracket, then install the three support arms below (the non-twisted one in the middle, and the other two can be aligned with the screw holes under the tray), and finally install the buckle on the top of the A-shaped bracket. You can assemble everything before hanging it on the BaBo Duo. I will add detailed installation instructions later

Show original

@user_2236624342

thanks boss

@Ardkorian

Boosted

printed well apart from the holes in the main frame bottom were to small and had to drill slightly for m3 screws to fit. everywhere else the holes were OK.

The designer has replied

@ZhangSheng

Thanks for sharing and support

Show original

@user_836696163

Boosted

Funktioniert super!

@rouse912

Boosted

Printed great, assembly was straightforward. I did add some small peaces of double sided 3m on the very bottom to keep it from sliding against the AMS stand. One suggestion. Maybe offer a second version that drops down even with the larger AMS.

@user_836696163

Boosted

Print Profile

0.2mm layer, 4 walls, 15% infill

@zly664

Print Profile

XPA Dovetail PETG

@rouse912

Boosted

Print Profile

XPA Dovetail PETG
