Dust-free sanding of Raysin parts

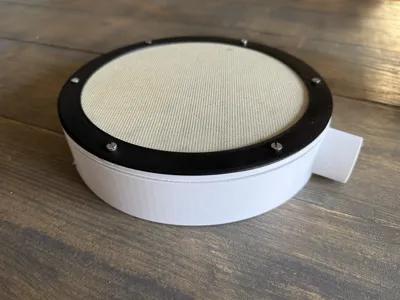

🟢 Dust-free Sanding Table for Raysin & Plaster Molds (4-piece)

This compact sanding table was specially developed for low-dust sanding of Raysin, plaster and similar molds. Thanks to the multi-part construction, a sanding mesh can be securely fixed and effectively combined with an extractor.

With a 240 grit sanding mesh, sanding off burn marks on laser-engraved wood also works very well.

For an ideal non-slip stand, I glued anti-slip pads underneath.

🔧 Construction (bottom to top):

1. Base Body (PLA)

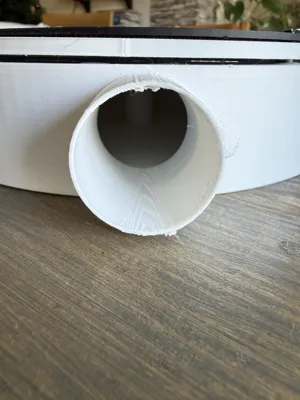

   Sturdy base body with connection for a dust extractor.
2. Seal (TPU)
   Ensures an airtight connection and prevents false air.
3. Perforated Disc (PLA)
   Distributes the vacuum evenly under the sanding mesh.
4. Clamping Ring (PLA)
   Securely fixes the sanding mesh without tension.

✨ Features:

• Ideal for Raysin, Plaster, Keraflott and similar materials
• Supports dust-free or low-dust work
• Sanding mesh quickly and easily replaceable
• Modular design – all parts can be printed separately
• Compatible with common sanding meshes (round)

🖨️ Print Recommendations:

• PLA for base body, perforated disc & clamping ring
• TPU for the seal (flexible, Shore ~95A recommended)
• Support required ( only under the hose nozzle)
• Clean fits with a correctly calibrated printer

🟢 Dust-free Sanding Table for Raysin & Plaster Molds V2 (3-piece)

This compact sanding table was specially developed for low-dust sanding of Raysin, plaster and similar molds. Thanks to the multi-part construction, a sanding mesh can be securely fixed and effectively combined with an extractor.

With a 240 grit sanding mesh, sanding off burn marks on laser-engraved wood also works very well.

For an ideal non-slip stand, I glued anti-slip pads underneath.

🔧 Construction (bottom to top):

1. Base Body (PLA)
   Sturdy base body with connection for a dust extractor.
2. Perforated Disc (PLA)
   Distributes the vacuum evenly under the sanding mesh.

3. Clamping Ring (PLA)
   Securely fixes the sanding mesh without tension.



✨ Features:

• Ideal for Raysin, Plaster, Keraflott and similar materials
• Supports dust-free or low-dust work
• Sanding mesh quickly and easily replaceable
• Modular design – all parts can be printed separately
• Compatible with common sanding meshes (round)

🖨️ Print Recommendations:

• PLA for base body, perforated disc & clamping ring
• Support required ( only under the hose nozzle)
• Clean fits with a correctly calibrated printer

⚠️ Note:
