Garden Hose Holder - 2x6 Rafter Mount

Remixed by
IP Report

Print Profile(1)

All
P1S
H2S
P1P
X1E
X1
H2D
X1 Carbon
A1
H2C
H2D Pro
P2S
X2D
A2L

0.28mm layer, 4 walls, 50% Adaptive Cubic infill
0.28mm layer, 4 walls, 50% Adaptive Cubic infill
Designer
17.9 h
2 plates

Open in Bambu Studio
Boost
6
20
0
1
47
3
Released

Bill of Materials

Bambu Filaments
Select all
Blue (33600) / Filament with spool / 1 kg

Description

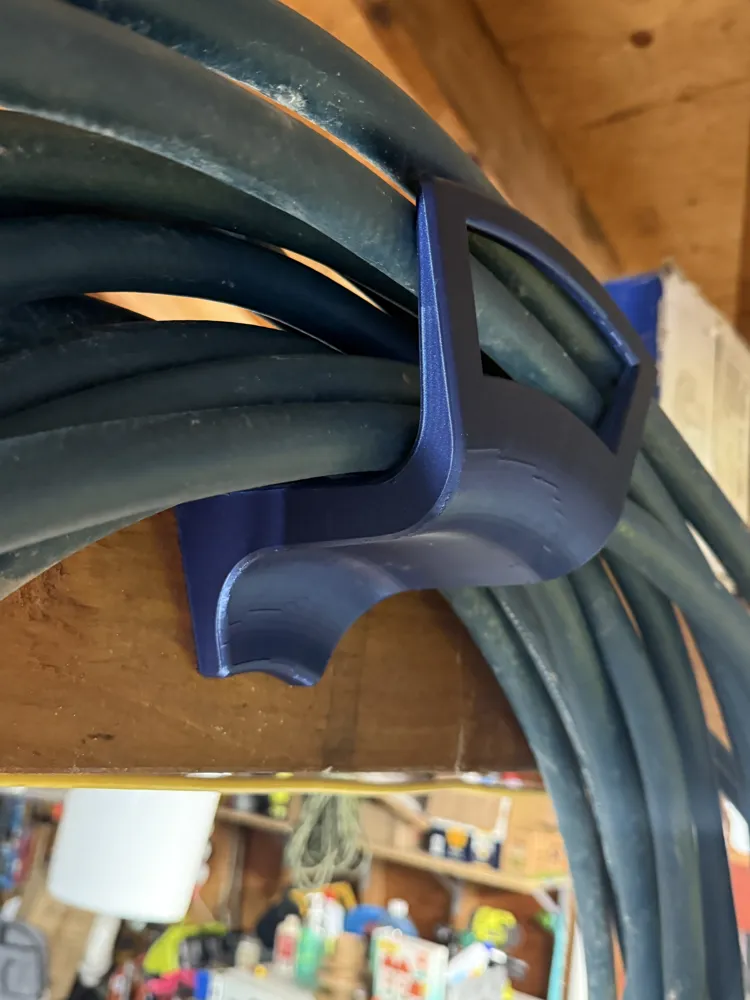

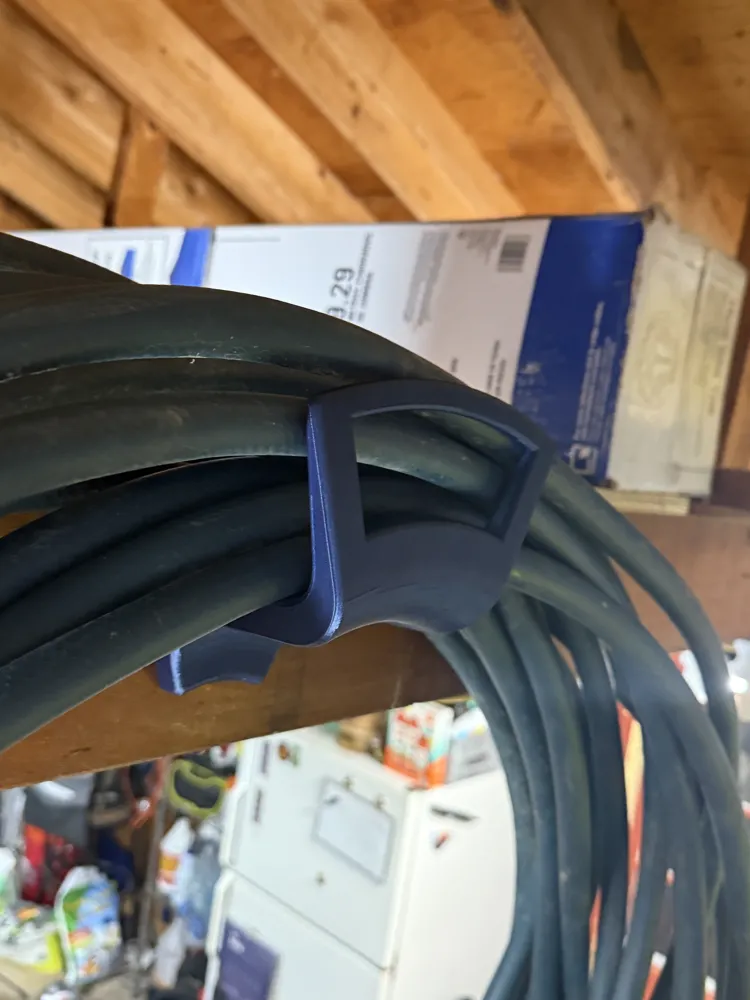

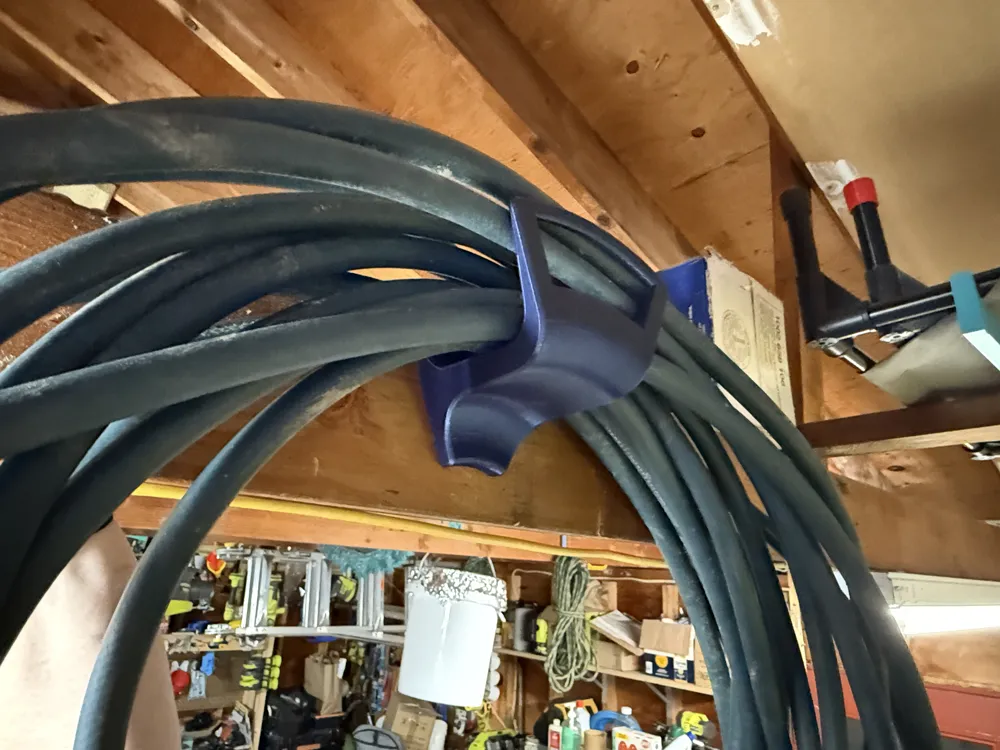

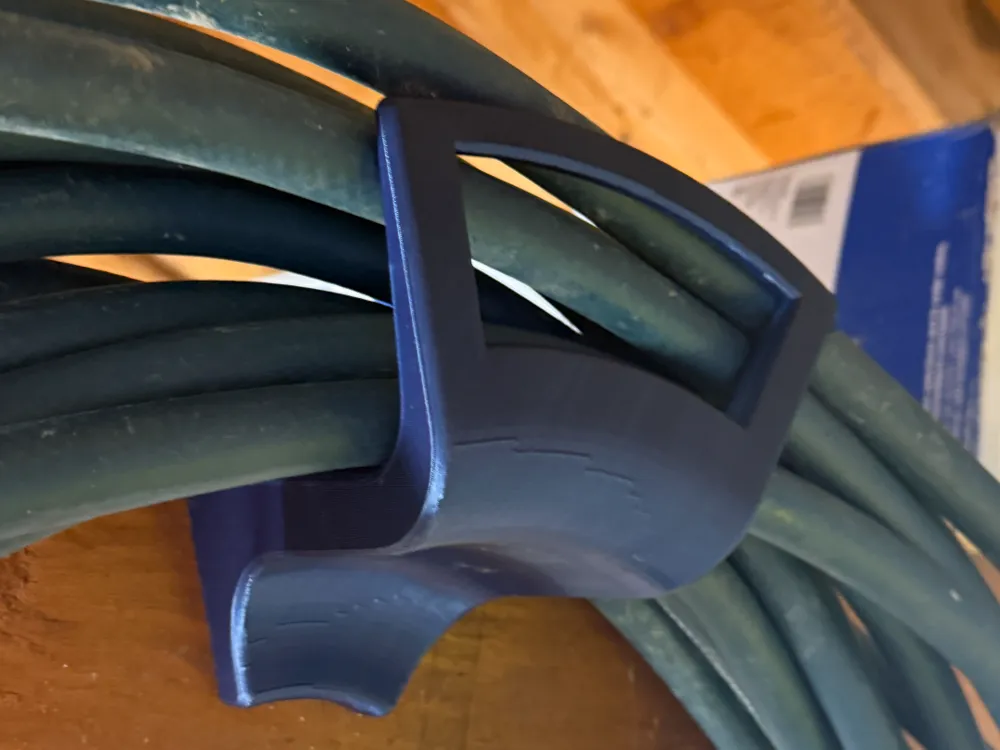

I wanted to store a hose or two in the rafters this winter. I made a remix of TeknikFrik's (Printables.com) model to add 2x6 rafter hook mounting option. I also made a version with an extra length hose hook for multiple hoses / extra large hose.



If using STLs, here are the print settings that worked for me:

  • Filament: PETG / ABS / ASA for anywhere that may get hot. PLA may be fine for cooler climates - however I did not test PLA.
  • Nozzle: 0.4
  • Layer Height: 0.28mm
  • Wall loops: 4 (Add extra wall loop for extended version)
  • Top/bottom shell layers: 5
  • Sparse Infill: 50% Adaptive Cubic
  • Supports: None
  • Bed Adhesion: Mouse Ears, at least 8mm brim width on ears. Could also benefit from a full brim if your build plate adhesion is typically a struggle. The narrow part furthest from the rafter is where I experienced the most warping.
