Powerful Fan v2 Ducted Fan 40mm
Print Profile(7)
Description

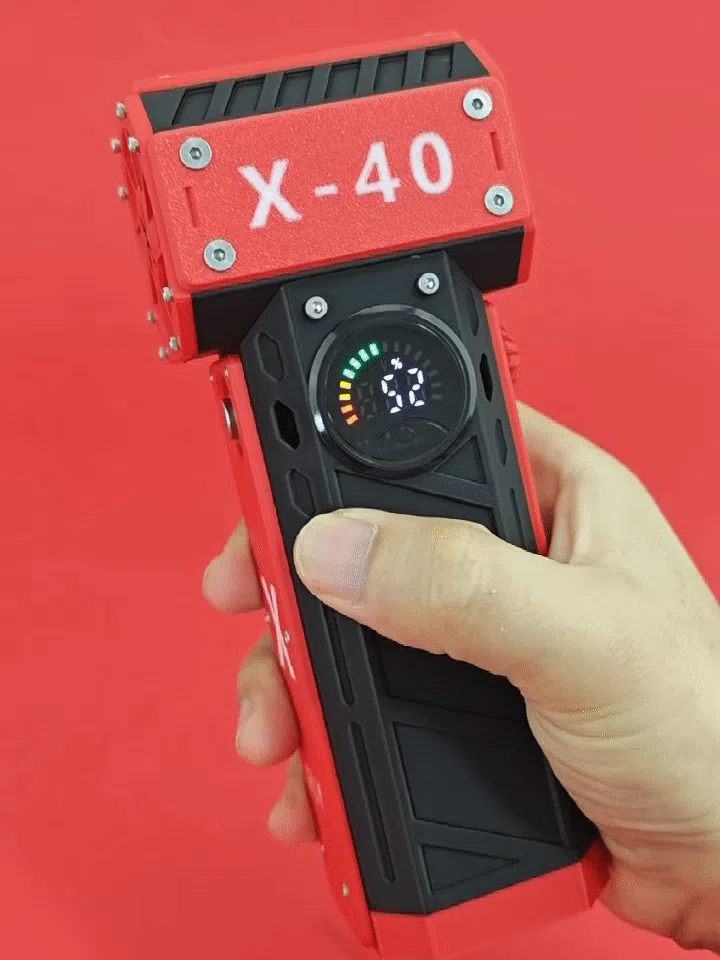

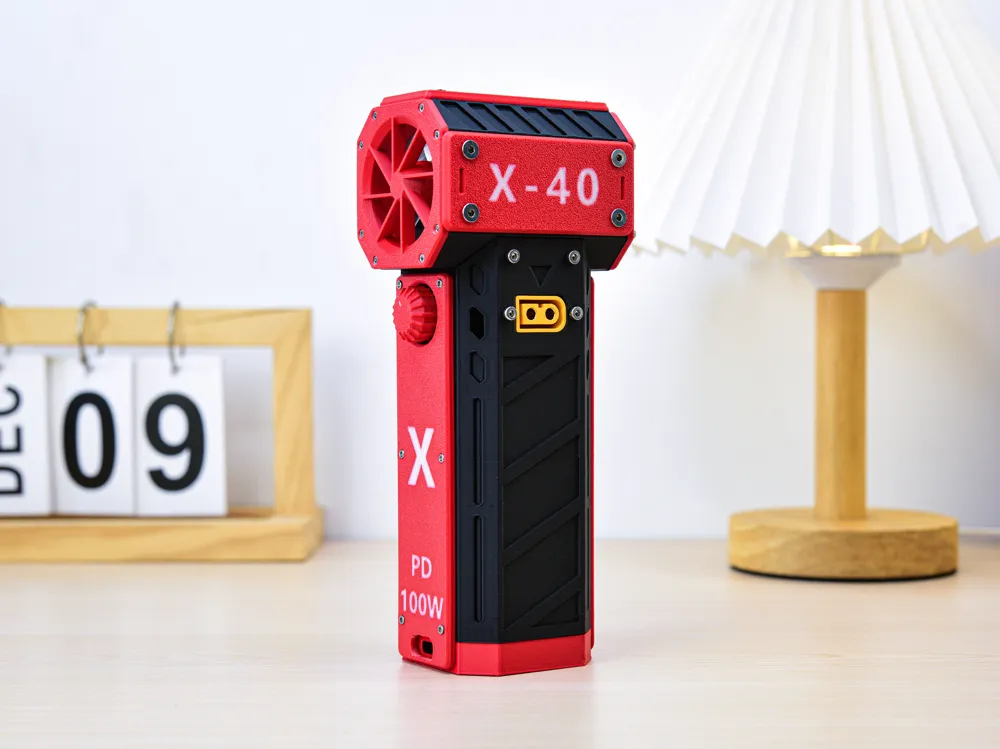

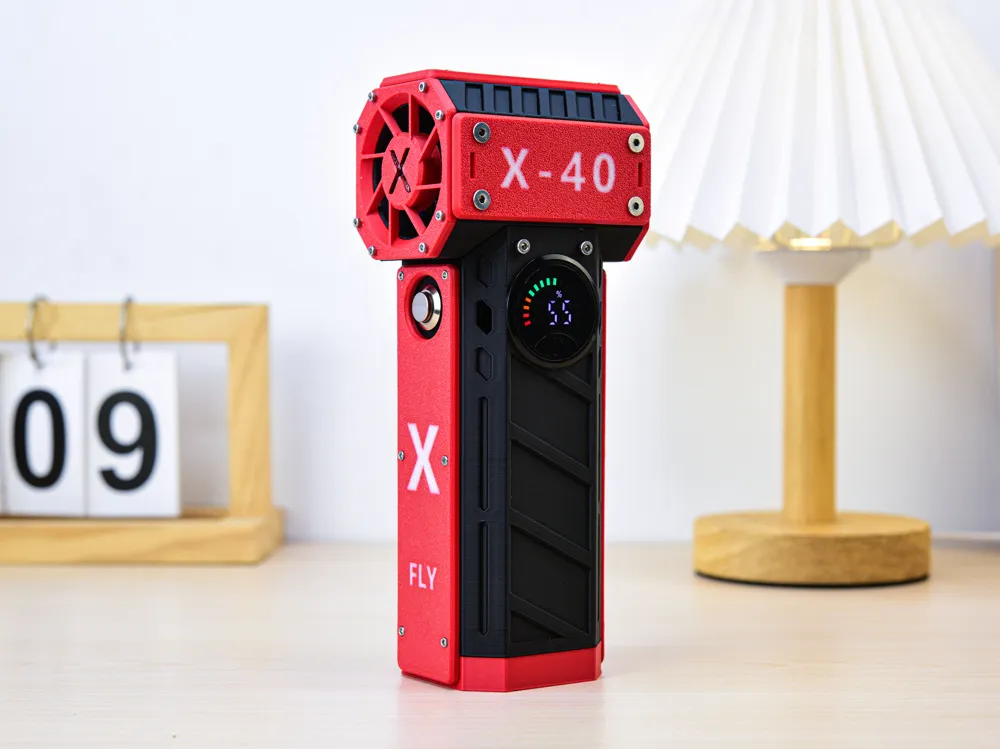

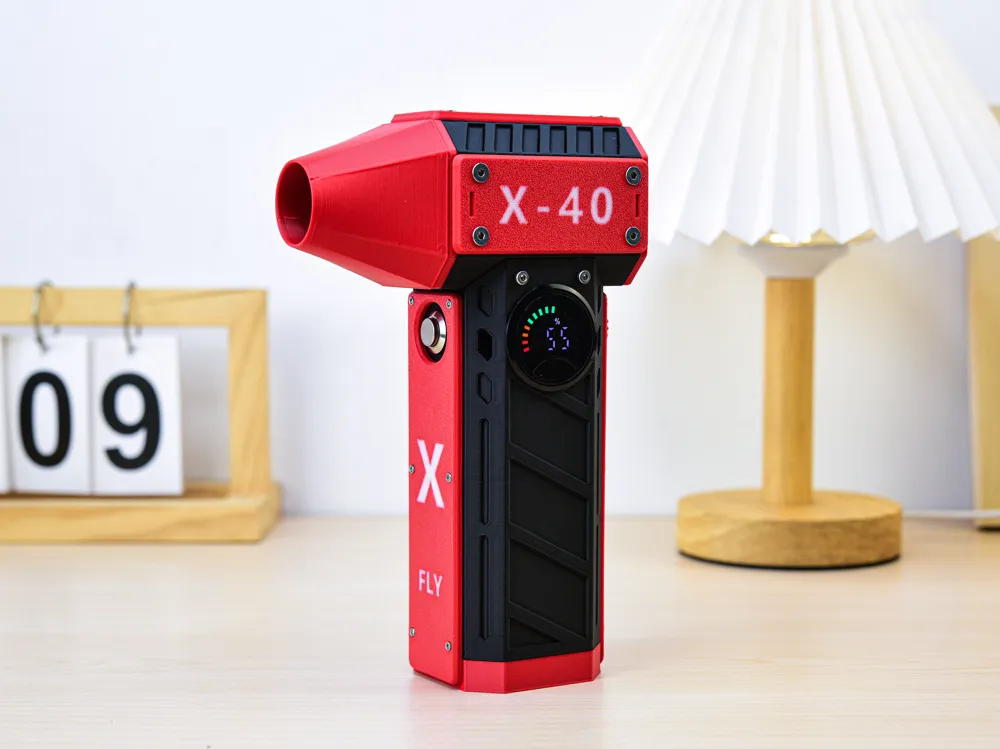

Powerful Fan X-40 V2 Version
Updated iterative version, with optimized appearance and layout, fixing some issues present in the first version
1. Charging module updated to support PD60-100w bidirectional fast charging
2. Display upgraded to a touchscreen, capable of switching between voltage and power display
3. Added an XT60 output interface, which can be connected to clamps for use as a jump starter
The 100w charging module chosen is a more cost-effective option without a digital screen display, as using the integrated screen on the device body is more practical. The digital display charging modules sold on Taobao are inaccurate and overpriced
Since the display, XT60 interface, and speed control switch are all integrated in one location, there are many wires. Pay attention to the installation order: first solder the battery to the XT60 interface and install it, then arrange other components freely, and finally solder the motor power supply wires

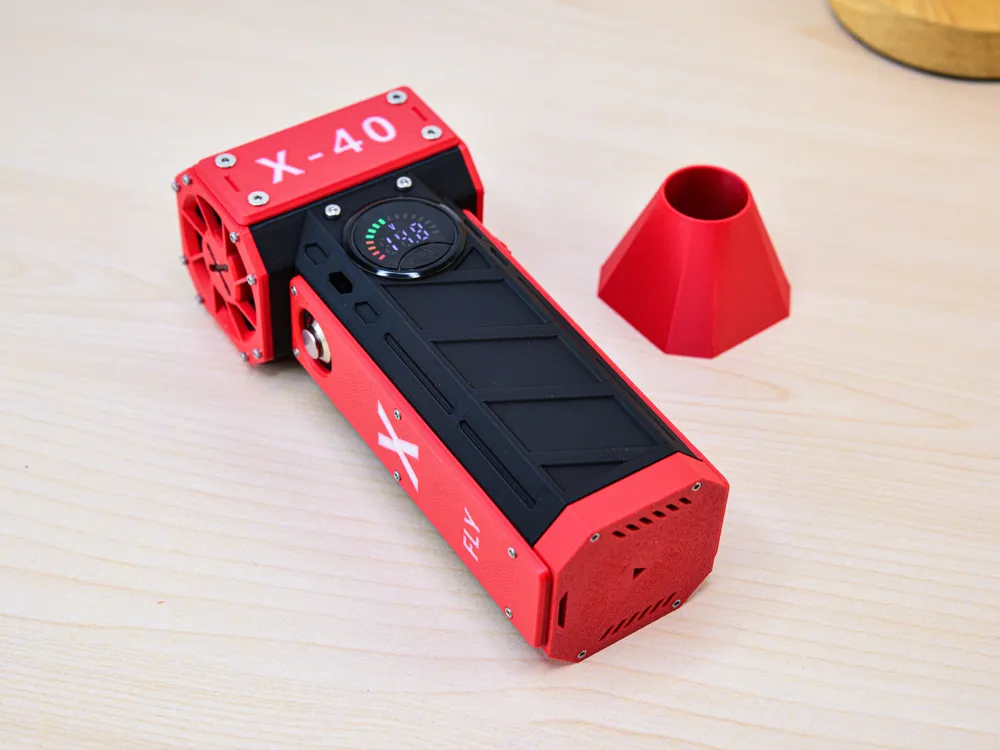

The magnetic nozzle and dust collection kit are compatible with the previous version

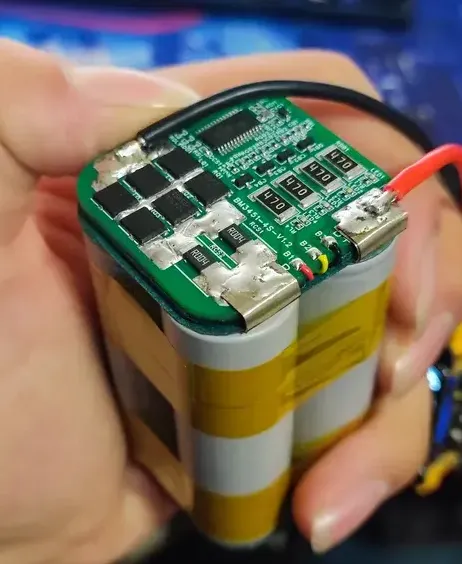

4 sections of 21700 batteries welded in series

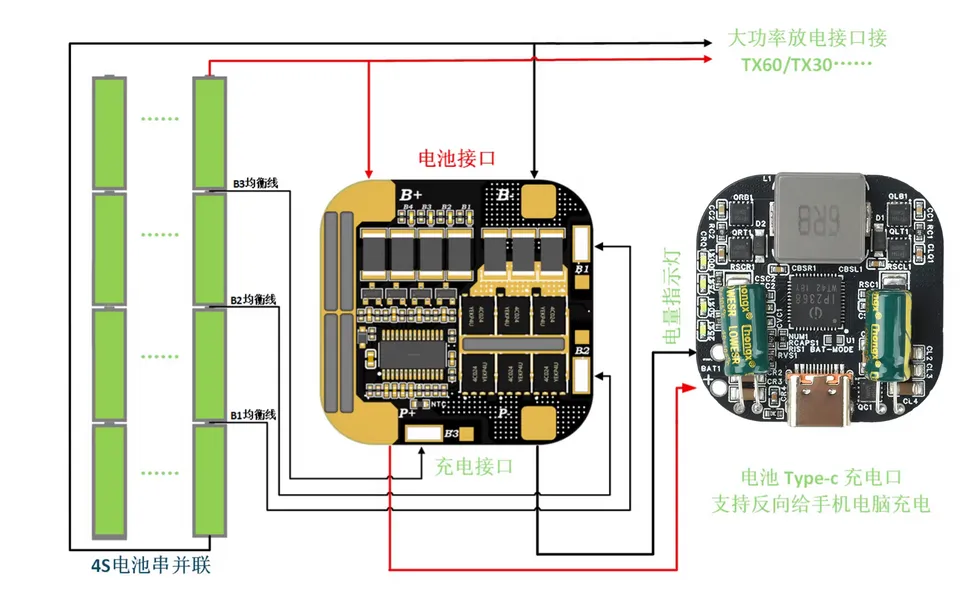

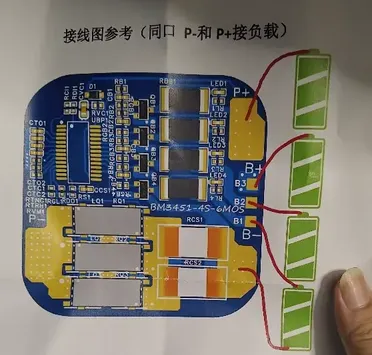

Wiring diagram for the protection board and charging module

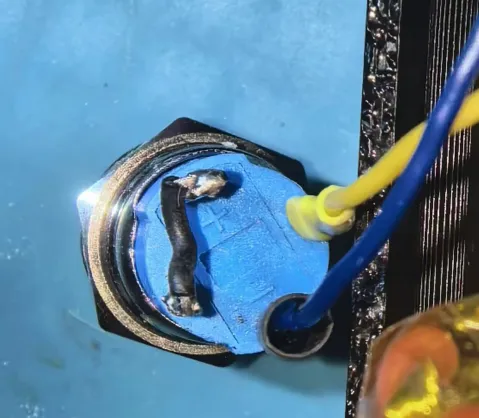

Note: Some users reported burning the control board due to incorrect wiring,
The push button switch connects to the two control wires of the motor, do not connect it directly to the power supply
Finished product or materials on Goofish: Ultimate DIY
Boost Me (for free)
If you like it, please click boost, thanks!
