Description
BRIO-Compatible Acorn Nut & Standard Nut – Anti-Lock System
Expand your construction possibilities with this set of acorn nuts and standard nuts, perfectly matched to the classic wooden construction system.

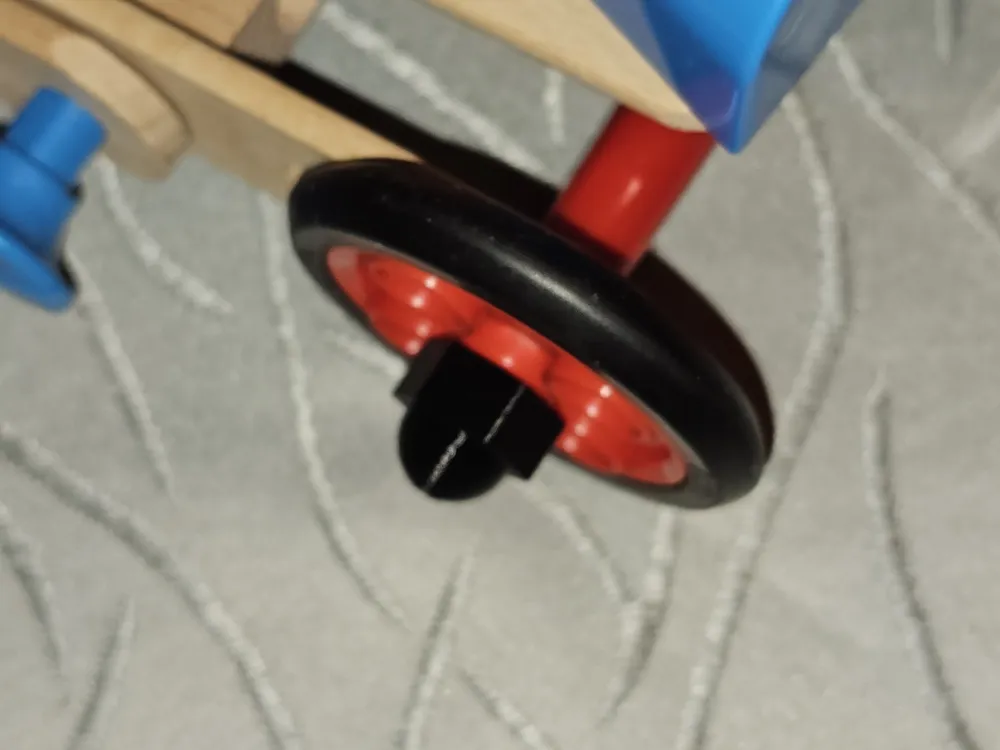

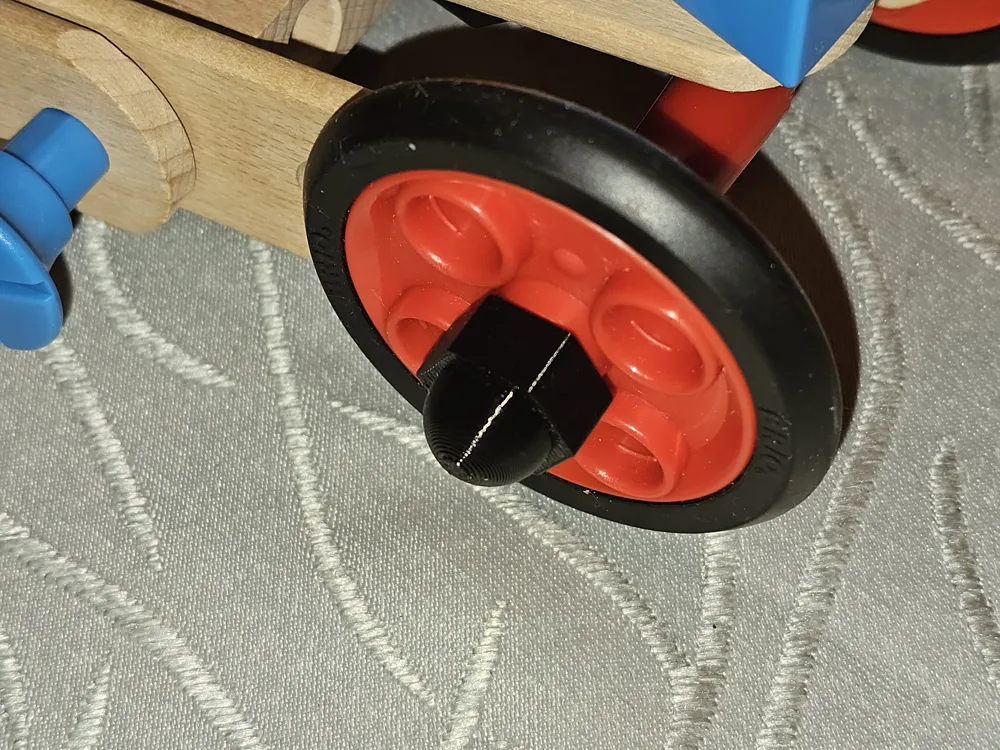

Every maker knows the problem: you build a crane or a vehicle, and at the end of a threaded rod, the nut constantly loosens. The acorn nut developed here is the solution! It serves as a natural end stop and secures the connection against unintentional twisting, without the need for a second nut to counter it.
🛠️ Features

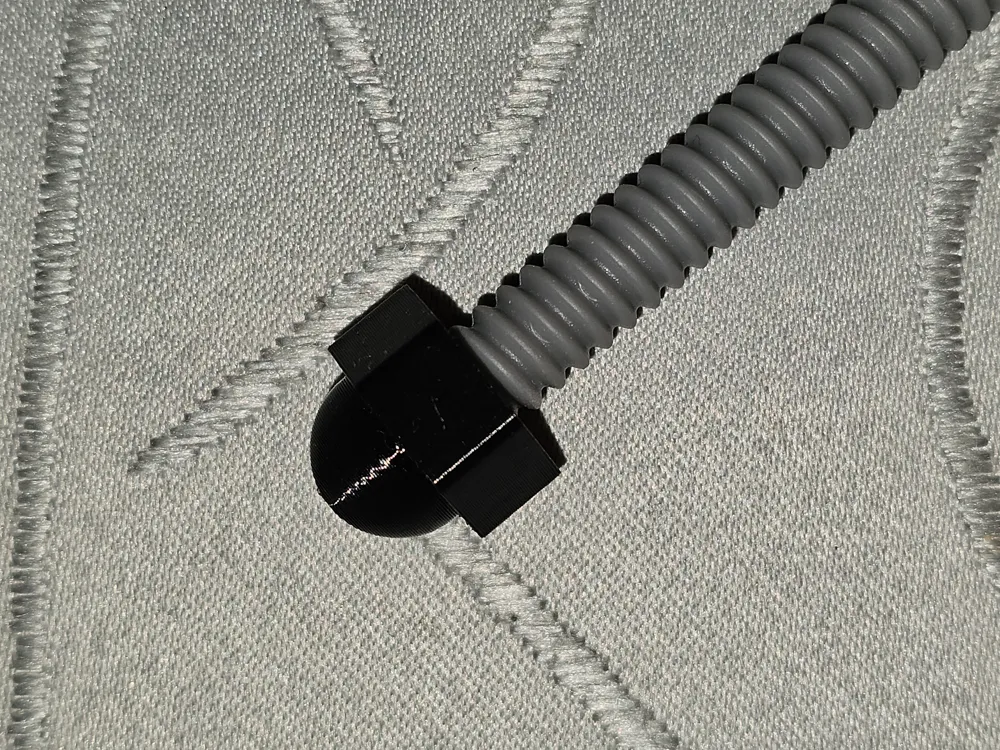

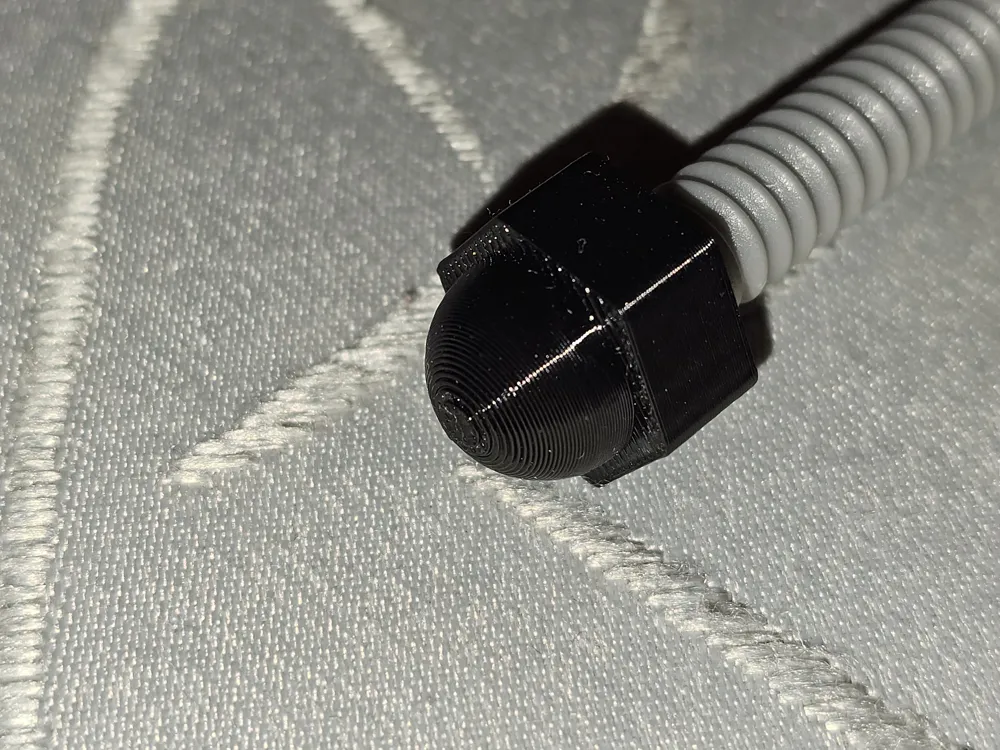

- Acorn Nut: Ideal as an end for threaded rods or screws. Secures components firmly without counter-nutting.
- Standard Nut: A robust replacement nut for all common connections.
- Optimized Fit: Smooth-running thread that grips cleanly even with 3D printed tolerances.
- Ergonomic Design: The shape is based on the original BRIO design to ensure easy handling for children's hands.
⚙️ Compatibility
The thread is precisely matched to the standard dimensions of classic wooden construction systems. Tested and fully compatible with:
- BRIO Builder
- Eichhorn Constructor
- Heros
- Baufix (with identical thread pitch)
🖨️ Print Recommendations
- Material: PLA, PETG or (for maximum durability) Tough PLA.
- Layer Height: 0.16mm or 0.2mm (for clean threads).
- Infill: At least 20% (Gyroid recommended).
- Wall Lines: 3-4 walls ensure that the thread does not break even when tightened firmly.
- Support: Not required.
